Woofer Series

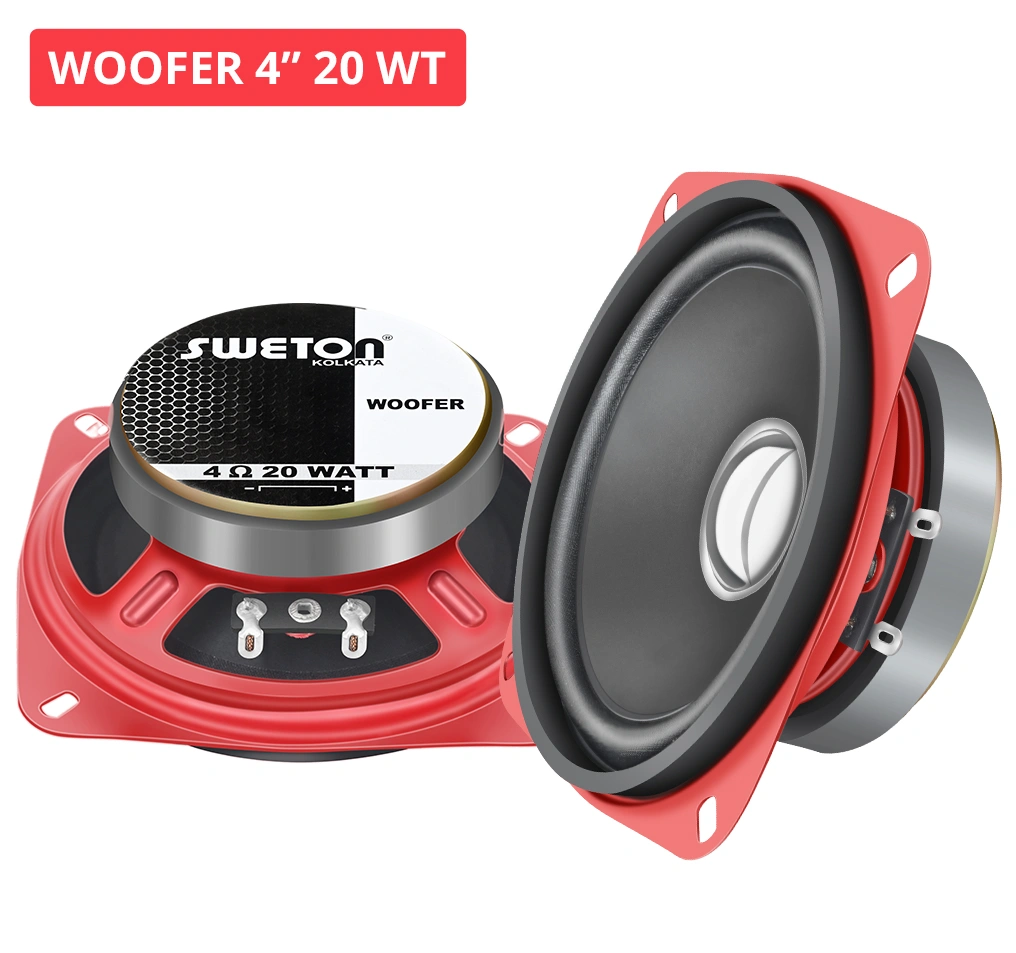

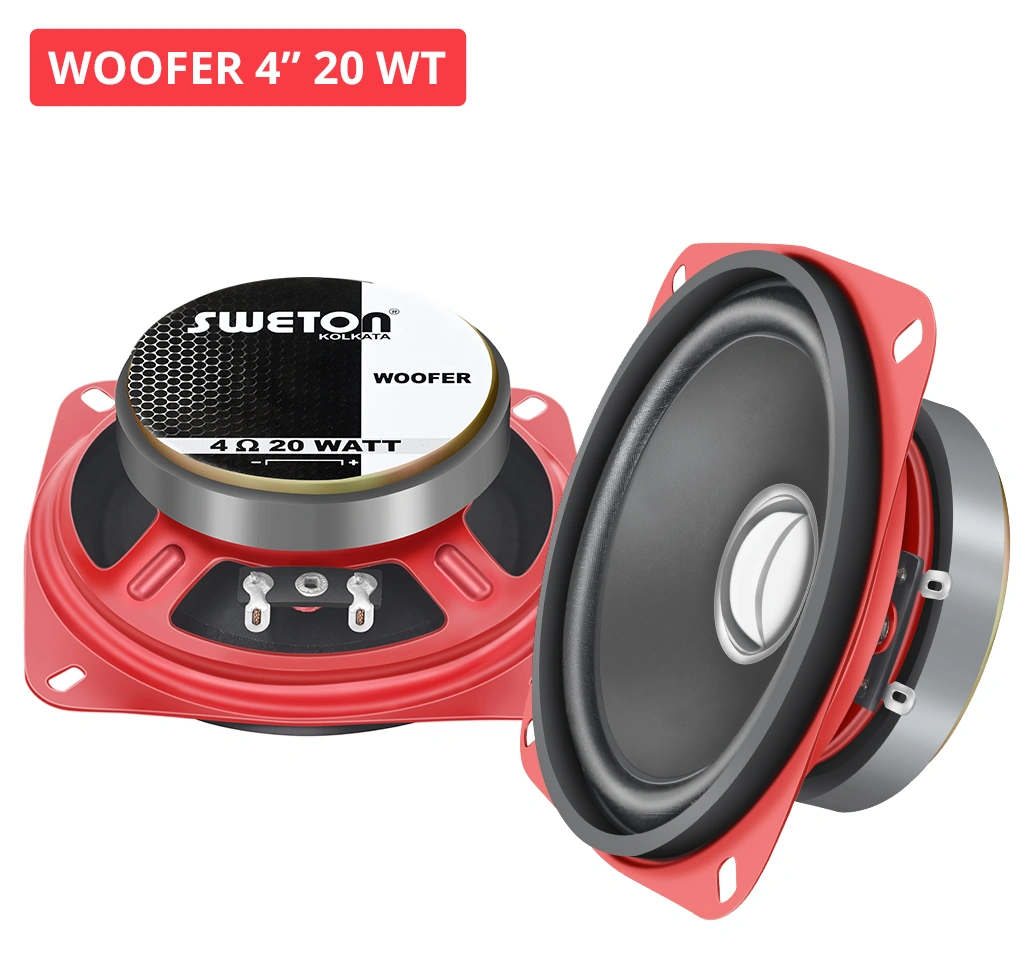

4" 20 WT WOOFER
Program Power :
40 W
Voice Coil Diameter :
19.1 mm
Response :
231-13K Hz
Sensitivity 1W/1M :
86 db

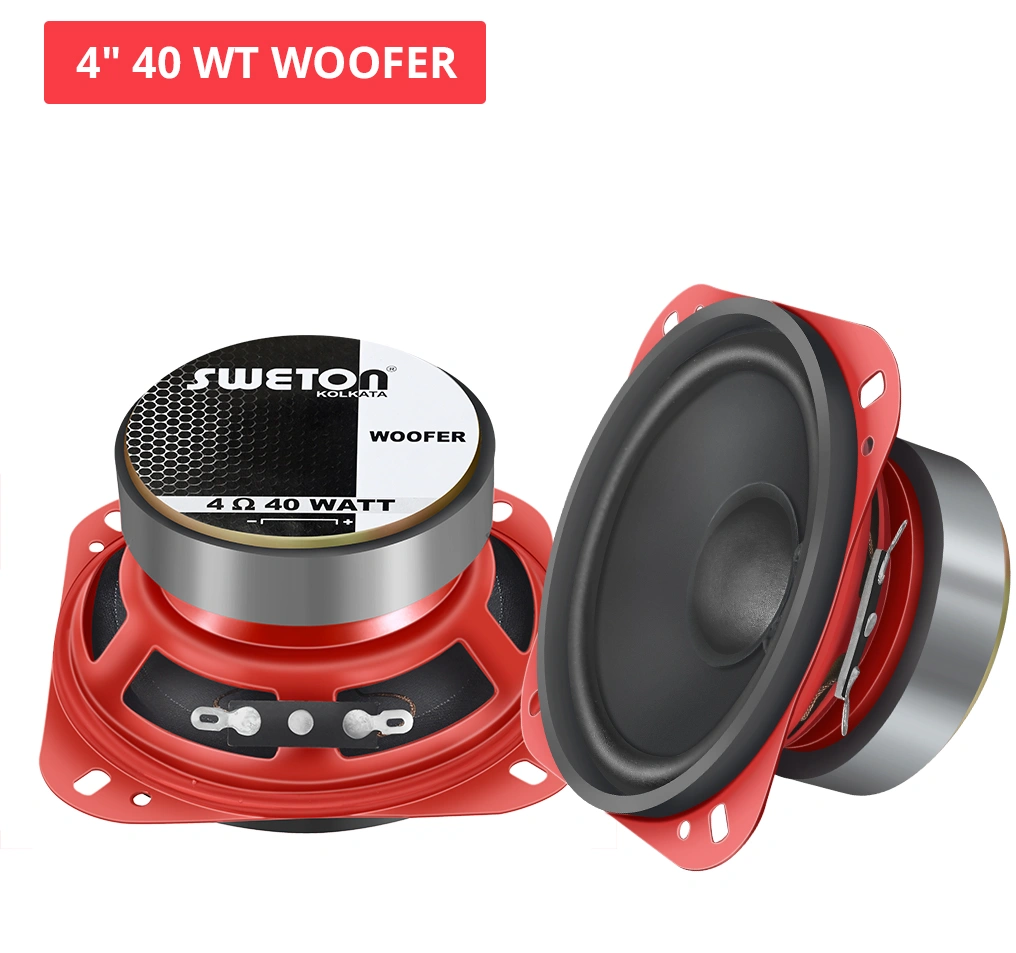

4" 40 WT WOOFER
Program Power :
80 W
Voice Coil Diameter :
19.18 mm
Response :
202-3K Hz
Sensitivity 1W/1M :
87 db

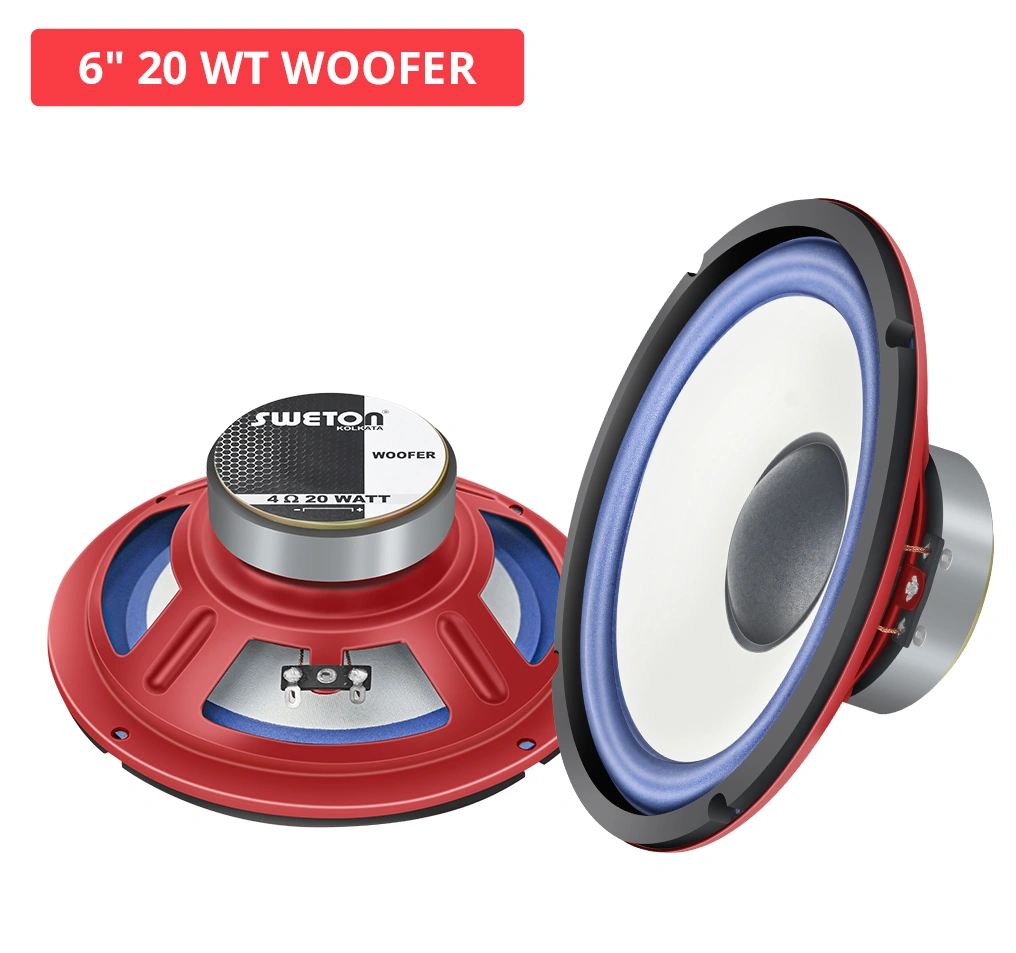

6" 20 WT WOOFER
Nominal Impedance :
4 Ω
Program Power :
40 W
Voice Coil Diameter :
25.4 mm
Response :
79-7.5K Hz
Sensitivity 1W/1M :
86 dB

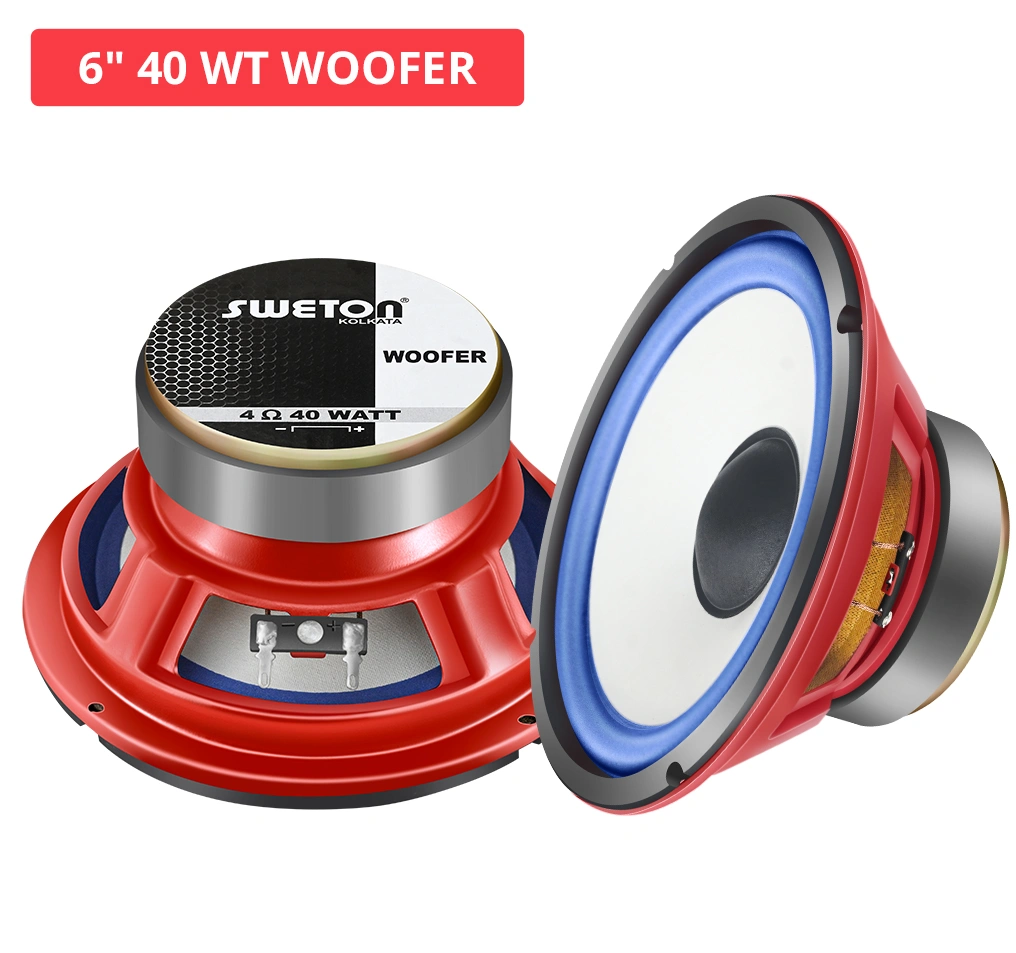

6" 40 WT WOOFER
Program Power :
80 W
Voice Coil Diameter :
25.68 mm
Response :
70 - 7K Hz
Sensitivity 1W/1M :
89 dB

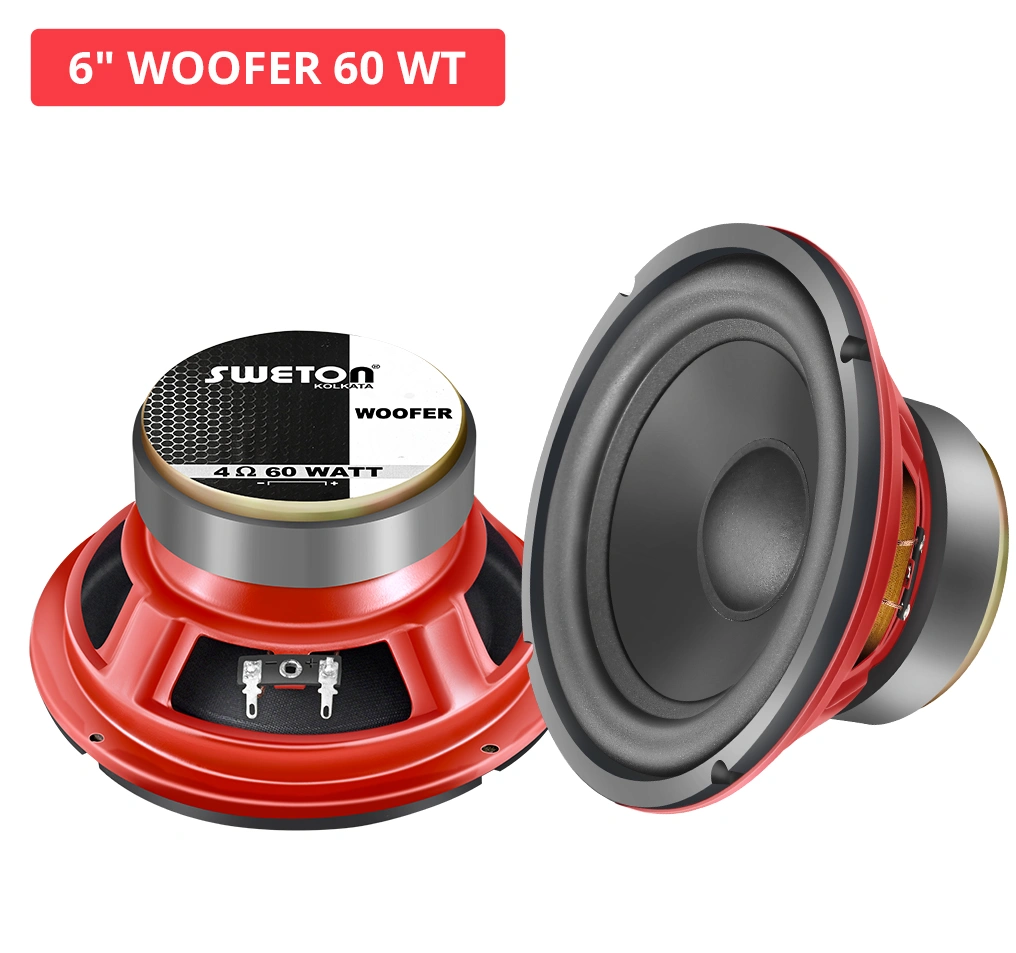

6" WOOFER 60 WT
Program Power :
120 W
Voice Coil Diameter :
25.68 mm
Response :
79-8K Hz
Sensitivity 1W/1M :
87 dB

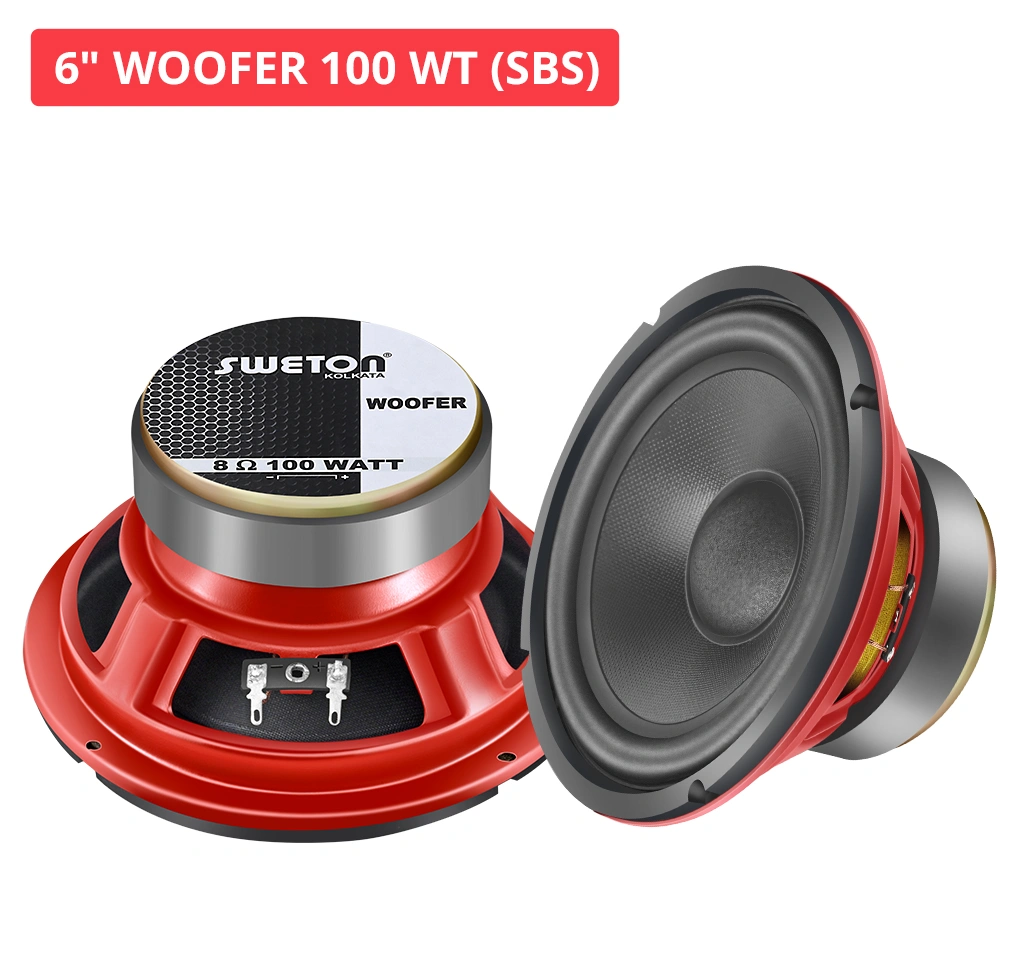

6" WOOFER 100 WT (SBS)
Program Power :
200 W
Voice Coil Diameter :
25.5 mm
Response :
68-8K Hz
Sensitivity 1W/1M :
87 dB

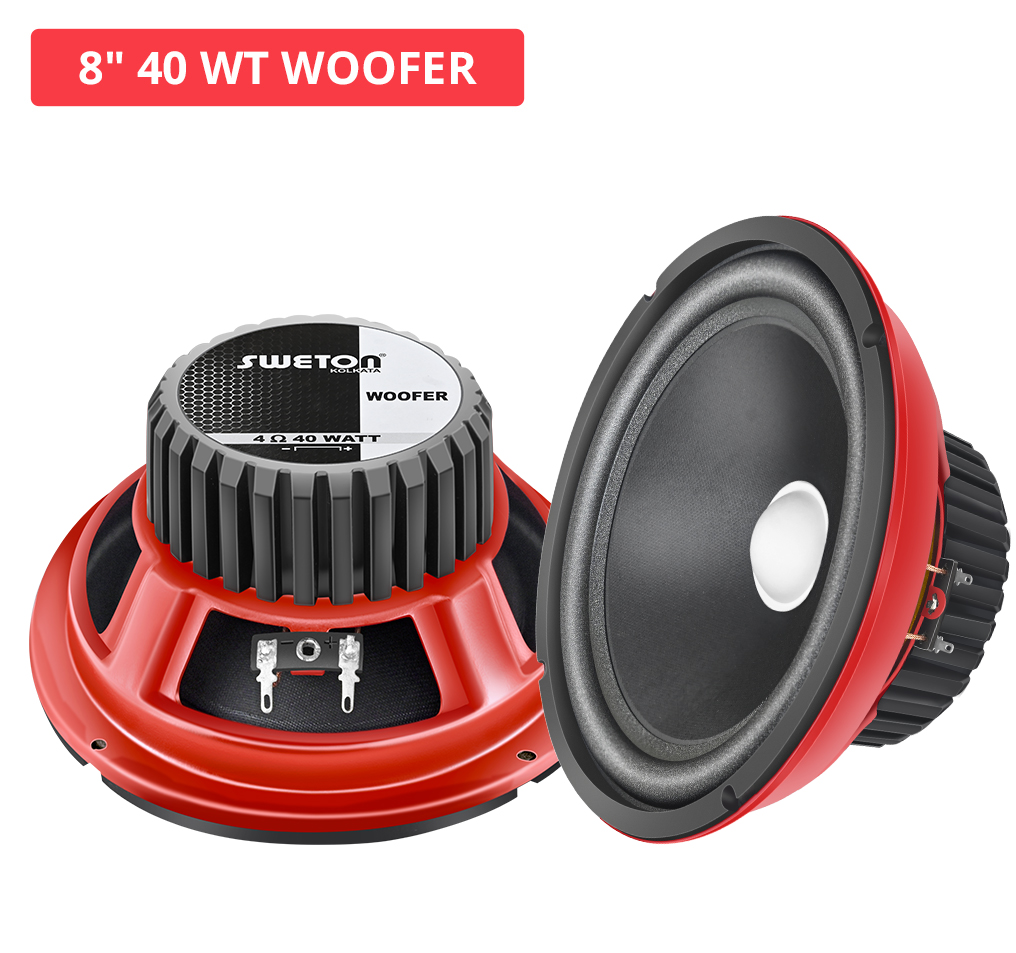

8" 40 WT WOOFER
Program Power :
80 W
Voice Coil Diameter :
25.4 mm
Response :
79-10.2K Hz
Sensitivity 1W/1M :
91 dB

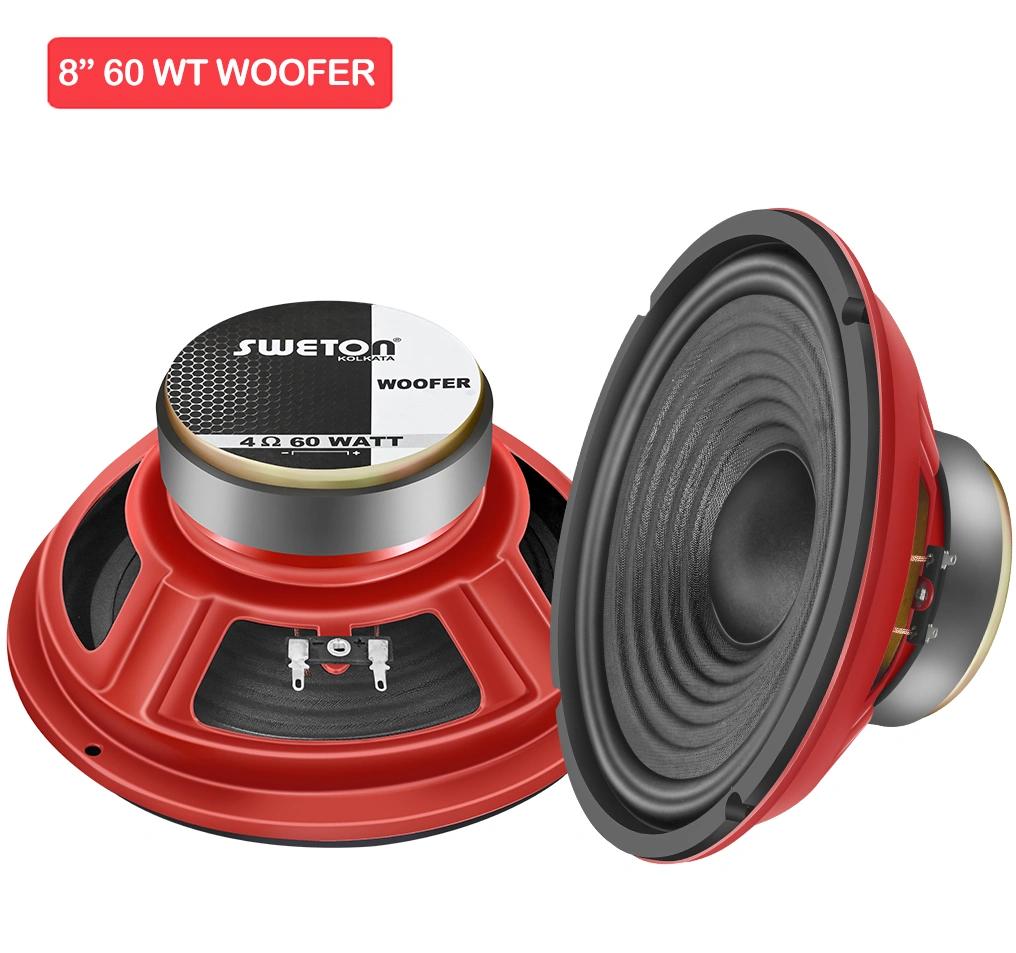

8" 60WT WOOFER
Program Power :
120 W
Voice Coil Diameter :
25.4 mm
Response :
63-6.7K Hz
Response :
92 dB

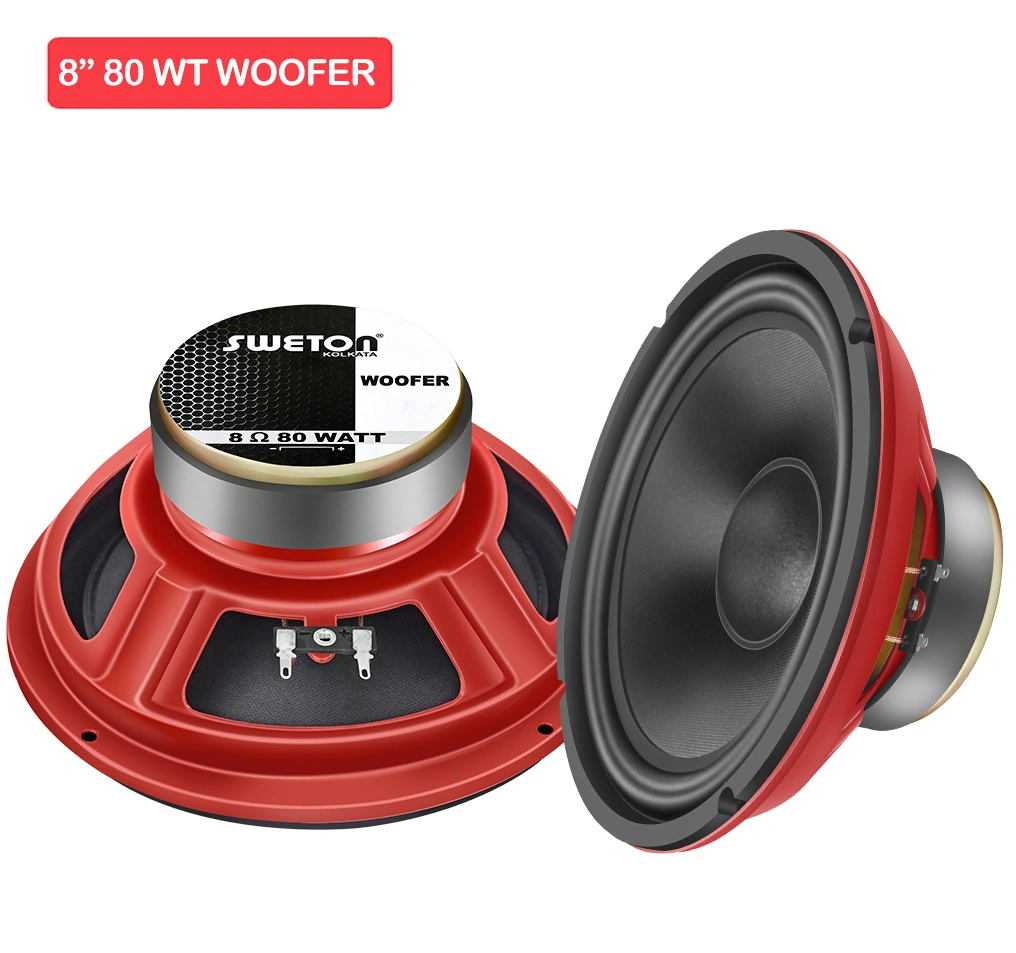

8" 80WT WOOFER
Program Power :
160 W
Voice Coil Diameter :
25.4 mm
Response :
58-5.7K Hz
Sensitivity 1W/1M :
88 dB

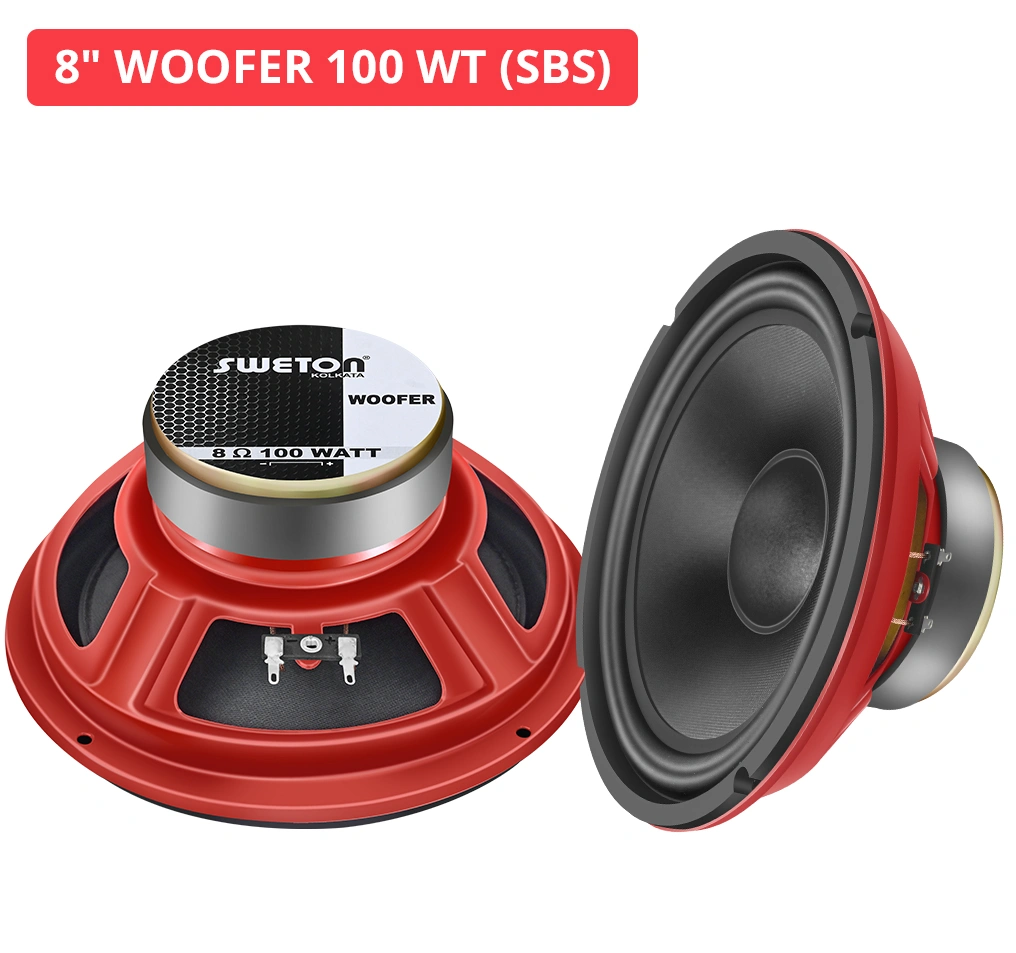

8" WOOFER 100 WT (SBS)
Program Power :
200 W
Voice Coil Diameter :
25.5 mm
Response :
53-6.7K Hz
Sensitivity 1W/1M :
88 dB

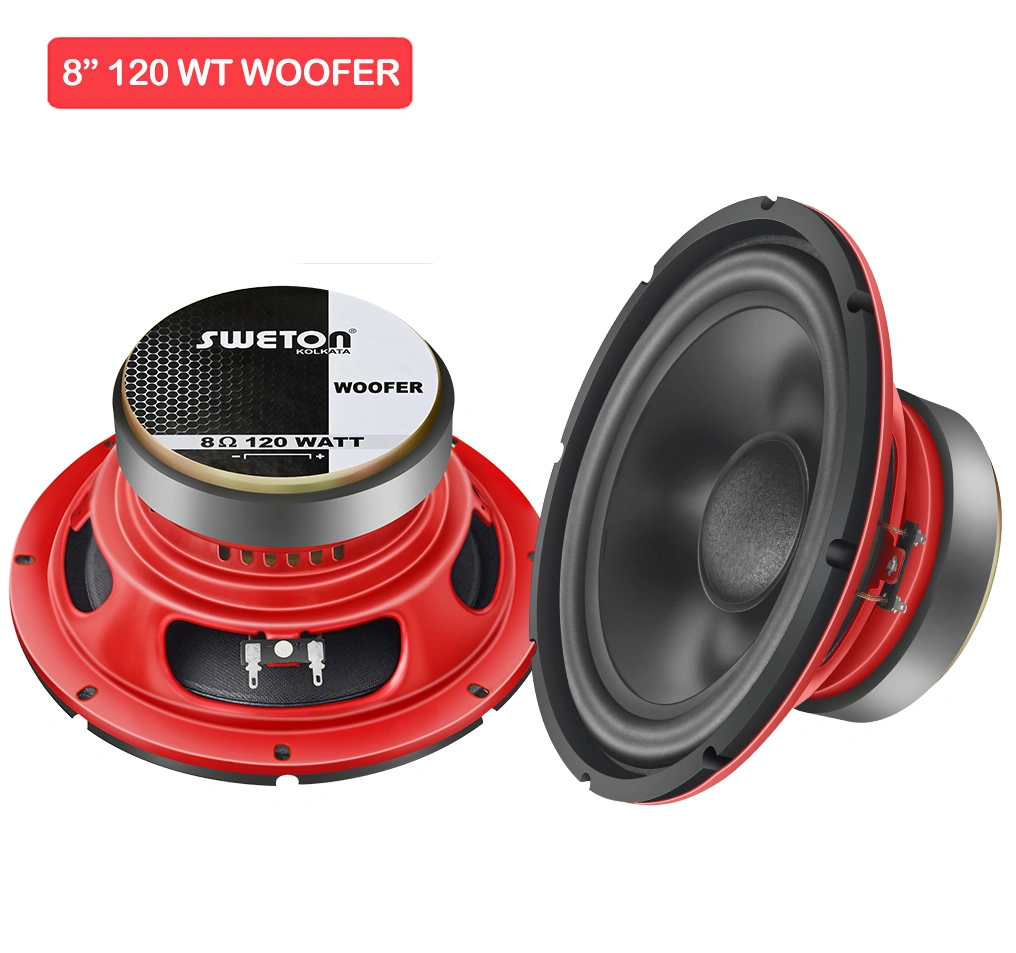

8" 120 WT WOOFER
Program Power :
240 W
Voice Coil Diameter :
34 mm
Response :
61-4.2K Hz
Sensitivity 1W/1M :
88 db

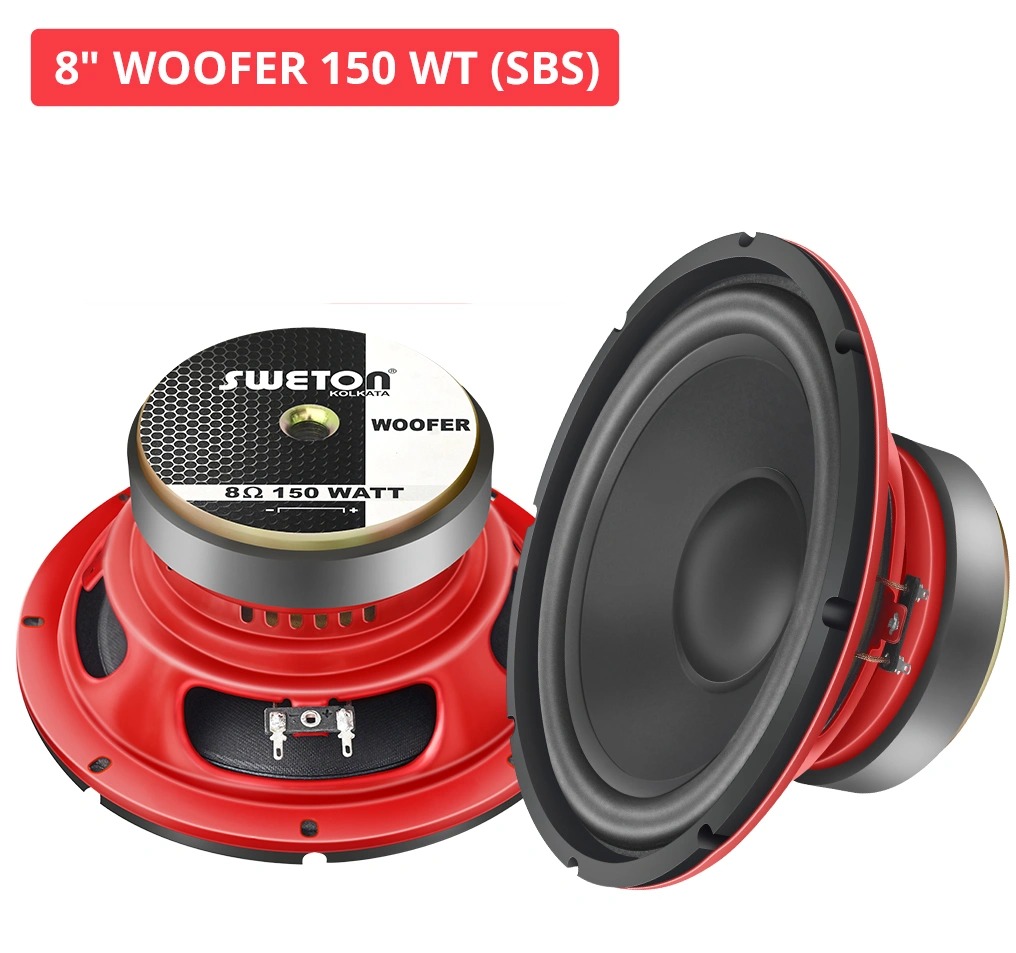

8" WOOFER 150 WT (SBS)
Program Power :
300 W
Voice Coil Diameter :
35 mm
Response :
50-4.8K Hz
Sensitivity 1W/1M :
89 dB

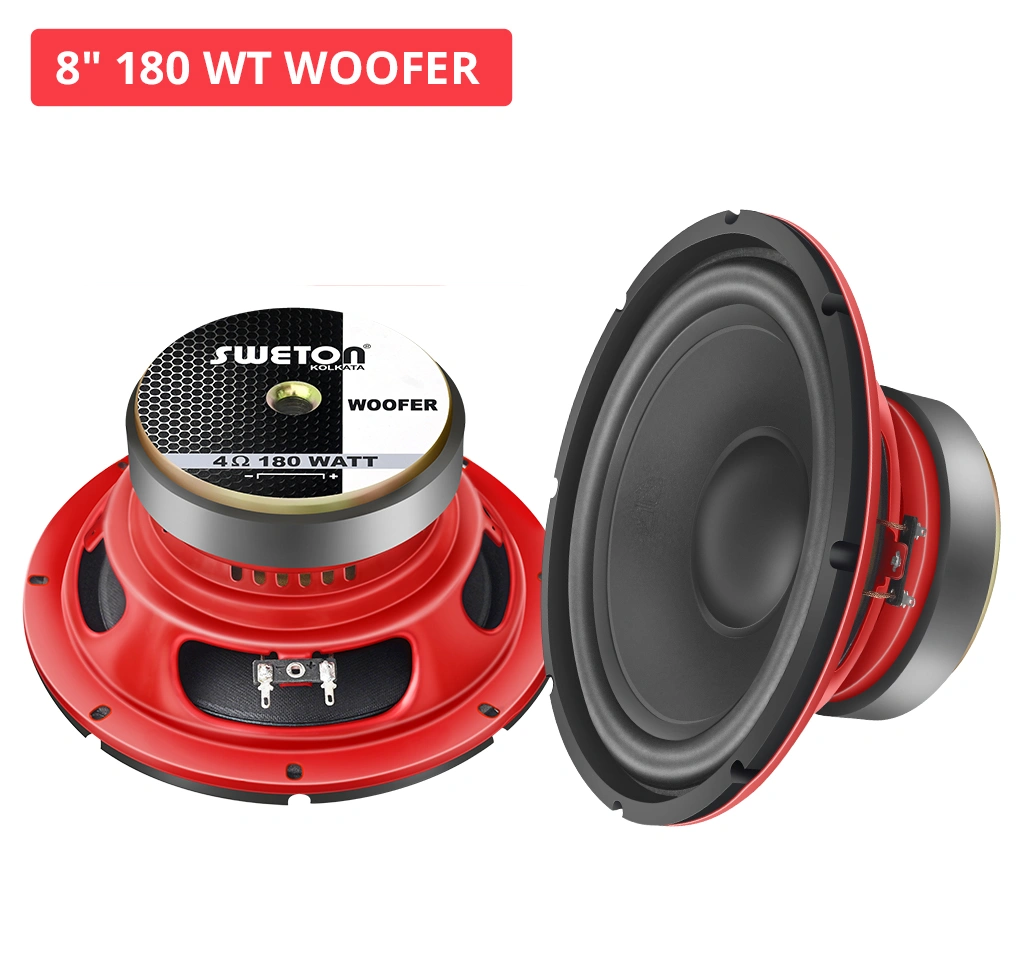

8" 180 WT WOOFER
Program Power :
360 W
Voice Coil Diameter :
35 mm
Response :
53-5.3K Hz
Sensitivity 1W/1M :
90 db

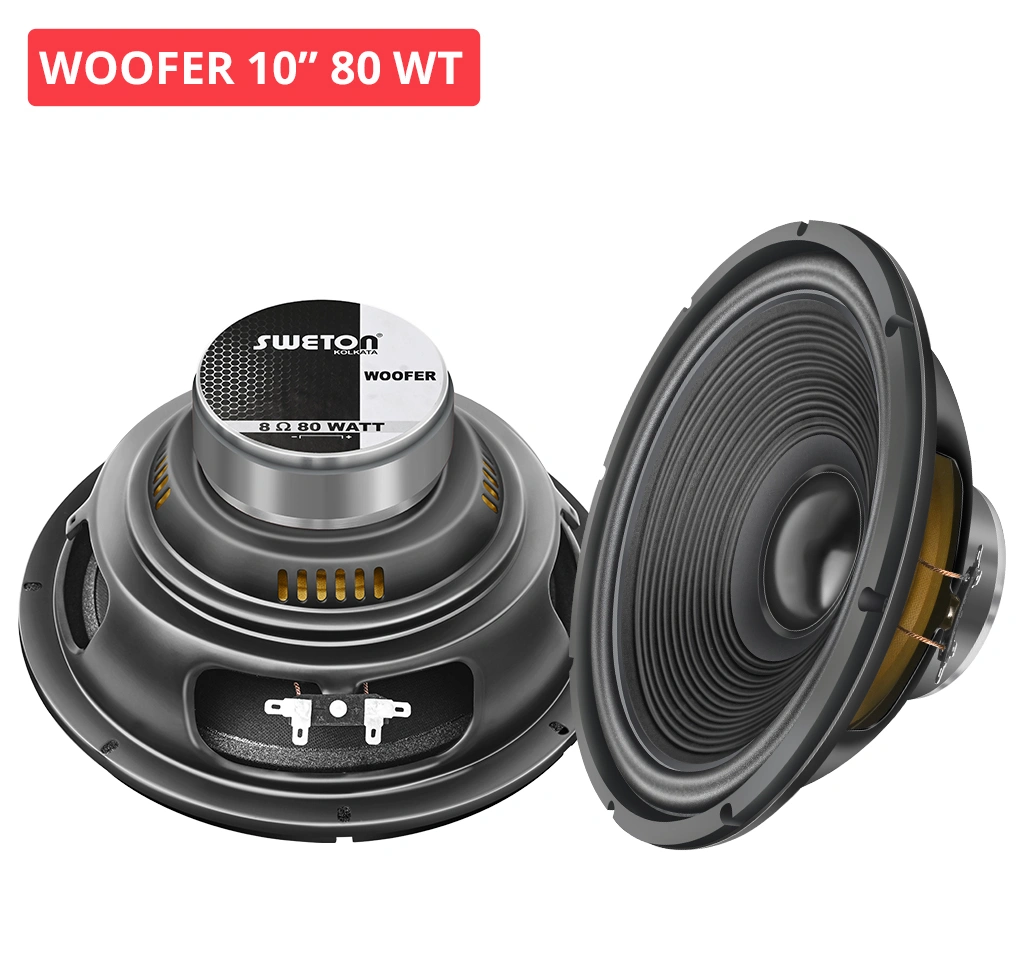

10" 80 WT WOOFER
Program Power :
160 W
Voice Coil Diameter :
34 mm
Response :
61-4.7K Hz
Sensitivity 1W/1M :
89 db

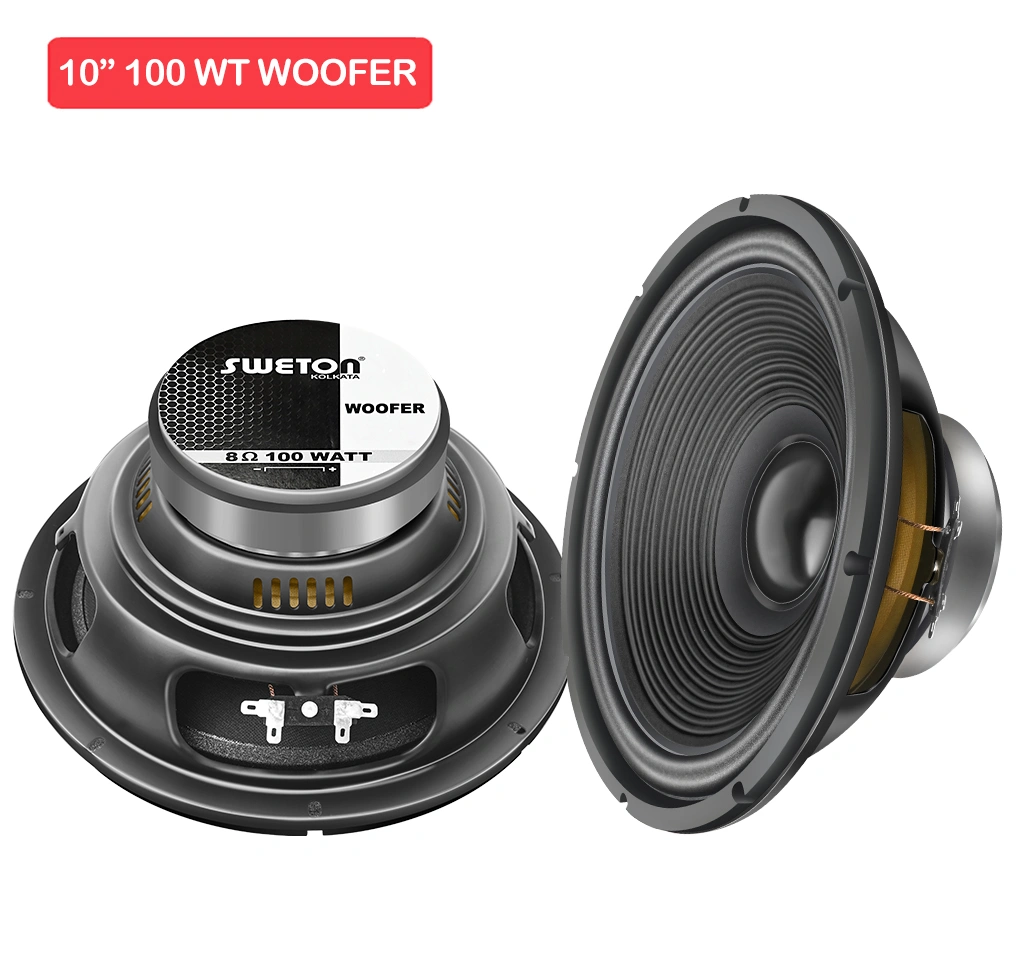

10" 100 WT WOOFER
Program Power :
200 W
Voice Coil Diameter :
34 mm
Response :
61-5.5K Hz
Sensitivity 1W/1M :
90 dB

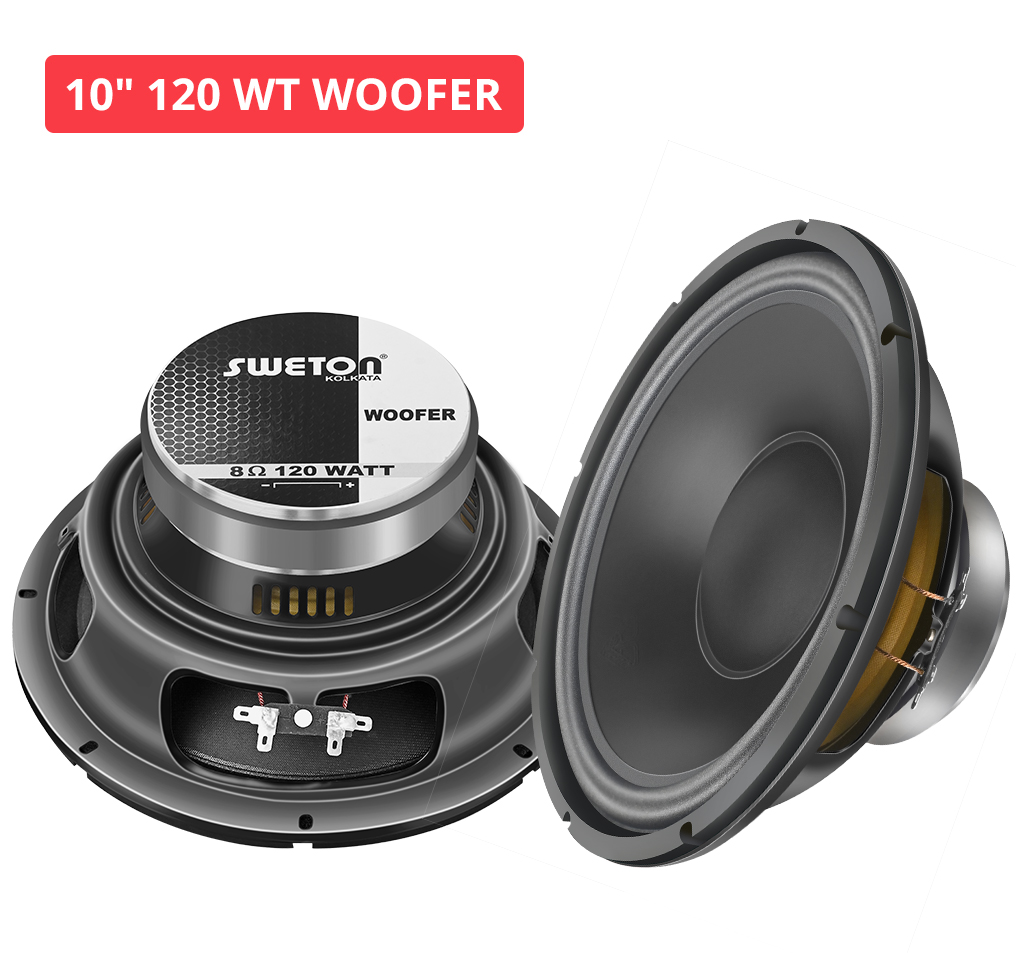

10" 120 WT WOOFER
Program Power :
240 W
Voice Coil Diameter :
44.45 mm
Response :
44-3.4K Hz
Sensitivity 1W/1M :
91 dB
-2.jpg)

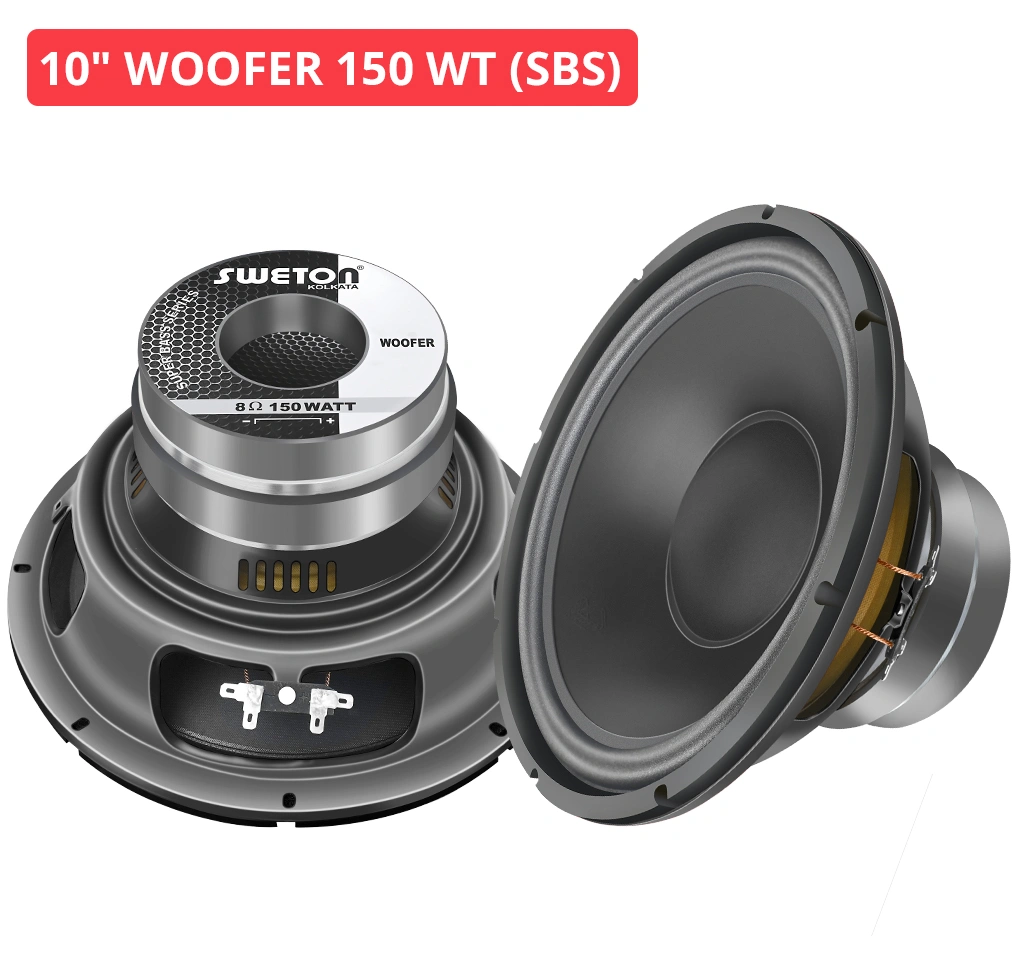

10" WOOFER 150 WT (SBS)
Program Power :
300 W
Voice Coil Diameter :
44.45 mm
Response :
47-4.4K Hz
Sensitivity 1W/1M :
91 dB
