4 Ω

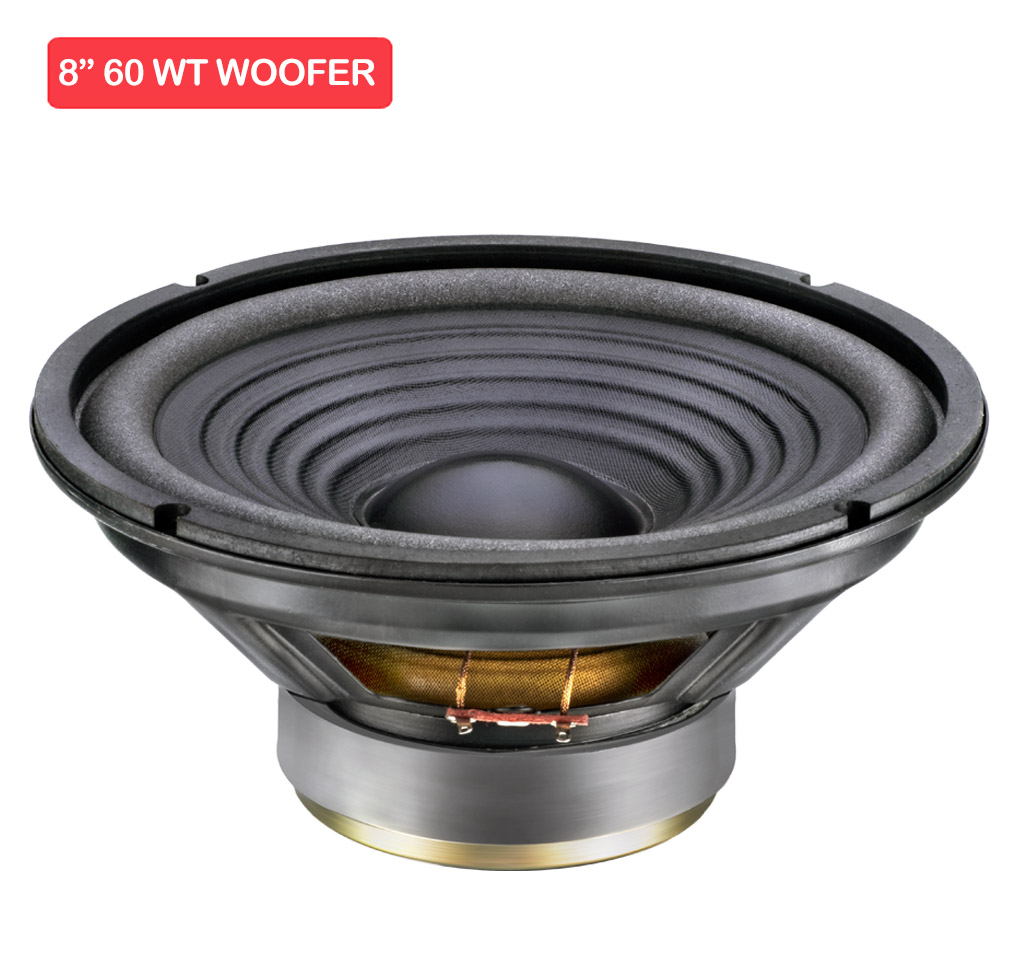

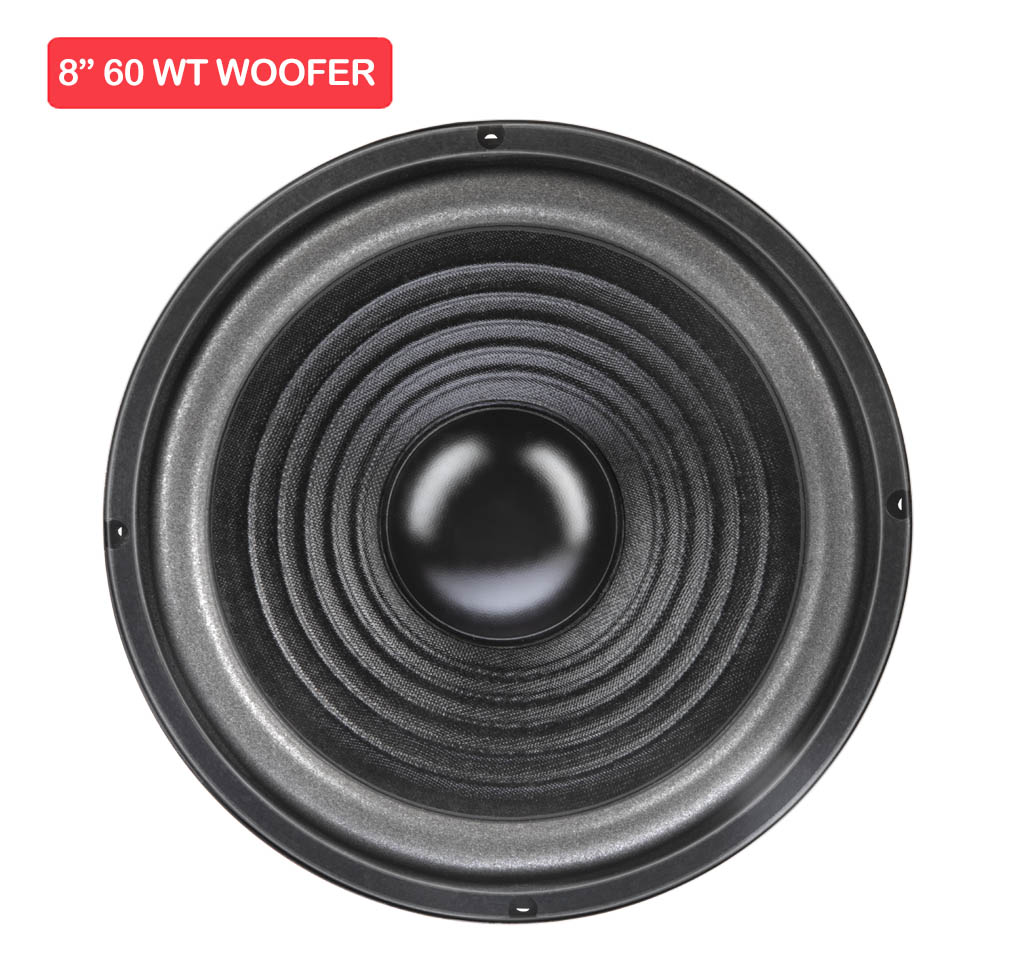

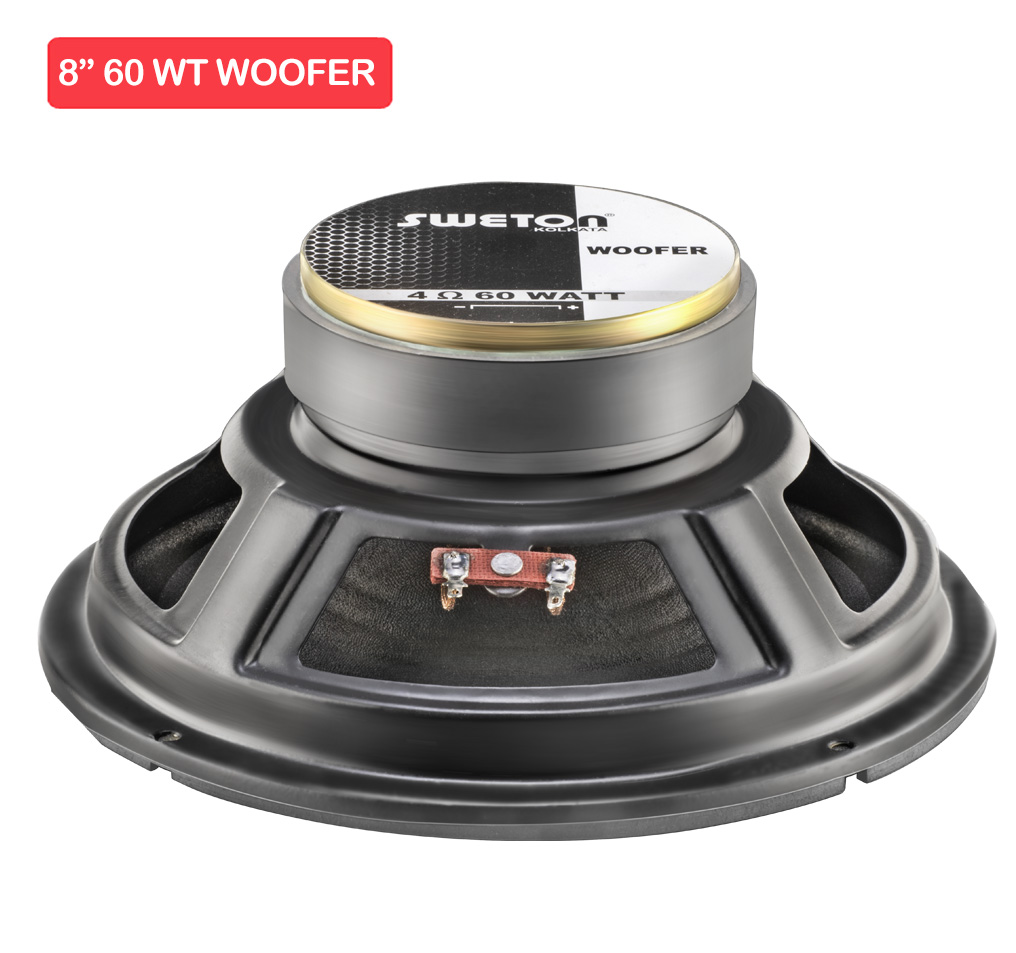

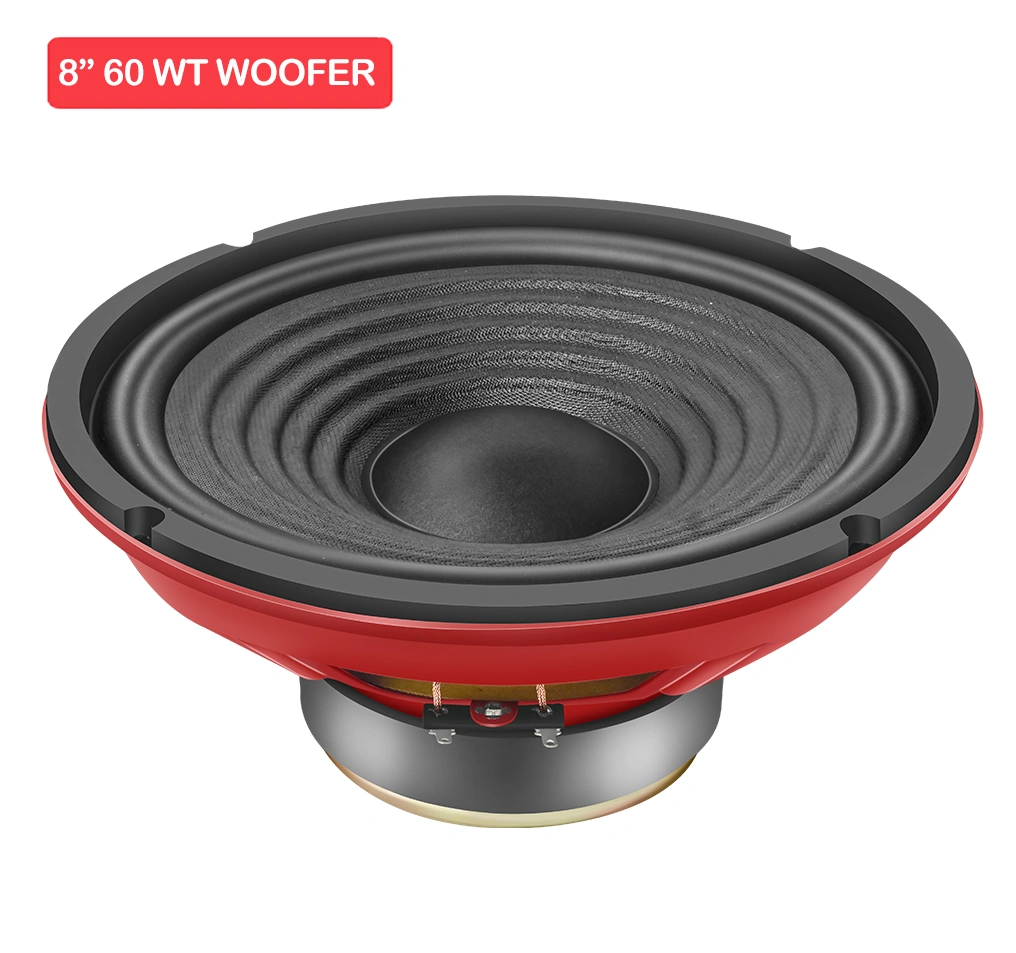

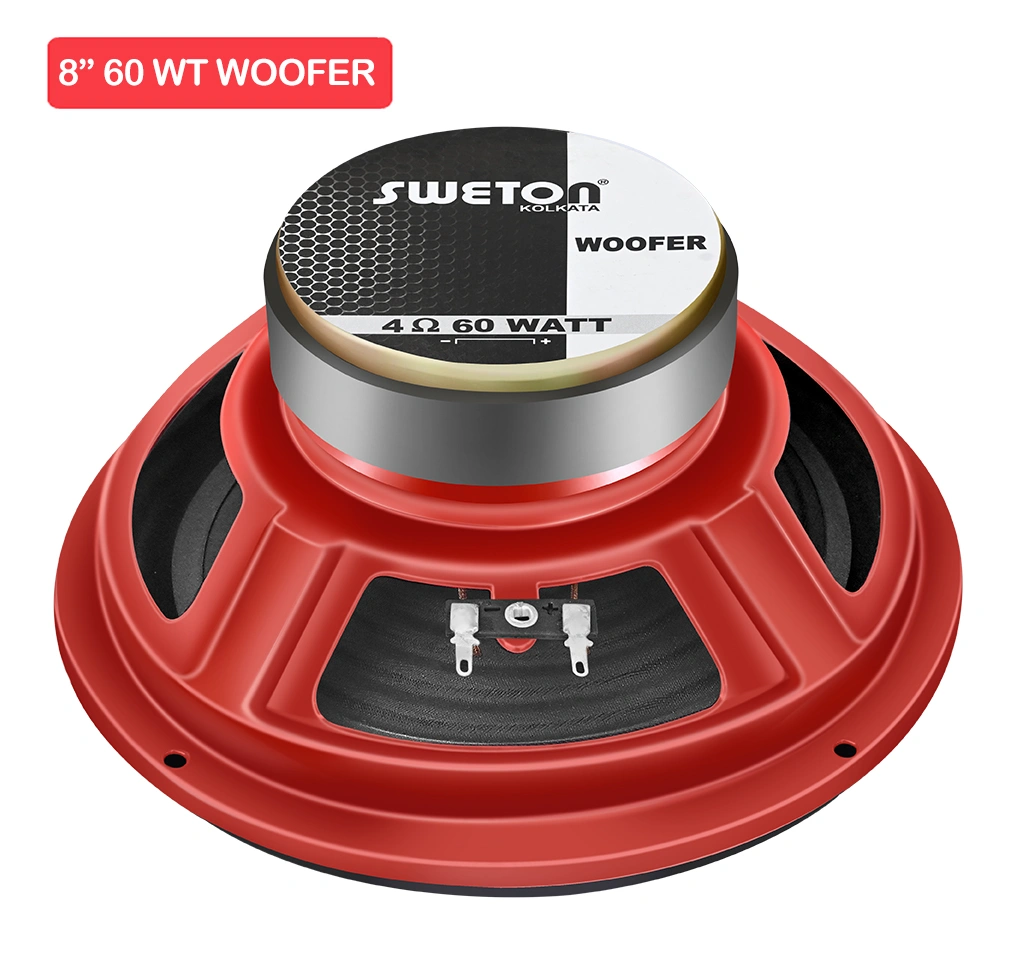

8" 60WT WOOFER
Key Features
- Program Power : 120 W
- Voice Coil Diameter : 25.4 mm
- Response : 63-6.7K Hz
- Response : 92 dB
- Nominal Diameter 215 mm
- Nominal Impedence 4 Ω
- Nominal Power Handling(AES) 60 W
- Program Power 120 W
- Sensitivity (1W/1m) 92 dB
- Frequency Range 63-6.7K Hz
- Magnet Material Ferrite
- Voice Coil Diameter 25.4 mm
- Winding Material COPPER
- Former Material SV COATED KRAFT
- Winding Type Outside
- Resonant Frequency (FS) 63 Hz
- DC Resistance (Re) 3.5 Ω
- Electrical Q (Qes) 0.77
- Mechanical Q (Qms) 5.82
- Total Q (Qts) 0.68
- Compliance Equivalent Volume (vas) 28.84 Ltrs
- Peak Diaphragm Displacement Volume (Vd) 0.07 Ltrs
- Effective Surface Area of Cone (Sd) 227 cm^2
- Reference Efficiency (ƞo) 0.88%
- Moving Mass including air load (Mms) 16.14 gms
- Motor Strength (Bl) 5.36 T-m
- Voice Coil Inductance @ 1 KHz (Le) 0.36 mH
- Efficiency Bandwith Product (EBP) 82 Hz
- Voice Coil Overhang (Xmax) ±3.06 mm
- Overall Diameter 215 mm
- Baffle Cutout Diameter 195 mm
- Depth 89.25 mm
- Flange and Gasket Thickness 7.75 mm
- Recone Kit Number REC8INCH60W
