8 Ω

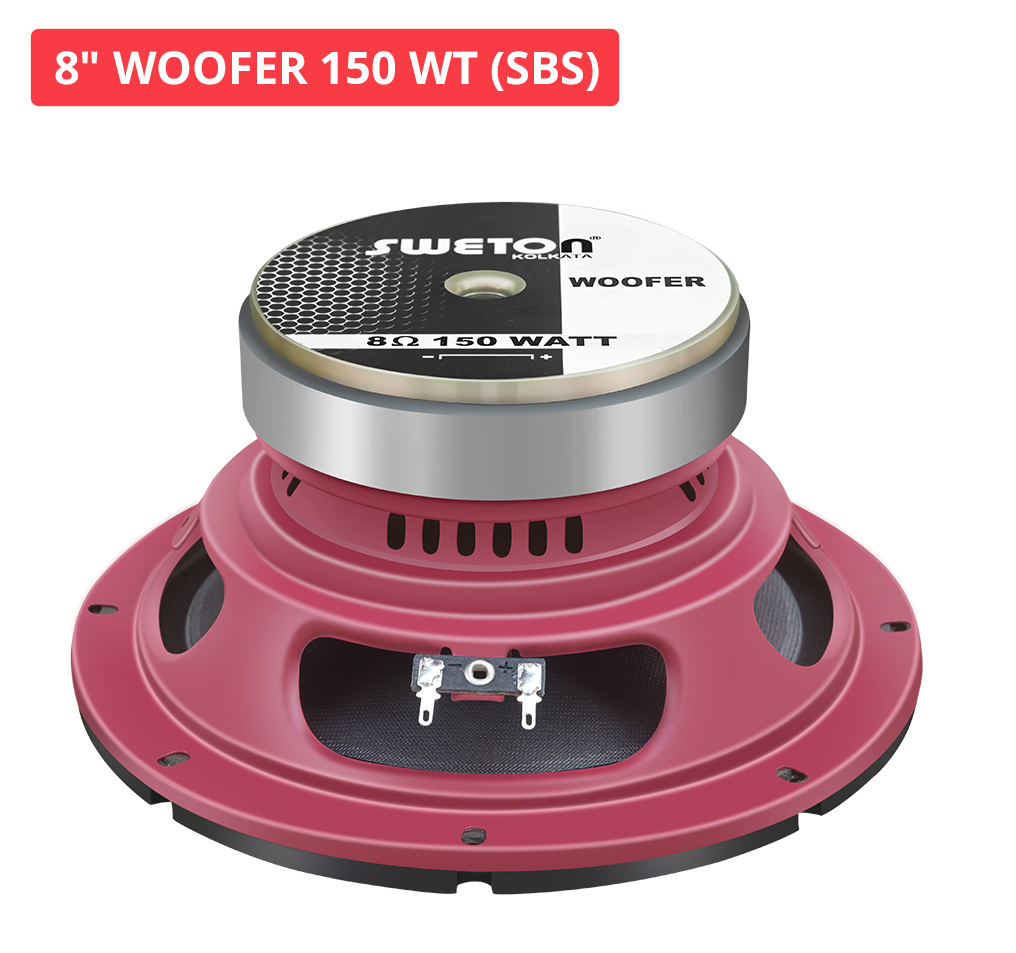

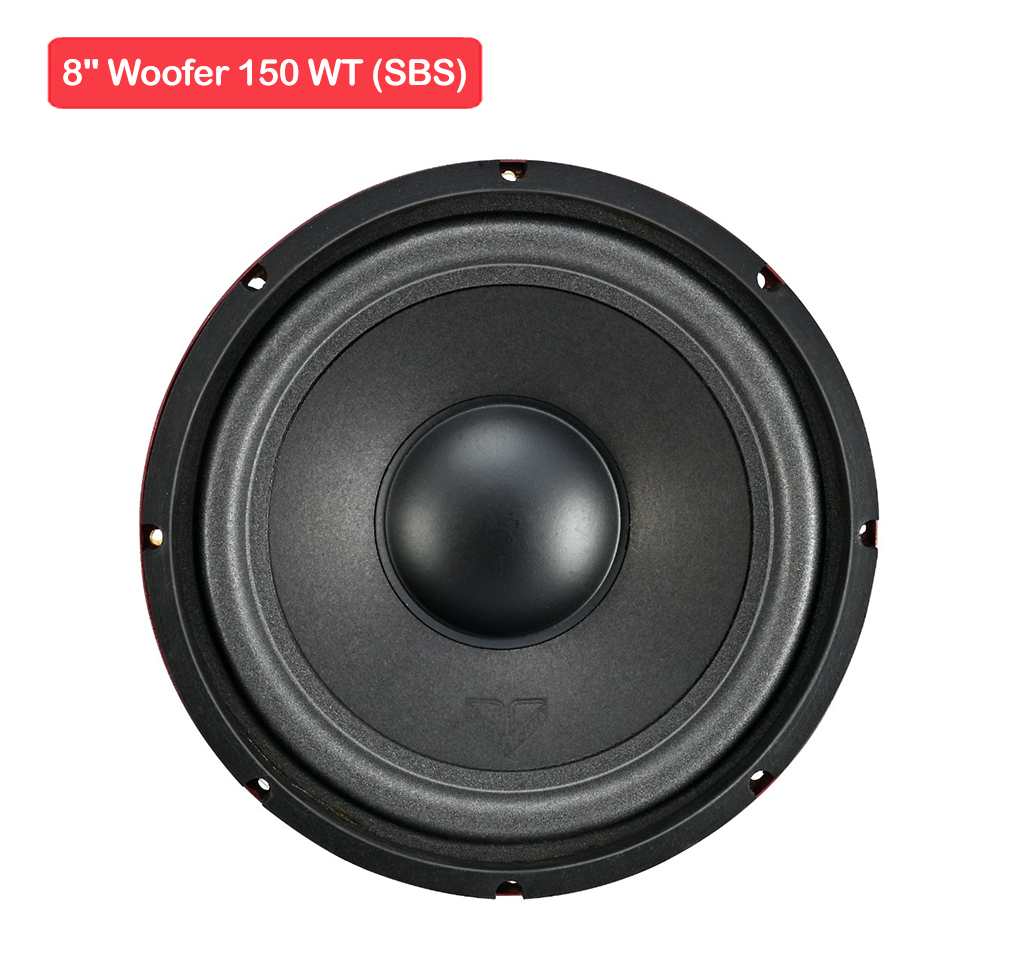

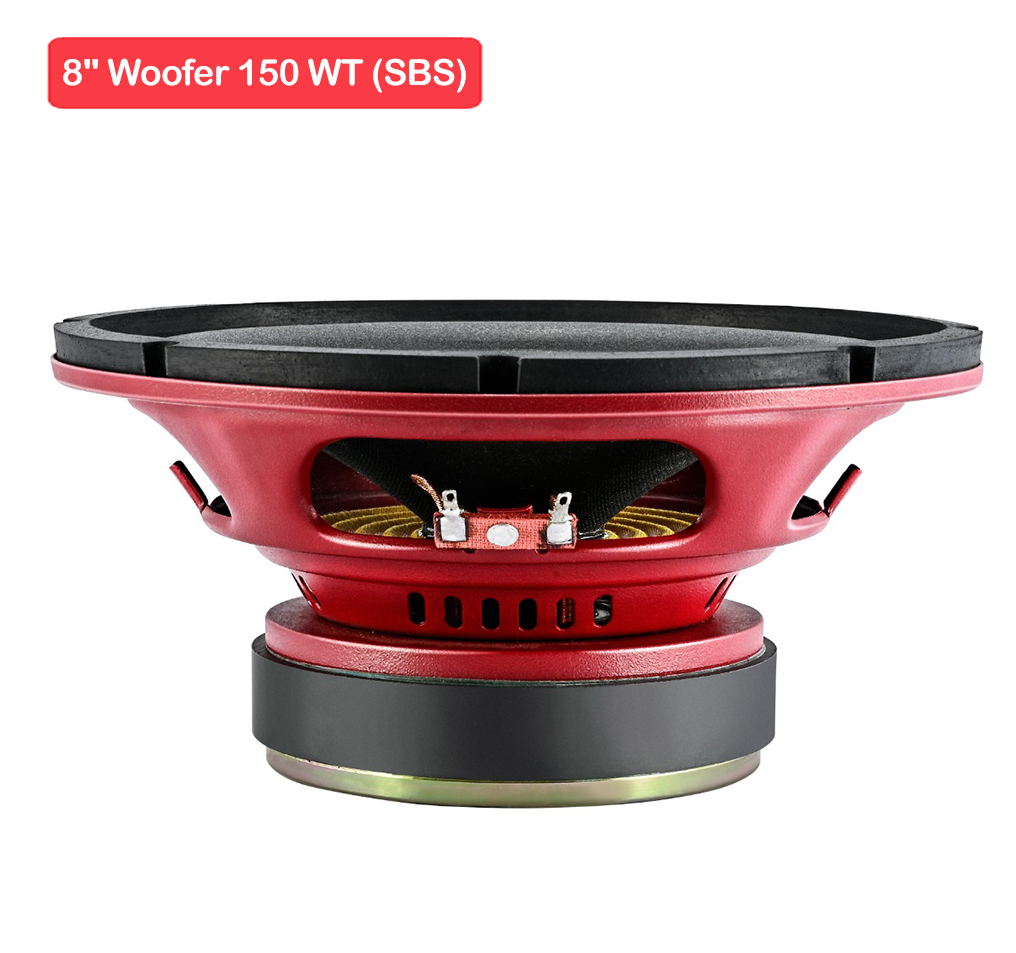

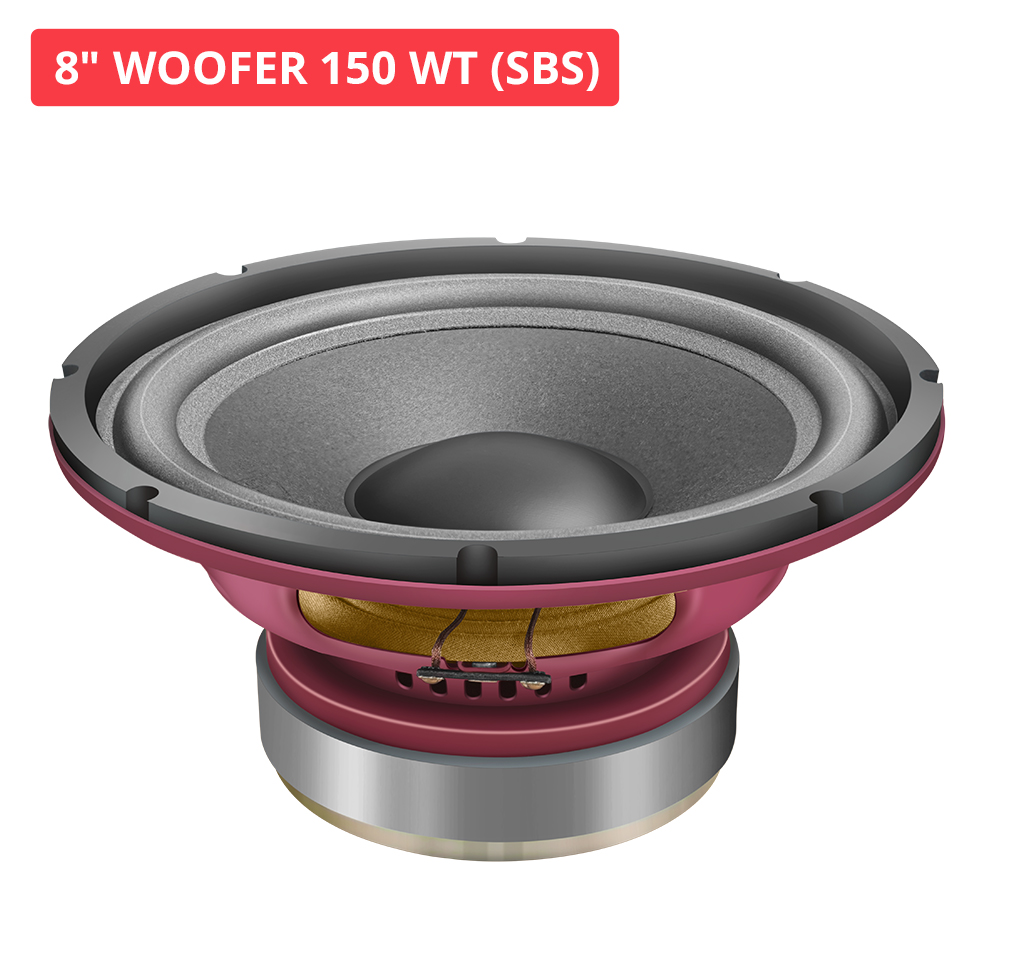

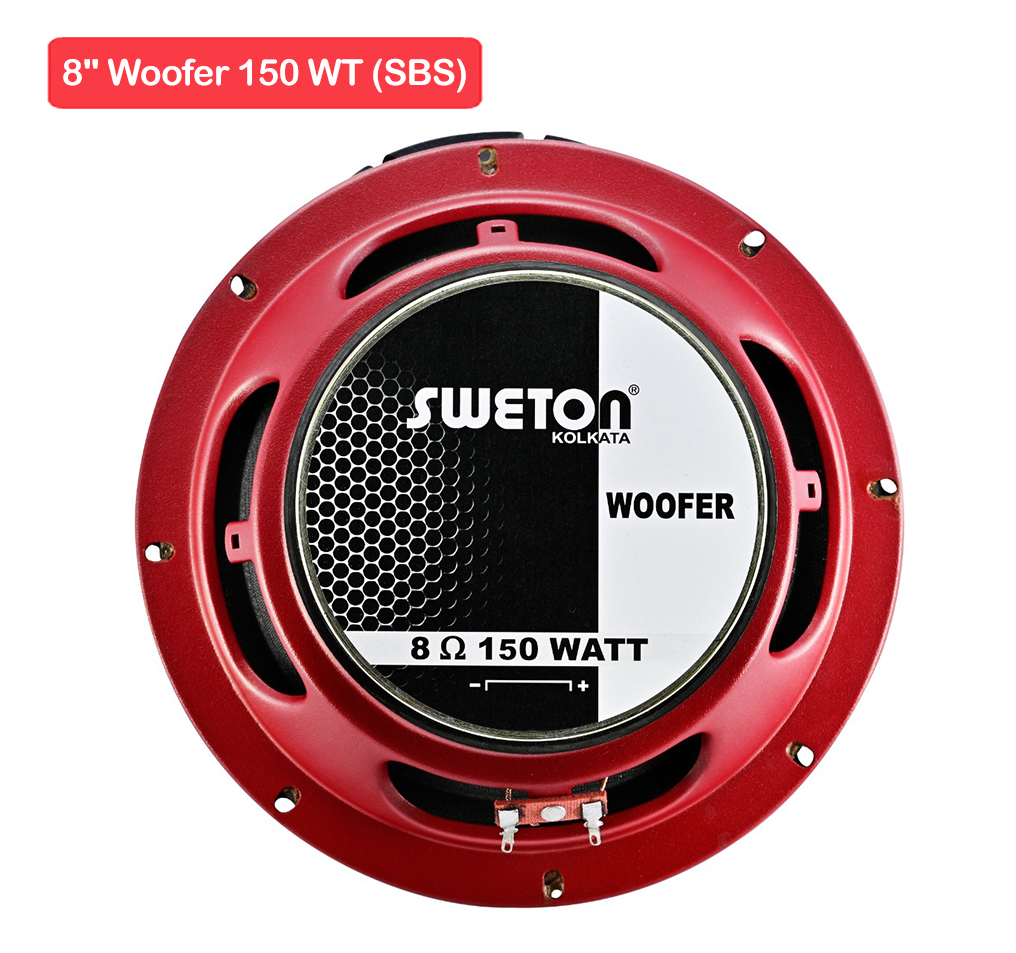

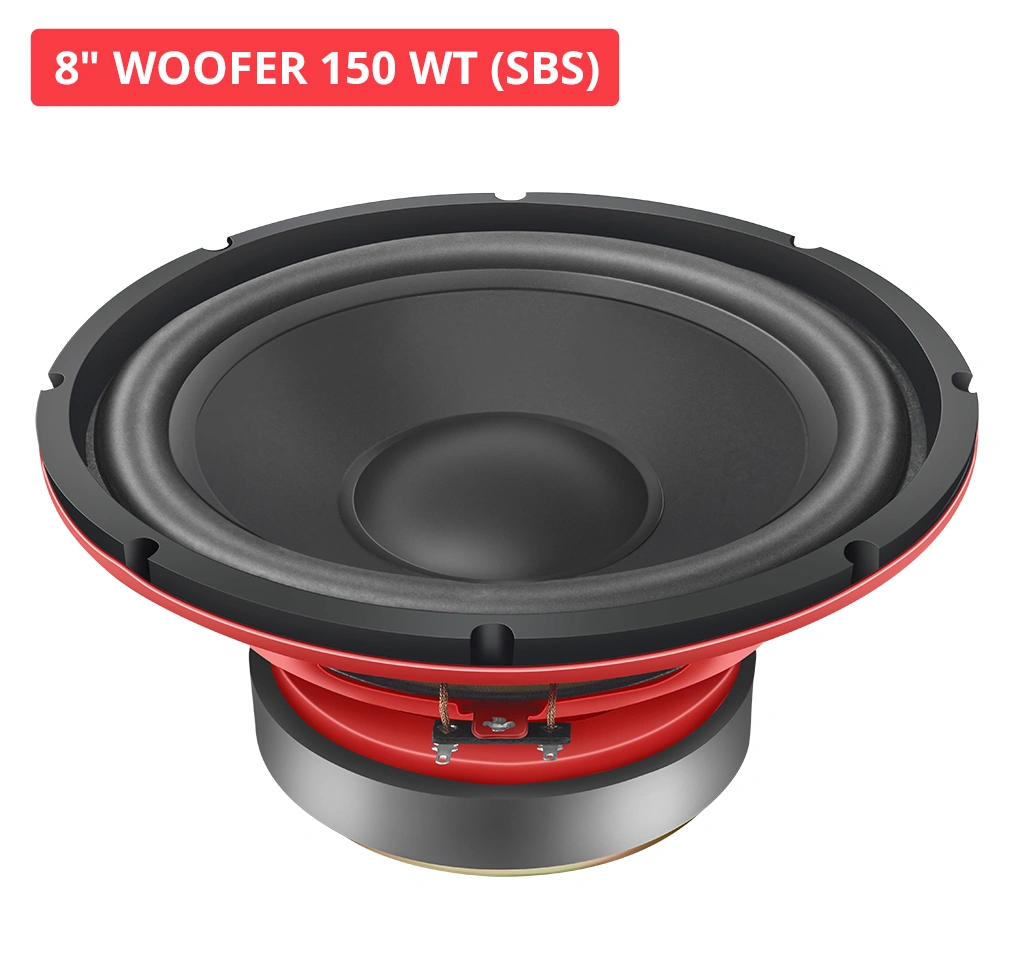

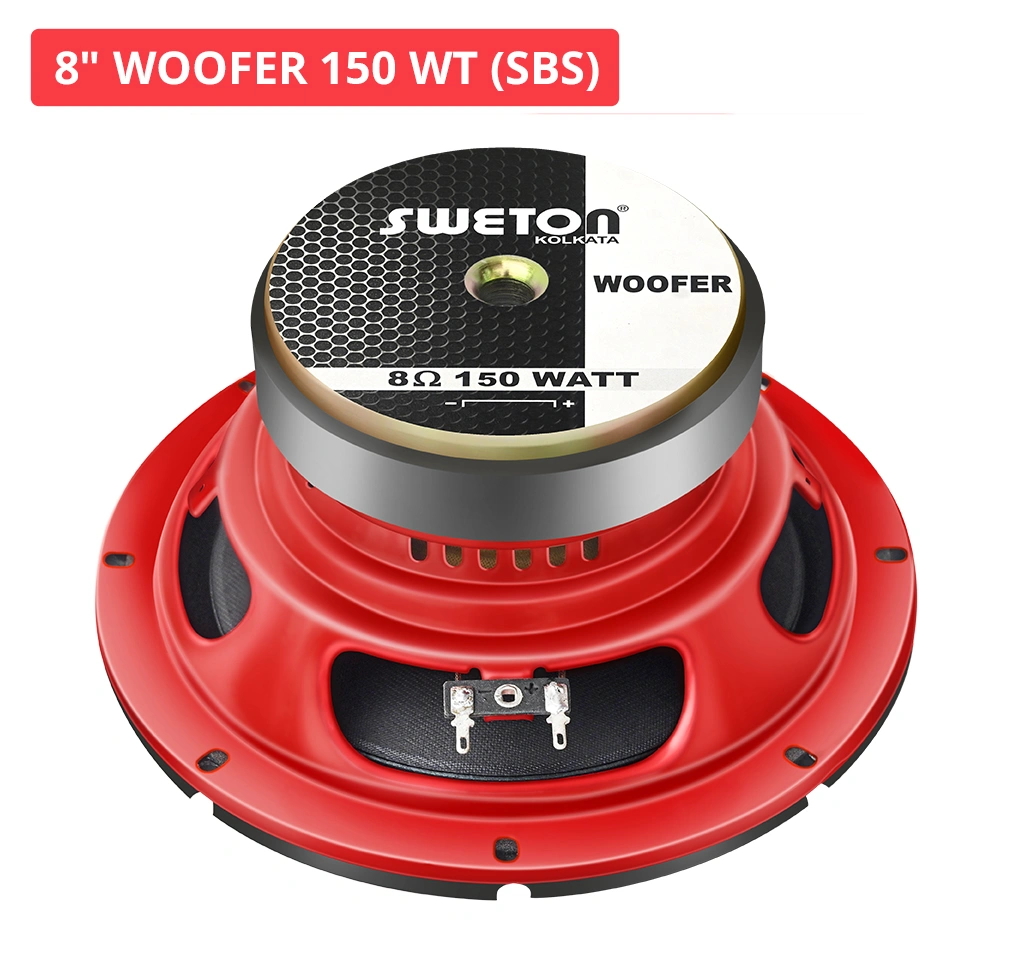

8" WOOFER 150 WT (SBS)
Key Features
- Program Power : 300 W
- Voice Coil Diameter : 35 mm
- Response : 50-4.8K Hz
- Sensitivity 1W/1M : 89 dB
- Nominal Diameter 210 mm
- Nominal Impedence 8 Ω
- Nominal Power Handling(AES) 150 W
- Program Power 300 W
- Sensitivity (1W/1m) 89 dB
- Frequency Range 50-4.8K Hz
- Magnet Material Ferrite
- Voice Coil Diameter 35 mm
- Winding Material COPPER
- Former Material KAPTON
- Winding Type Outside
- Resonant Frequency (FS) 50 Hz
- DC Resistance (Re) 6.0 Ω
- Electrical Q (Qes) 0.76
- Mechanical Q (Qms) 13.79
- Total Q (Qts) 0.72
- Compliance Equivalent Volume (vas) 28.98 Ltrs
- Peak Diaphragm Displacement Volume (Vd) 0.18 Ltrs
- Effective Surface Area of Cone (Sd) 221.7 cm^2
- Reference Efficiency (ƞo) 0.46%
- Moving Mass including air load (Mms) 24.07 gms
- Motor Strength (Bl) 7.73 T-m
- Voice Coil Inductance @ 1 KHz (Le) 0.94 mH
- Efficiency Bandwith Product (EBP) 66 Hz
- Voice Coil Overhang (Xmax) ±7.94 mm
- Overall Diameter 210 mm
- Depth 100 mm
- Baffle Cutout Diameter 180.5 mm
- Flange and Gasket Thickness 11 mm
- Recone Kit Number REC8INCH150W
