4 Ω

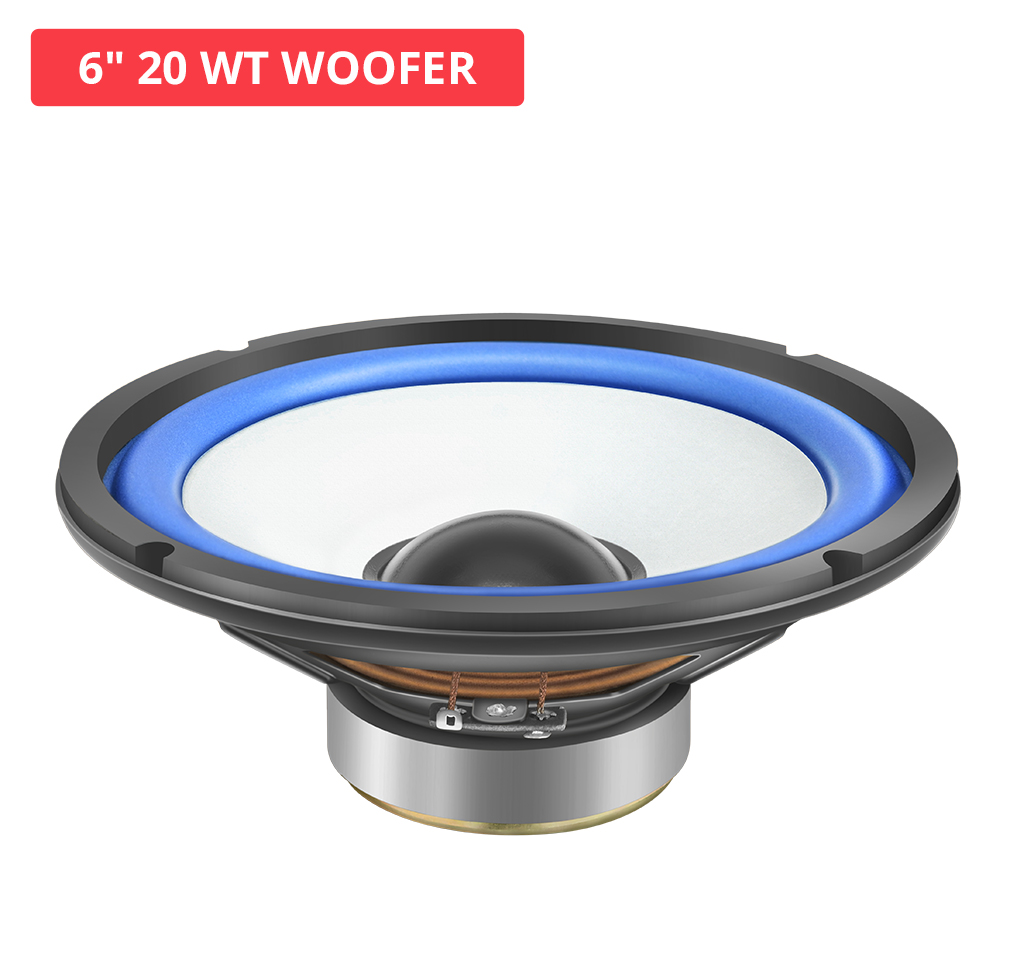

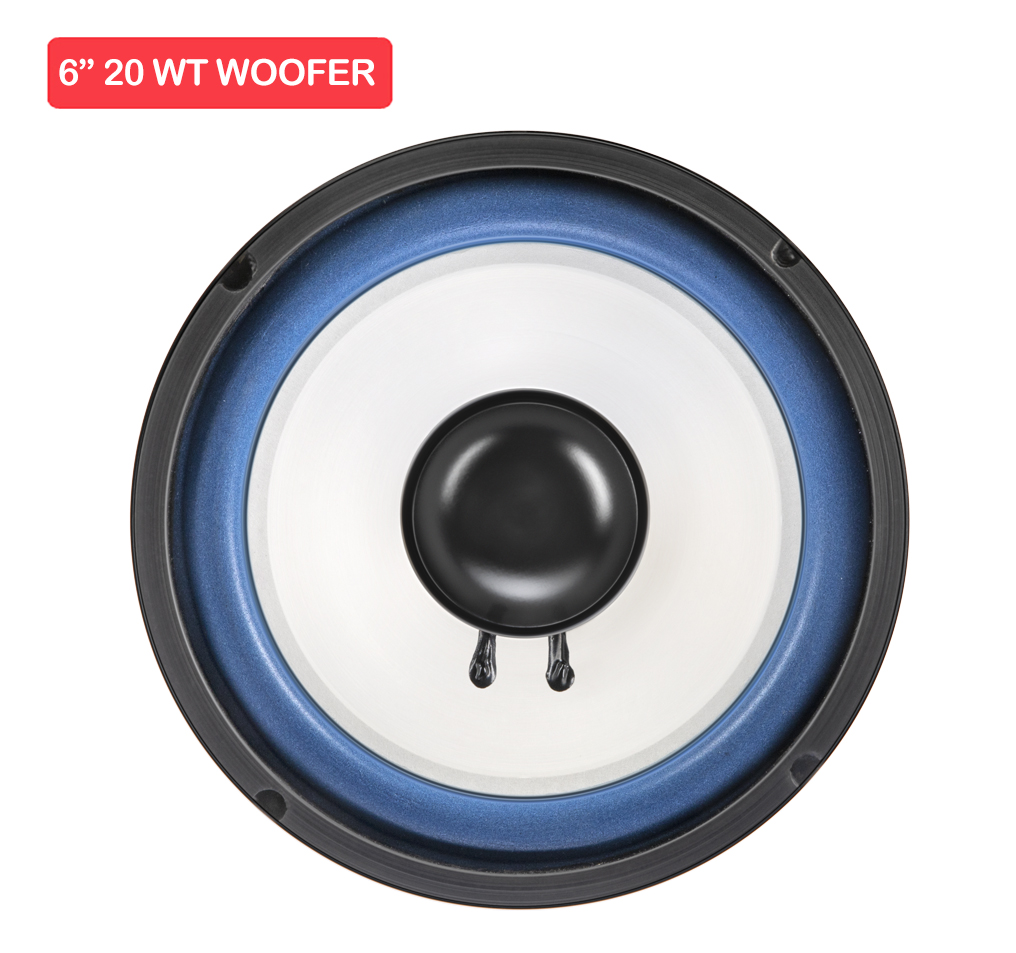

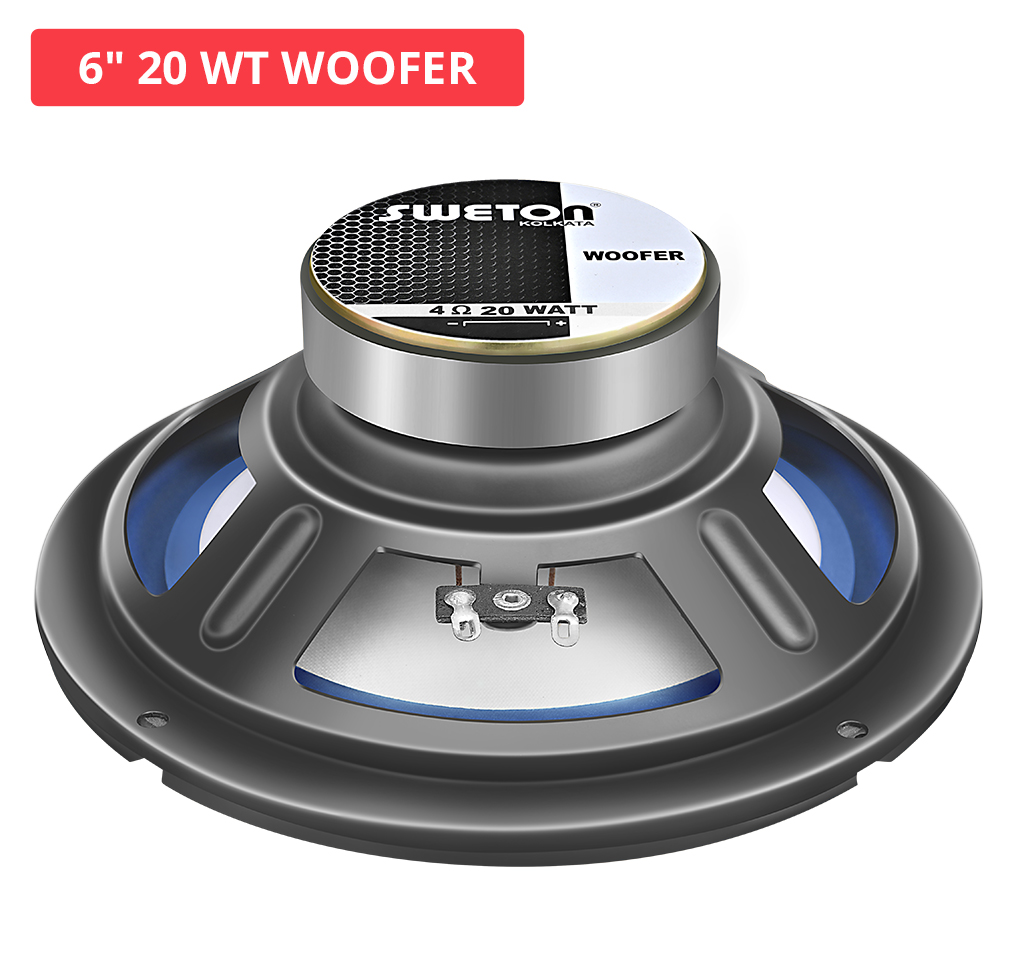

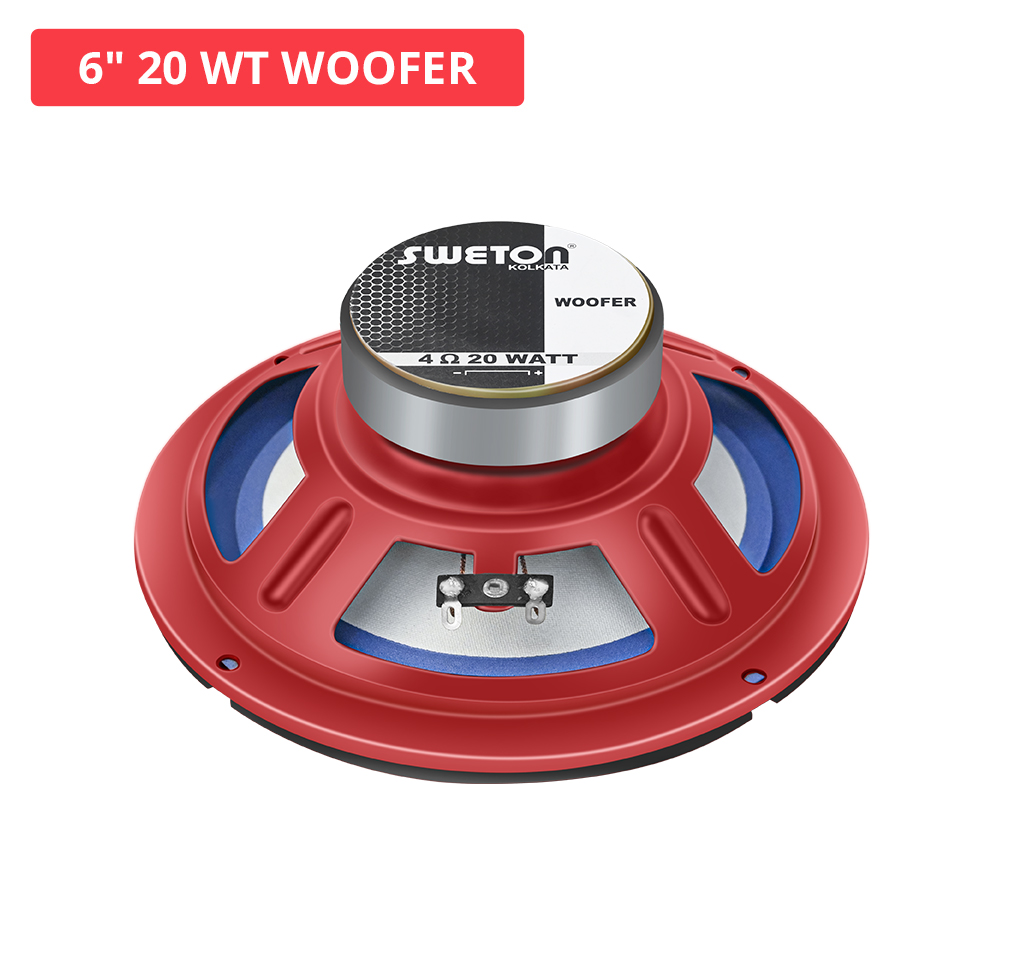

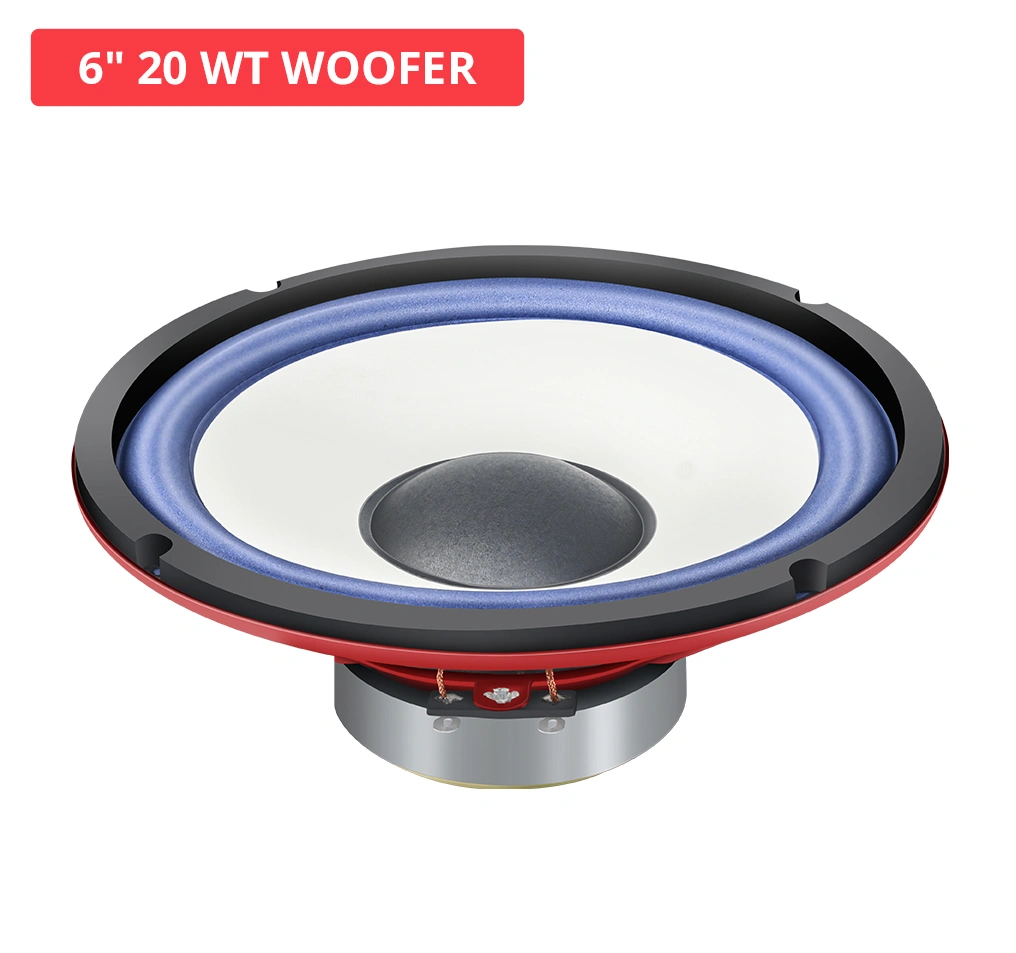

6" 20 WT WOOFER
Key Features
- Nominal Impedance : 4 Ω
- Program Power : 40 W
- Voice Coil Diameter : 25.4 mm
- Response : 79-7.5K Hz
- Sensitivity 1W/1M : 86 dB
- Nominal Diameter 166 mm
- Nominal Impedence 4 Ω
- Nominal Power Handling(AES) 20 W
- Program Power 40 W
- Sensitivity (1W/1m) 86 dB
- Frequency Range 79-7.5K Hz
- Magnet Material Ferrite
- Voice Coil Diameter 25.4 mm
- Winding Material COPPER
- Former Material SV COATED KRAFT
- Winding Type Outside
- Resonant Frequency (FS) 79 Hz
- DC Resistance (Re) 3.4 Ω
- Electrical Q (Qes) 2.21
- Mechanical Q (Qms) 6.88
- Total Q (Qts) 1.67
- Compliance Equivalent Volume (vas) 11.97 Ltrs
- Peak Diaphragm Displacement Volume (Vd) 0.04 Ltrs
- Effective Surface Area of Cone (Sd) 143 cm^2
- Reference Efficiency (ƞo) 0.25%
- Moving Mass including air load (Mms) 9.77 gms
- Motor Strength (Bl) 2.73 T-m
- Voice Coil Inductance @ 1 KHz (Le) 0.27 mH
- Efficiency Bandwith Product (EBP) 36 Hz
- Voice Coil Overhang (Xmax) ±3.15 mm
- Overall Diameter 166 mm

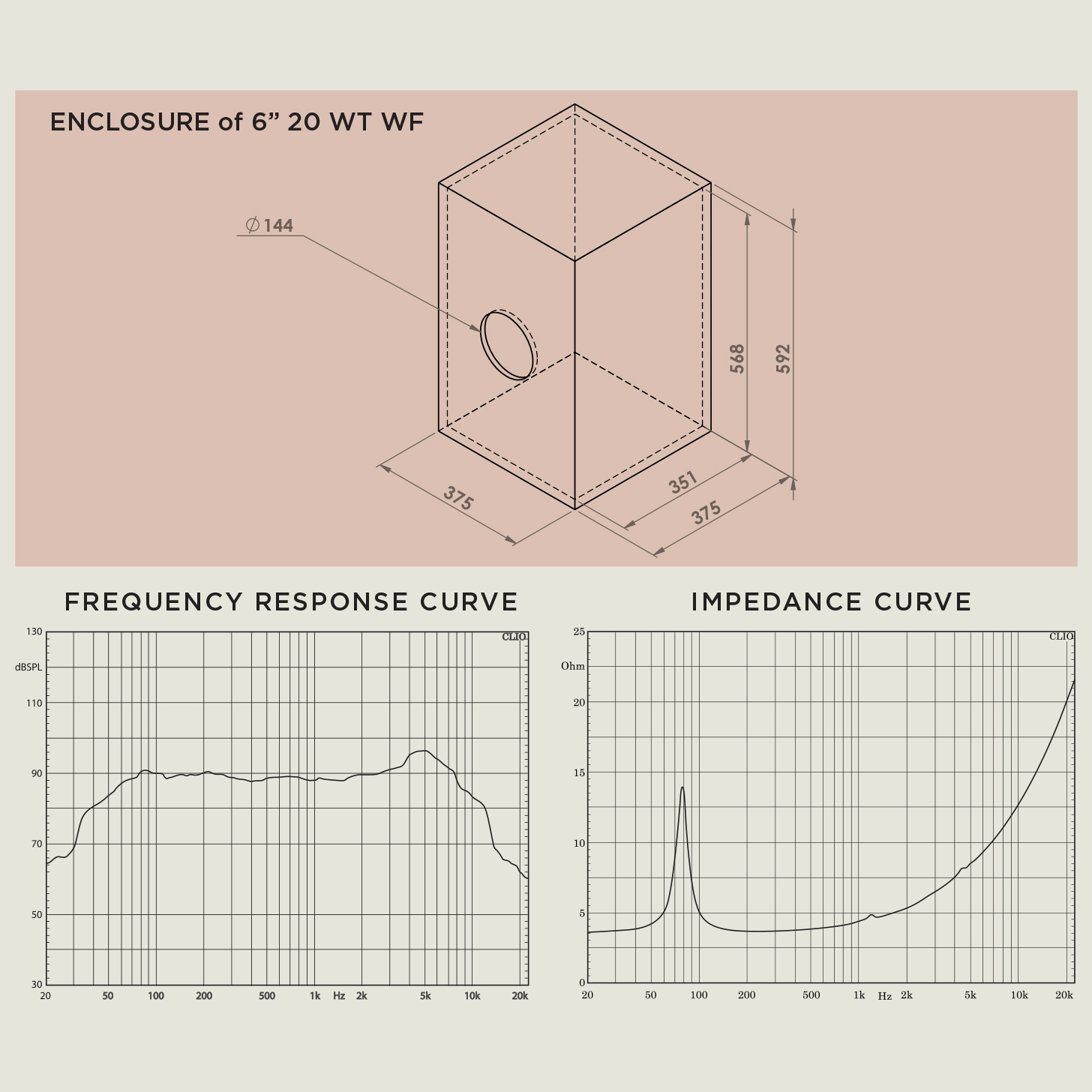

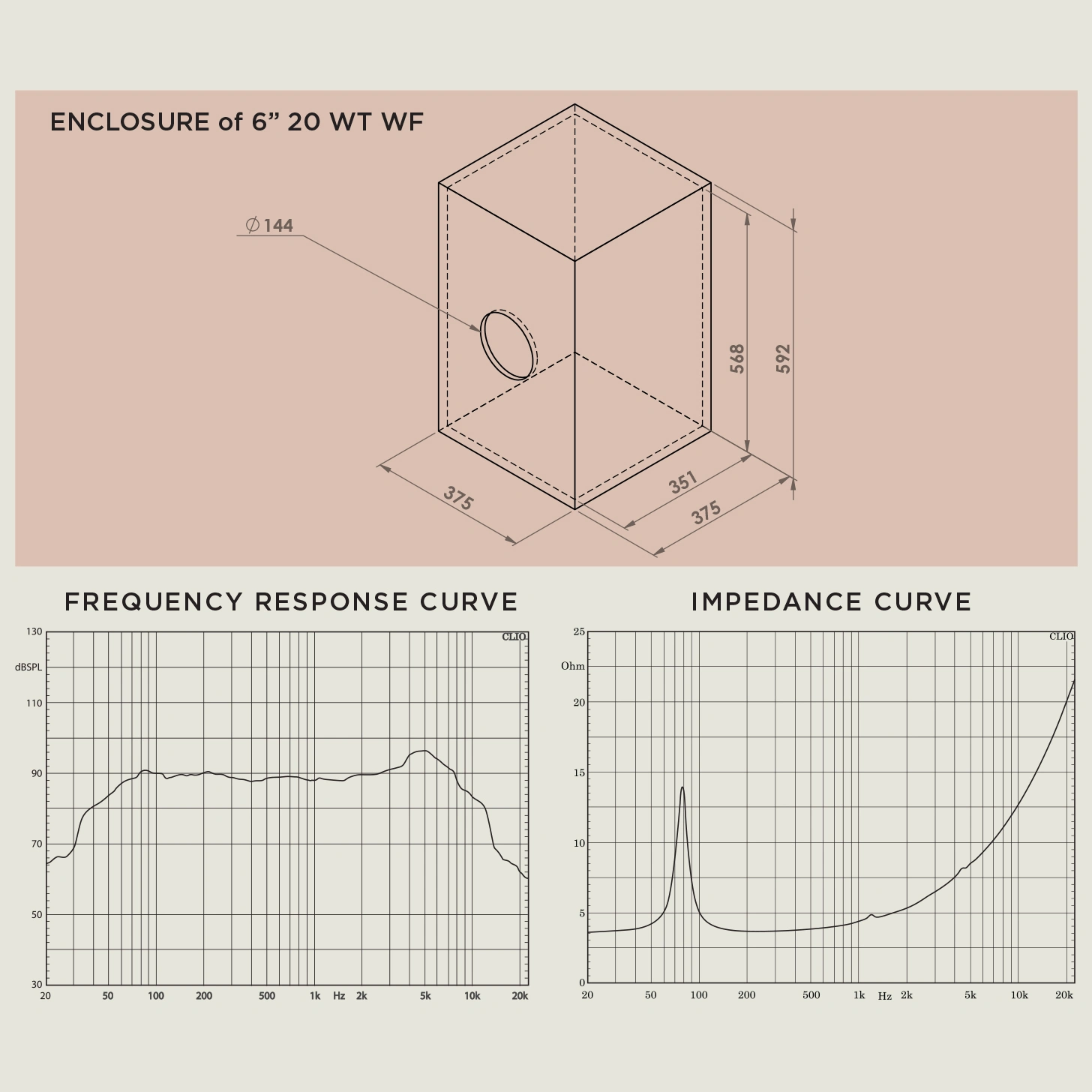

- Baffle Cutout Diameter 144 mm
- Depth 64.75 mm
- Flange and Gasket Thickness 8 mm
- Recone Kit Number REC6INCH20W
