4 Ω

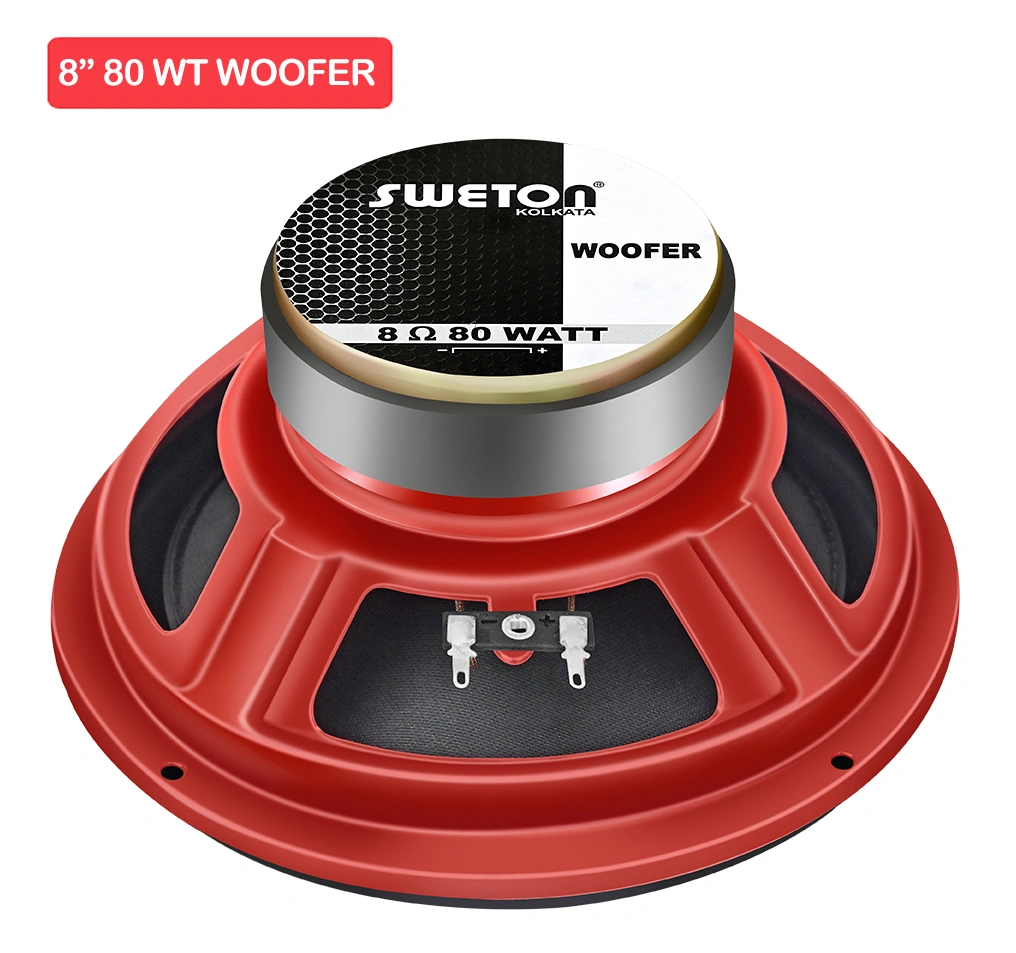

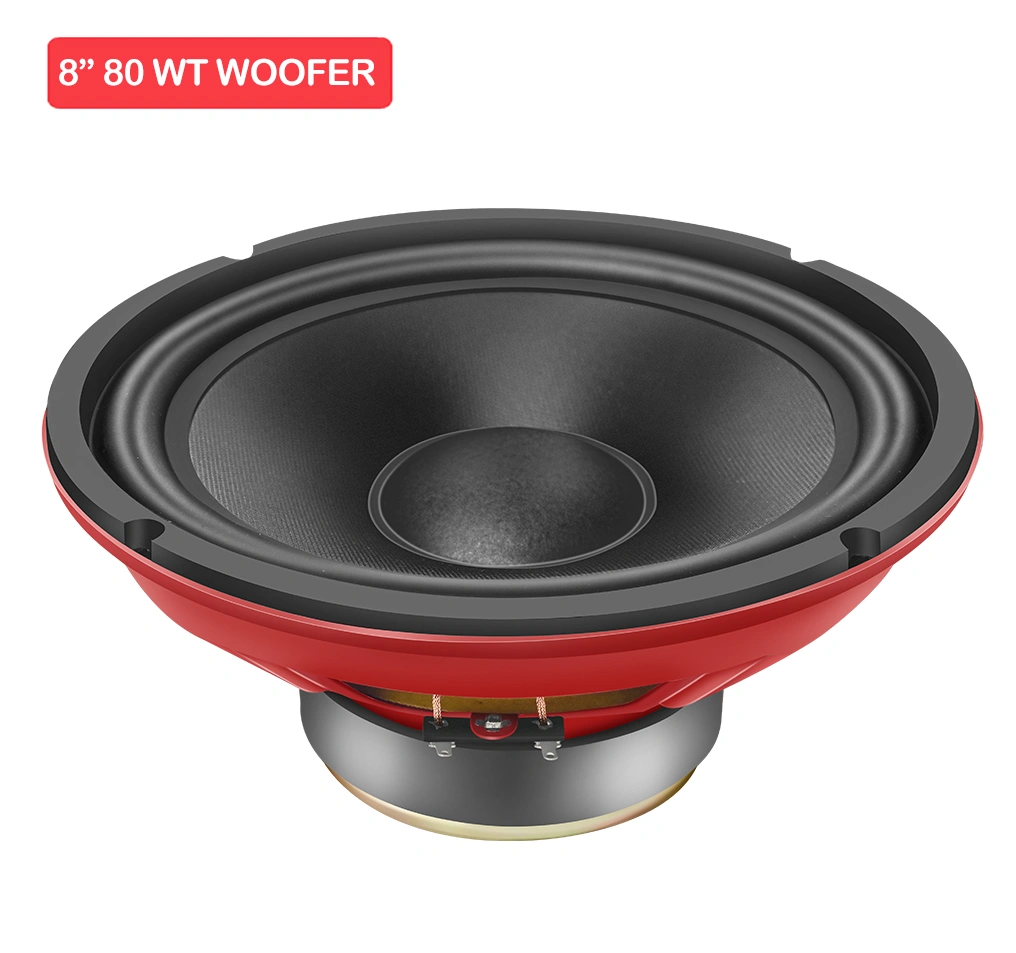

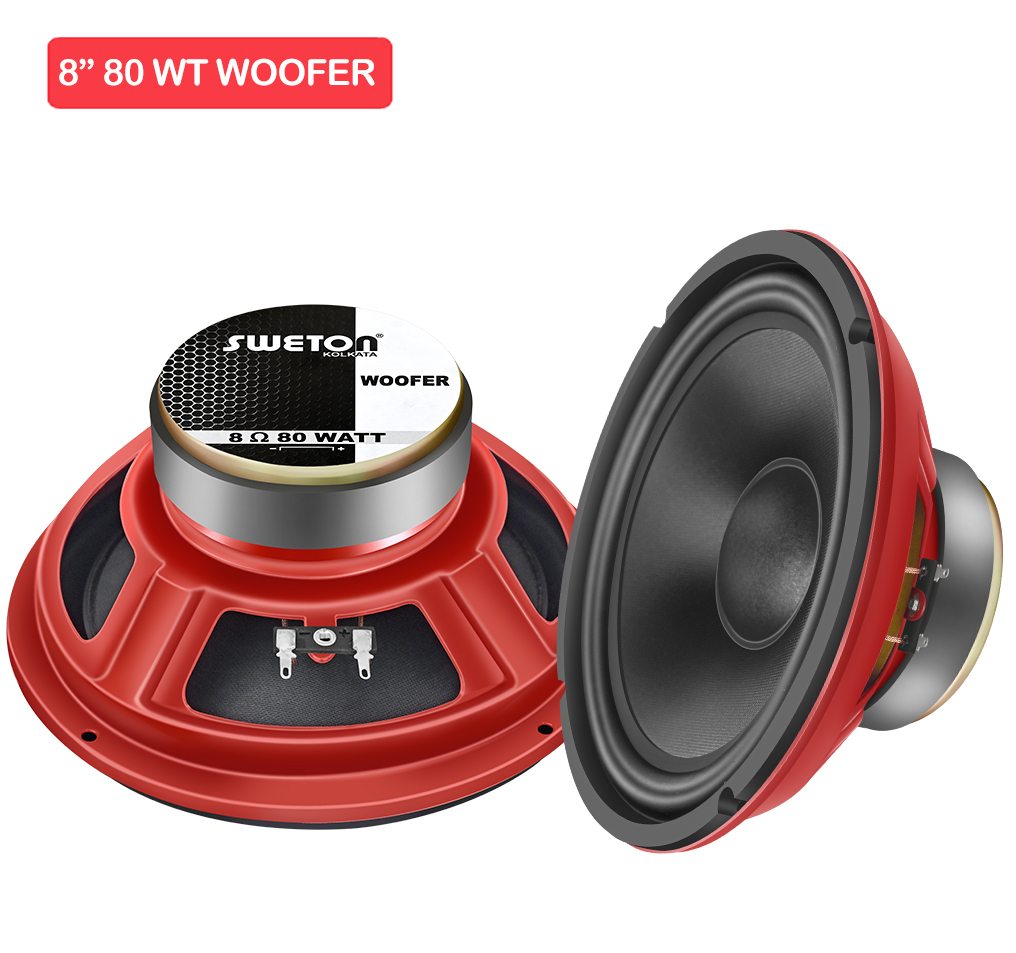

8" 80WT WOOFER
Woofer Series
Key Features
- Program Power : 160 W
- Voice Coil Diameter : 25.4 mm
- Response : 58-5.7K Hz
- Sensitivity 1W/1M : 88 dB
- Nominal Diameter 215 mm
- Nominal Impedence 8 Ω
- Nominal Power Handling(AES) 80 W
- Program Power 160 W
- Sensitivity (1W/1m) 88 dB
- Frequency Range 58-5.7K Hz
- Magnet Material Ferrite
- Voice Coil Diameter 25.4 mm
- Winding Material COPPER
- Former Material SV COATED KRAFT
- Winding Type Outside
- Resonant Frequency (FS) 58 Hz
- DC Resistance (Re) 6.4 Ω
- Electrical Q (Qes) 1.14
- Mechanical Q (Qms) 5.48
- Total Q (Qts) 0.94
- Compliance Equivalent Volume (vas) 23.16 Ltrs
- Peak Diaphragm Displacement Volume (Vd) 0.13 Ltrs
- Effective Surface Area of Cone (Sd) 227 cm^2
- Reference Efficiency (ƞo) 0.38%
- Moving Mass including air load (Mms) 23.54 gms
- Motor Strength (Bl) 6.94 T-m
- Voice Coil Inductance @ 1 KHz (Le) 0.73 mH
- Efficiency Bandwith Product (EBP) 51 Hz
- Voice Coil Overhang (Xmax) ±5.88 mm
- Overall Diameter 215 mm
- Baffle Cutout Diameter 195 mm
- Depth 98.5 mm
- Gross Weight 9.0 mm
- Recone Kit Number REC8INCH80W
