8 Ω

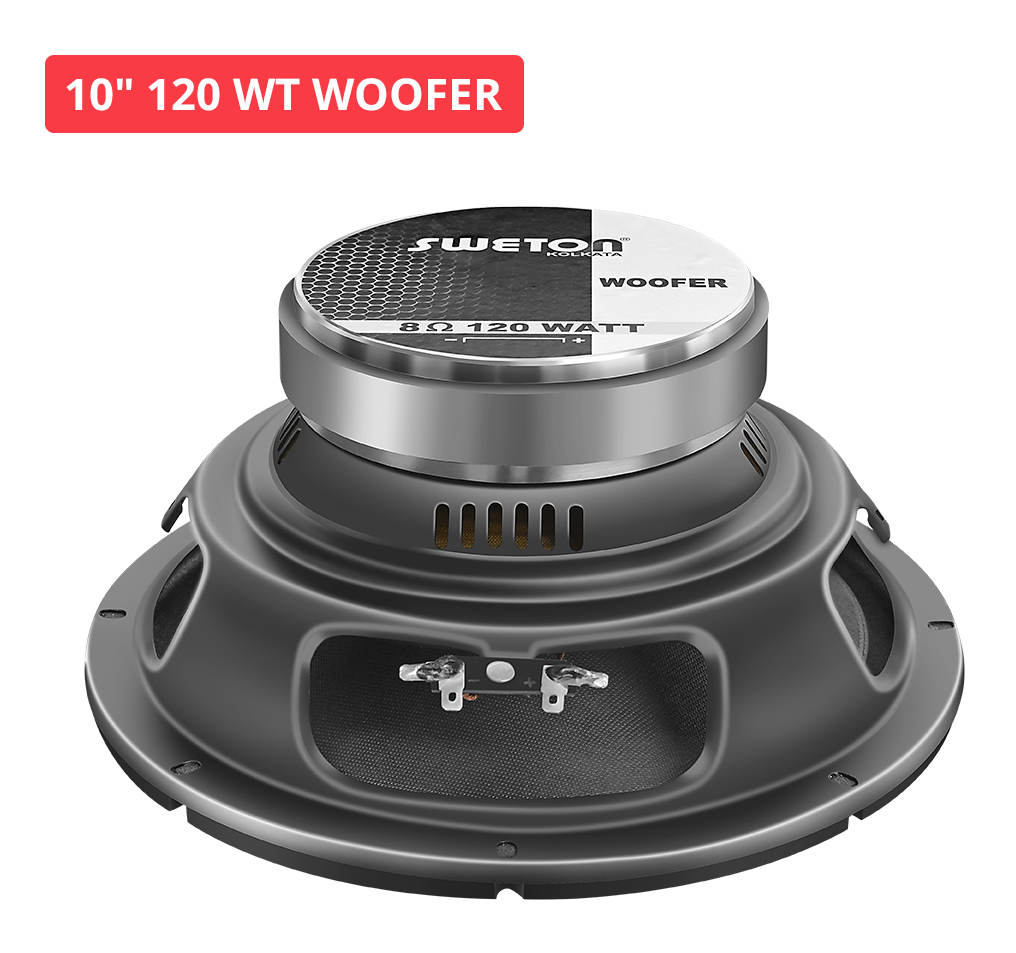

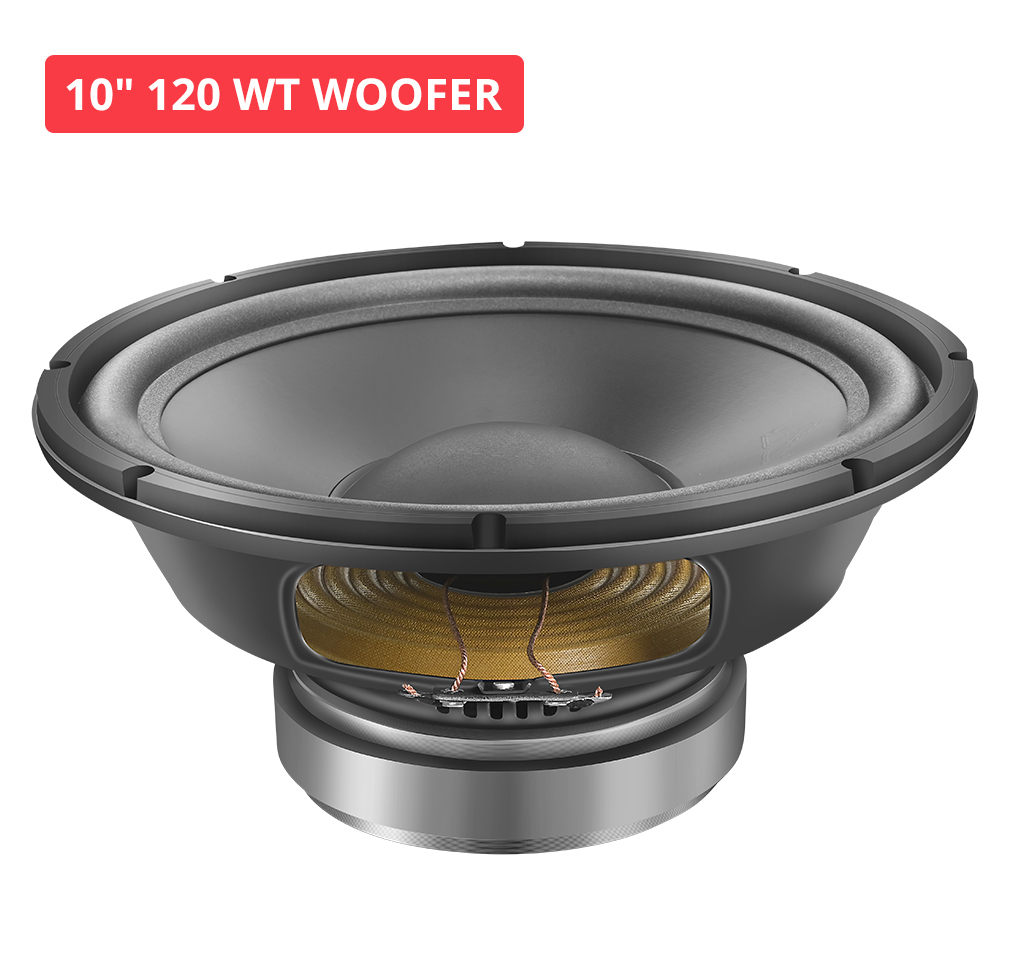

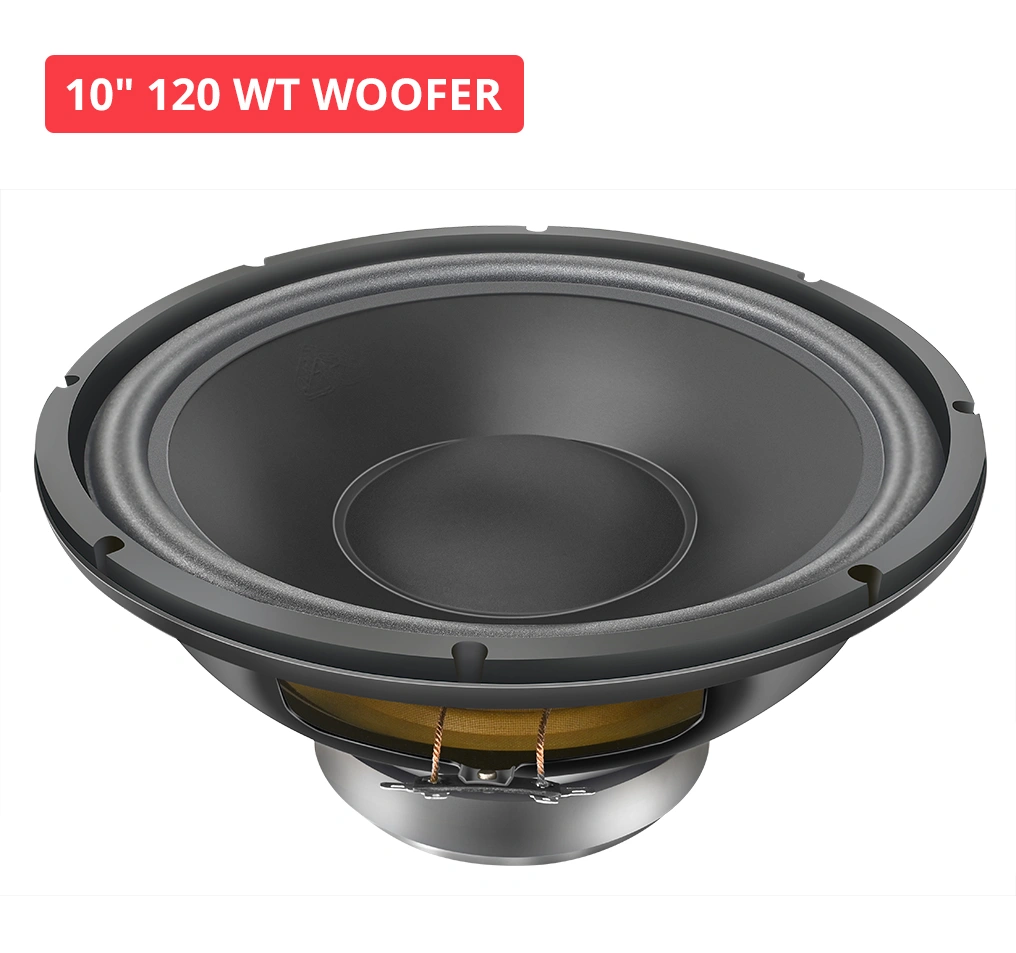

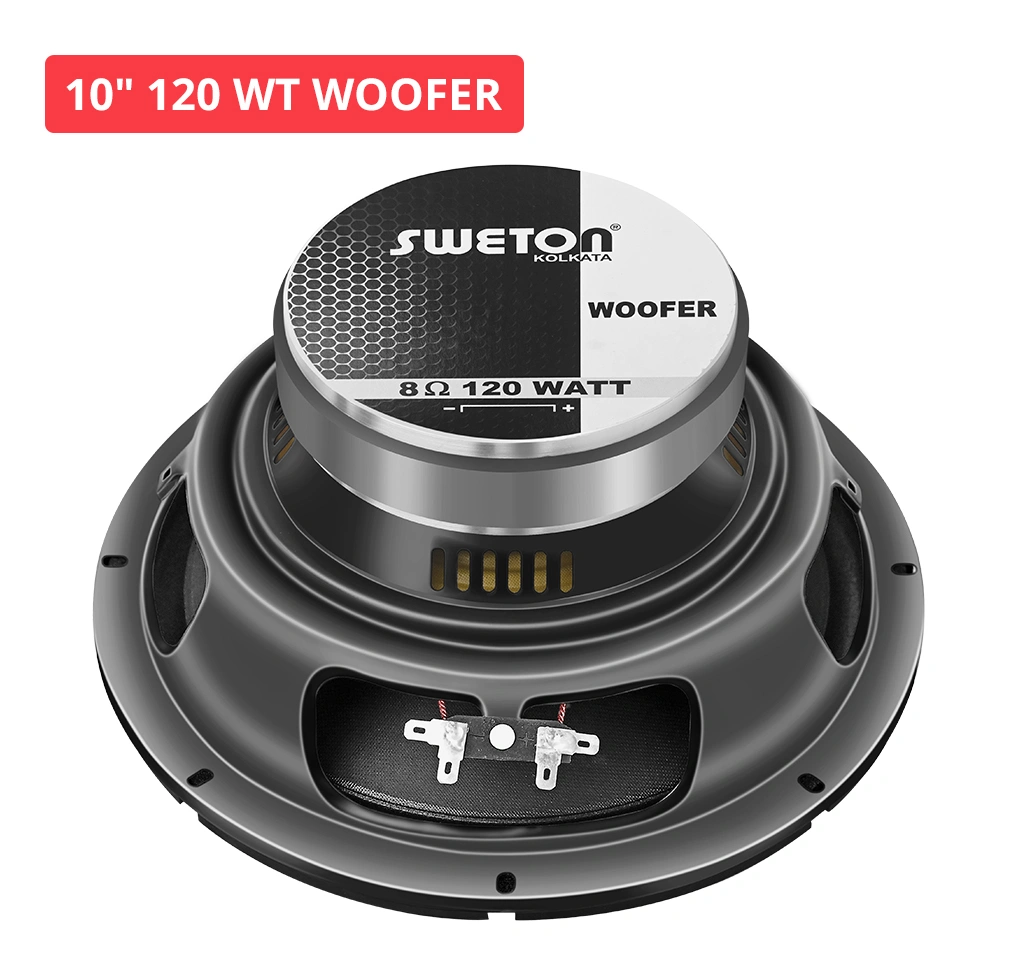

10" 120 WT WOOFER
Key Features
- Program Power : 240 W
- Voice Coil Diameter : 44.45 mm
- Response : 44-3.4K Hz
- Sensitivity 1W/1M : 91 dB
- Nominal Diameter 255 mm
- Nominal Impedence 8.0 Ω
- Nominal Power Handling(AES) 120 W
- Program Power 240 W
- Sensitivity (1W/1m) 91 dB
- Frequency Range 44-3.4K Hz
- Magnet Material Ferrite
- Voice Coil Diameter 44.45 mm
- Winding Material COPPER
- Former Material KAPTON
- Winding Type Outside
- Resonant Frequency (FS) 44 Hz
- DC Resistance (Re) 5.8 Ω
- Electrical Q (Qes) 0.68
- Mechanical Q (Qms) 8.2
- Total Q (Qts) 0.63
- Compliance Equivalent Volume (vas) 57.17 Ltrs
- Peak Diaphragm Displacement Volume (Vd) 0.35 Ltrs
- Effective Surface Area of Cone (Sd) 380 cm^2
- Reference Efficiency (ƞo) 0.69%
- Moving Mass including air load (Mms) 46.00 gms
- Motor Strength (Bl) 10.41 T-m
- Voice Coil Inductance @ 1 KHz (Le) 1.05 mH
- Efficiency Bandwith Product (EBP) 65 Hz
- Voice Coil Overhang (Xmax) ±9.25 mm
- Overall Diameter 255 mm
- Depth 120 mm
- Baffle Cutout Diameter 228 mm
- Flange and Gasket Thickness 12 mm
- Recone Kit Number REC10INCH120W
