8 Ω

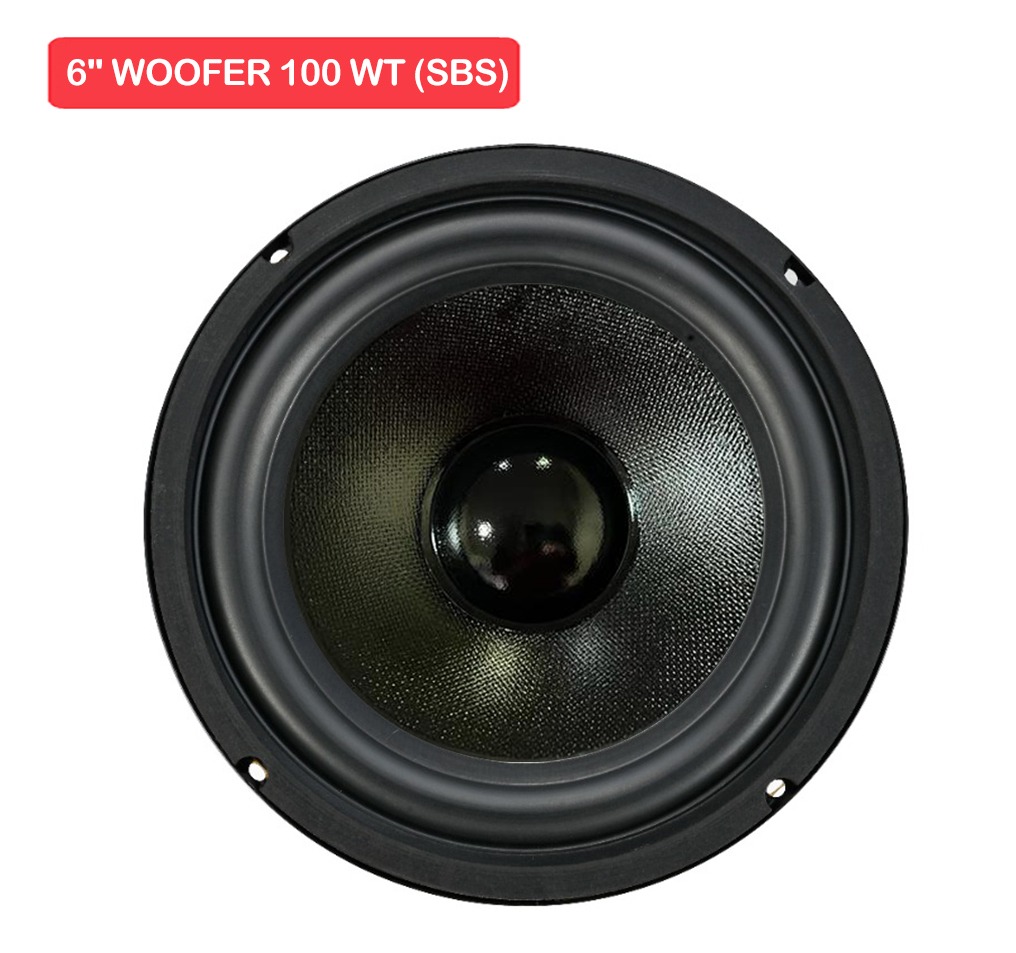

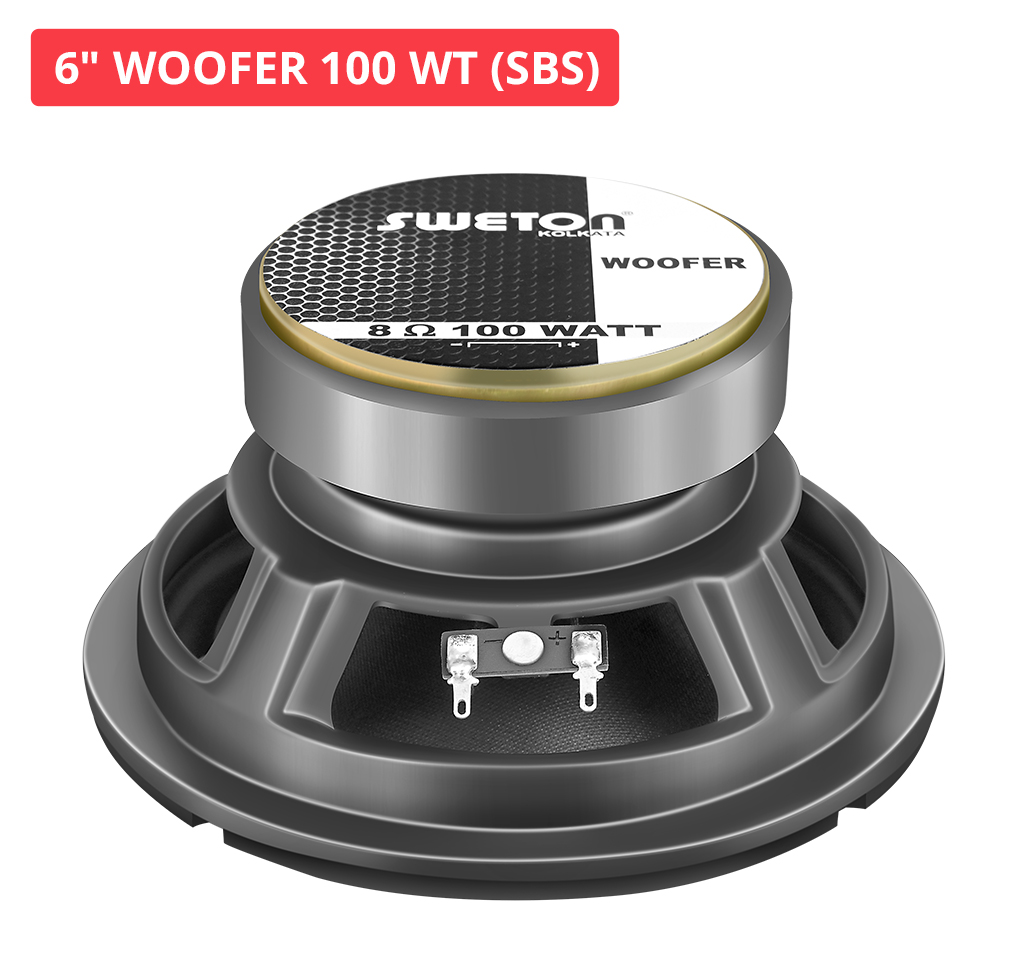

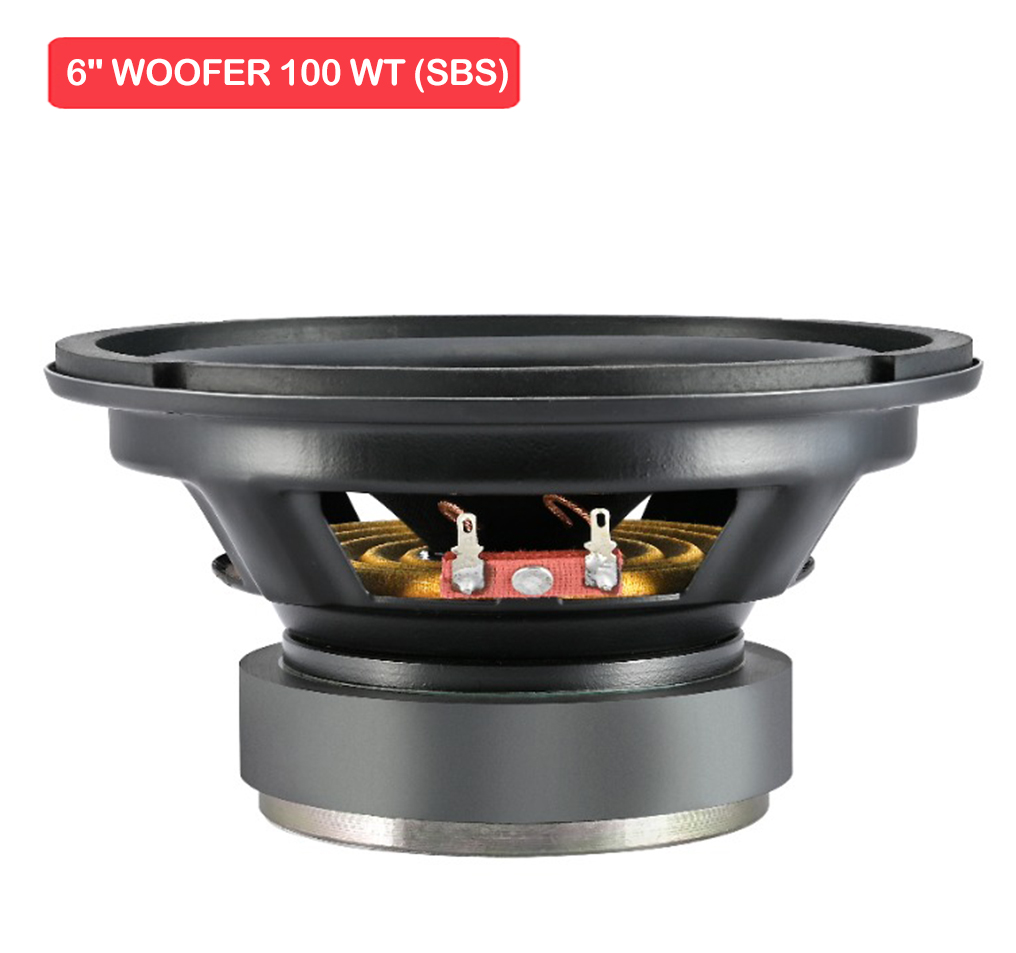

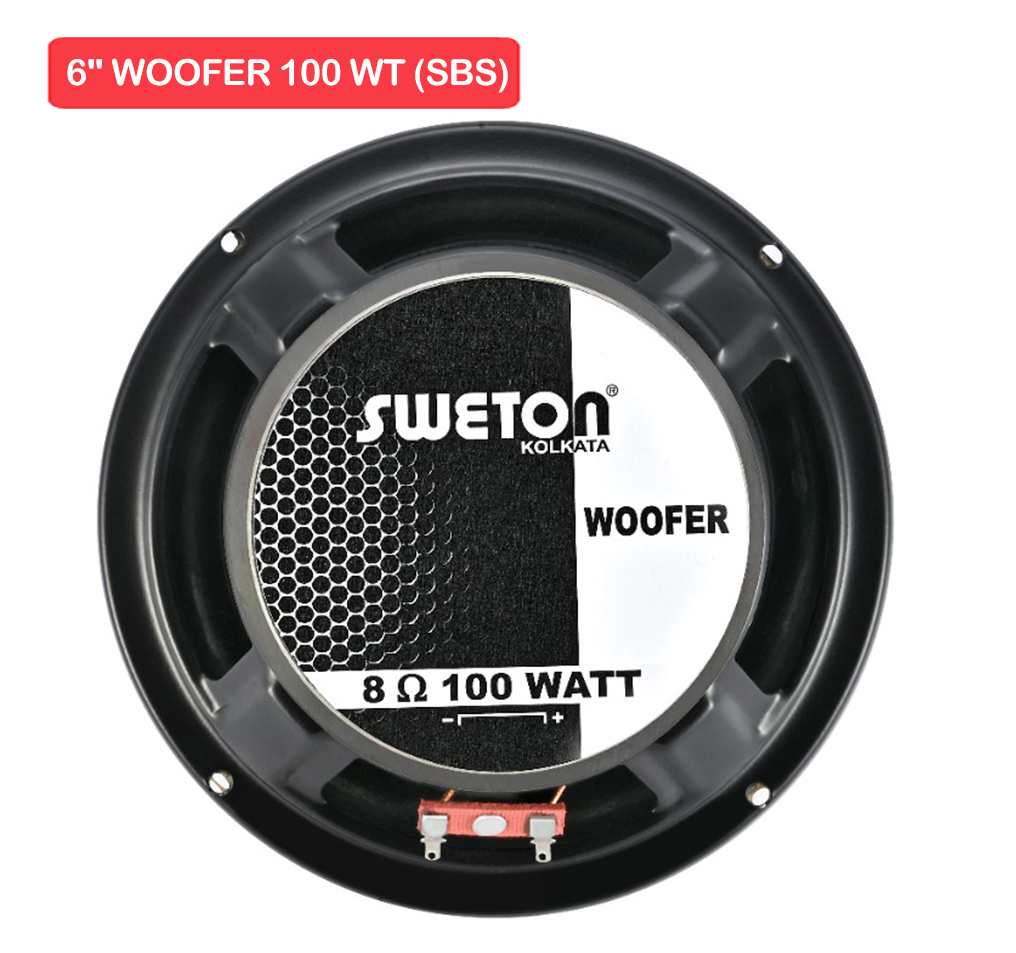

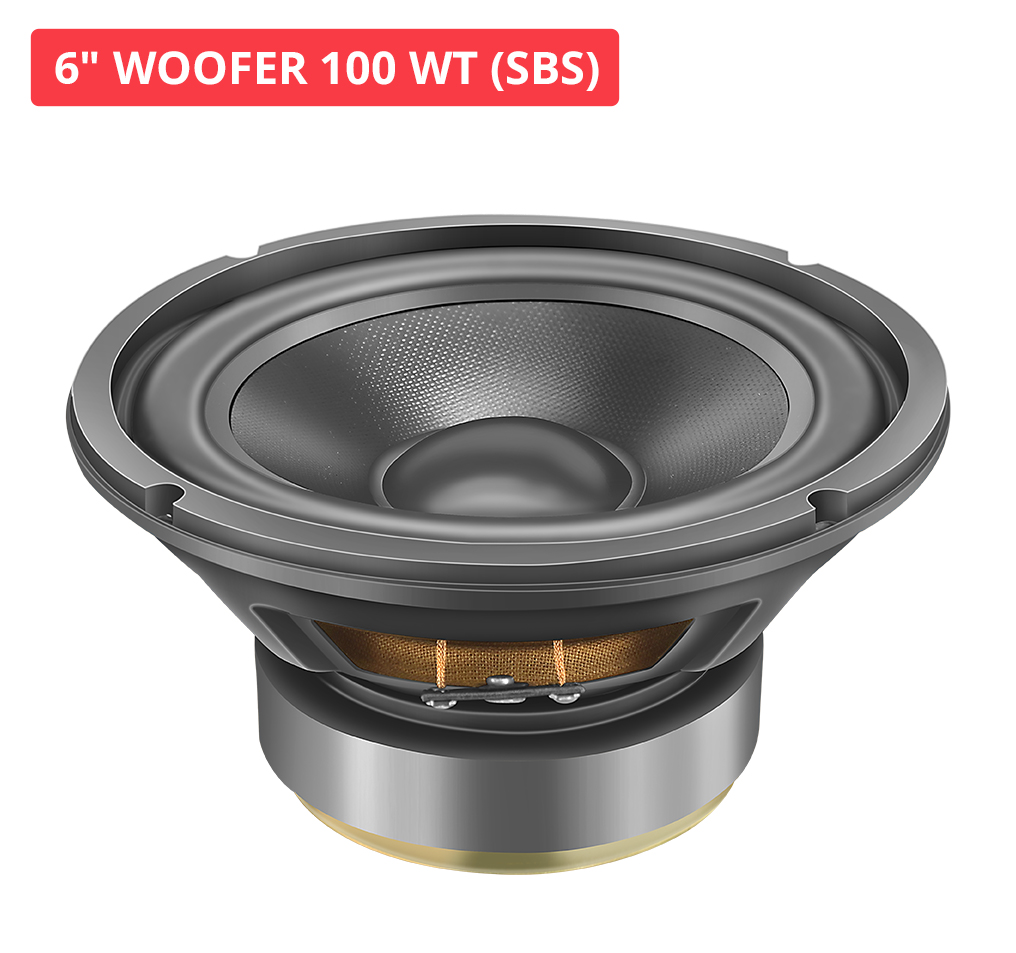

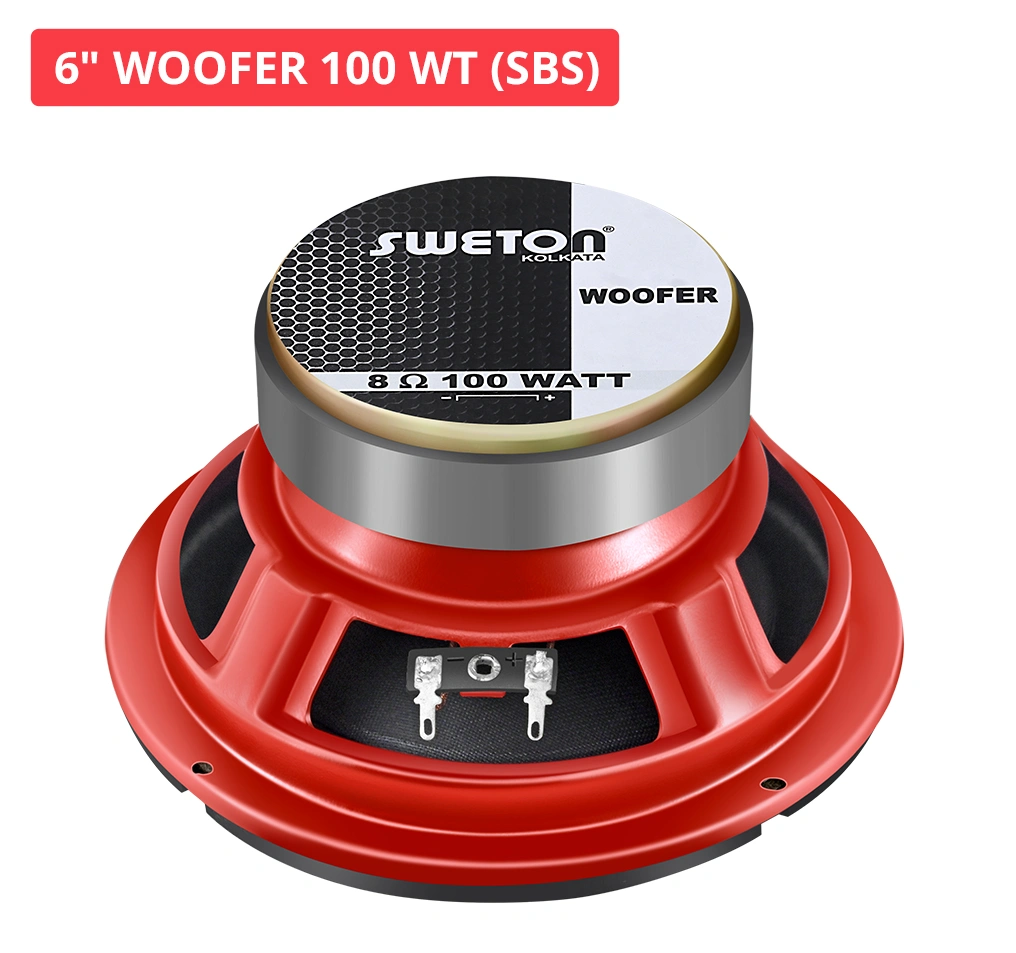

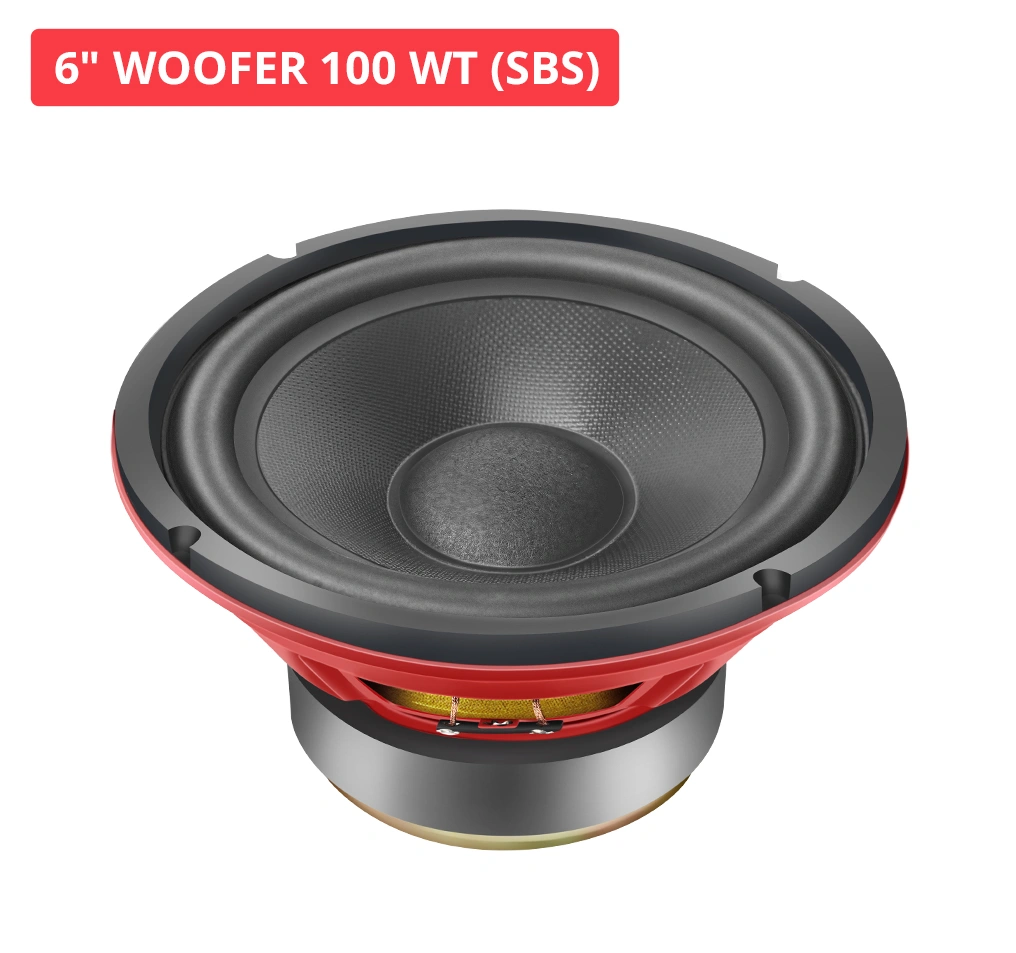

6" WOOFER 100 WT (SBS)

Key Features

  • Program Power : 200 W
  • Voice Coil Diameter : 25.5 mm
  • Response : 68-8K Hz
  • Sensitivity 1W/1M : 87 dB
Product Enquiry Buy Now
  • Nominal Diameter 167.25 mm
  • Nominal Impedence 8.0 Ω
  • Nominal Power Handling(AES) 100 W
  • Program Power 200 W
  • Sensitivity (1W/1m) 87 dB
  • Frequency Range 68-8K Hz
  • Magnet Material Ferrite
  • Voice Coil Diameter 25.5 mm
  • Winding Material COPPER
  • Former Material KAPTON
  • Winding Type Outside
  • Resonant Frequency (FS) 68 Hz
  • DC Resistance (Re) 6 Ω
  • Electrical Q (Qes) 0.83
  • Mechanical Q (Qms) 5.36
  • Total Q (Qts) 0.72
  • Compliance Equivalent Volume (vas) 8.48 Ltrs
  • Peak Diaphragm Displacement Volume (Vd) 0.07 Ltrs
  • Effective Surface Area of Cone (Sd) 132 cm^2
  • Reference Efficiency (ƞo) 0.32%
  • Moving Mass including air load (Mms) 15.67 gms
  • Motor Strength (Bl) 7.00 T-m
  • Voice Coil Inductance @ 1 KHz (Le) 0.64 mH
  • Efficiency Bandwith Product (EBP) 82 Hz
  • Voice Coil Overhang (Xmax) ±5.31 mm
  • Overall Diameter 167.25 mm
  • Baffle Cutout Diameter 147.25 mm
  • Depth 85 mm
  • Flange and Gasket Thickness 8 mm
  • Recone Kit Number REC6INCH100W
