Products

8 Ω

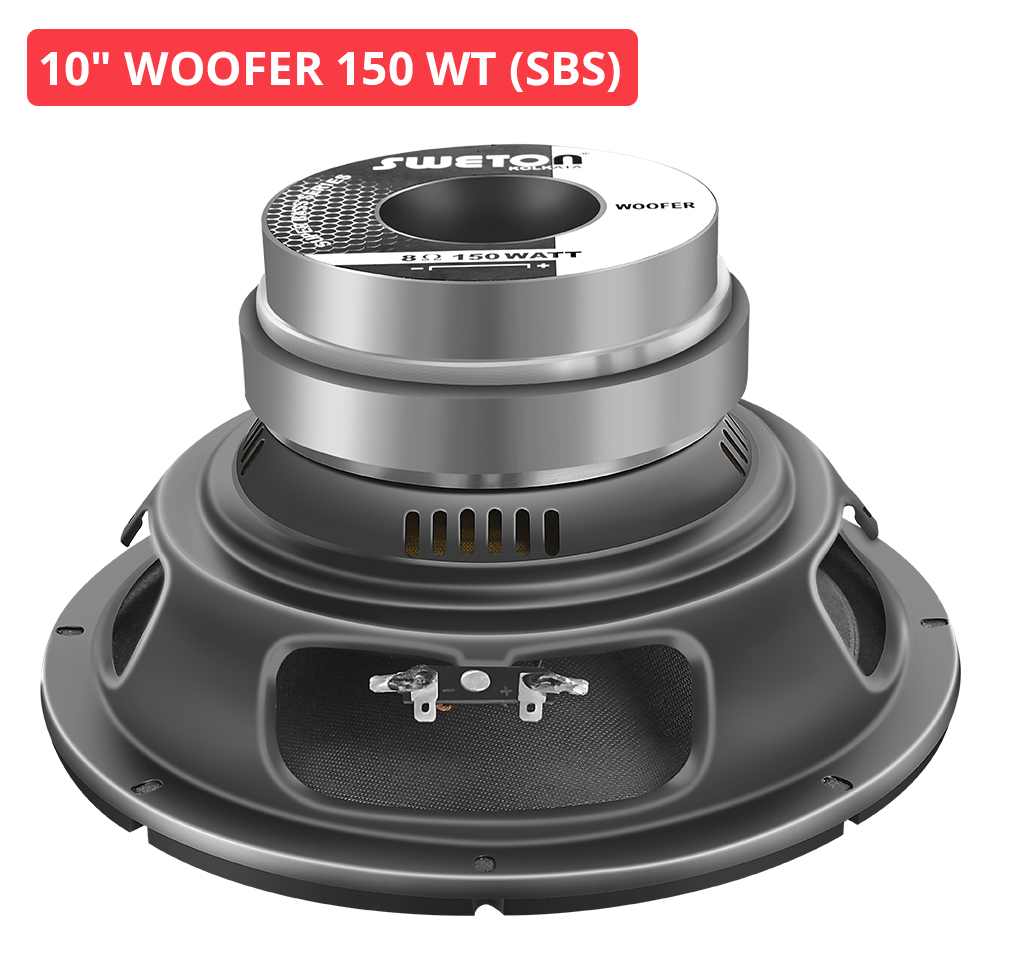

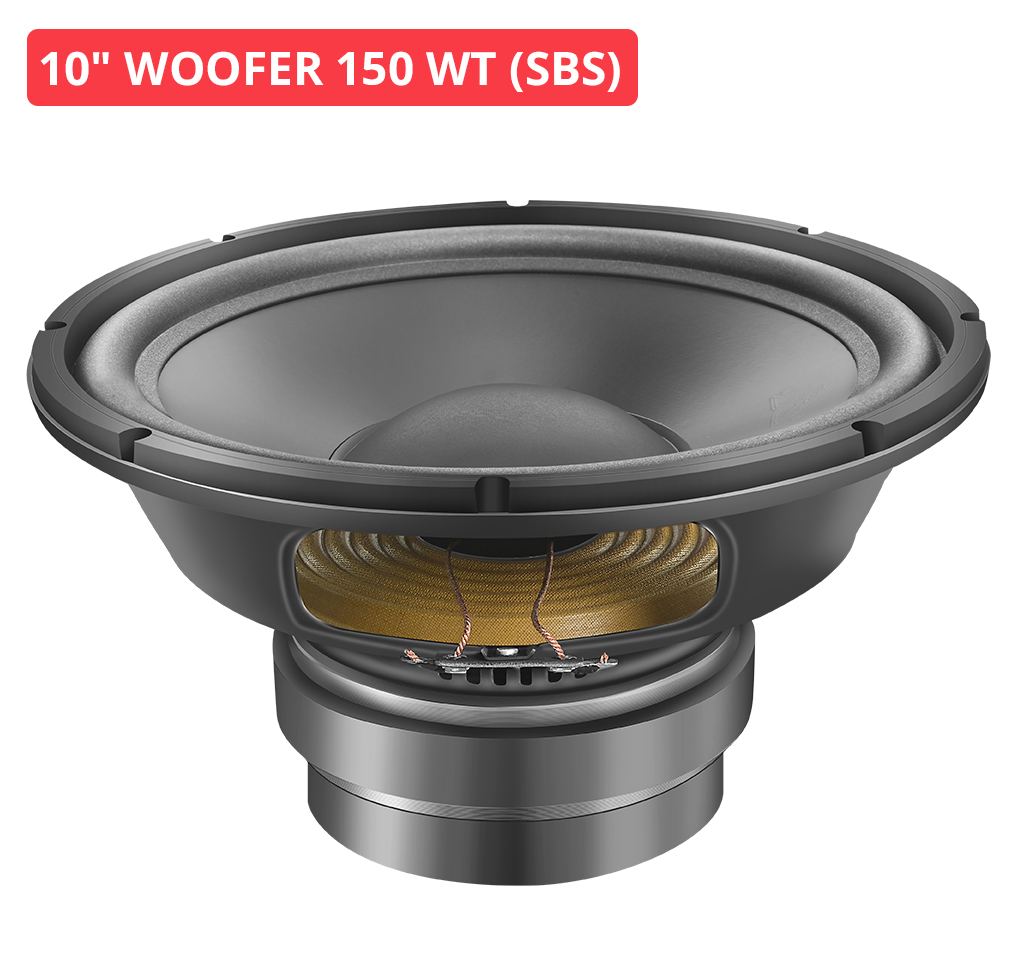

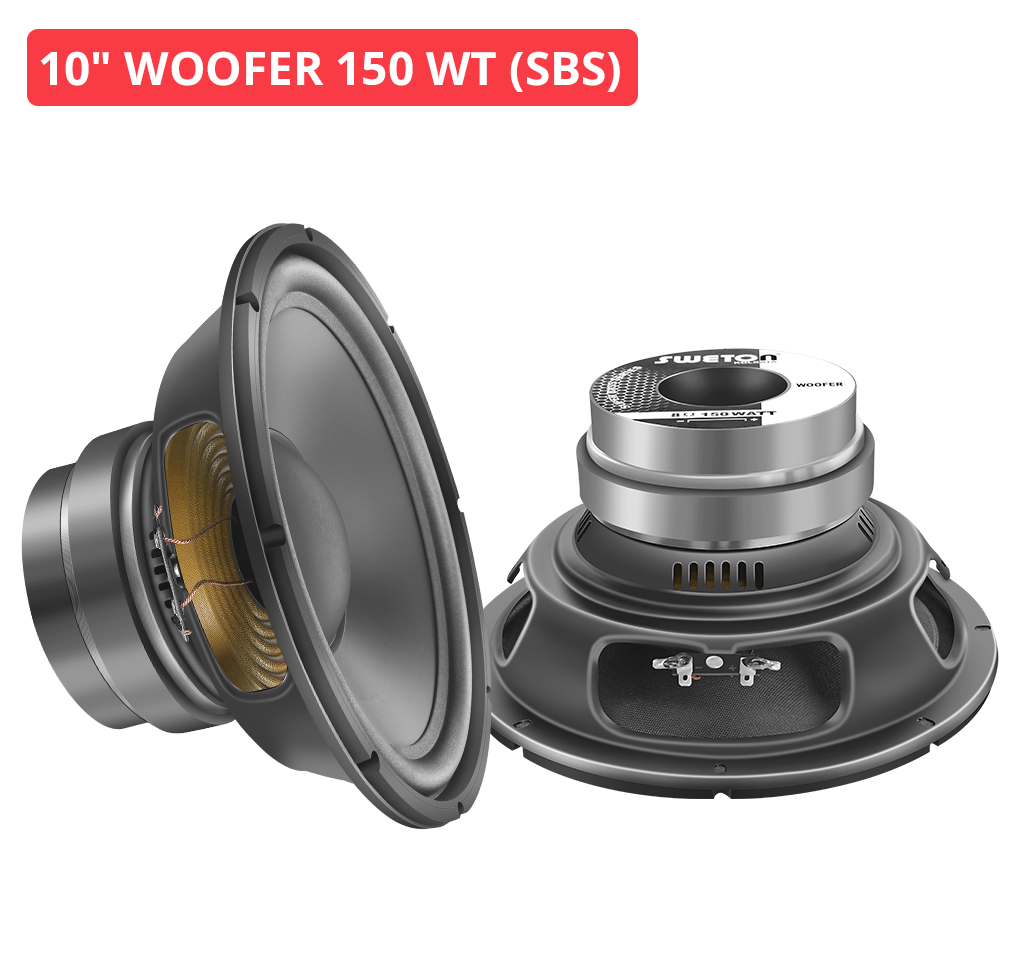

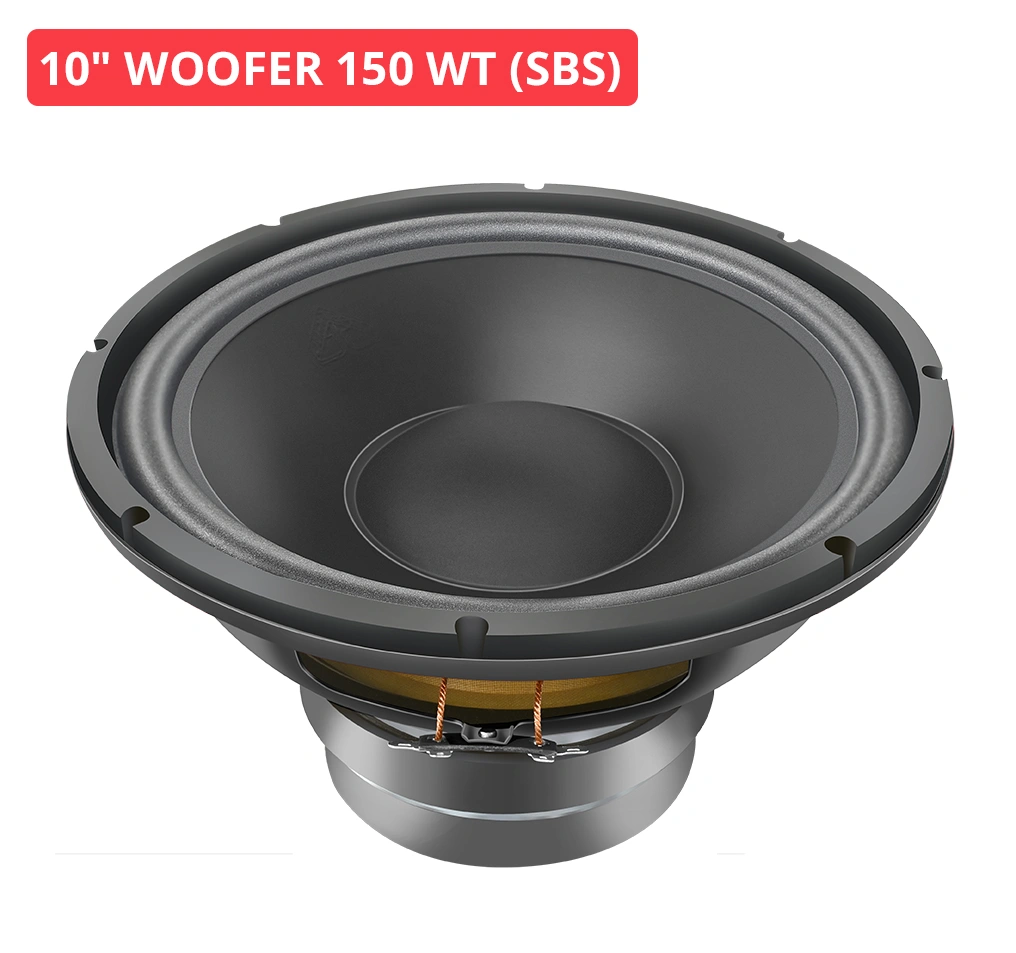

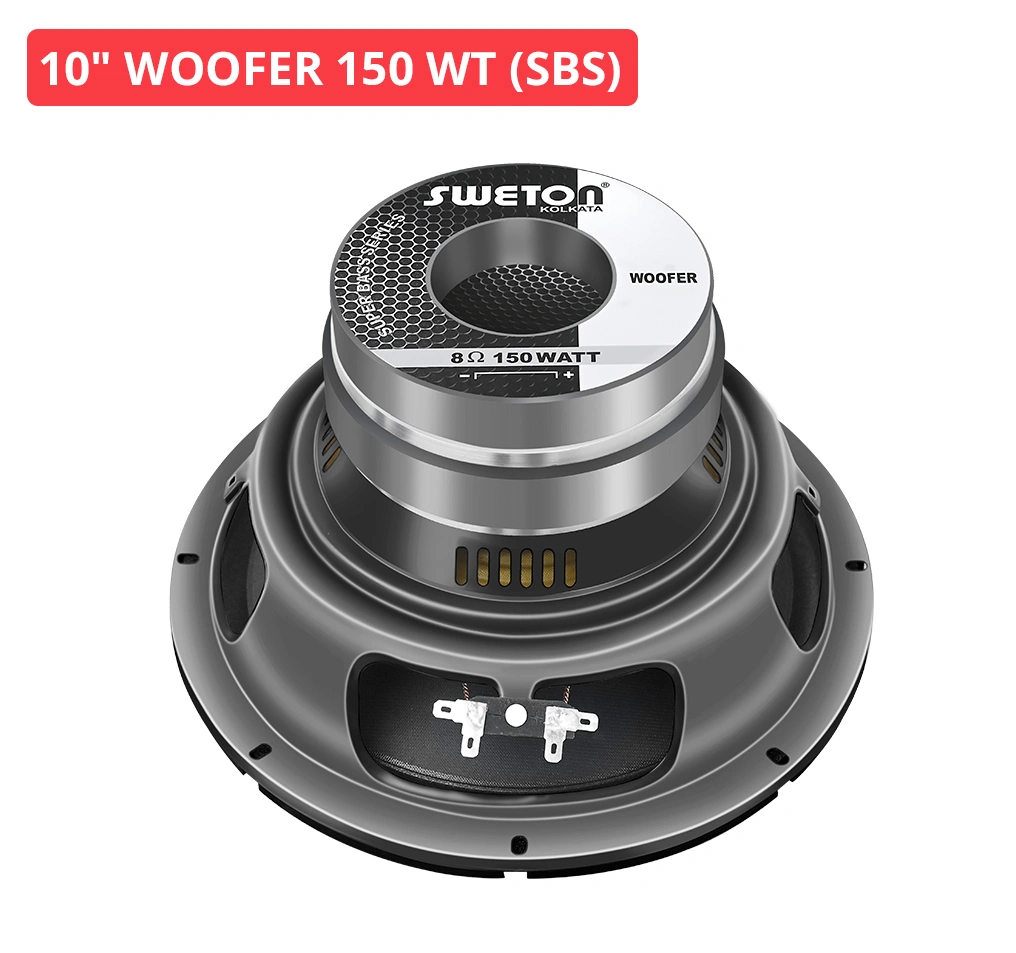

10" WOOFER 150 WT (SBS)

Key Features

  • Program Power : 300 W
  • Voice Coil Diameter : 44.45 mm
  • Response : 47-4.4K Hz
  • Sensitivity 1W/1M : 91 dB
Product Enquiry Buy Now
  • Nominal Diameter 255 mm
  • Nominal Impedence 8 Ω
  • Nominal Power Handling(AES) 150 w
  • Program Power 300 W
  • Sensitivity (1W/1m) 91 db
  • Frequency Range 47-4.4K Hz
  • Magnet Material Ferrite
  • Voice Coil Diameter 44.45 mm
  • Winding Material COPPER
  • Former Material KAPTON
  • Winding Type Outside
  • Resonant Frequency (FS) 47 Hz
  • DC Resistance (Re) 5.8 Ω
  • Electrical Q (Qes) 0.72
  • Mechanical Q (Qms) 5.54
  • Total Q (Qts) 0.63
  • Compliance Equivalent Volume (vas) 52.38 Ltrs
  • Peak Diaphragm Displacement Volume (Vd) 0.34 Ltrs
  • Effective Surface Area of Cone (Sd) 373 cm^2
  • Reference Efficiency (ƞo) 0.73%
  • Moving Mass including air load (Mms) 42.58 gms
  • Motor Strength (Bl) 10.09 T-m
  • Voice Coil Inductance @ 1 KHz (Le) 1.05 mH
  • Efficiency Bandwith Product (EBP) 65 Hz
  • Voice Coil Overhang (Xmax) ±9.25 mm
  • Overall Diameter 255 mm
  • Baffle Cutout Diameter 228 mm
  • Depth 140 mm
  • Flange and Gasket Thickness 12 mm
  • Recone Kit Number REC10INCH150W
