Products
4 Ω

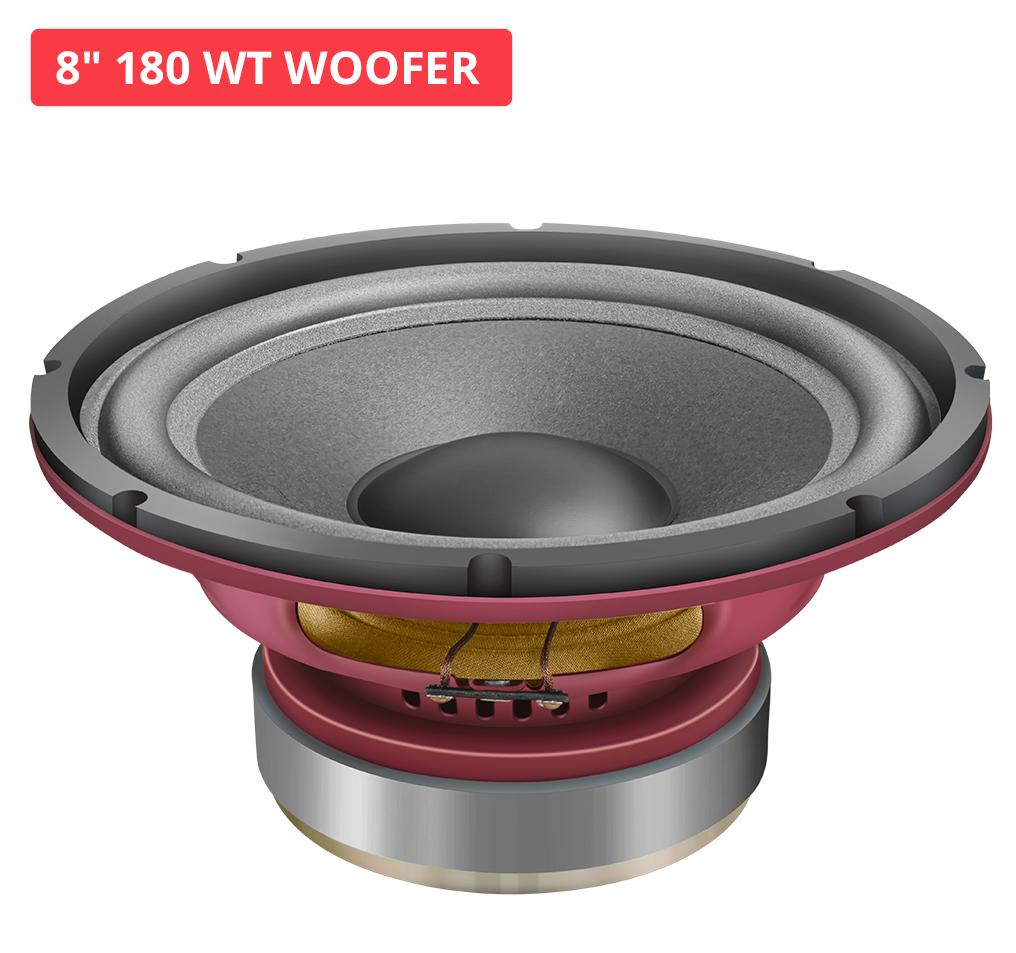

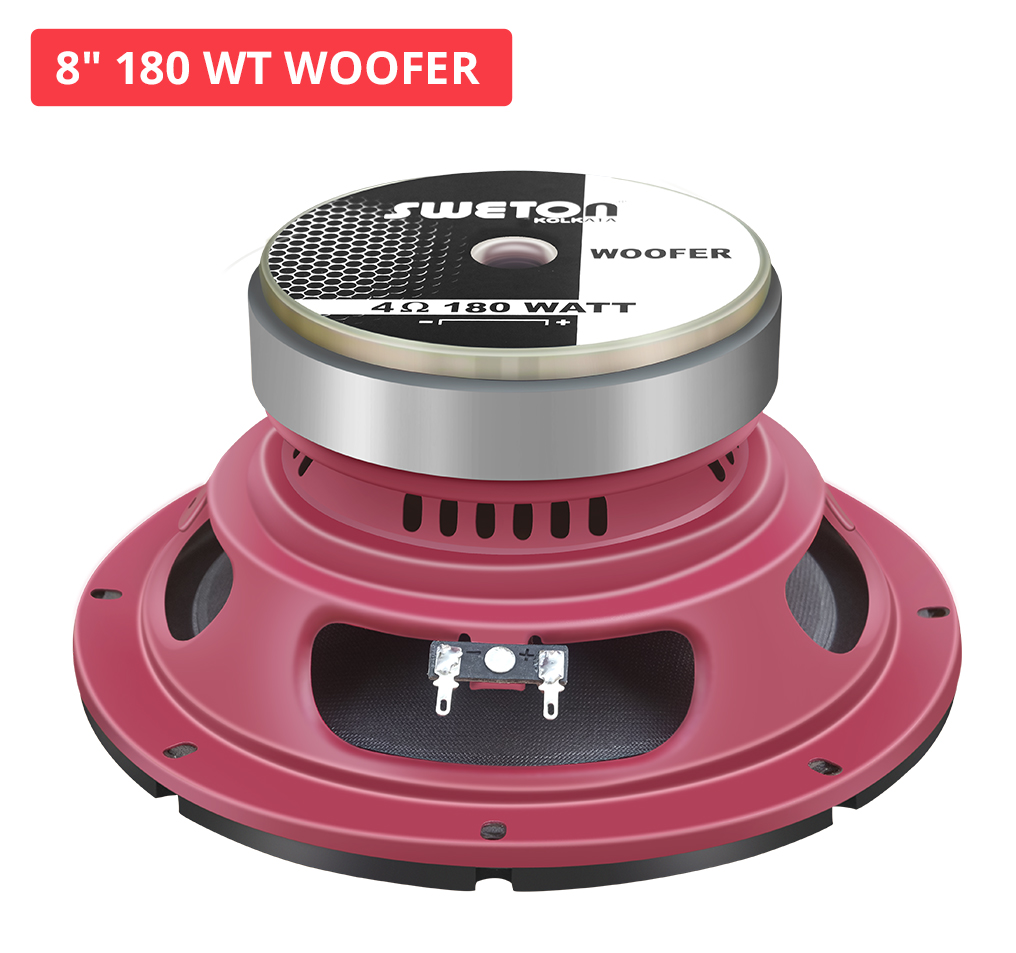

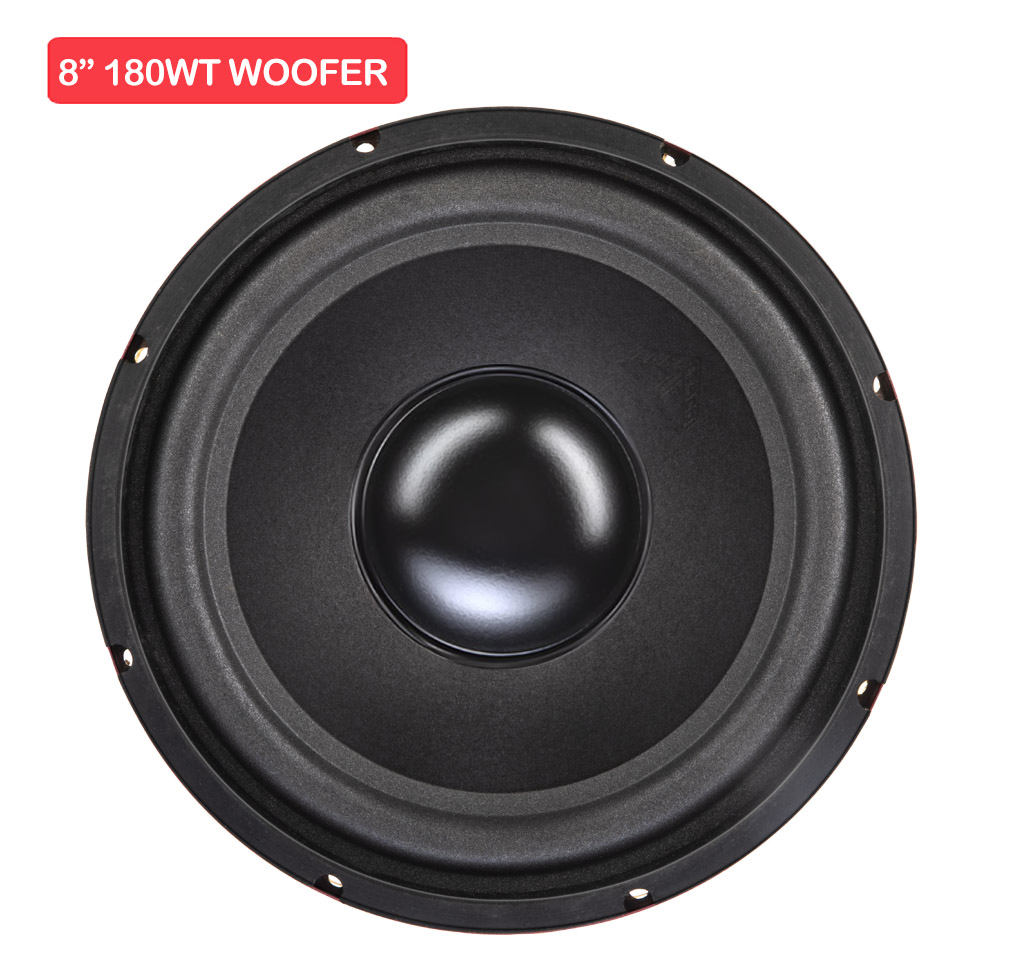

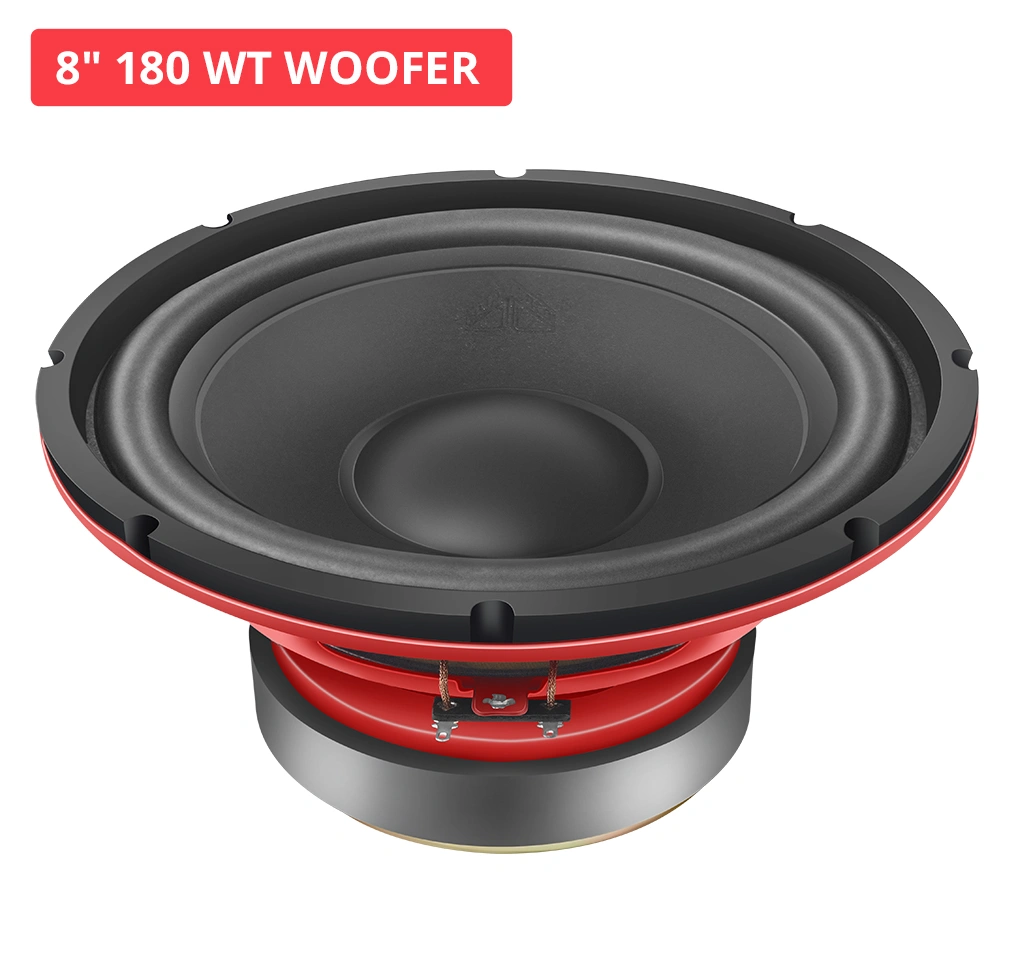

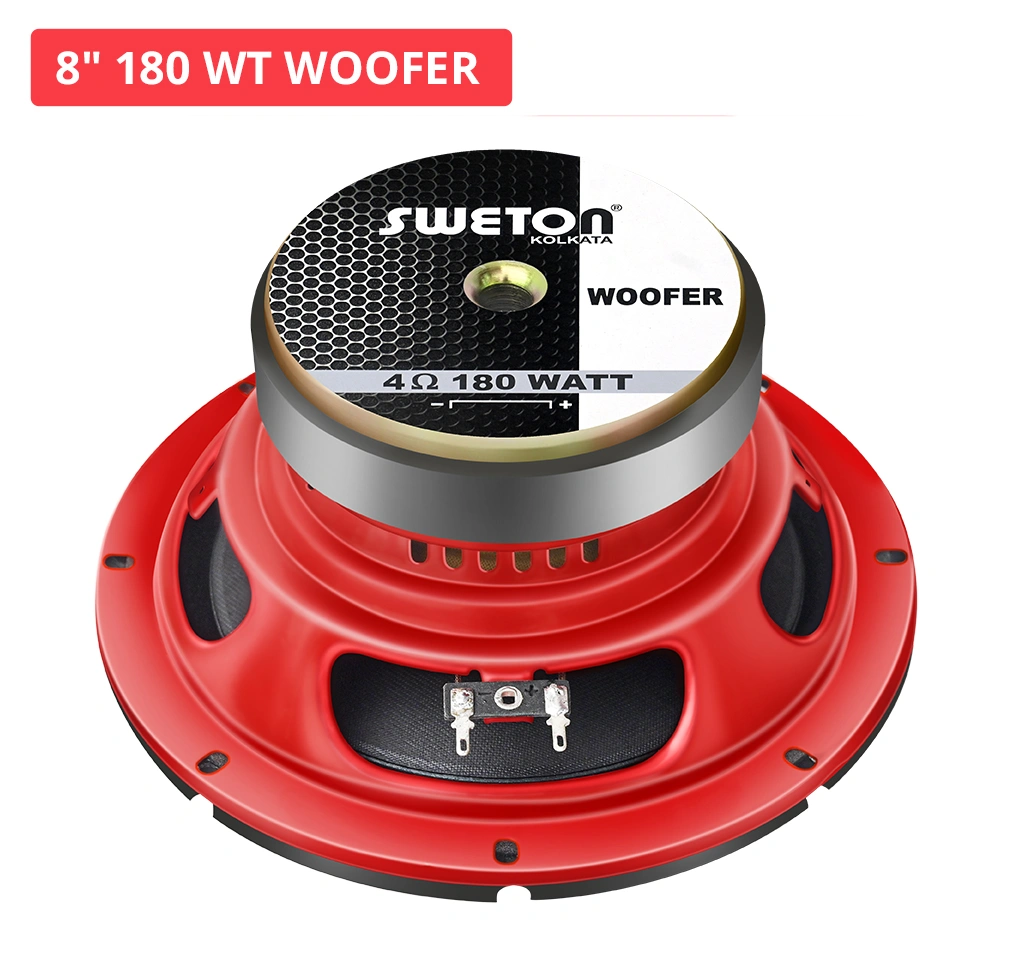

8" 180 WT WOOFER
Key Features
- Program Power : 360 W
- Voice Coil Diameter : 35 mm
- Response : 53-5.3K Hz
- Sensitivity 1W/1M : 90 db
- Nominal Diameter 210 mm
- Nominal Impedence 4 Ω
- Nominal Power Handling(AES) 180 w
- Program Power 360 w
- Sensitivity (1W/1m) 90 db
- Frequency Range 53-5.3K Hz
- Magnet Material Ferrite
- Voice Coil Diameter 35 mm
- Winding Material COPPER
- Former Material KAPTON
- Winding Type Outside
- Resonant Frequency (FS) 53 Hz
- DC Resistance (Re) 3.9 Ω
- Electrical Q (Qes) 0.58
- Mechanical Q (Qms) 13.57
- Total Q (Qts) 0.56
- Compliance Equivalent Volume (vas) 27 Ltrs
- Peak Diaphragm Displacement Volume (Vd) 0.10 Ltrs
- Effective Surface Area of Cone (Sd) 221.7 cm^2
- Reference Efficiency (ƞo) 0.66%
- Moving Mass including air load (Mms) 23.07 gms
- Motor Strength (Bl) 7.16 T-m
- Voice Coil Inductance @ 1 KHz (Le) 0.60 mH
- Efficiency Bandwith Product (EBP) 91 Hz
- Voice Coil Overhang (Xmax) ±4.69 mm
- Overall Diameter 210 mm
- Baffle Cutout Diameter 180.5 mm
- Depth 100 mm
- Flange and Gasket Thickness 11 mm
- Recone Kit Number REC8INCH180W
