4 Ω

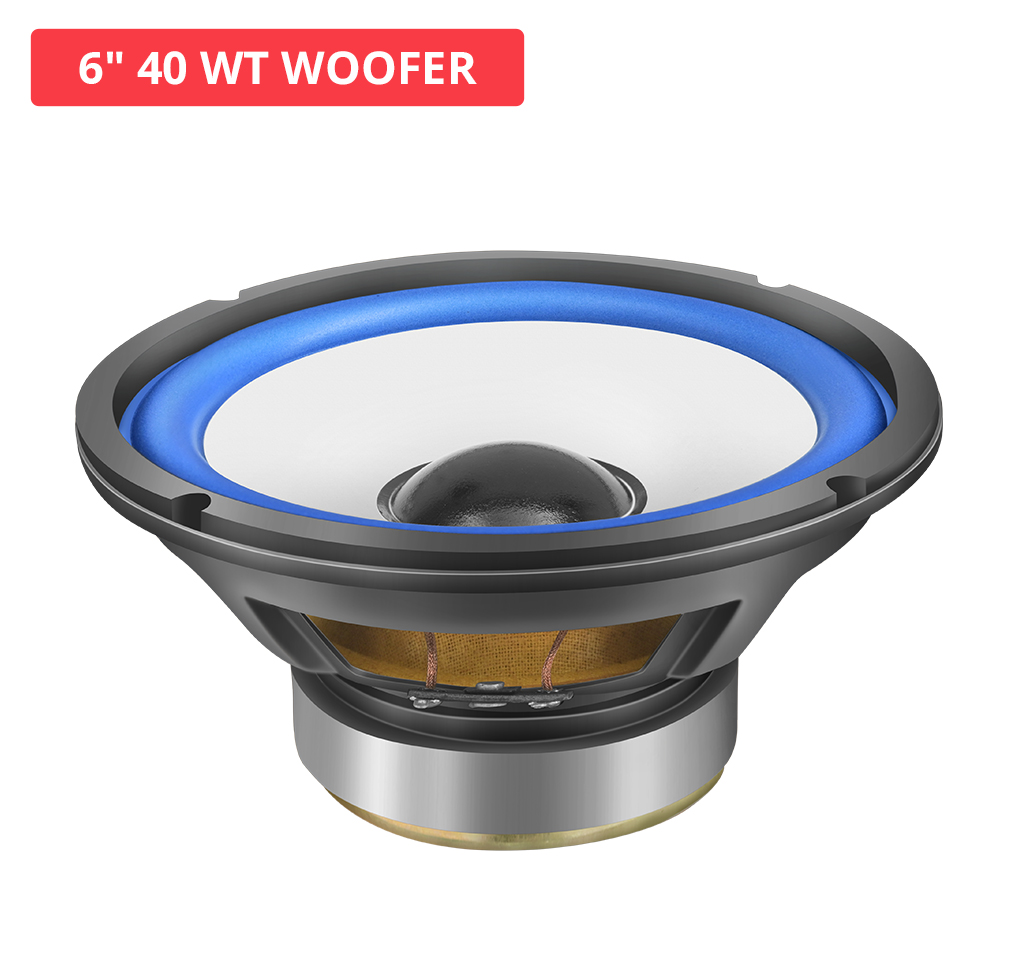

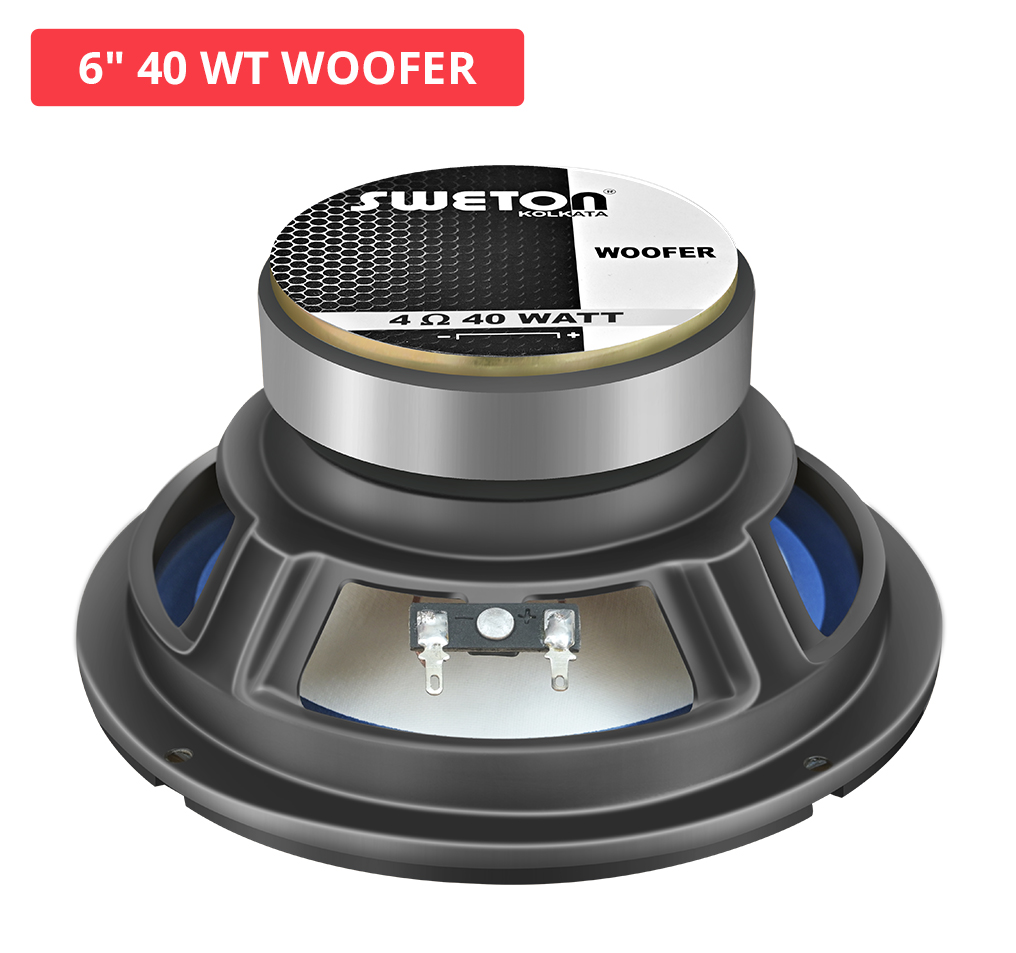

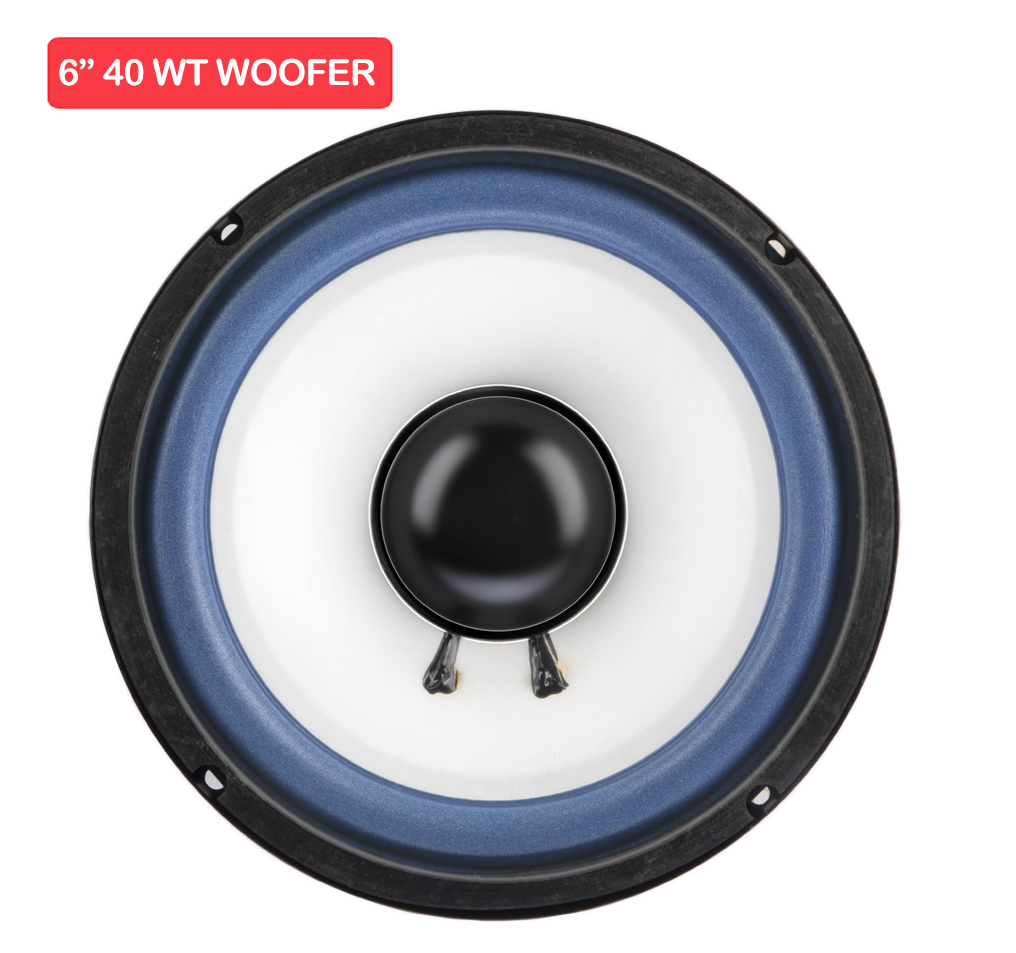

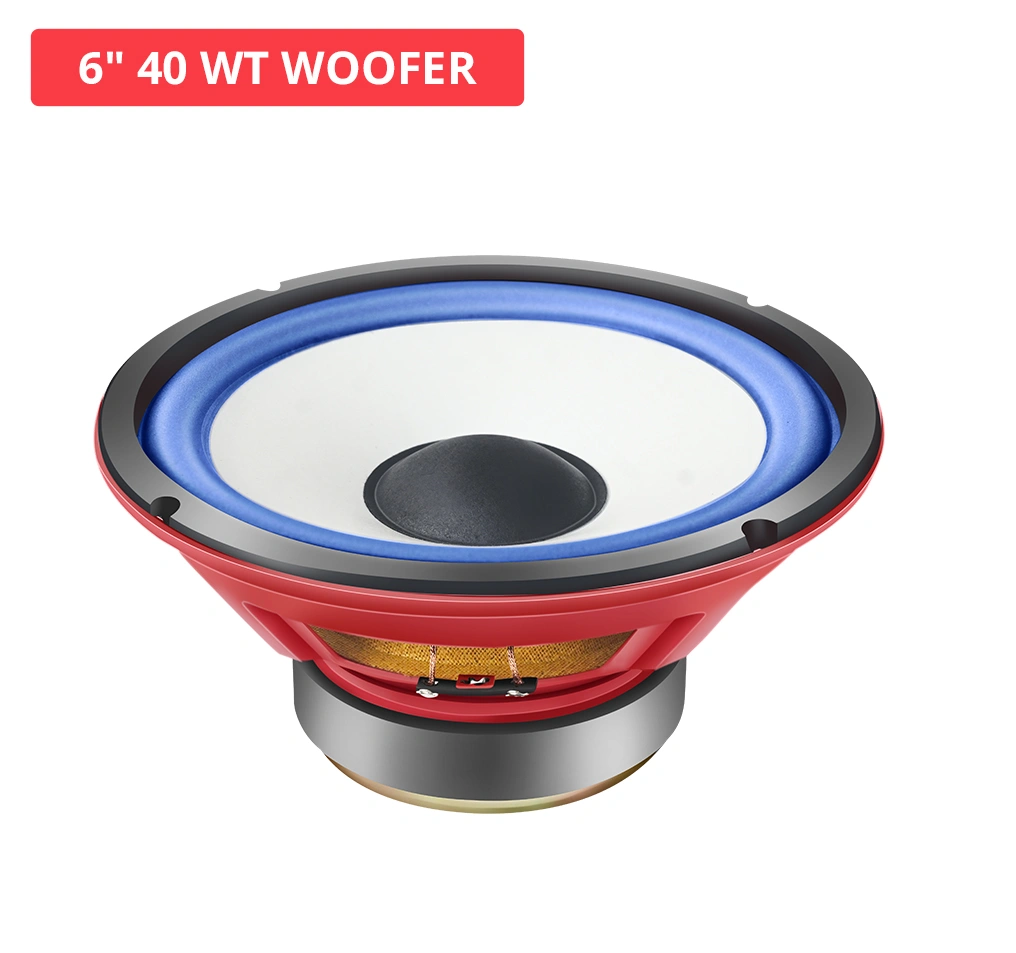

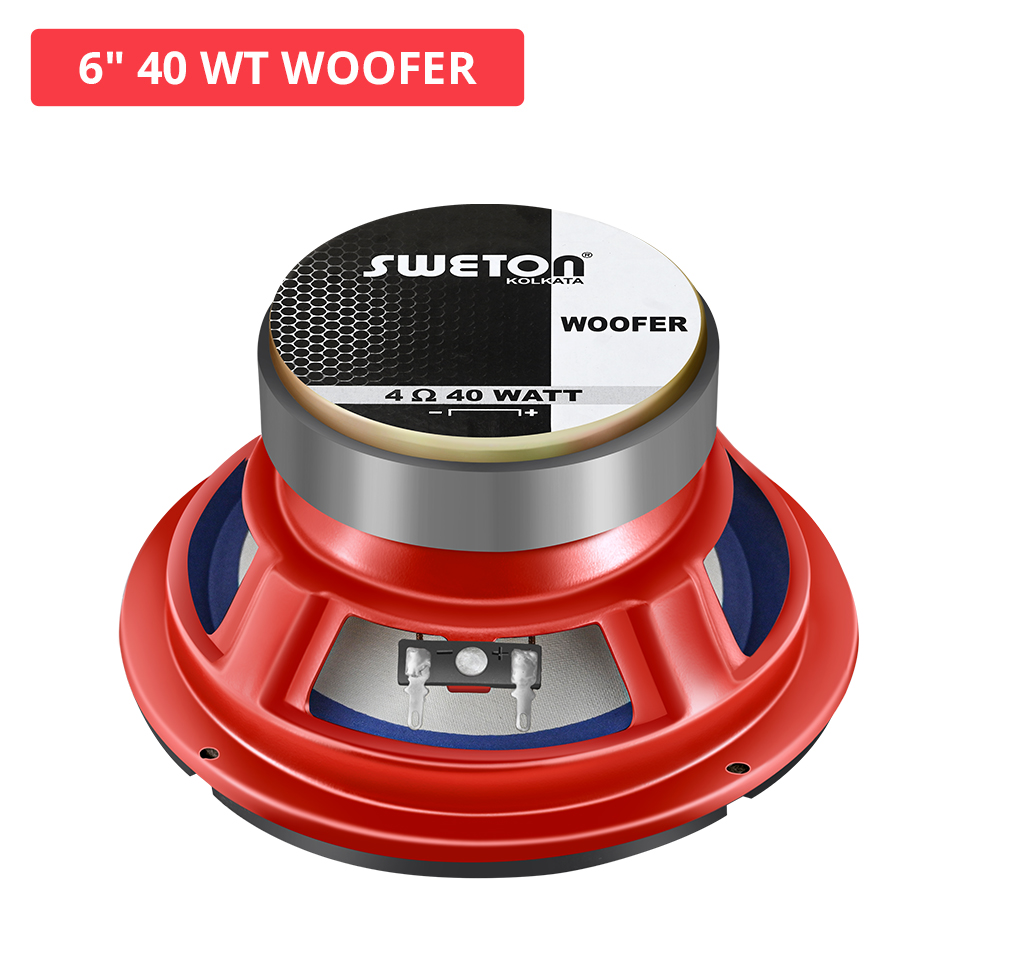

6" 40 WT WOOFER
Key Features
- Program Power : 80 W
- Voice Coil Diameter : 25.68 mm
- Response : 70 - 7K Hz
- Sensitivity 1W/1M : 89 dB
- Nominal Diameter 167.25 mm
- Nominal Impedence 4 Ω
- Nominal Power Handling(AES) 40 W
- Program Power 80 W
- Sensitivity (1W/1m) 89 dB
- Frequency Range 70-7K Hz
- Magnet Material Ferrite
- Voice Coil Diameter 25.68 mm
- Winding Material COPPER
- Former Material SV COATED KRAFT
- Winding Type Outside
- Resonant Frequency (FS) 70 Hz
- DC Resistance (Re) 3.5 Ω
- Electrical Q (Qes) 0.85
- Mechanical Q (Qms) 9.73
- Total Q (Qts) 0.78
- Compliance Equivalent Volume (vas) 11.94 Ltrs
- Peak Diaphragm Displacement Volume (Vd) 0.04 Ltrs
- Effective Surface Area of Cone (Sd) 143 cm^2
- Reference Efficiency (ƞo) 0.47%
- Moving Mass including air load (Mms) 12.36 gms
- Motor Strength (Bl) 4.75 T-m
- Voice Coil Inductance @ 1 KHz (Le) 0.36 mH
- Efficiency Bandwith Product (EBP) 82 Hz
- Voice Coil Overhang (Xmax) ±3.06 mm
- Overall Diameter 167.25 mm
- Baffle Cutout Diameter 147.25 mm
- Depth 73 mm
- Flange and Gasket Thickness 8 mm
- Recone Kit Number REC6INCH40W
