8 Ω

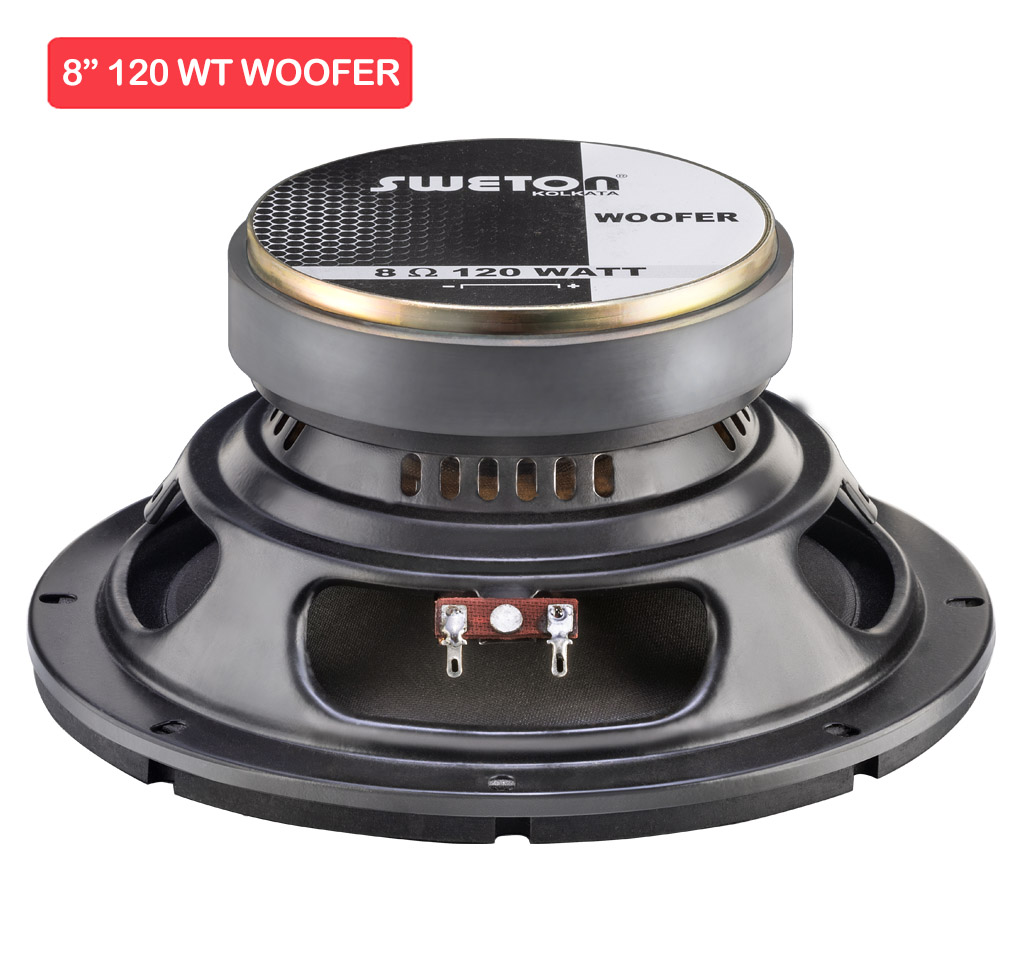

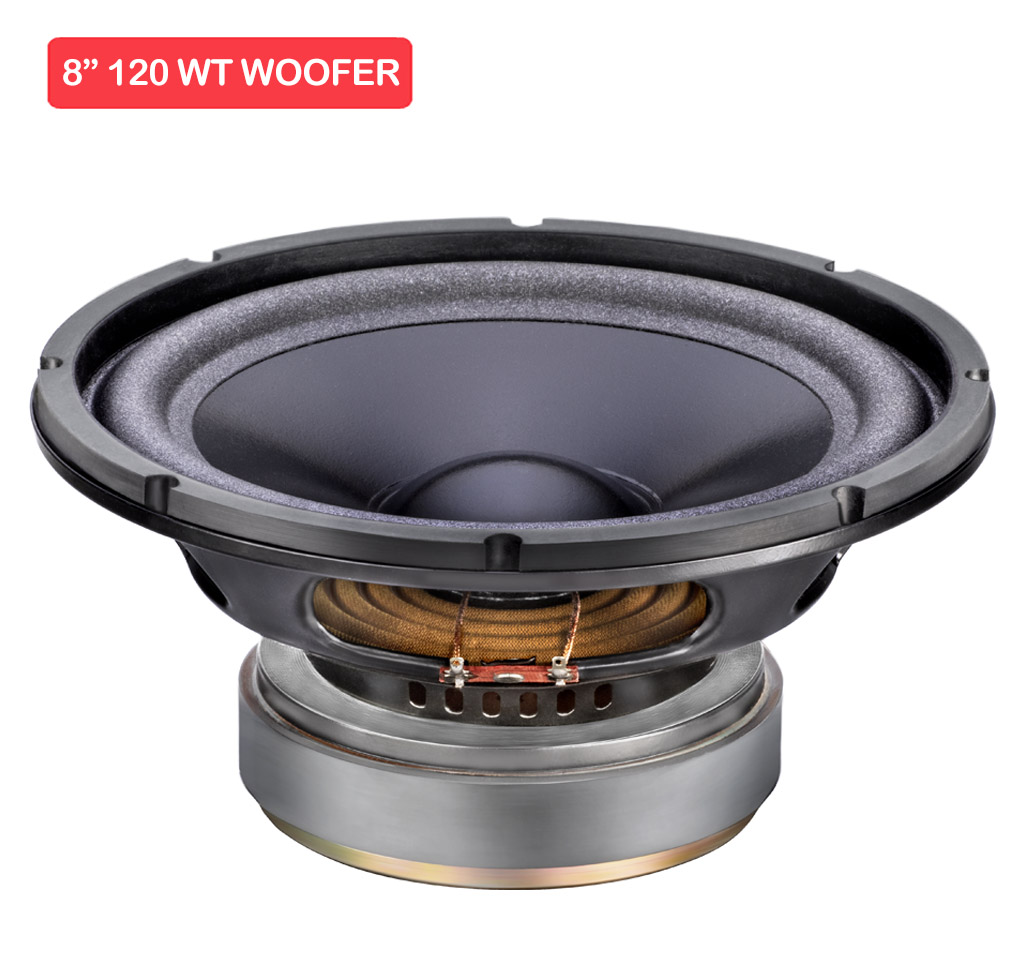

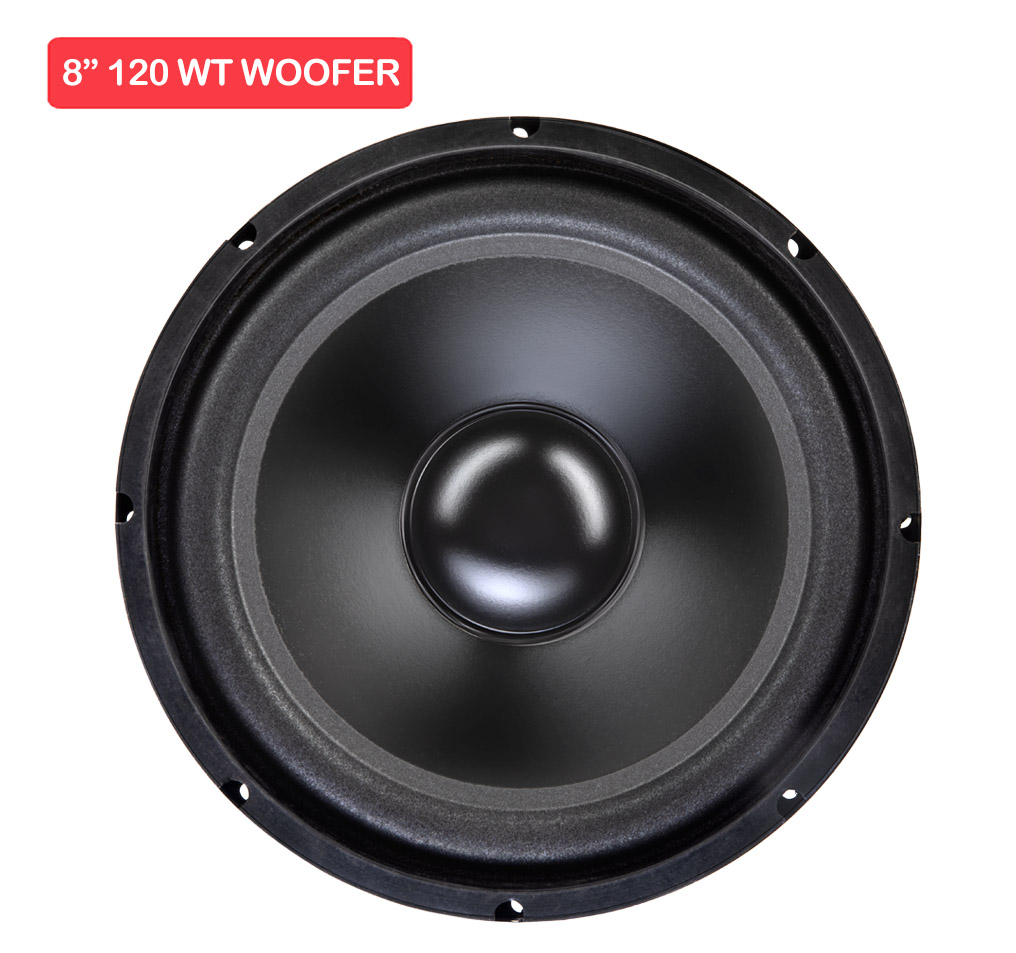

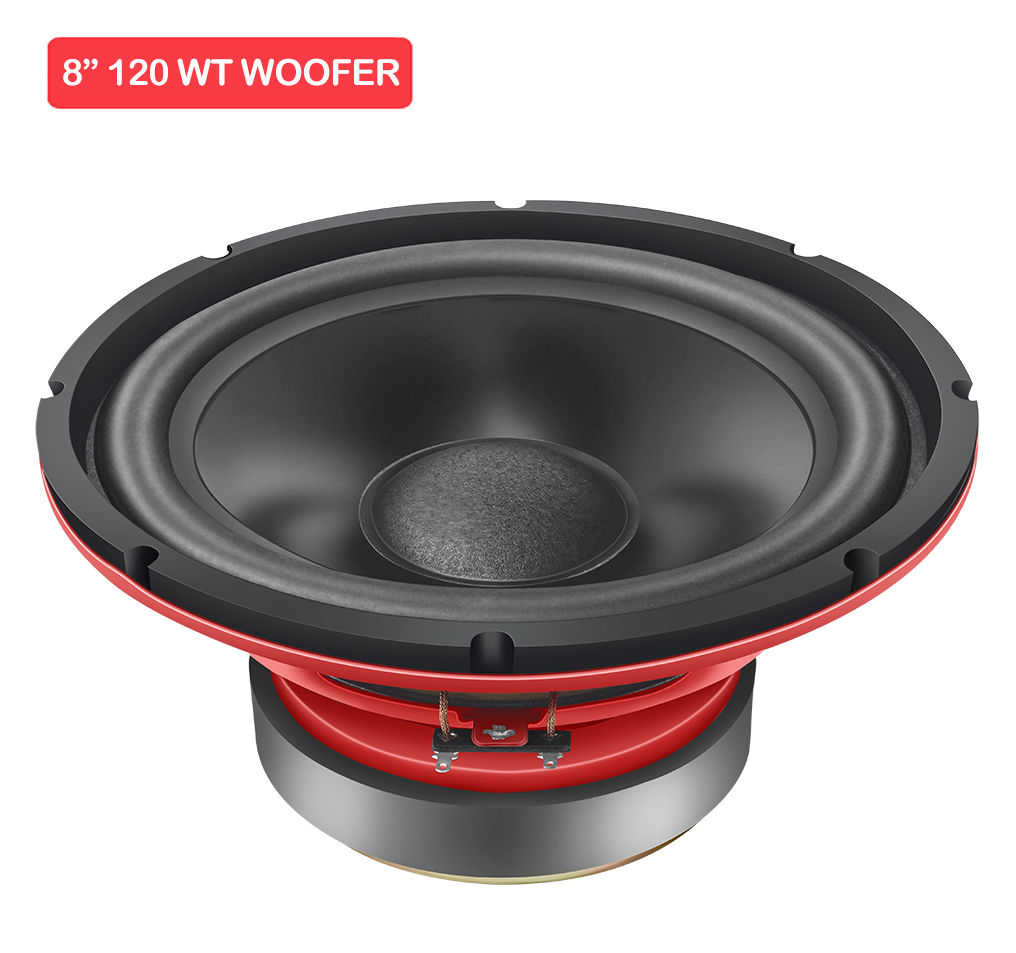

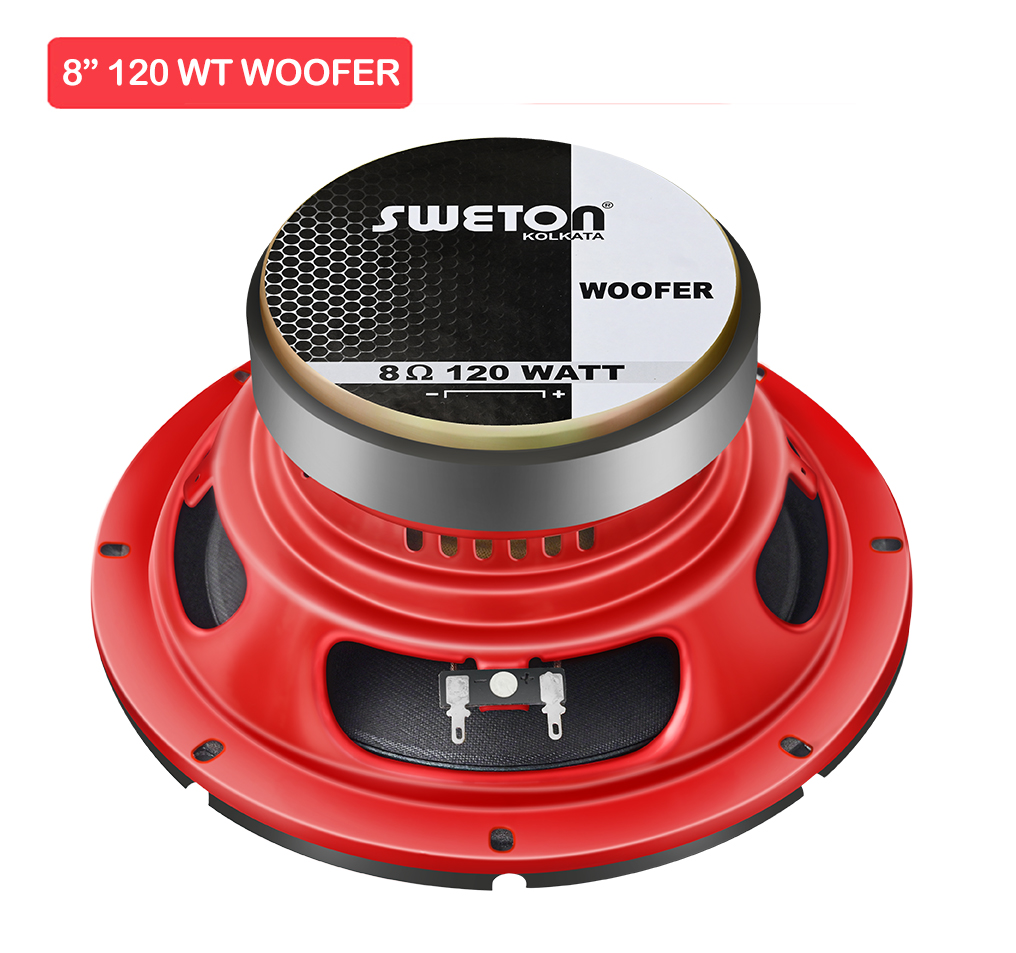

8" 120 WT WOOFER
Key Features
- Program Power : 240 W
- Voice Coil Diameter : 34 mm
- Response : 61-4.2K Hz
- Sensitivity 1W/1M : 88 db
- Nominal Diameter 210 mm
- Nominal Impedence 8 Ω
- Nominal Power Handling(AES) 120 W
- Program Power 240 W
- Sensitivity (1W/1m) 88 dB
- Frequency Range 61-4.2K Hz
- Magnet Material Ferrite
- Voice Coil Diameter 34 mm
- Winding Material COPPER
- Former Material KAPTON
- Winding Type Outside
- Resonant Frequency (FS) 61 Hz
- DC Resistance (Re) 4.6 Ω
- Electrical Q (Qes) 0.99
- Mechanical Q (Qms) 5.09
- Total Q (Qts) 0.83
- Compliance Equivalent Volume (vas) 18.68 Ltrs
- Peak Diaphragm Displacement Volume (Vd) 0.18 Ltrs
- Effective Surface Area of Cone (Sd) 221.7 cm^2
- Reference Efficiency (ƞo) 0.41%
- Moving Mass including air load (Mms) 24.87 gms
- Motor Strength (Bl) 6.66 T-m
- Voice Coil Inductance @ 1 KHz (Le) 0.86 mH
- Efficiency Bandwith Product (EBP) 62 Hz
- Voice Coil Overhang (Xmax) ±8.14 mm
- Overall Diameter 210 mm
- Baffle Cutout Diameter 179 mm
- Depth 99.5 mm
- Flange and Gasket Thickness 11 mm
- Recone Kit Number REC8INCH120W
