8 Ω

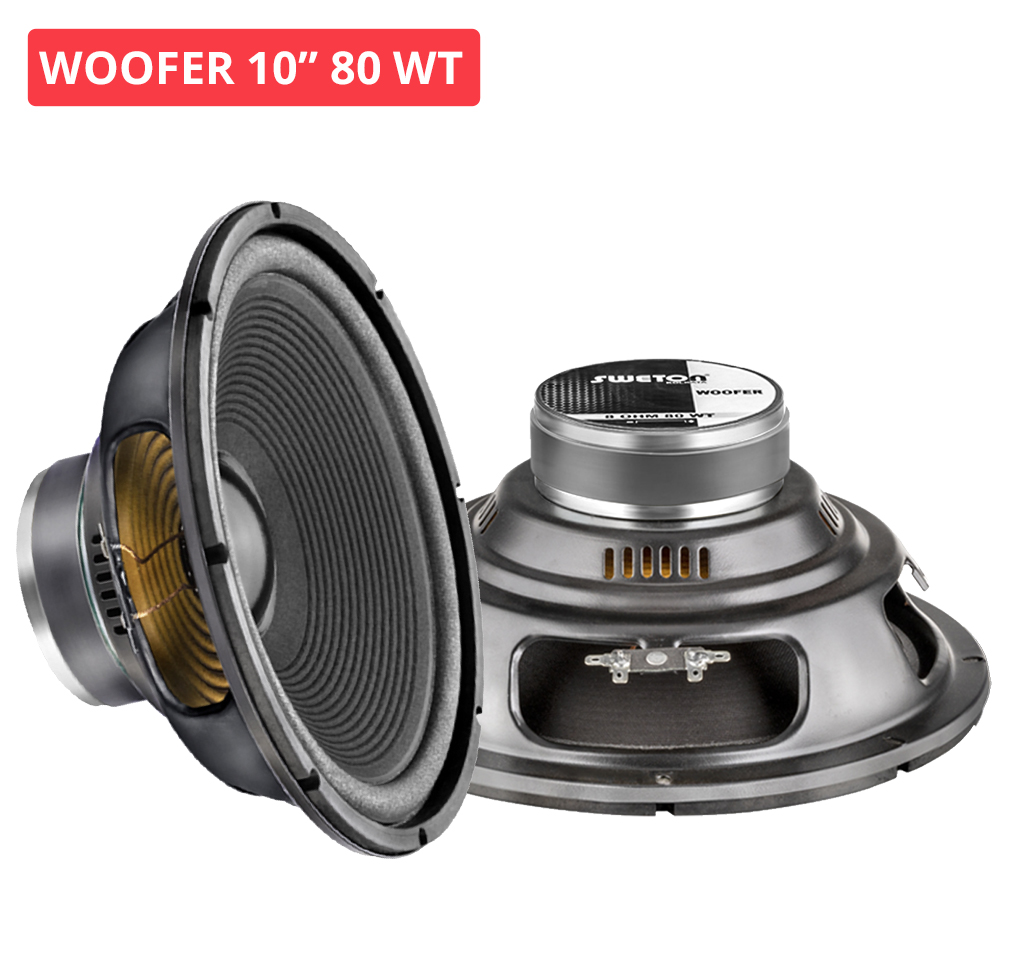

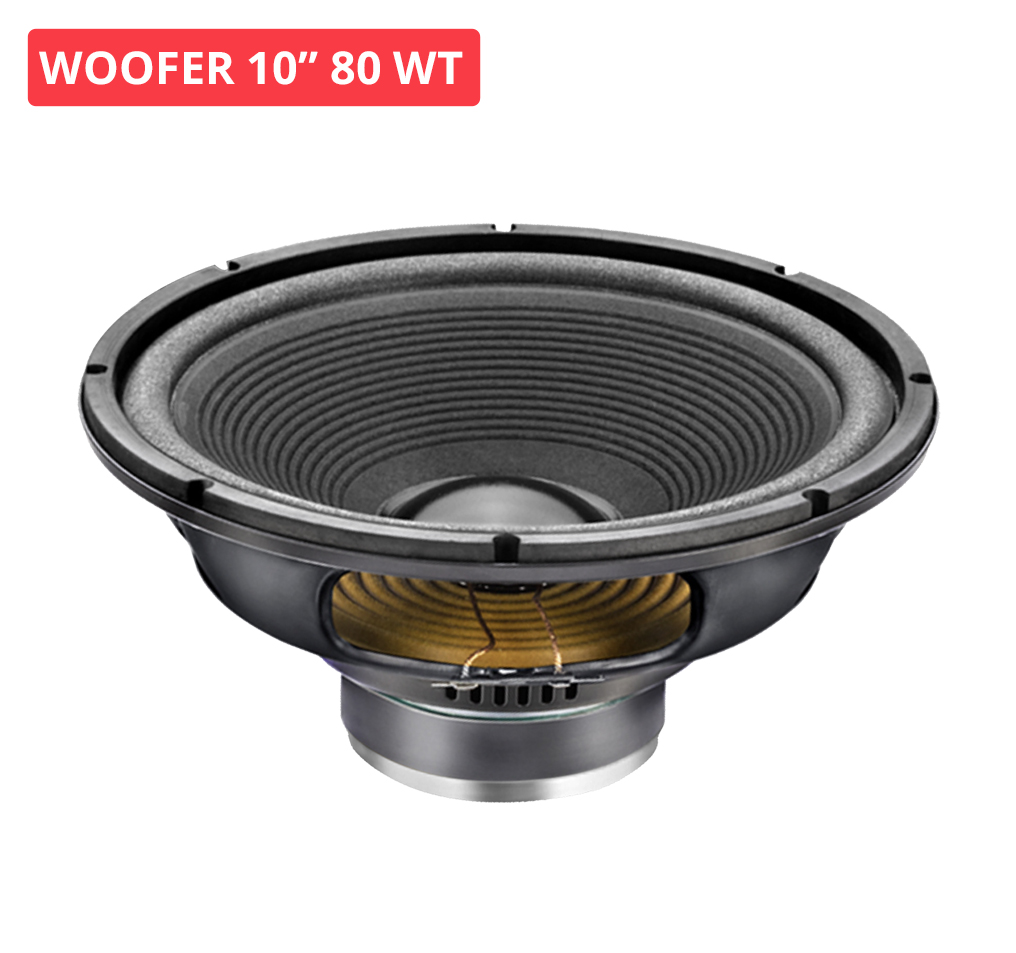

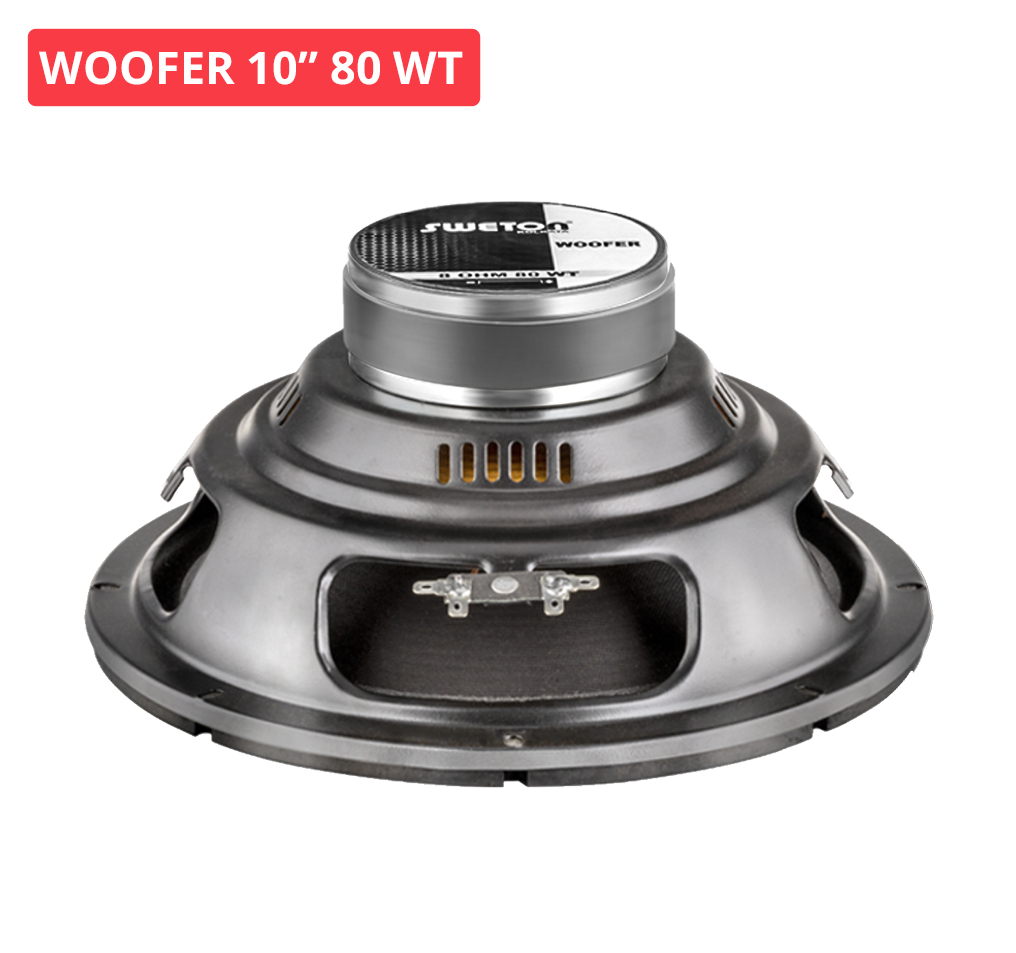

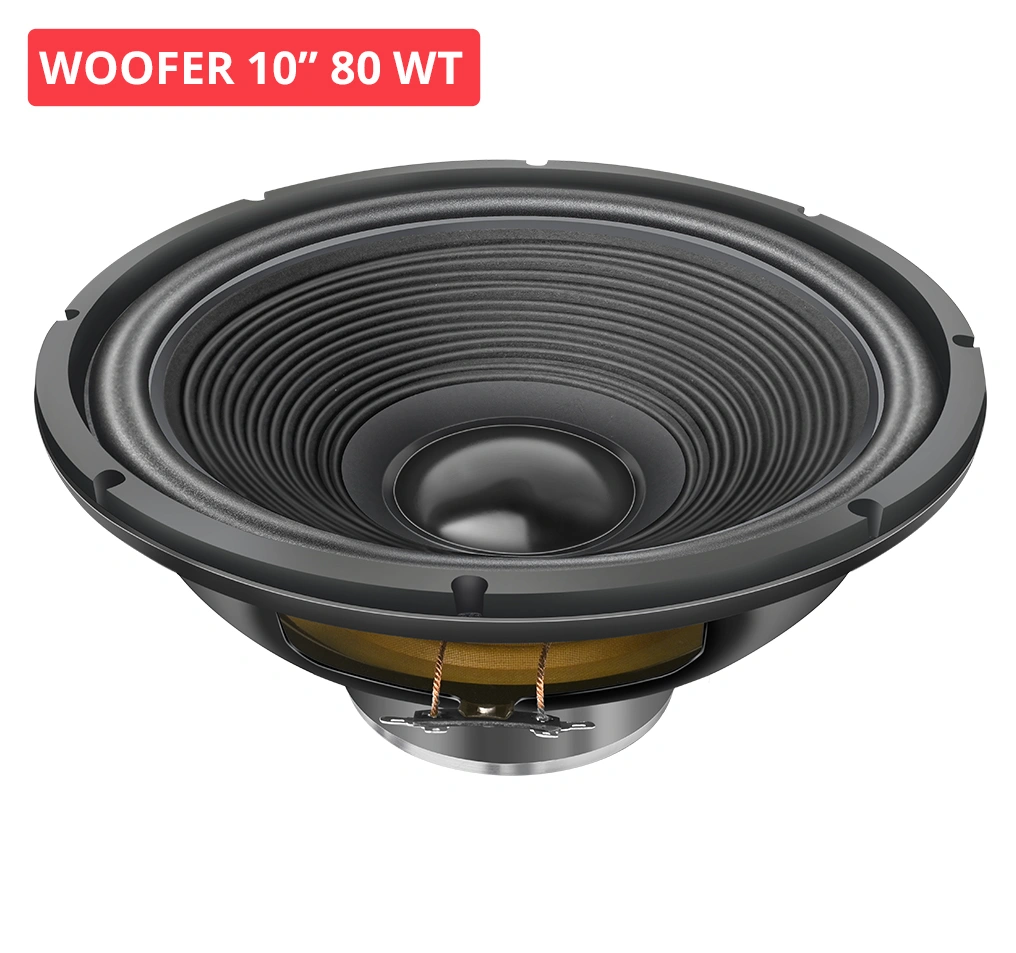

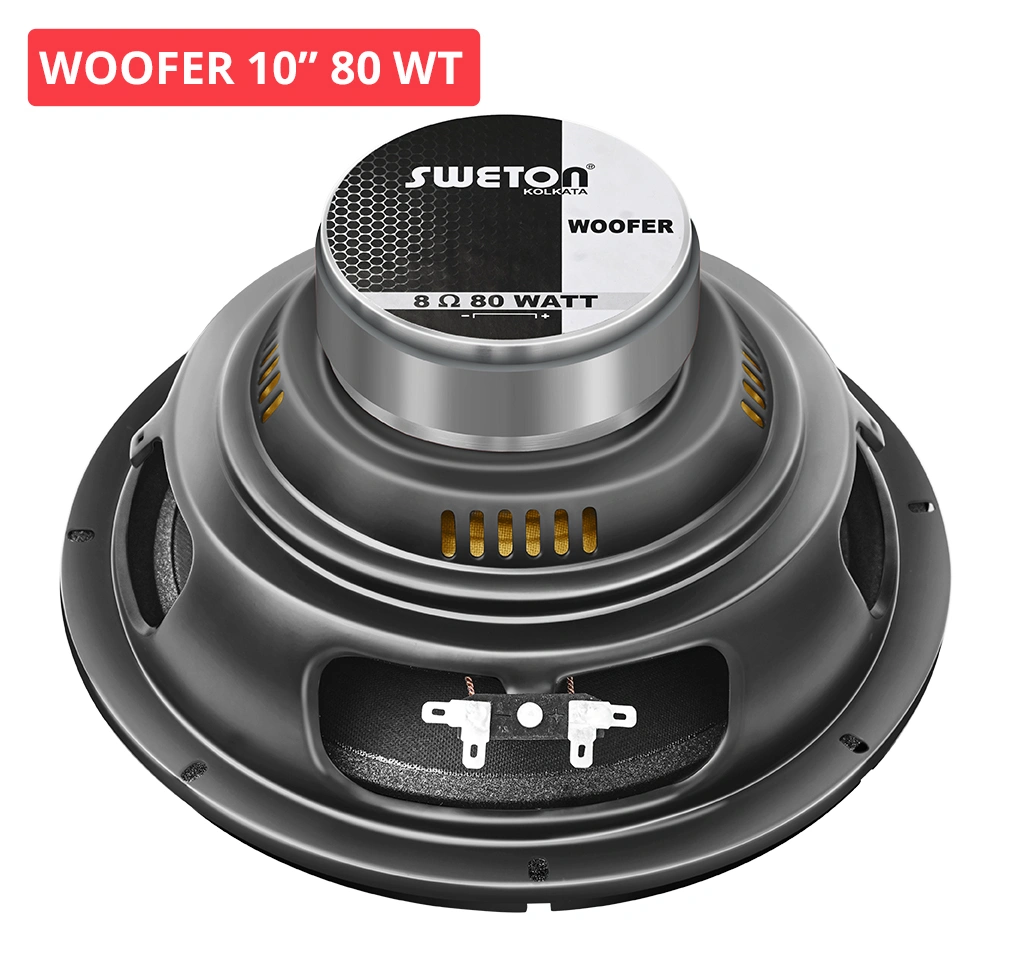

10" 80 WT WOOFER
Key Features
- Program Power : 160 W
- Voice Coil Diameter : 34 mm
- Response : 61-4.7K Hz
- Sensitivity 1W/1M : 89 db
- Nominal Diameter 255 mm
- Nominal Impedence 8 Ω
- Nominal Power Handling(AES) 80 W
- Program Power 160 W
- Sensitivity (1W/1m) 89 db
- Frequency Range 61-4.7K Hz
- Magnet Material Ferrite
- Voice Coil Diameter 34 mm
- Winding Material COPPER
- Former Material KAPTON
- Winding Type Outside
- Resonant Frequency (FS) 61 Hz
- DC Resistance (Re) 5.3 Ω
- Total Q (Qts) 1.71
- Mechanical Q (Qms) 14.66
- Total Q (Qts) 1.53
- Compliance Equivalent Volume (vas) 35.59 Ltrs
- Peak Diaphragm Displacement Volume (Vd) 0.21 Ltrs
- Effective Surface Area of Cone (Sd) 370 cm^2
- Reference Efficiency (ƞo) 0.46%
- Moving Mass including air load (Mms) 36.33 gms
- Motor Strength (Bl) 6.59 T-m
- Voice Coil Inductance @ 1 KHz (Le) 0.83 mH
- Efficiency Bandwith Product (EBP) 36 Hz
- Voice Coil Overhang (Xmax) ±5.79 mm
- Overall Diameter 255 mm
- Baffle Cutout Diameter 228 mm
- Depth 116 mm
- Flange and Gasket Thickness 12 mm
- Recone Kit Number REC10INCH80W
