8 Ω

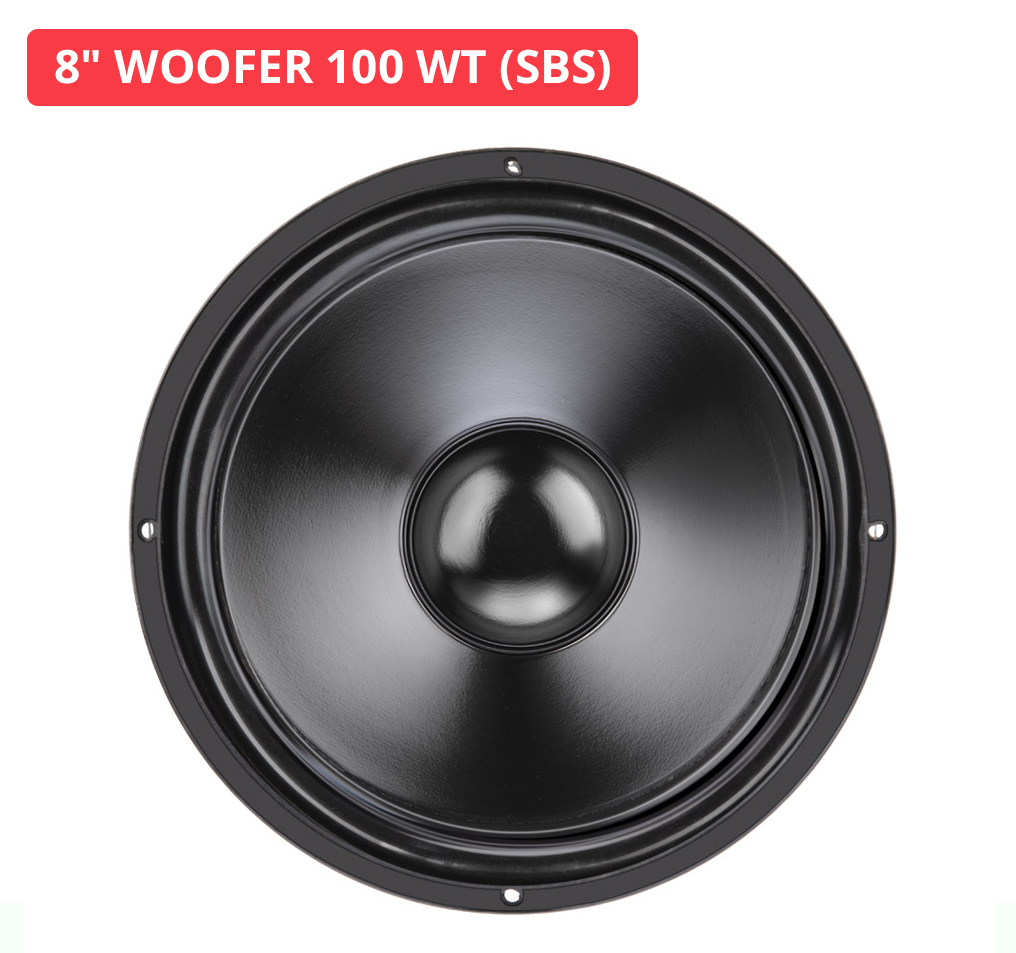

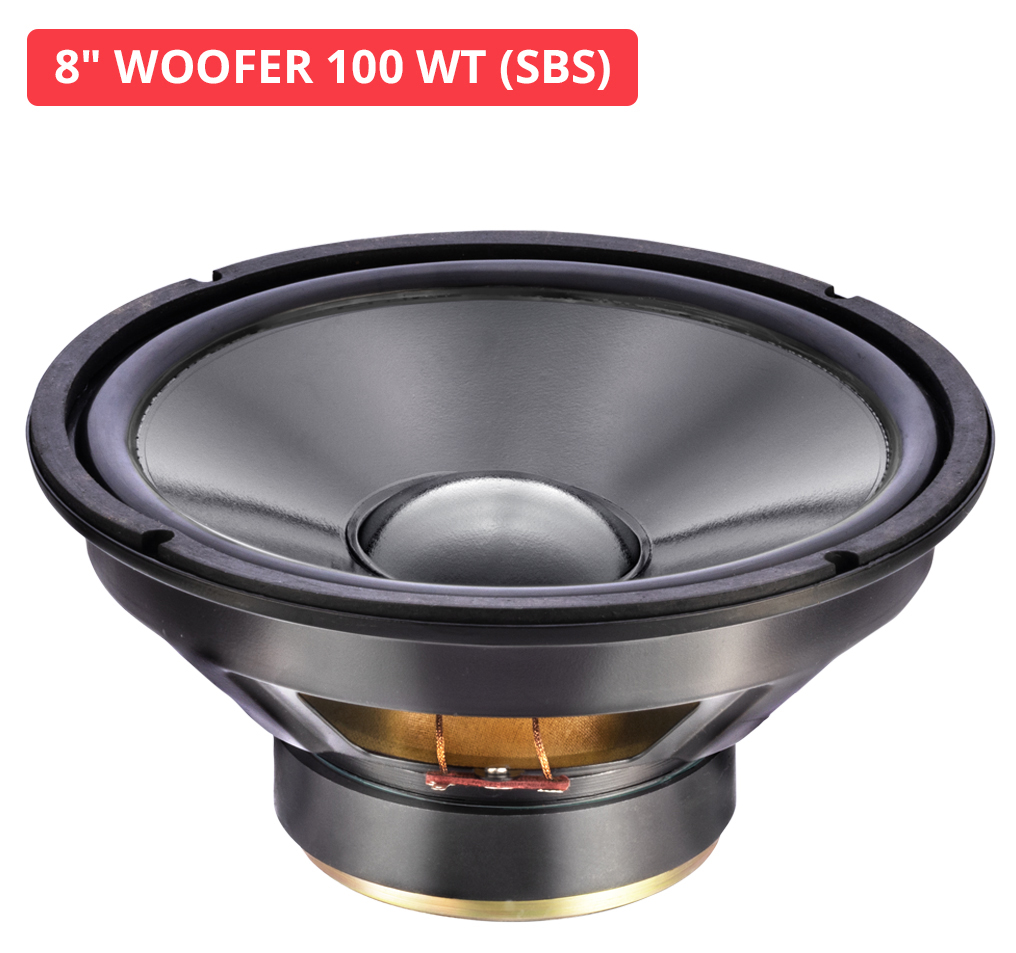

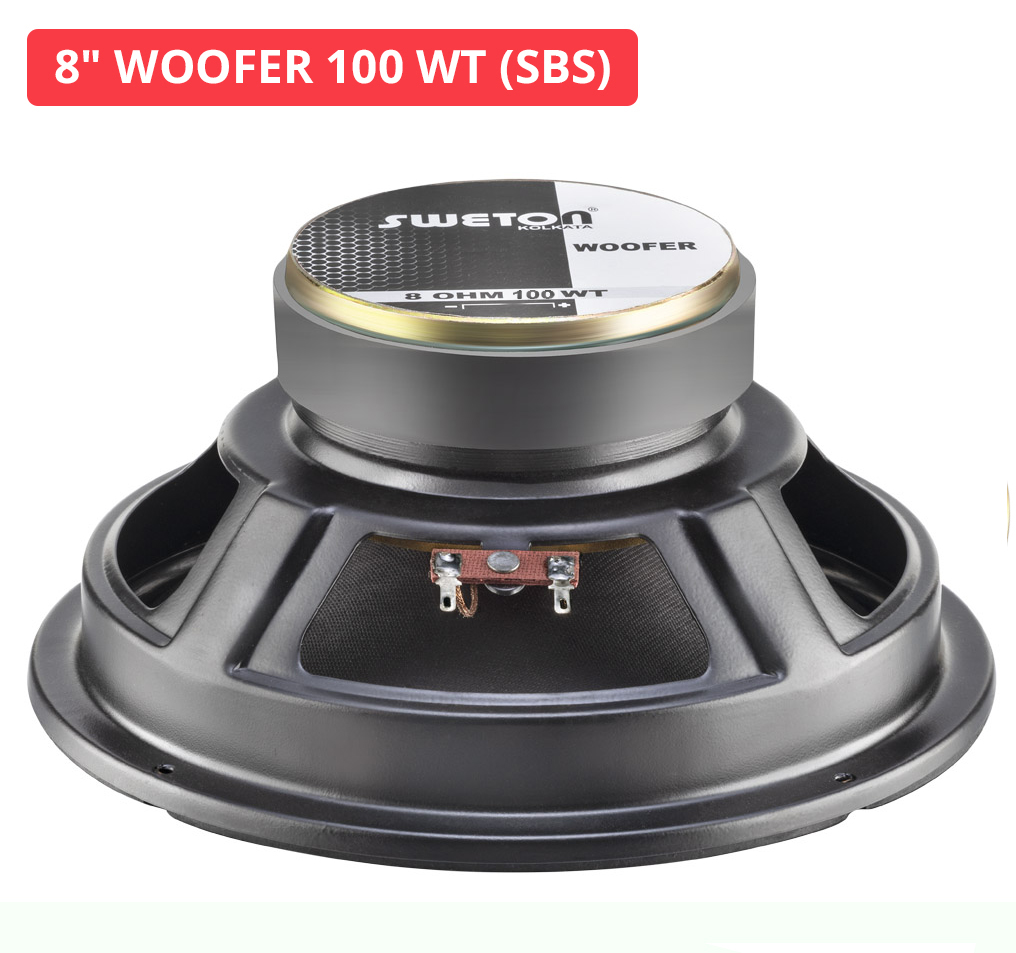

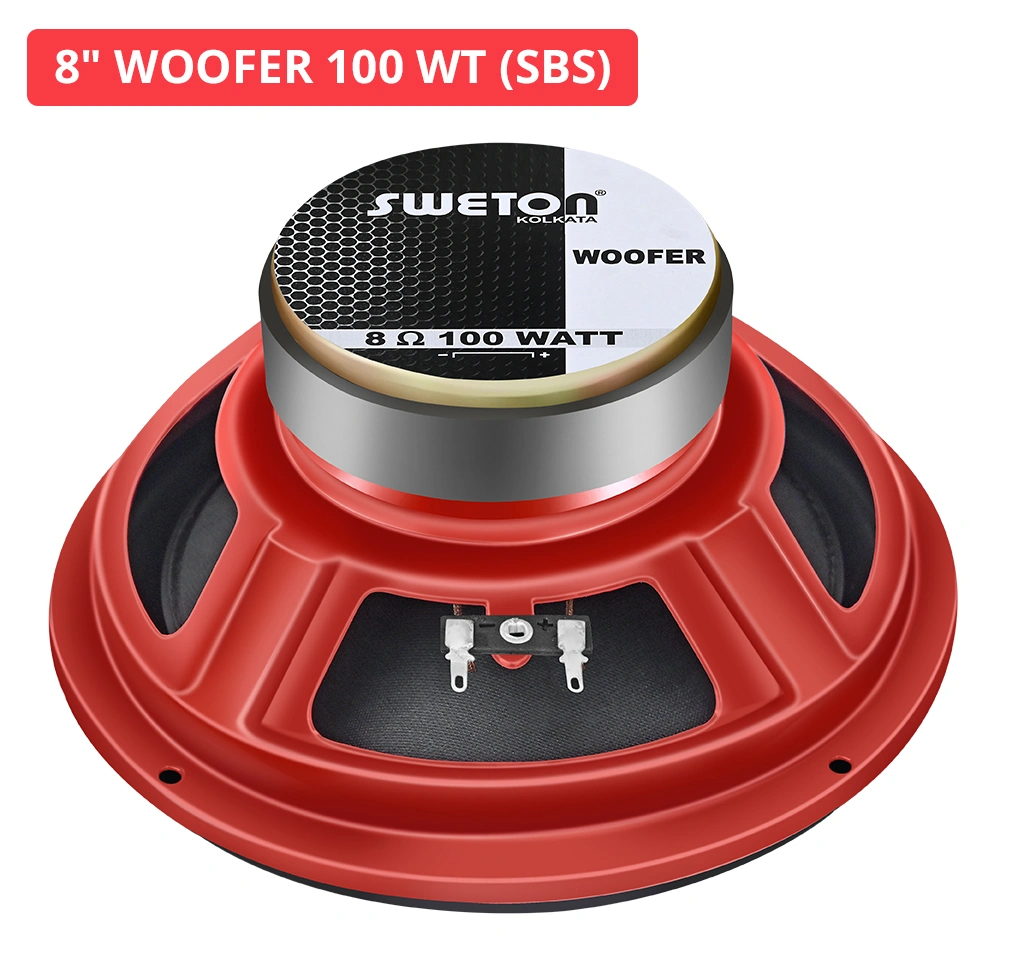

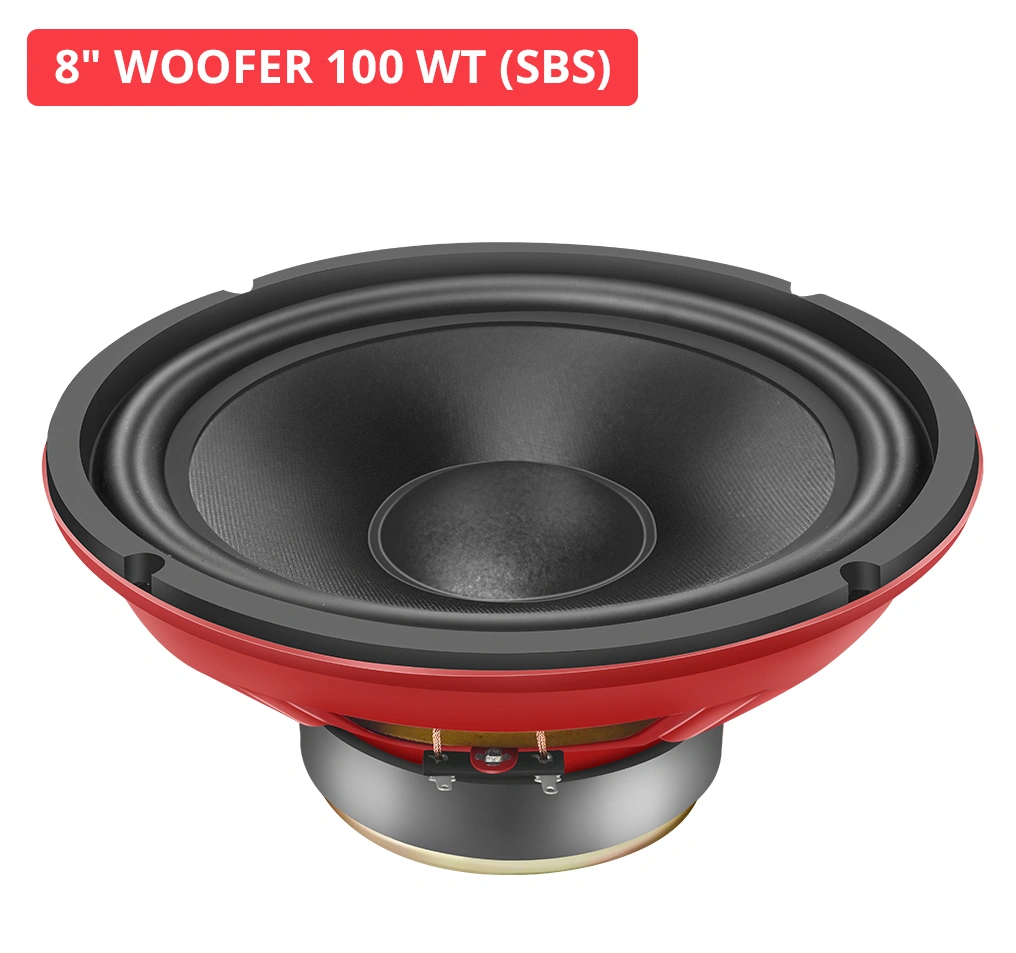

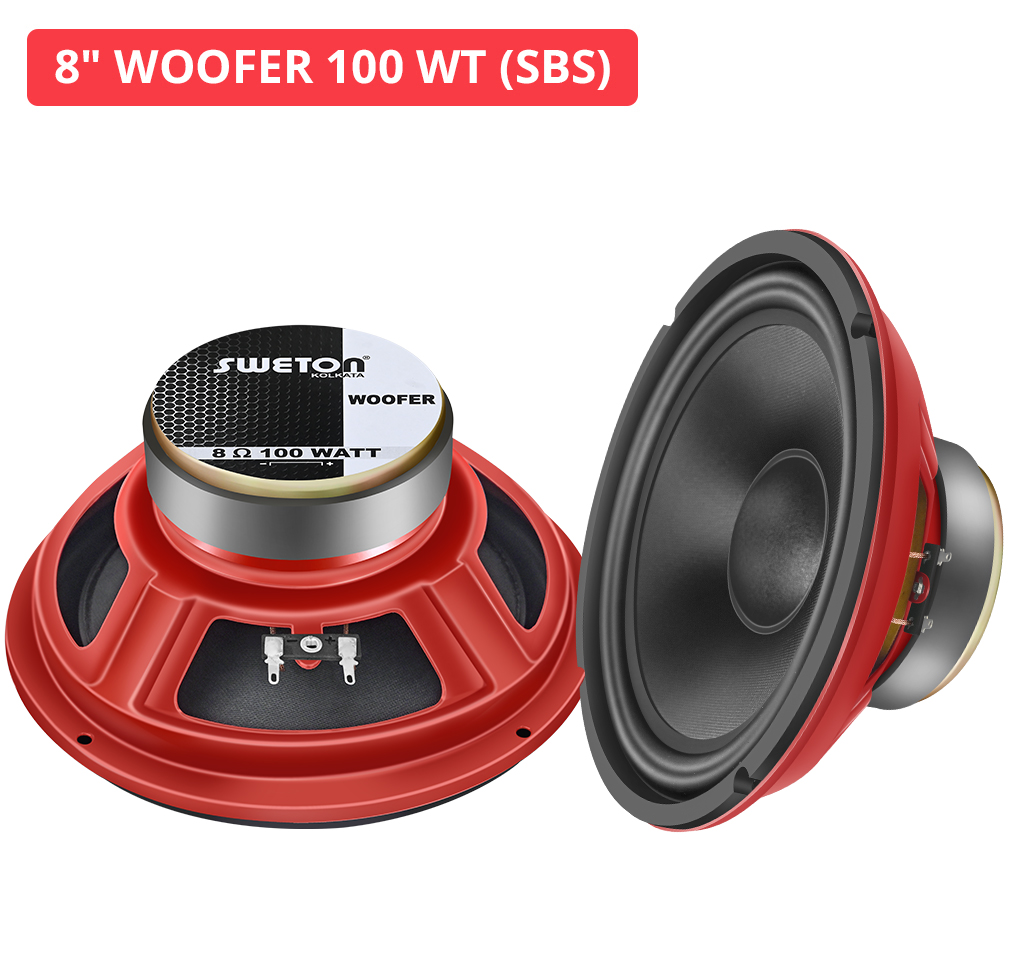

8" WOOFER 100 WT (SBS)
Key Features
- Program Power : 200 W
- Voice Coil Diameter : 25.5 mm

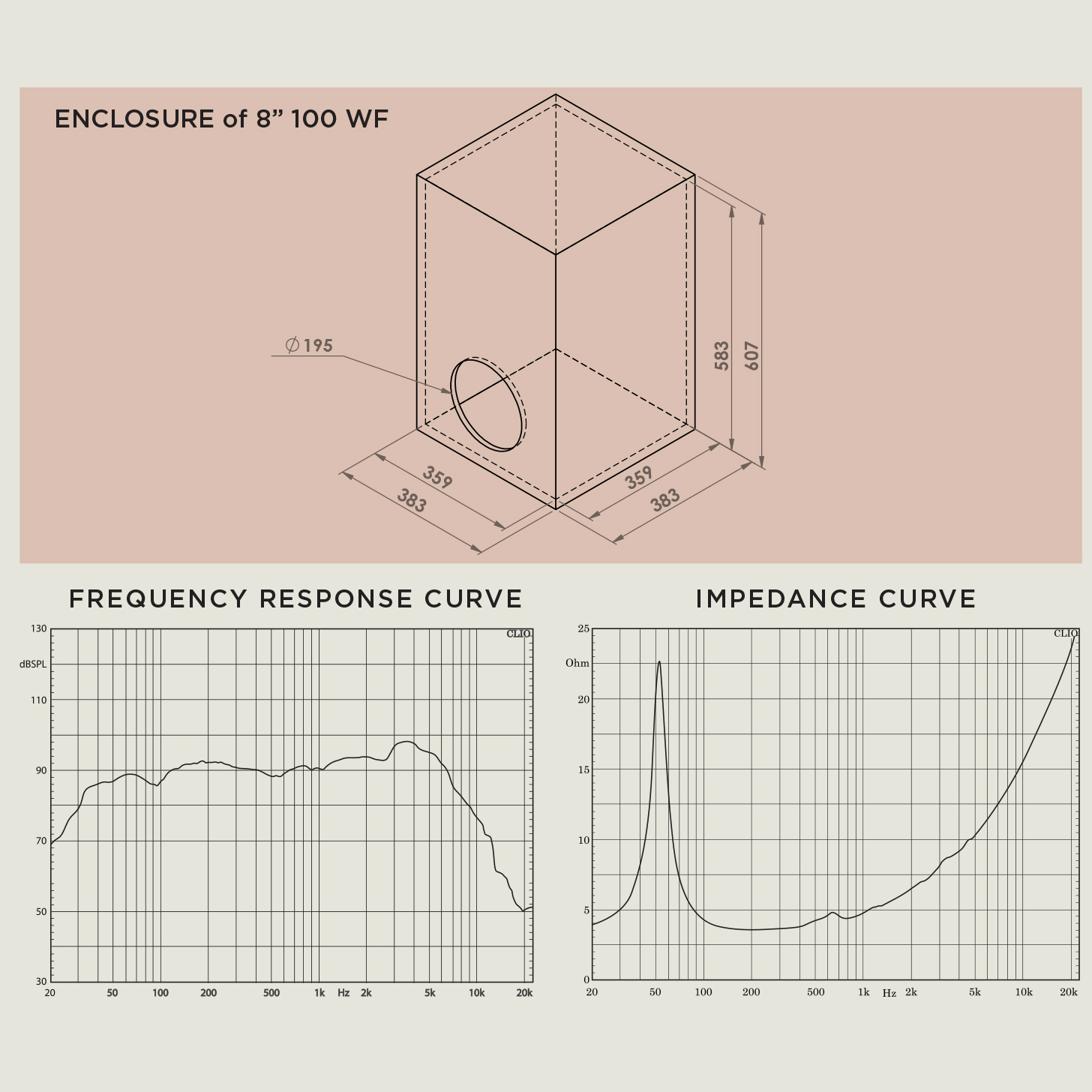

- Response : 53-6.7K Hz
- Sensitivity 1W/1M : 88 dB
- Nominal Diameter 215 mm
- Nominal Impedence 8 Ω
- Nominal Power Handling(AES) 100 W
- Program Power 200 W
- Sensitivity (1W/1m) 88 dB
- Frequency Range 53-6.7K Hz
- Magnet Material Ferrite
- Voice Coil Diameter 25.50 mm
- Winding Material COPPER
- Former Material SV COATED KRAFT
- Winding Type Outside
- Resonant Frequency (FS) 53 Hz
- DC Resistance (Re) 6.4 Ω
- Electrical Q (Qes) 0.9
- Mechanical Q (Qms) 5.48
- Total Q (Qts) 0.77
- Compliance Equivalent Volume (vas) 26.77 Ltrs
- Peak Diaphragm Displacement Volume (Vd) 0.11 Ltrs
- Effective Surface Area of Cone (Sd) 221.7 cm^2
- Reference Efficiency (ƞo) 0.42%
- Moving Mass including air load (Mms) 23.27 gms
- Motor Strength (Bl) 7.42 T-m
- Voice Coil Inductance @ 1 KHz (Le) 0.71 mH
- Efficiency Bandwith Product (EBP) 59 Hz
- Voice Coil Overhang (Xmax) ±5.31 mm
- Overall Diameter 215 mm
- Baffle Cutout Diameter 195 mm
- Depth 90 mm
- Flange and Gasket Thickness 9.25 mm
- Recone Kit Number REC8INCH100W
