8 Ω
Datasheet

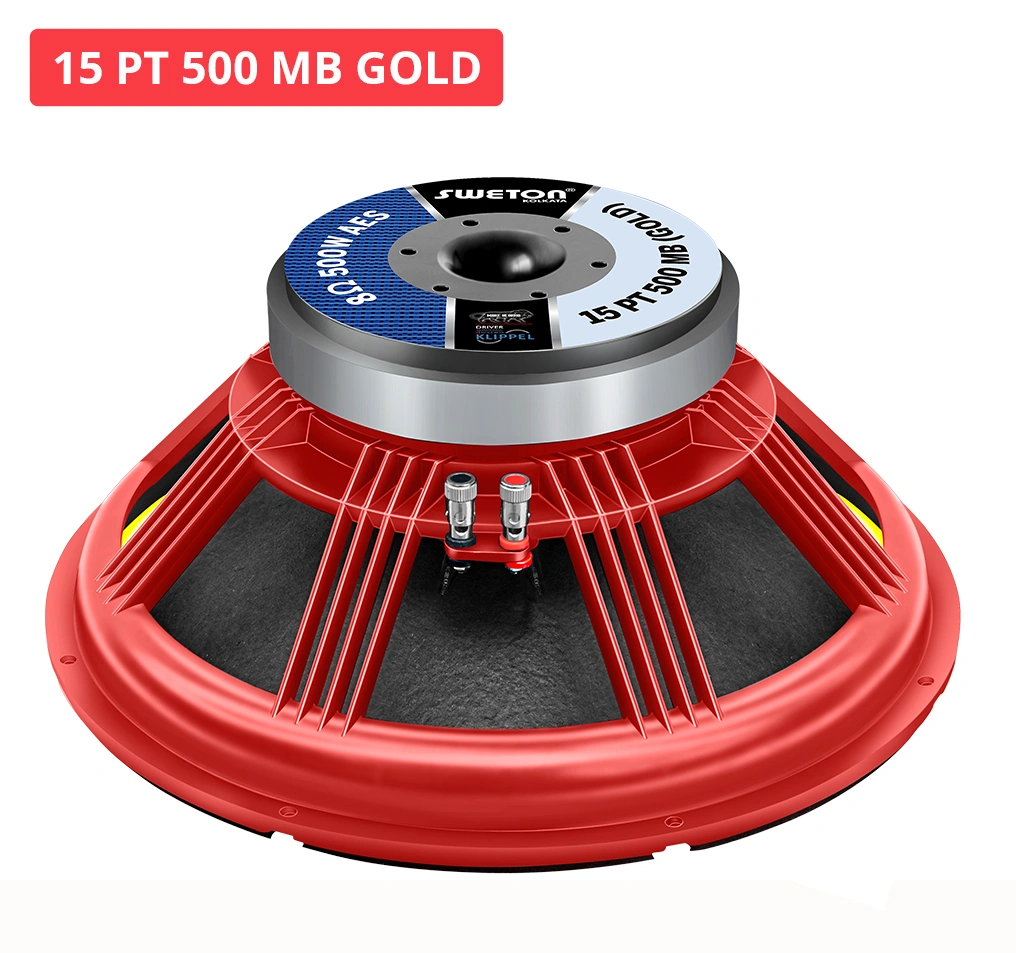

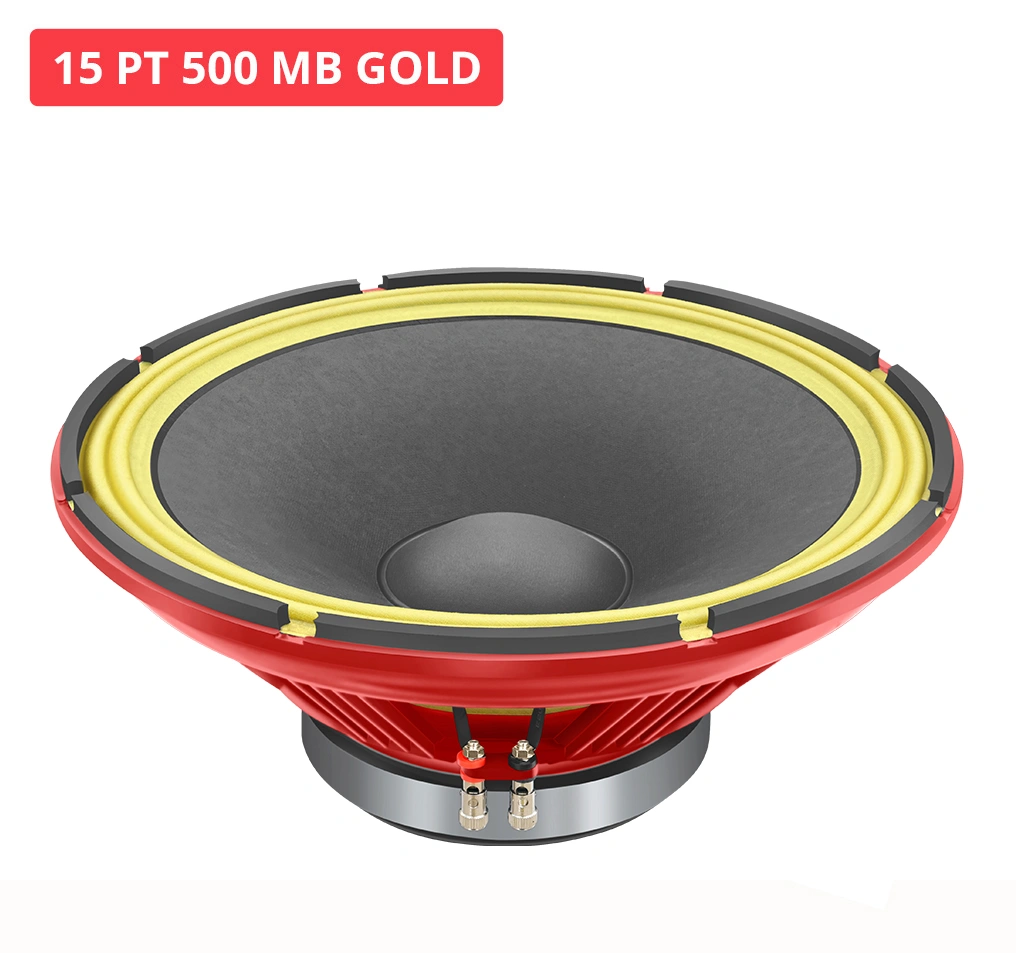

15 PT 500 MB GOLD
15 PT 500 GOLD is an effi cient version of 15 PT 500 MB with extended MID and more prominent Bass in 500 Watt AES Power in 77mm Voice Coil.
It is Suitable for Live Sound as well in DJ Application and should be used in a Bass Reflex / Ported Enclosure for safety and effi cient use of the Driver.
Key Features
- Program Power : 1000 W
- Voice Coil Diameter : 77 mm (3.03 in)

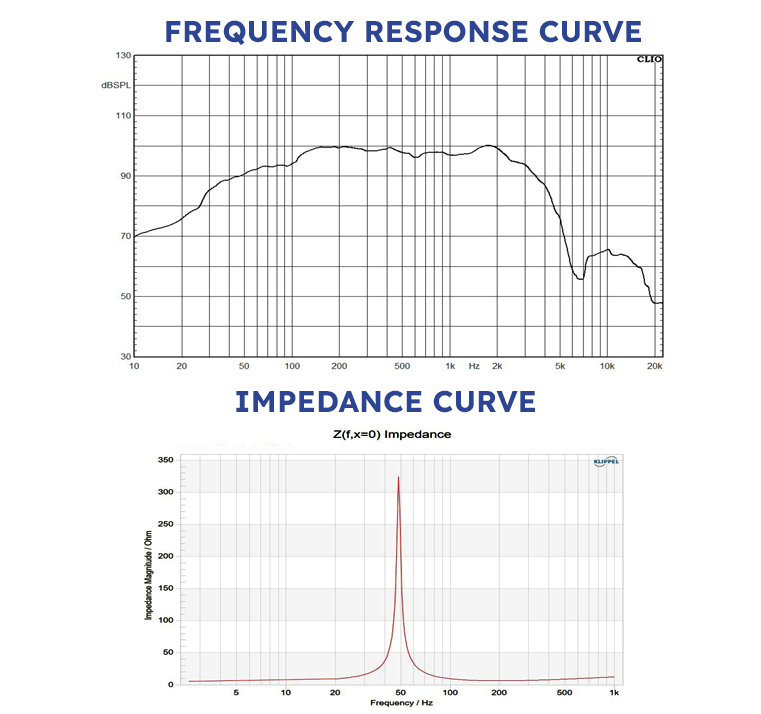

- Response : 50-3500 Hz
- Sensitivity 1W/1M : 98 dB
- Nominal Diameter 388 mm
- Nominal Impedence 8 Ω
- Nominal Power Handling(AES) 500 W
- Program Power 1000 W
- Sensitivity (1W/1m) 98 dB
- Frequency Range 50-3500 Hz
- Magnet Material Ferrite
- Voice Coil Diameter 77 mm ( 3.03 in)
- Winding Material COPPER
- Former Material GLASS FIBRE
- Winding Type OUTSIDE
- Resonant Frequency (FS) 49 Hz
- DC Resistance (Re) 5.4 Ω
- Electrical Q (Qes) 0.38
- Mechanical Q (Qms) 23.46
- Total Q (Qts) 0.38
- Compliance Equivalent Volume (vas) 127.34 Ltrs
- Peak Diaphragm Displacement Volume (Vd) 0.49 Ltrs
- Effective Surface Area of Cone (Sd) 907.92 cm^2
- Resonant Frequency (FS) 3.69%
- Moving Mass including air load (Mms) 97.33 gms
- Motor Strength (Bl) 20.55 T-m
- Voice Coil Inductance @ 1 KHz (Le) 0.86 mH
- Efficiency Bandwith Product (EBP) 129 Hz
- Voice Coil Overhang (Xmax) ± 5.4 mm
- Overall Diameter 388 mm
- Bolt Circle Diameter 373 mm
- Baffle Cutout Diameter 358 mm
- Depth 150 mm
- Flange and Gasket Thickness 13 mm
- Gross Weight 11.32 Kgs
- Recone Kit Number REC15PT500MBG
