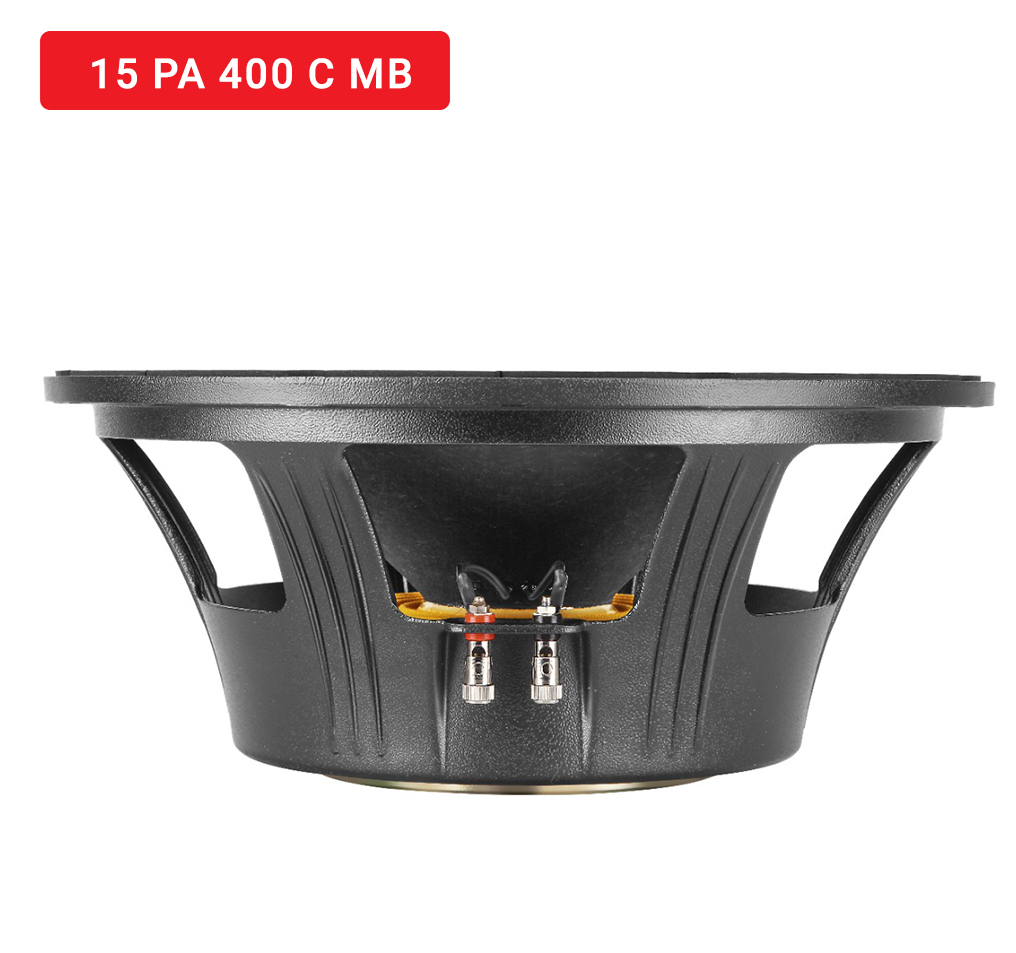

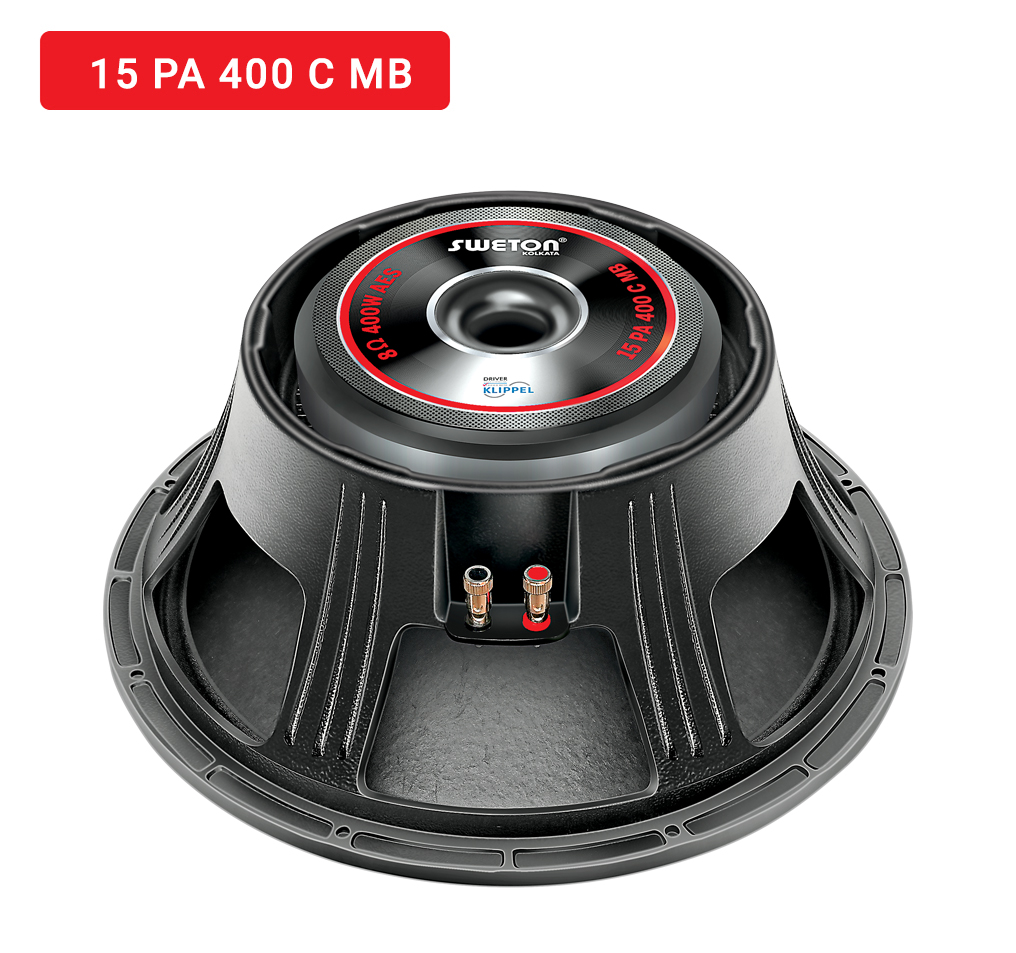

15 PA 400 C MB [2.0]
Unique combination of aggressive Mid and Bass makes this transducer an ideal Mid Bass transducer which can be used in Stage Monitors, Single or Dual Top. Suitable for both Sealed and Bass Reflex Enclosure.
| Key Features | |
| Program Power | 800 W |
| Voice Coil | 76.2 mm (3 in) |
| Response | 55-4500 Hz |
| Sensitivity 1W/1M | 98 dB |
Specification
| Nominal Diameter | 390 mm |
| Nominal Impedance | 8Ω |
| Gross Weight | 10.250 Kg |
| Nominal Power Handling(AES) | 400 W |
| Program Power | 800 W |
| Sensitivity (1W/1m) | 98 db |
| Frequency Range | 55-4500 Hz |
| Magnet Material | Ferrite |
| Voice Coil Diameter | 76.2 mm ( 3 in) |
| Winding Material | CCAW |
| Former Material | GLASS FIBRE |
| Winding Type | OUTSIDE |
Parameters
| Resonant Frequency | FS | 52 Hz |
| DC Resistance | Re | 5.2 Ω |
| Electrical Q | Qes | 0.46 |
| Mechanical Q | Qms | 11.52 |
| Total Q | Qts | 0.44 |
| Compliance Equivalent Volume | vas | 112.79 Ltrs |
| Peak Diaphragm Displacement Volume | Vd | 0.80 Ltrs |
| Effective Surface Area of Cone | Sd | 907.92 cm^2 |
| Reference Efficiency | ƞo | 3.34% |
| Moving Mass including air load | Mms | 95.60 gms |
| Motor Strength | Bl | 18.82 T-m |
| Voice Coil Inductance @ 1 KHz | Le | 0.52 mH |
| Efficiency Bandwith Product | EBP | 113 Hz |
| Voice Coil Overhang | Xmax | ±4.40 mm |
Mounting Info
| Overall Diameter | 390 mm |
| Bolt Circle Diameter | 375 mm |
| Baffle Cutout Diameter | 356 mm |
| Depth | 164 mm |
| Flange and Gasket Thickness | 12 mm |
| Gross Weight | 10.25 Kgs |
Recone Kit
| Recone Kit Number | REC15PA400C |
