21 PT 3500 SUB/4-2
21 PT 3500 SUB/4-2 – MORE MOTOR. MORE
CONTROL. MORE SPL.

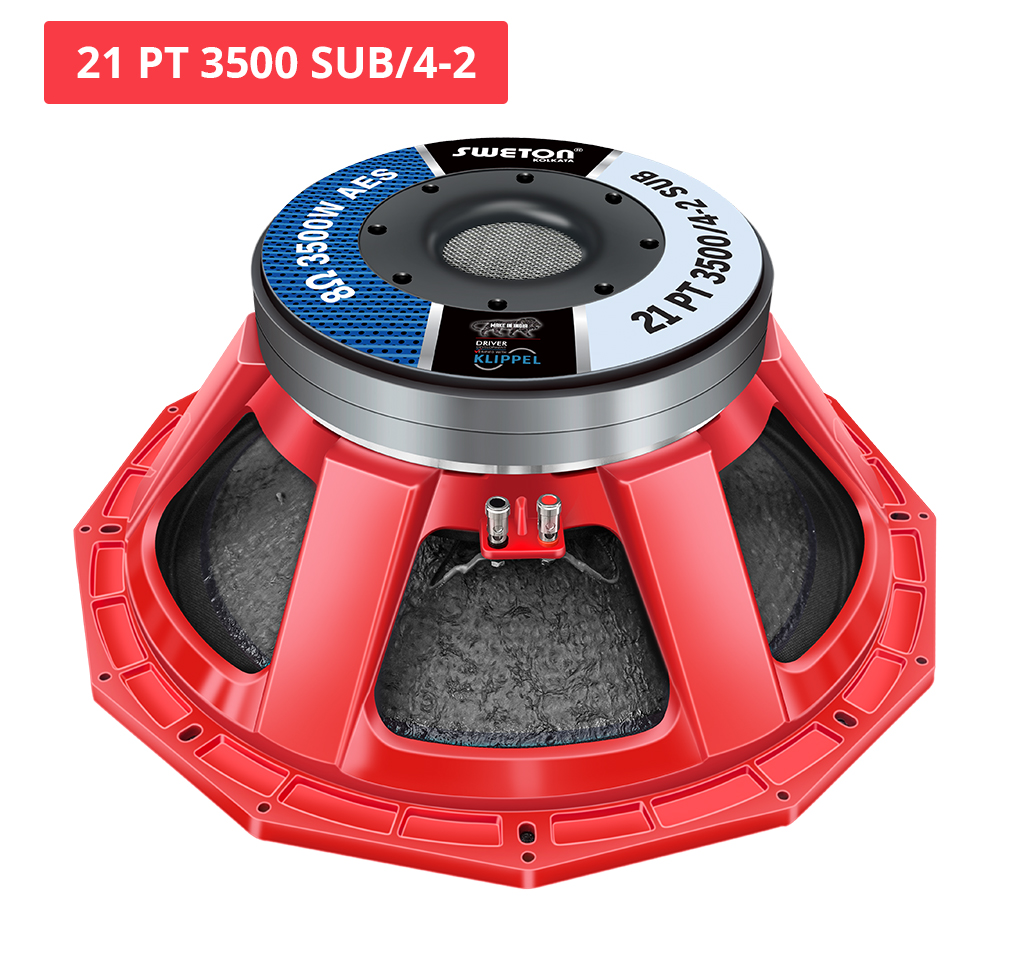

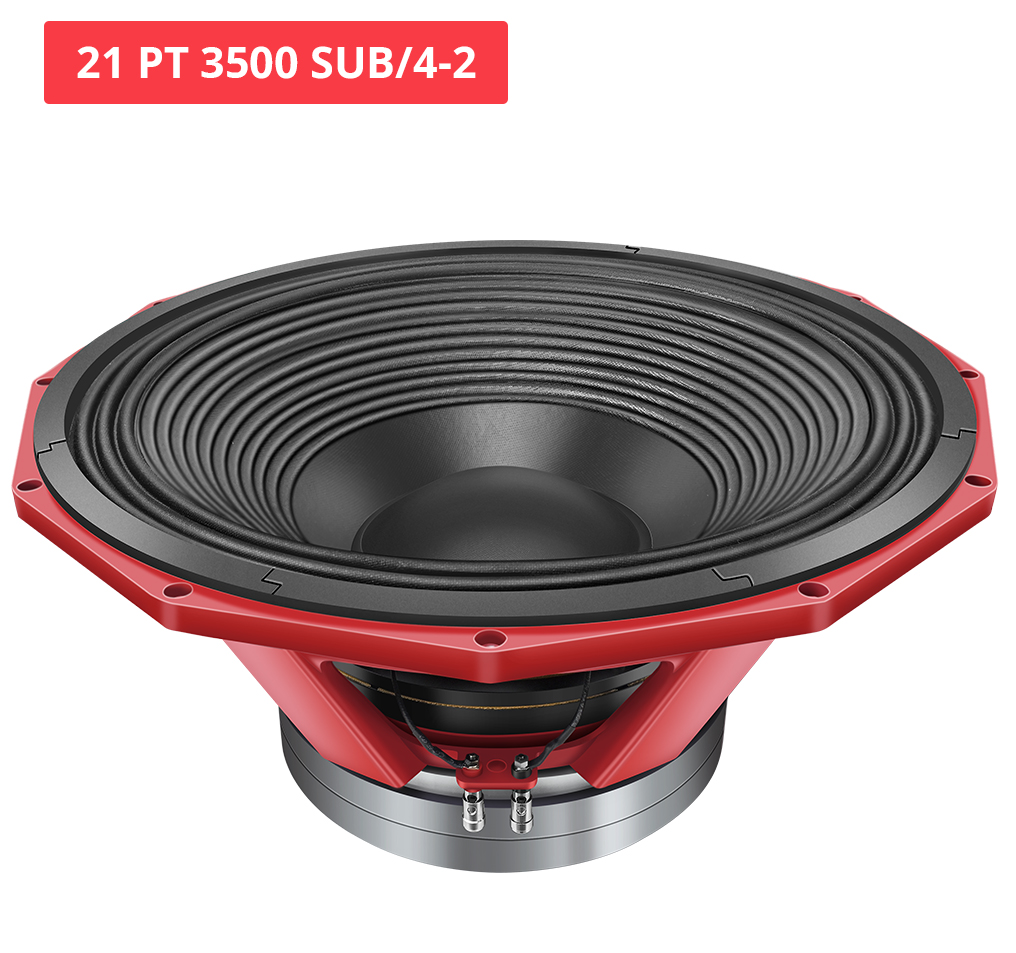

The 21 PT 3500 SUB/4-2 is a 21-inch, high-power
subwoofer transducer rated at 3500 W AES (7000 W
program). Its motor develops a force factor of 51.17 N/A
against a DC resistance of only 6.36 Ω. That is a Bl²/Re
of 412 N²/W, about 60 % more motor than the 21 PT 2500
SUB. The 152 mm (6-inch), 4-layer copper voice coil, in/
out wound on a glass-fibre former and driven by a ferrite
motor, gives it the thermal capacity to stay at that level
show after show.
With Fs 39.1 Hz, Qts 0.42 and Vas 93.4 L (EBP 90.5 Hz),
the driver is made for vented and band-pass enclosures.
A 1698 cm² cone with ±13.5 mm Xmax moves 2.29 L
of air (Vd). In a 200 L vented box that is a calculated
128–132 dB at 1 m (half-space) at rated power, before
power compression.
A stiff suspension (Kms 43.7 N/mm) and low mechanical
losses (Qms 24.7) leave the cone under firm electrical
control. Bass stays tight and fast at full drive, the way
Indian roadshow, DJ and event systems are actually
used.
Key Features
- Program Power : 7000 W
- Sensitivity 1W/1M : 94 dB
- Response : 30 – 1500 Hz
- Voice Coil Diameter : 152 mm
- Nominal Diameter 21 in (533 mm)
- Nominal Impedence 8 Ω
- Minimum Impedance 6.8 Ω @ 100 Hz
- Nominal Power Handling(AES) 3500 W
- Program Power (AES) 7000 W
- Sensitivity (1W/1m) 94 dB
- Max SPL (calc., AES, 1 m) 129 dB
- Frequency Range 30 – 1500 Hz
- Recommended Operating Band 30 – 120 Hz
- Magnet Material FERRITE
- Voice Coil Diameter 152 mm (6.0 in)
- Winding Material COPPER
- Number of Layers 4
- Former Material GLASS FIBRE
- Winding Type IN/OUT
- Resonant Frequency (FS) 39.1 Hz
- DC Resistance (Re) 6.36 Ω
- Electrical Q (Qes) 0.43
- Mechanical Q (Qms) 24.68
- Total Q (Qts) 0.42
- Compliance Equivalent Volume (vas) 93.41 Ltrs
- Peak Diaphragm Displacement Volume (Vd) 2.29 Ltrs
- Effective Surface Area of Cone (Sd) 1698.23 cm²
- Reference Efficiency (ƞo) 1.25 %
- Moving Mass including air load (Mms) 722.97 gms
- Moving Mass (Mmd) 643.89 gms
- Mechanical Compliance(Cms) 0.023 mm/N
- Motor Strength (Bl) 51.17 T•m
- Voice Coil Inductance @ 1 KHz (Le) 4.44 mH
- Efficiency Bandwith Product (EBP) 90.5 Hz
- Voice Coil Overhang (Xmax) ±13.50 mm
- Overall Diameter 555 mm
- Bolt Circle Diameter 540 mm
- Baffle Cutout Diameter 495 mm
- Depth 215 mm
- Flange and Gasket Thickness 21.10 mm
- Gross Weight 26.62 Kgs
- Recone Kit Number REC21PT3500SUB
