8Ω
Datasheet

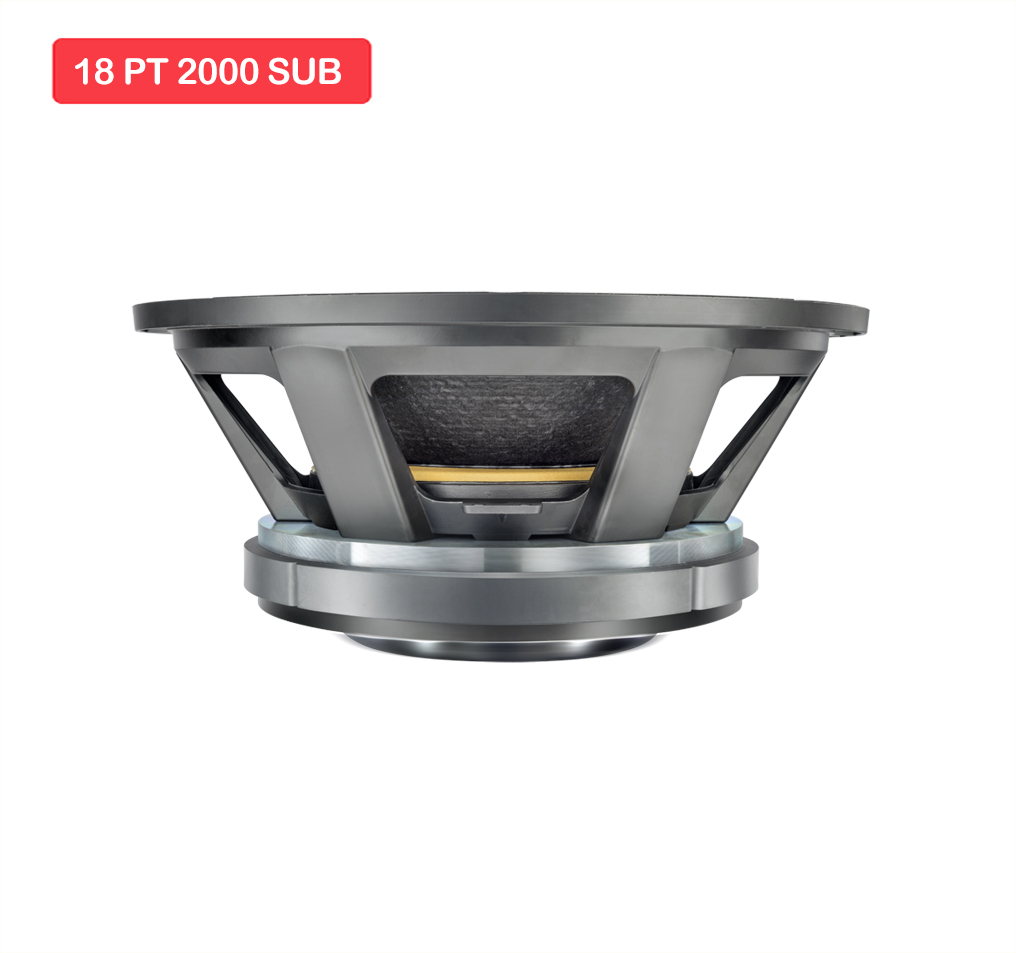

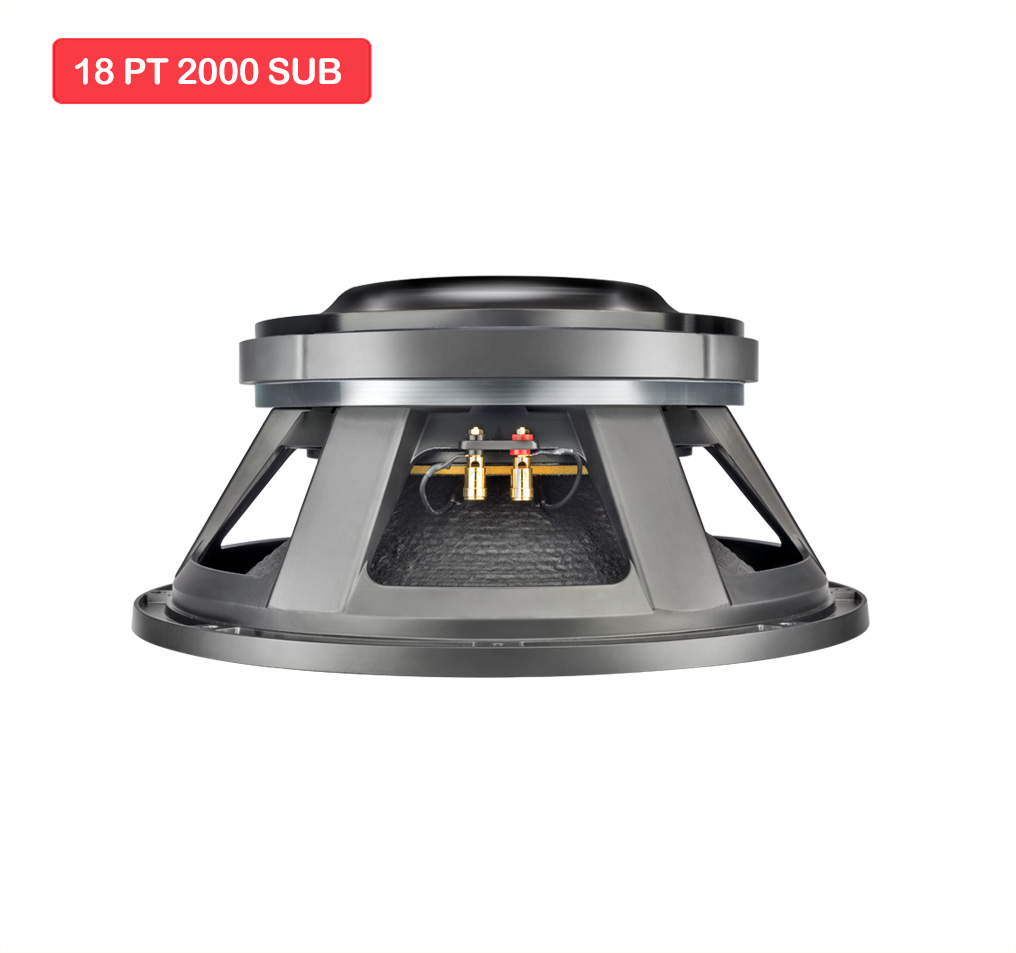

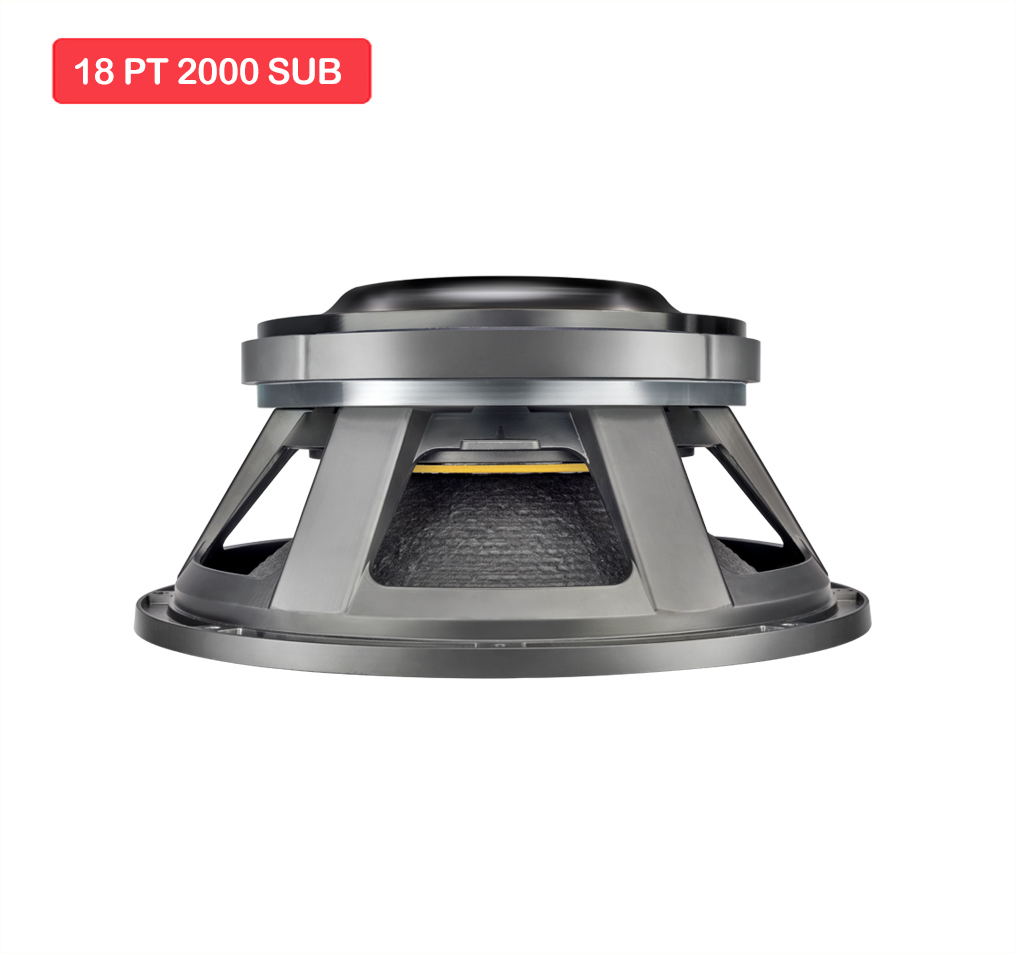

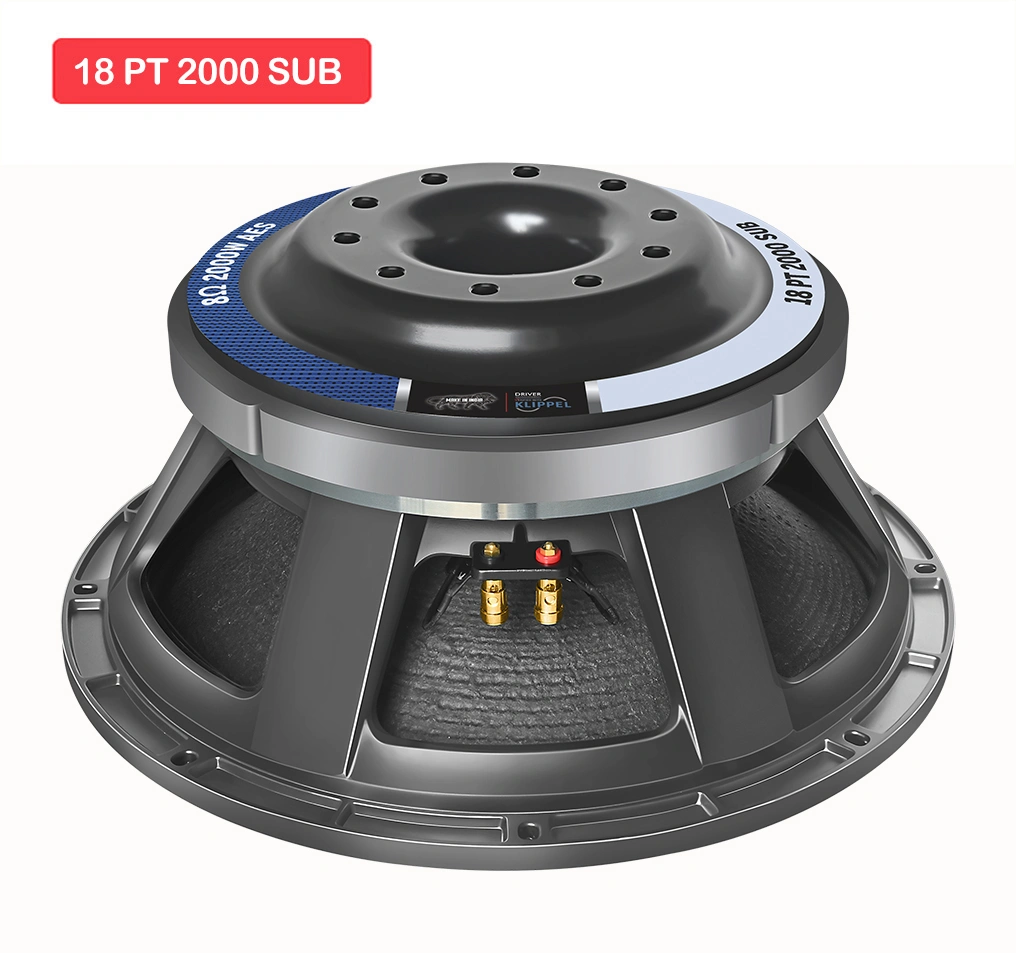

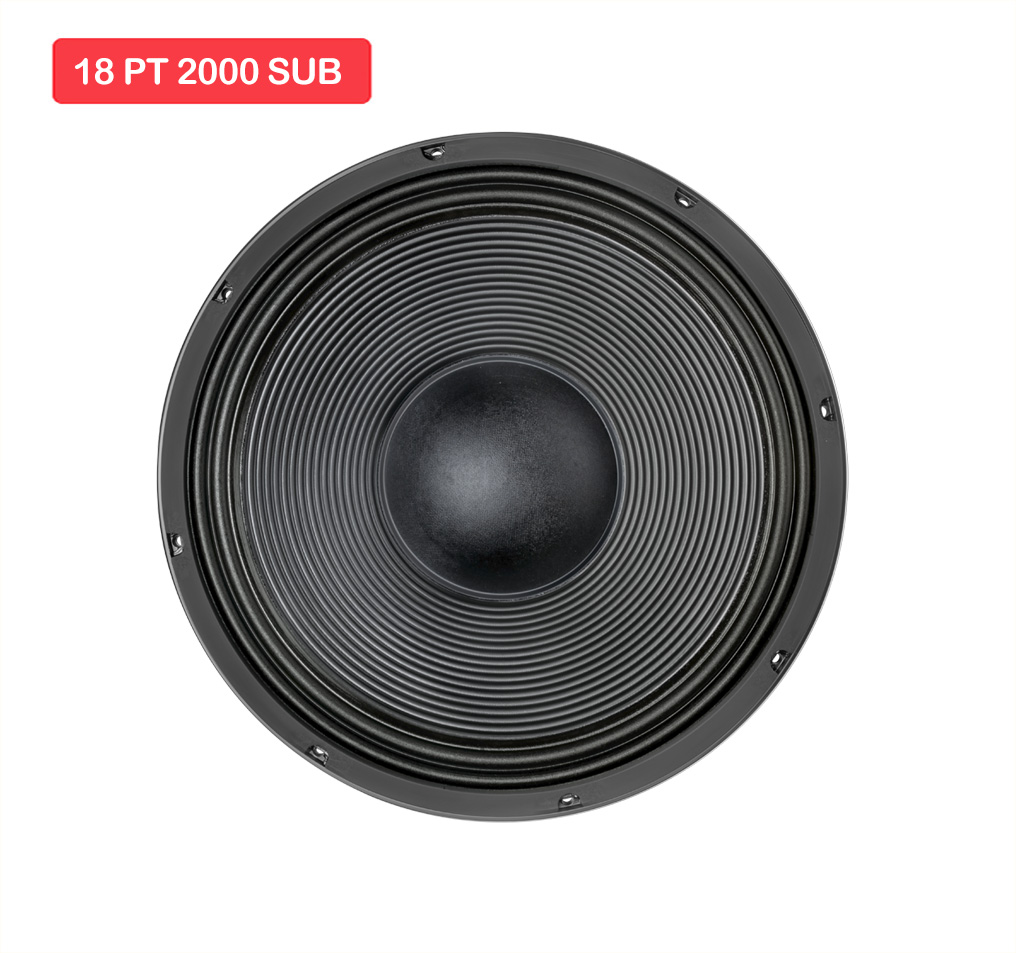

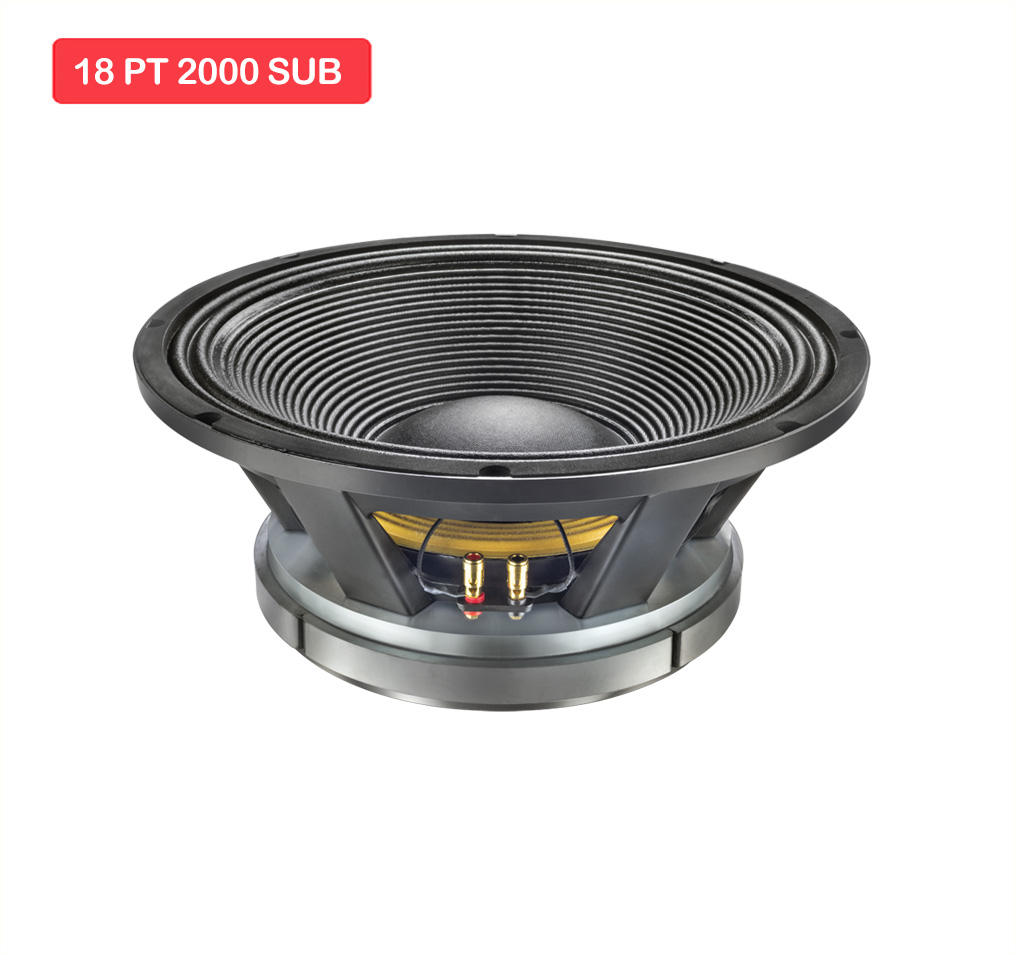

18 PT 2000 SUB
The ultimate 18” Subwoofer transducer with 152 mm voice coil & 330 mm magnet produces unbelievable 2000 wt AES power.
Better than any other similar product available in Indian market. It can reproduce low frequency from 32 Hz.
Excellent transducer for outdoor performance , DJ & Competition. Ideal for Horn loaded , Bass reflex cabinet.
Key Features
- Program Power : 4000 W
- Voice Coil Diameter : 152 mm (6 in)
- Response : 50-1600 Hz
- Sensitivity 1W/1M : 94 dB
- Nominal Diameter 464 mm
- Nominal Impedence 8Ω
- Nominal Power Handling(AES) 2000w
- Program Power 4000w
- Sensitivity (1W/1m) 94 dB

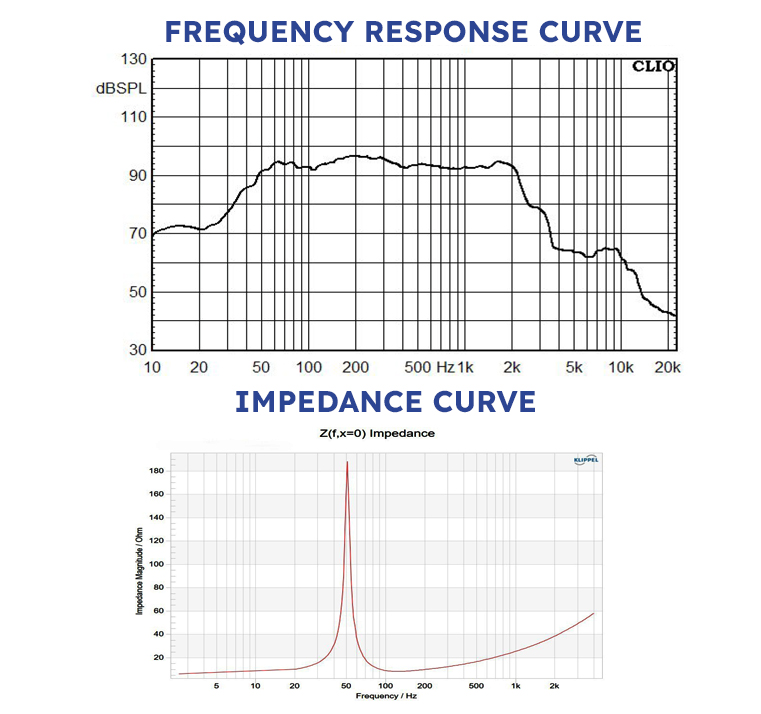

- Frequency Range 50-1600 Hz
- Magnet Material Ferrite
- Voice Coil Diameter 152 mm ( 6.0 in)
- Winding Material COPPER
- Former Material GLASS FIBRE
- Winding Type In/Out
- Resonant Frequency (FS) 51 Hz
- DC Resistance (Re) 6.09 Ω
- Electrical Q (Qes) 0.47
- Mechanical Q (Qms) 13.98
- Total Q (Qts) 0.45
- Compliance Equivalent Volume (vas) 61.29 Ltrs
- Peak Diaphragm Displacement Volume (Vd) 3.01 Ltrs
- Effective Surface Area of Cone (Sd) 1237.86 cm^2
- Reference Efficiency (ƞo) 1.63%
- Moving Mass including air load (Mms) 347 gms
- Motor Strength (Bl) 37.88 T-m
- Voice Coil Inductance @ 1 KHz (Le) 1.27 mH
- Efficiency Bandwith Product (EBP) 108 Hz
- Voice Coil Overhang (Xmax) ±12.10 mm
- Overall Diameter 464 mm
- Bolt Circle Diameter 445 mm
- Baffle Cutout Diameter 420 mm
- Depth 214 mm
- Flange and Gasket Thickness 16 mm
- Gross Weight 48 Kg.
- Recone Kit Number REC18PT2000SUB
