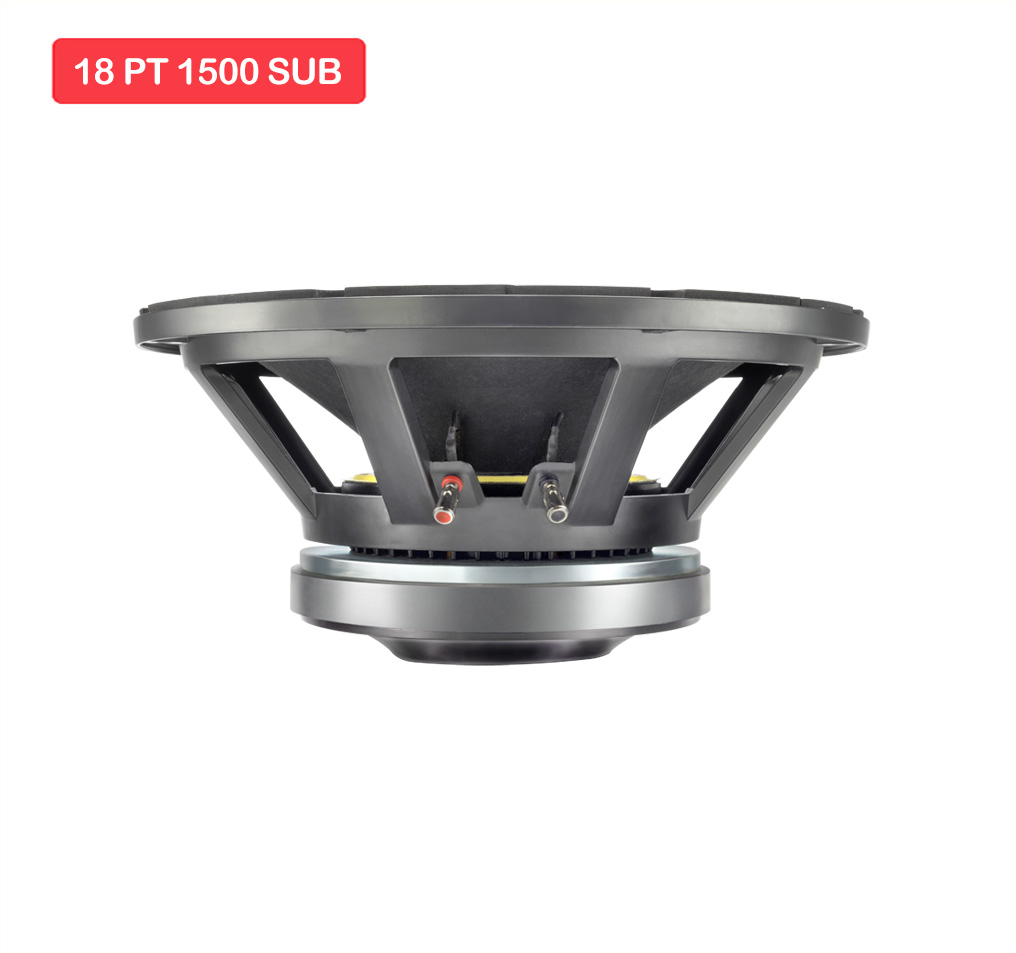

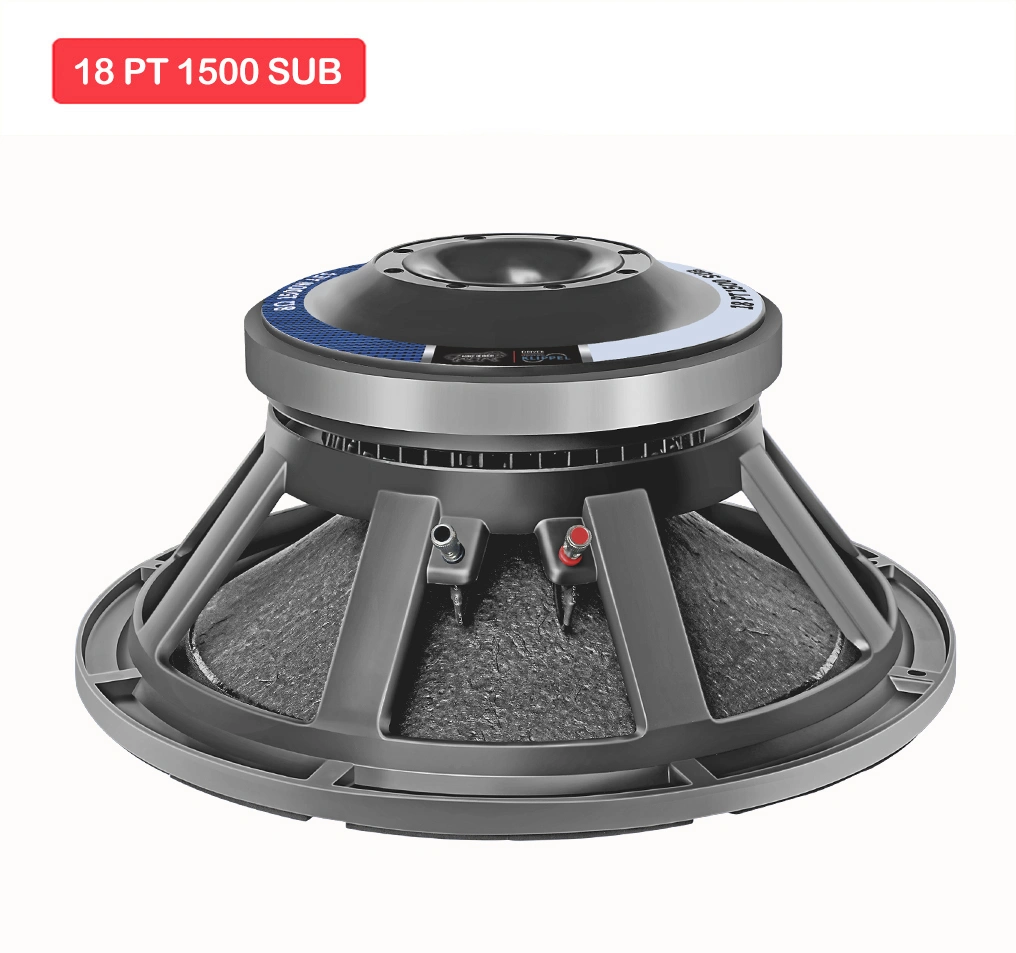

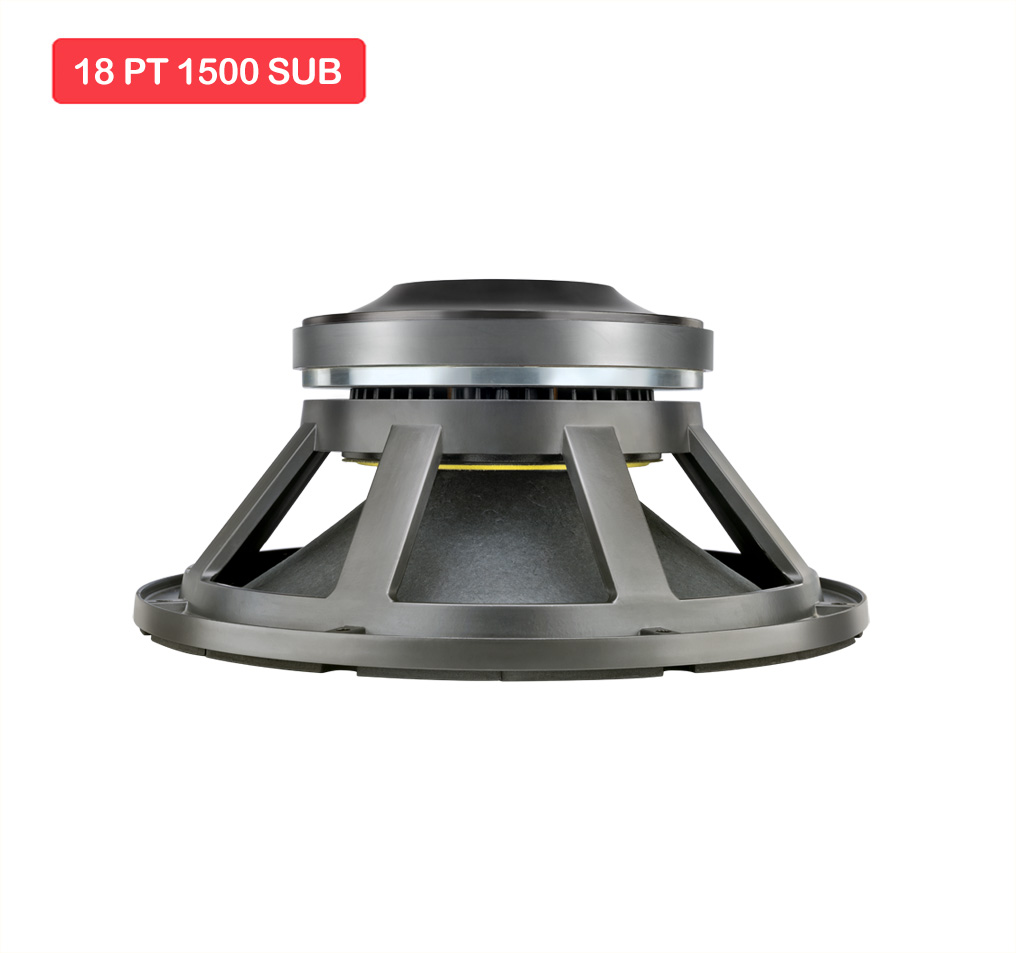

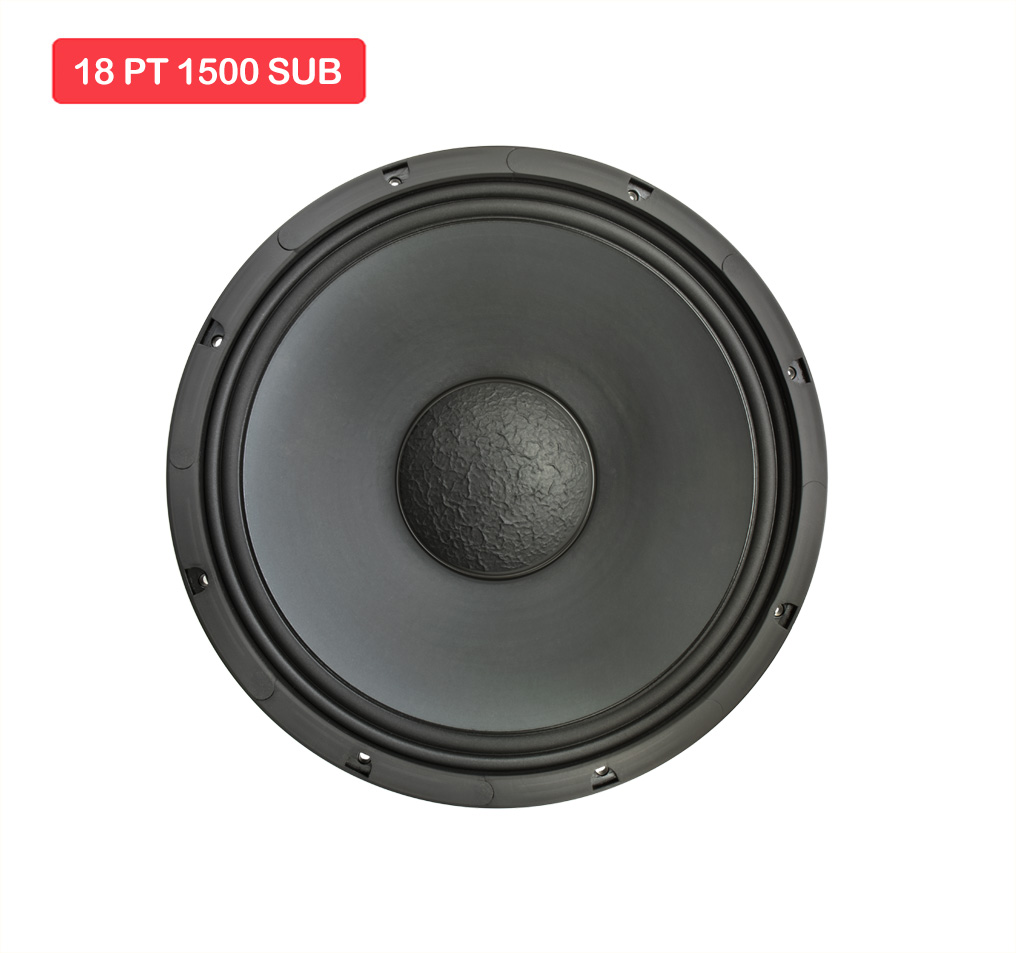

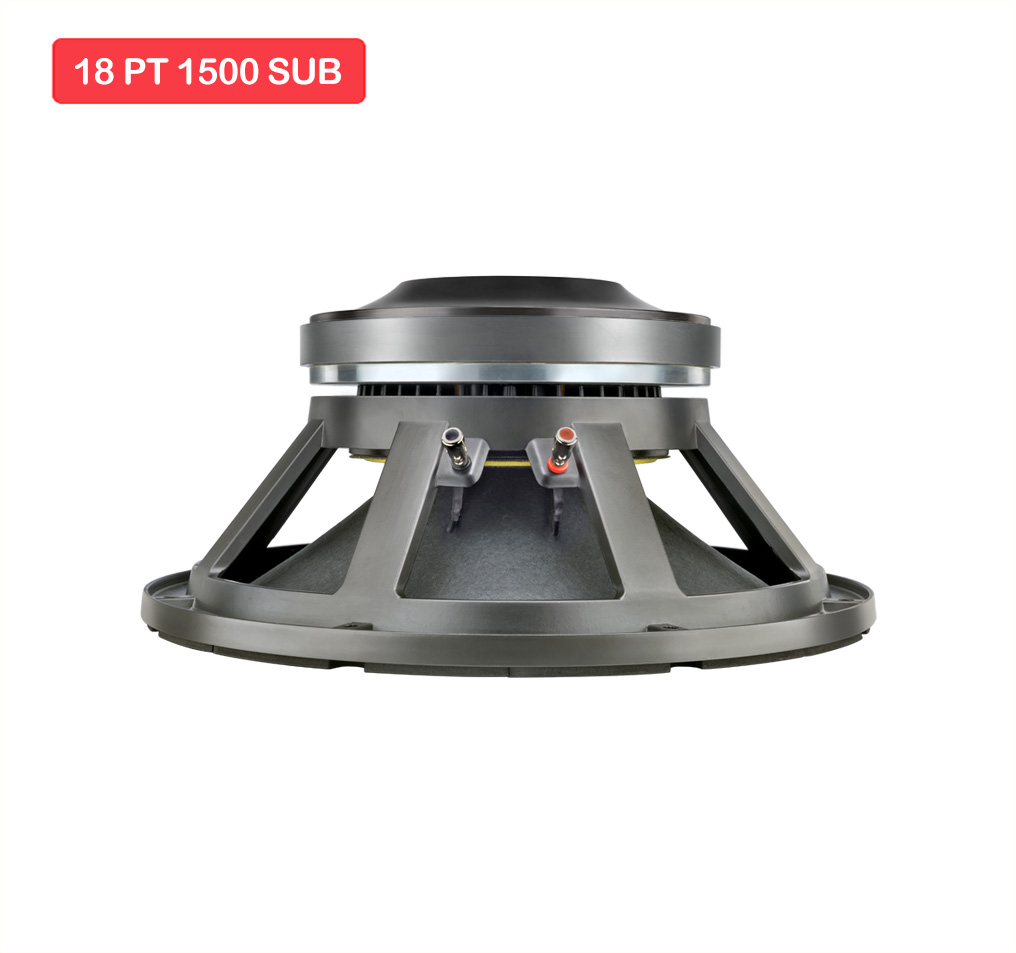

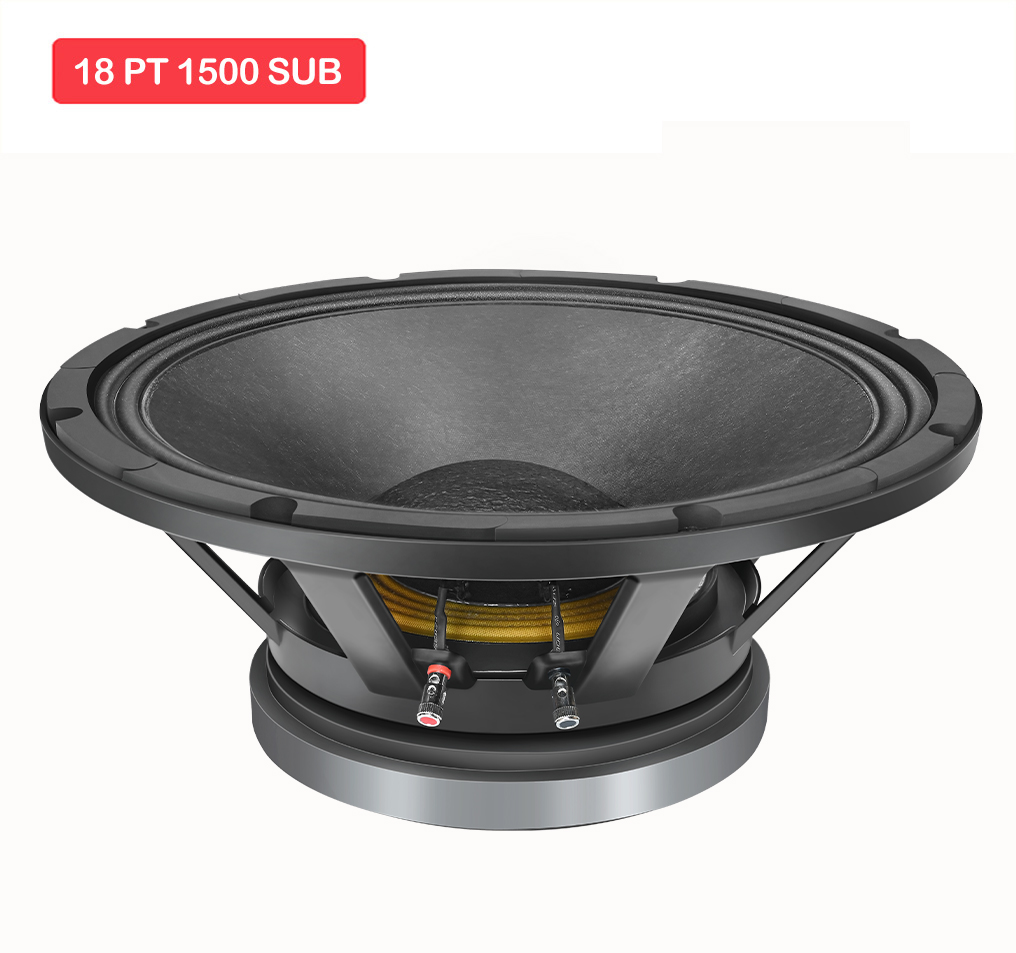

18 PT 1500 SUB
An excellent subwoofer transducer with deadly bass and very long range. Can be ideally used in Horn Loaded, Bass Reflex cabinets.
Key Features
- Program Power : 3000 W
- Voice Coil Diameter : 126 mm (5 in)

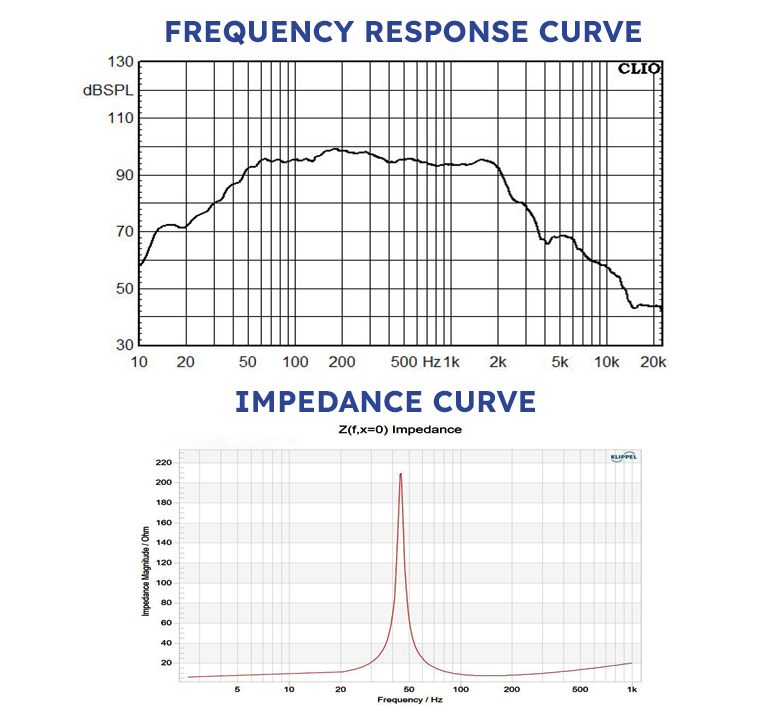

- Response : 45-2000 Hz
- Sensitivity 1W/1M : 96 dB
- Nominal Diameter 470 mm
- Nominal Impedence 8Ω
- Nominal Power Handling(AES) 1500w
- Program Power 3000w
- Sensitivity (1W/1m) 96 dB
- Frequency Range 45-2000 Hz
- Magnet Material Ferrite
- Voice Coil Diameter 126 mm ( 5 in)
- Winding Material COPPER
- Former Material GLASS FIBRE
- Winding Type In/Out
- Resonant Frequency (FS) 45 Hz
- DC Resistance (Re) 5.98 Ω
- Electrical Q (Qes) 0.4
- Mechanical Q (Qms) 13.87
- Total Q (Qts) 0.39
- Compliance Equivalent Volume (vas) 109.65 Ltrs
- Peak Diaphragm Displacement Volume (Vd) 2.71 Ltrs
- Effective Surface Area of Cone (Sd) 1237.86 cm^2
- Reference Efficiency (ƞo) 2.36%
- Moving Mass including air load (Mms) 248.80 gms
- Motor Strength (Bl) 32.39 T-m
- Voice Coil Inductance @ 1 KHz (Le) 1.91 mH
- Efficiency Bandwith Product (EBP) 113 Hz
- Voice Coil Overhang (Xmax) ±10.96 mm
- Overall Diameter 470 mm
- Bolt Circle Diameter 445 mm
- Baffle Cutout Diameter 420 mm
- Depth 211 mm
- Flange and Gasket Thickness 22 mm
- Gross Weight 25.300 Kg.
- Recone Kit Number REC18PT1500SUB
