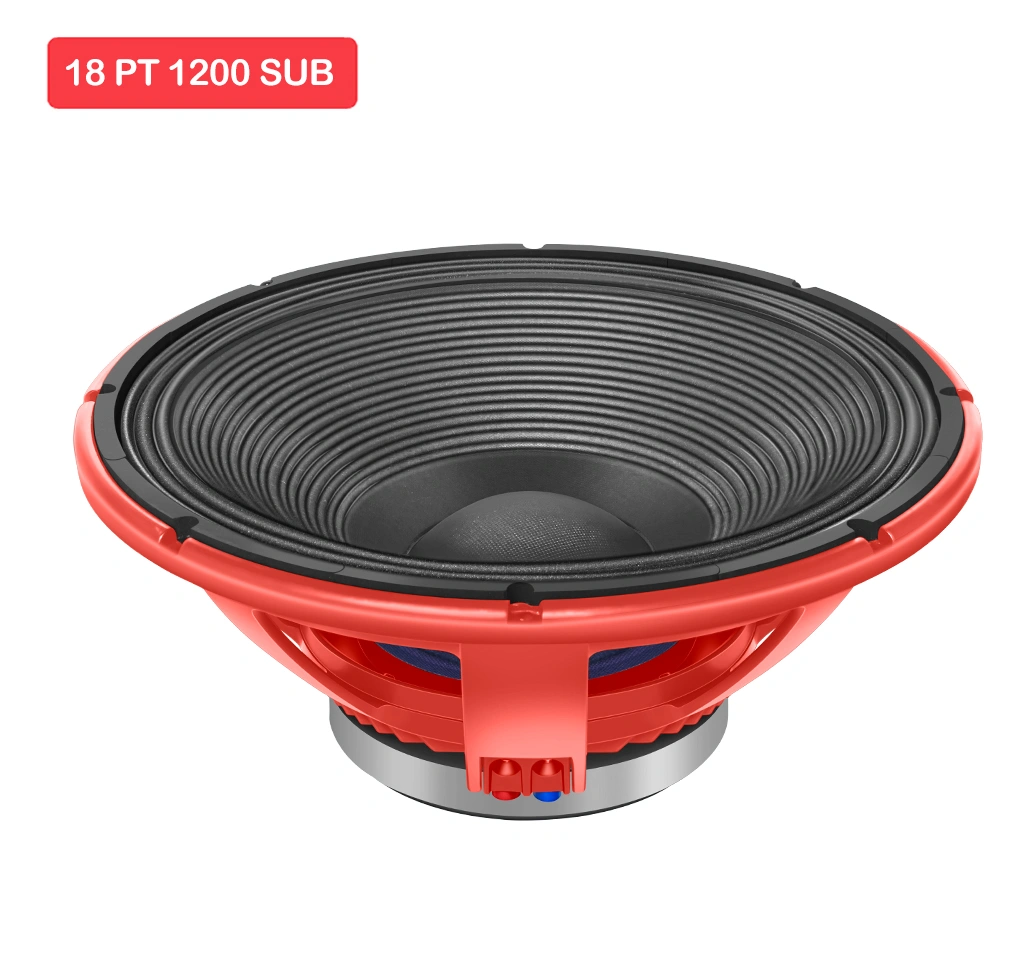

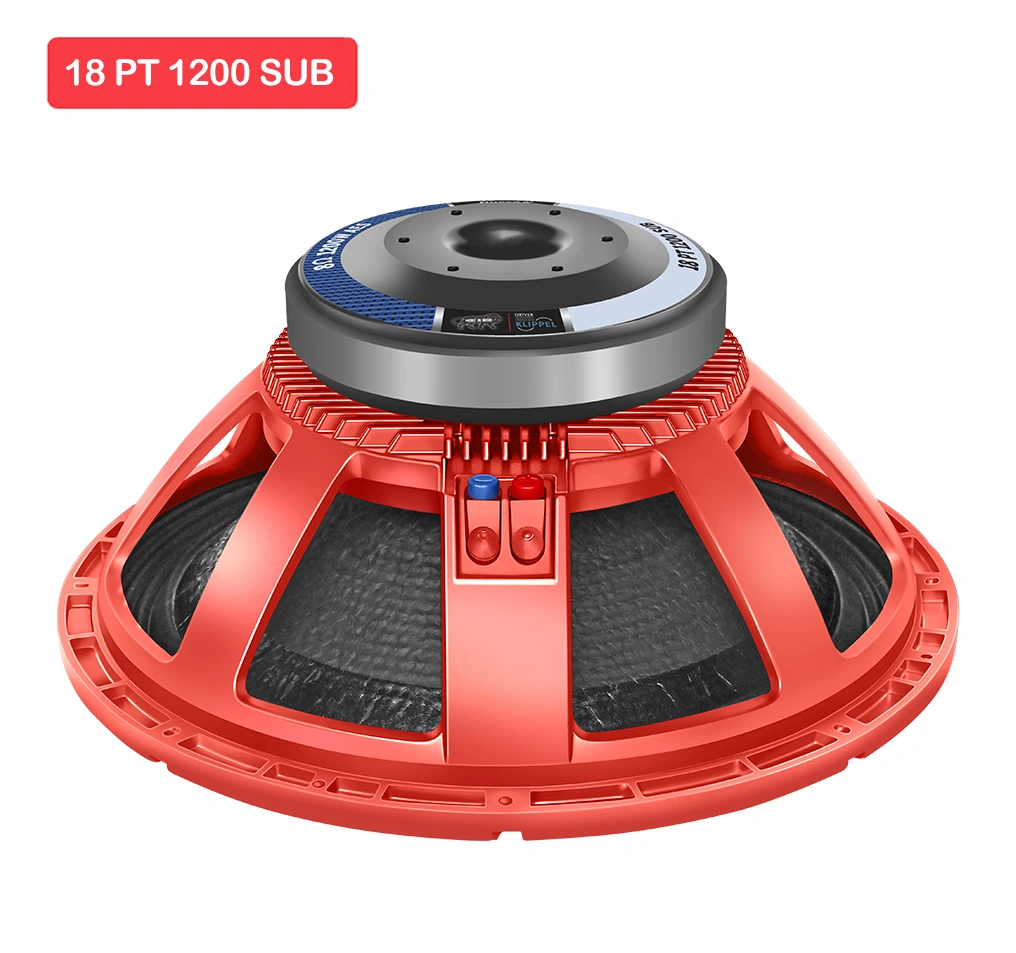

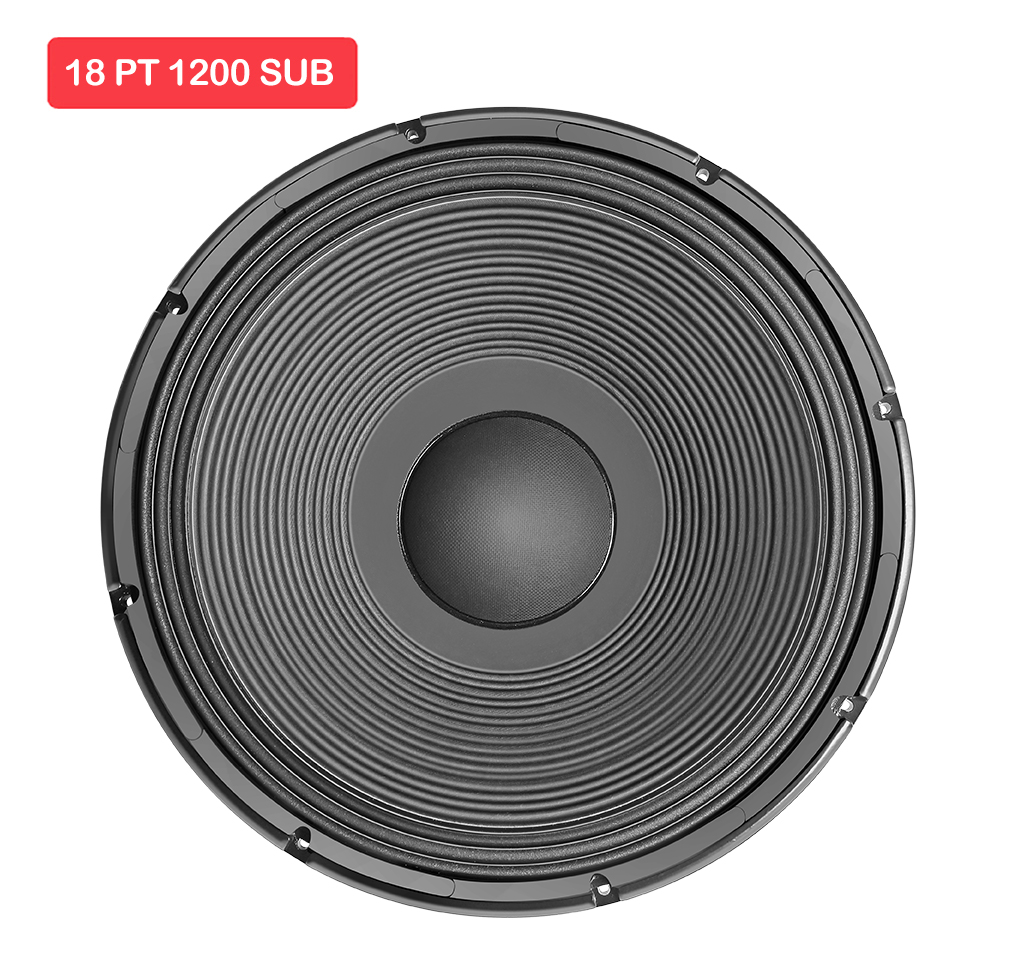

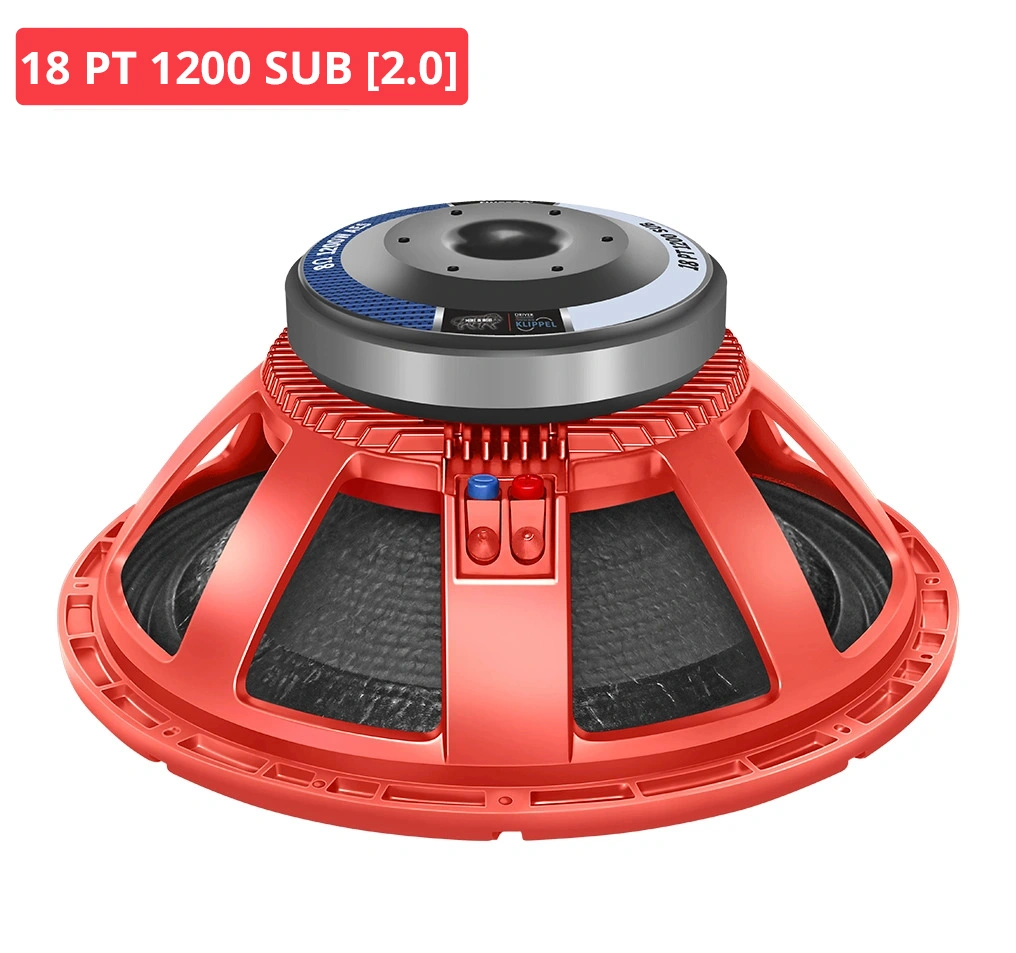

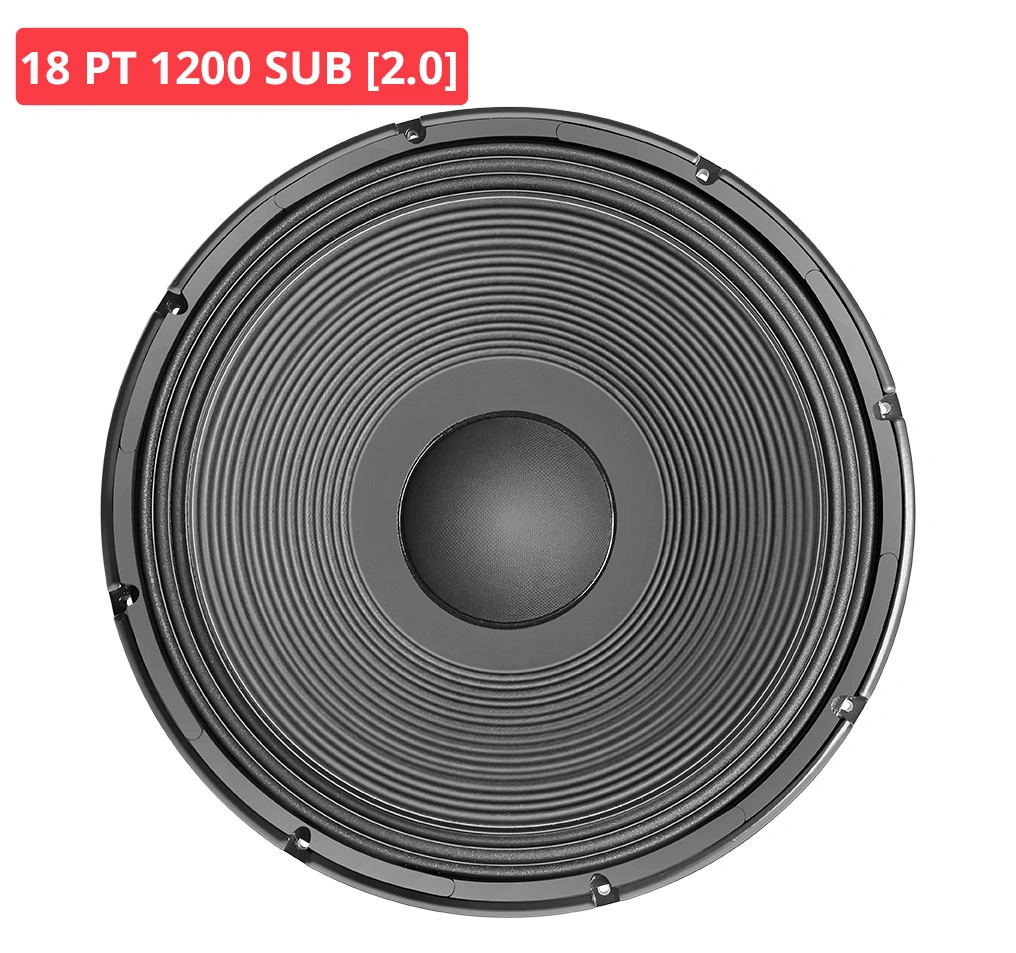

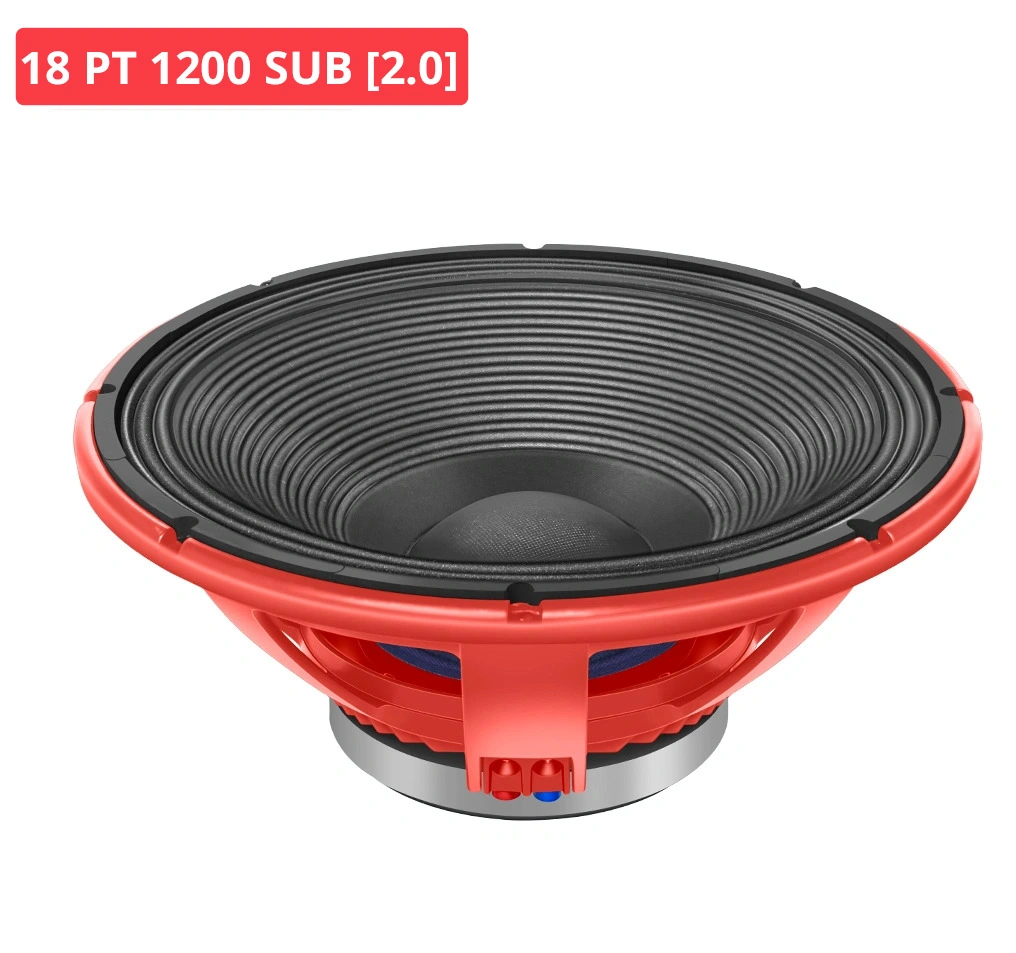

18 PT 1200 SUB
This Sub woofer transducer having good low frequency response and ideal for DJ and Live application. Can be used in Dual Subs and W Bin. Horn Loaded. Suitable for both Bass Reflex or Sealed Enclosure.
Key Features
- Program Power : 2400 W
- Voice Coil Diameter : 99.3 mm (4 in)

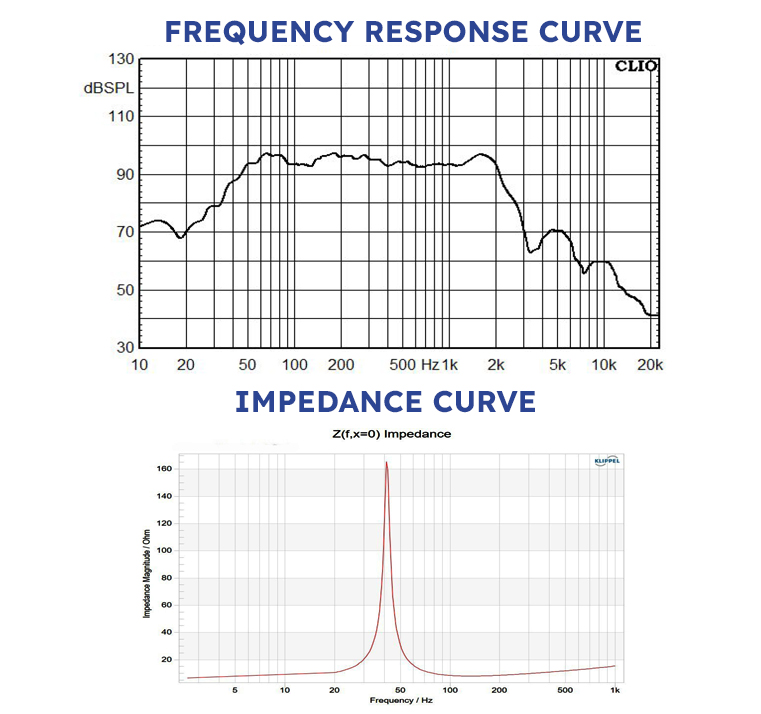

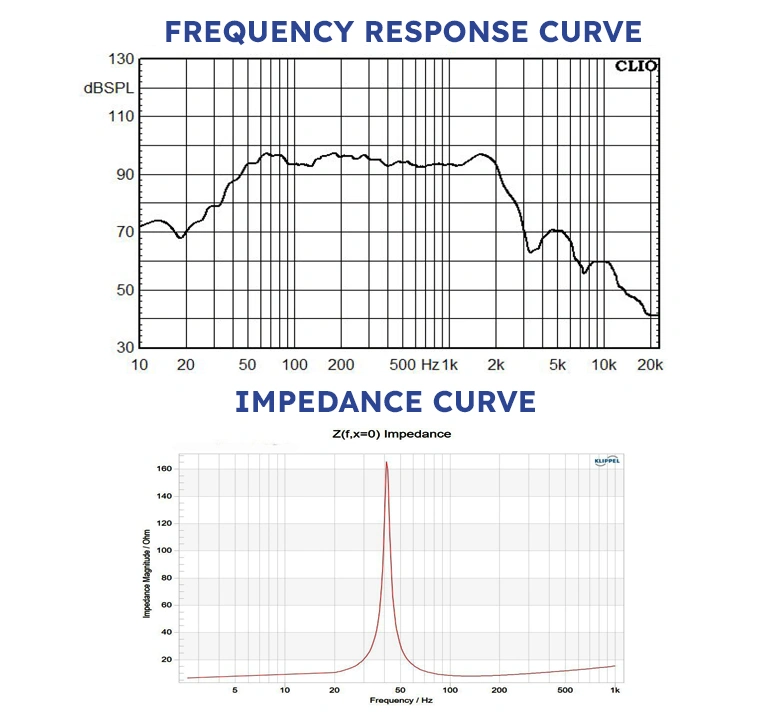

- Response : 41-2000 Hz
- Sensitivity 1W/1M : 94 dB
- Nominal Diameter 465 mm
- Nominal Impedence 8Ω
- Nominal Power Handling(AES) 1200 W
- Program Power 2400 W
- Sensitivity (1W/1m) 94 dB
- Frequency Range 41-2000 Hz
- Magnet Material Ferrite
- Voice Coil Diameter 99.3 mm ( 4 in)
- Winding Material COPPER
- Former Material GLASS FIBRE
- Winding Type In/Out
- Resonant Frequency (FS) 41 Hz
- DC Resistance (Re) 6.4 Ω
- Electrical Q (Qes) 0.56
- Mechanical Q (Qms) 14.48
- Total Q (Qts) 0.54
- Compliance Equivalent Volume (vas) 135.14 Ltrs
- Peak Diaphragm Displacement Volume (Vd) 1.55 Ltrs
- Effective Surface Area of Cone (Sd) 1225.42 cm^2
- Reference Efficiency (ƞo) 1.66%
- Moving Mass including air load (Mms) 229.7 gms
- Motor Strength (Bl) 26.28 T-m
- Voice Coil Inductance @ 1 KHz (Le) 0.91 mH
- Efficiency Bandwith Product (EBP) 73 Hz
- Voice Coil Overhang (Xmax) ±6.3 mm
- Overall Diameter 465 mm
- Bolt Circle Diameter 448 mm
- Baffle Cutout Diameter 426 mm
- Depth 190 mm
- Flange and Gasket Thickness 20 mm
- Gross Weight 17 Kg.
- Recone Kit Number REC18PT1200SUB
