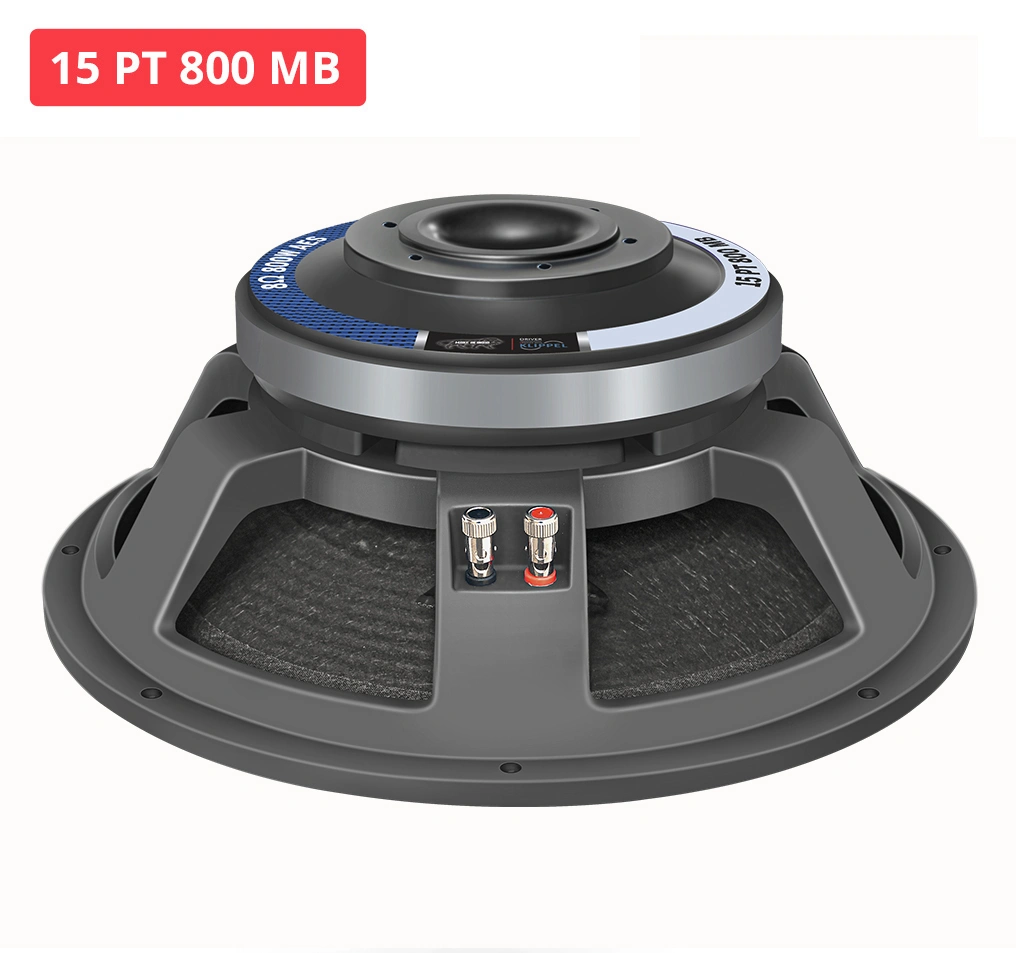

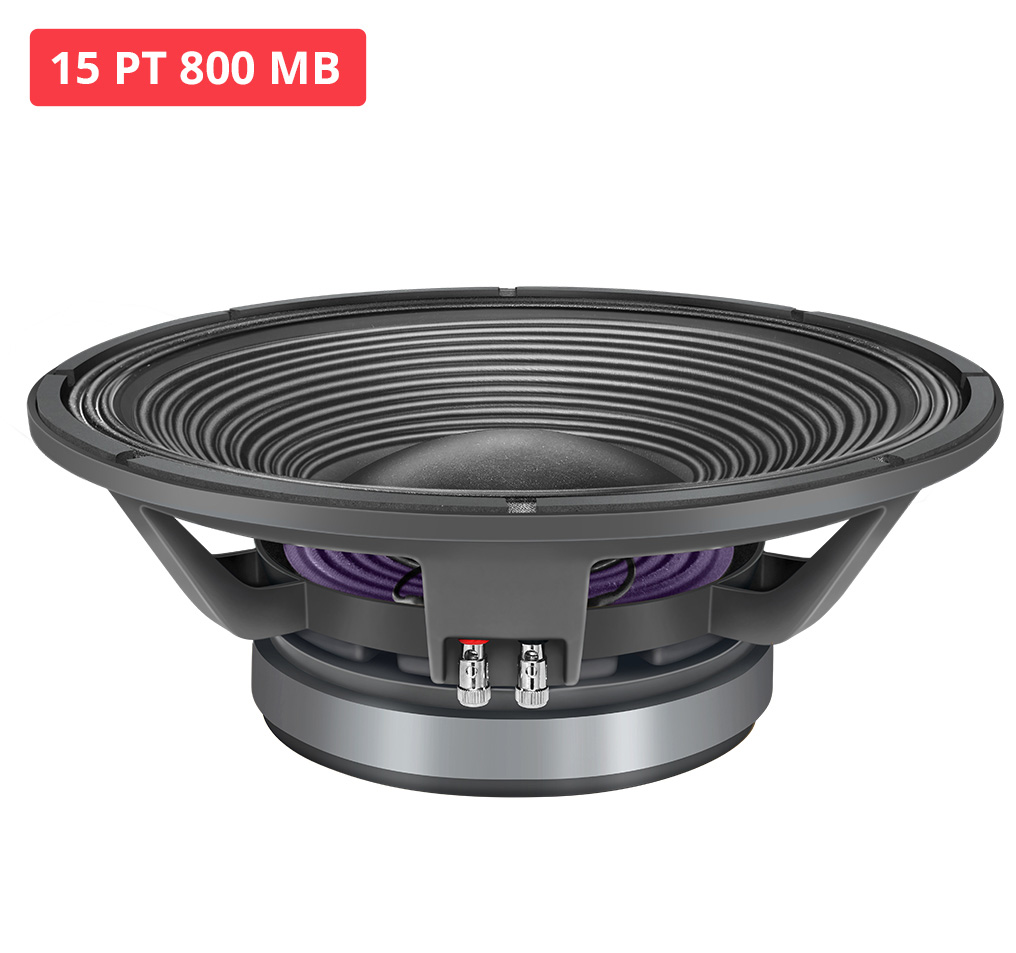

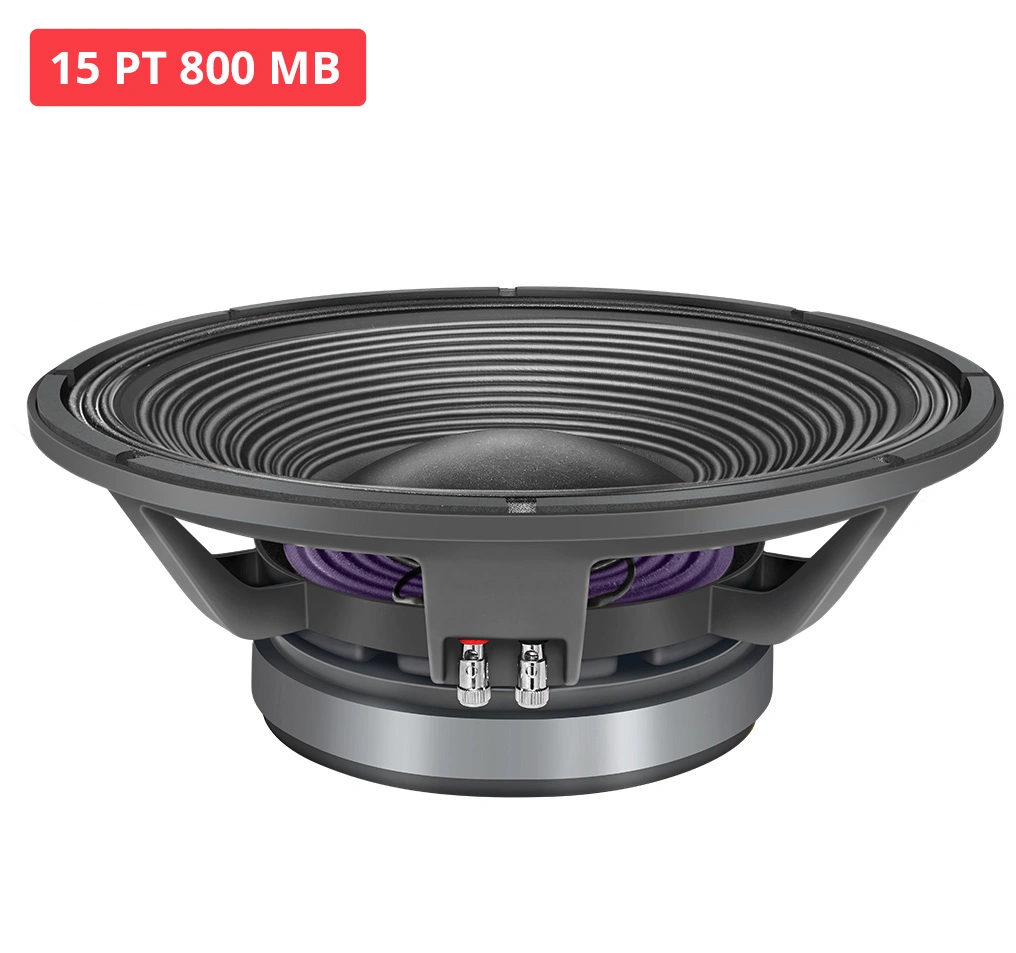

15 PT 800 MB
15 PT 800 MB is a highly efficient mid-bass speaker which can reproduce 104 dB sound level at around 1 Khz and can go as low as 47 Hz. In 15" category, we believe it has the sharpest mid. Suitable for Vented/Bass Reflex Enclosure.
Key Features
- Program Power : 1600 W
- Voice Coil Diameter : 99.3 mm (4 in)

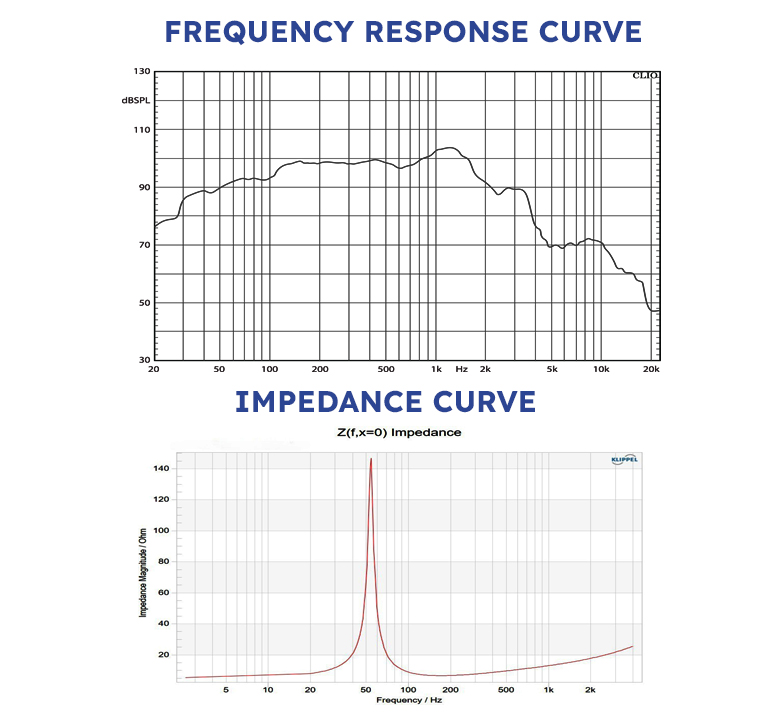

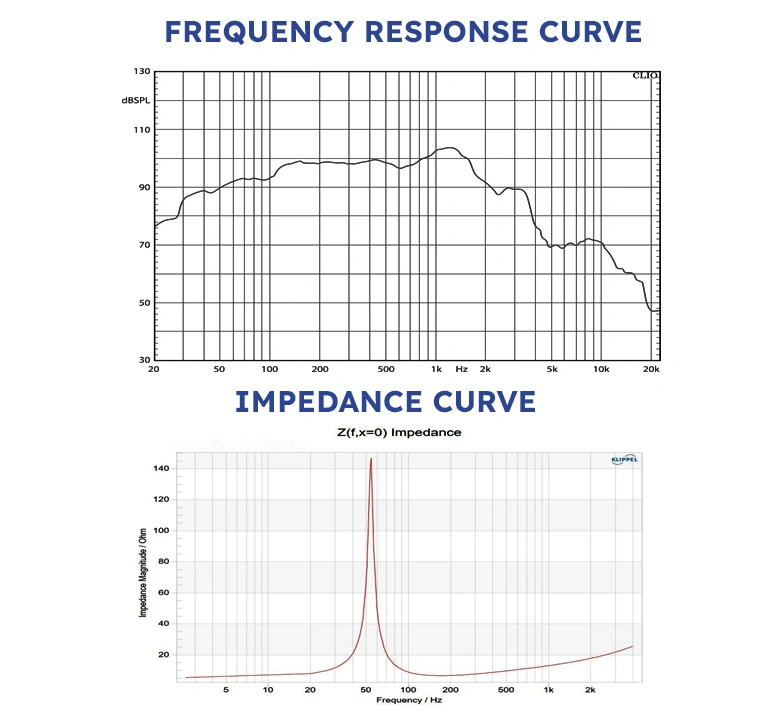

- Response : 55-3000 Hz
- Sensitivity 1W/1M : 96 dB
- Nominal Diameter 388 mm
- Nominal Impedence 8 Ω
- Nominal Power Handling(AES) 800 W
- Program Power 1600 W
- Sensitivity (1W/1m) 96 dB
- Frequency Range 55-3000 Hz
- Magnet Material Ferrite
- Voice Coil Diameter 99.3 mm ( 4 in)
- Winding Material CCAR
- Former Material GLASS FIBRE
- Winding Type OUTSIDE
- Resonant Frequency (FS) 54 Hz
- DC Resistance (Re) 5.2 Ω
- Electrical Q (Qes) 0.48
- Mechanical Q (Qms) 13.06
- Total Q (Qts) 0.47
- Compliance Equivalent Volume (vas) 72.95 Ltrs
- Peak Diaphragm Displacement Volume (Vd) 0.41 Ltrs
- Effective Surface Area of Cone (Sd) 918.63 cm^2
- Reference Efficiency (ƞo) 2.26%
- Moving Mass including air load (Mms) 142.10 gms
- Motor Strength (Bl) 22.91 T-m
- Voice Coil Inductance @ 1 KHz (Le) 0.71 mH
- Efficiency Bandwith Product (EBP) 113 Hz
- Voice Coil Overhang (Xmax) ±5.90 mm
- Overall Diameter 388 mm
- Bolt Circle Diameter 373 mm
- Baffle Cutout Diameter 358 mm
- Depth 151 mm
- Flange and Gasket Thickness 13 mm
- Gross Weight 16 Kgs
- Recone Kit Number REC15PT800MB
