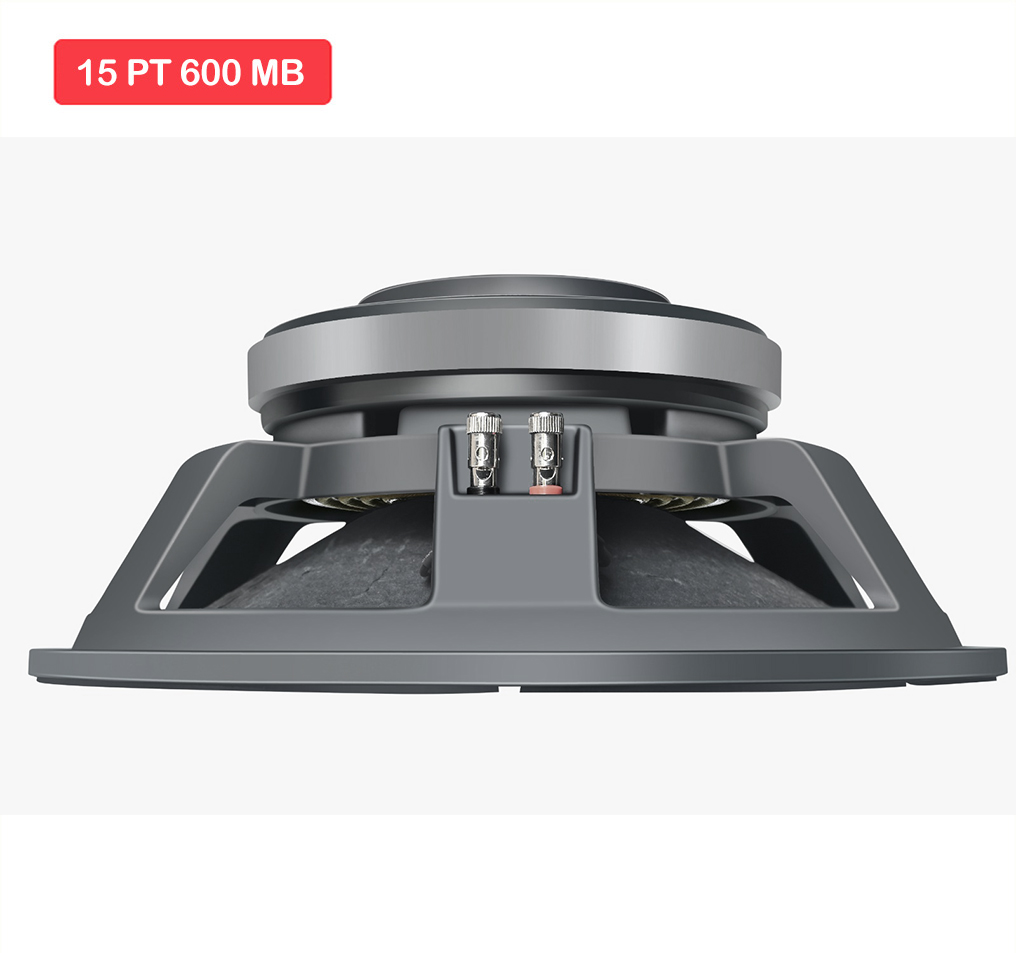

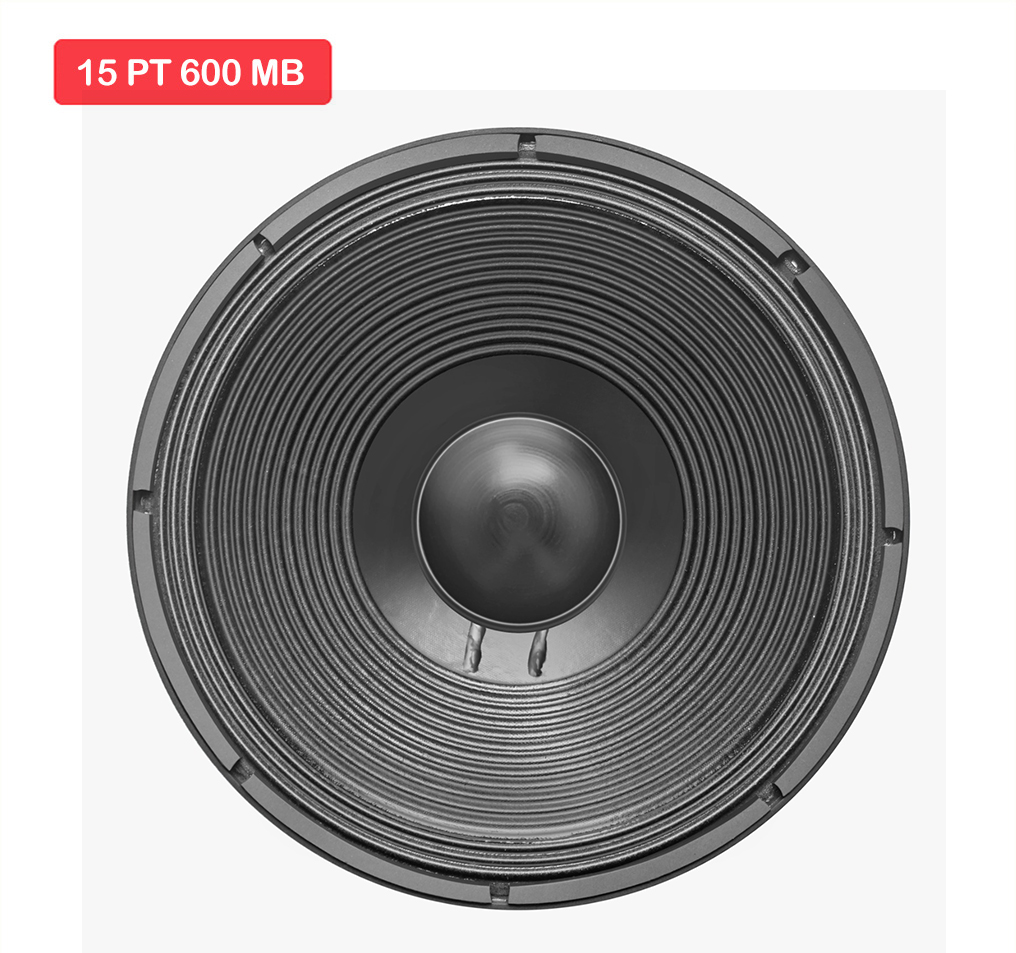

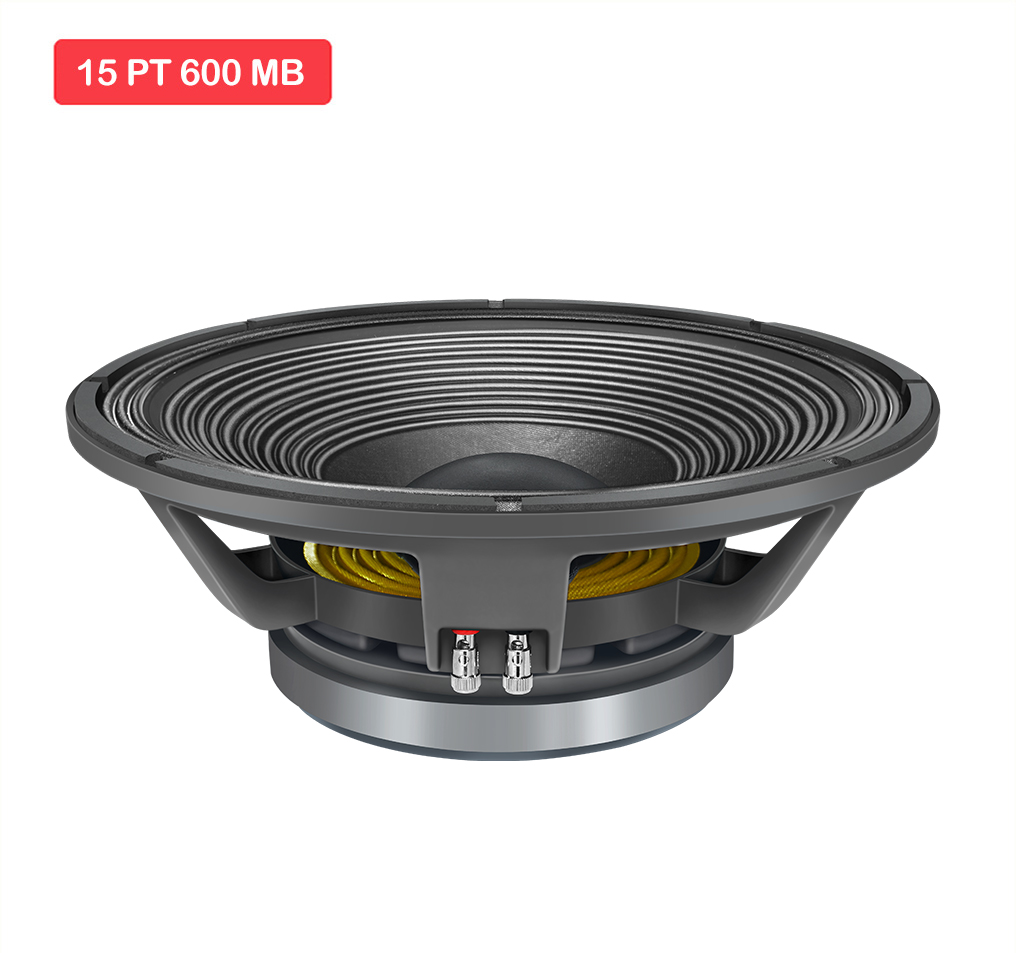

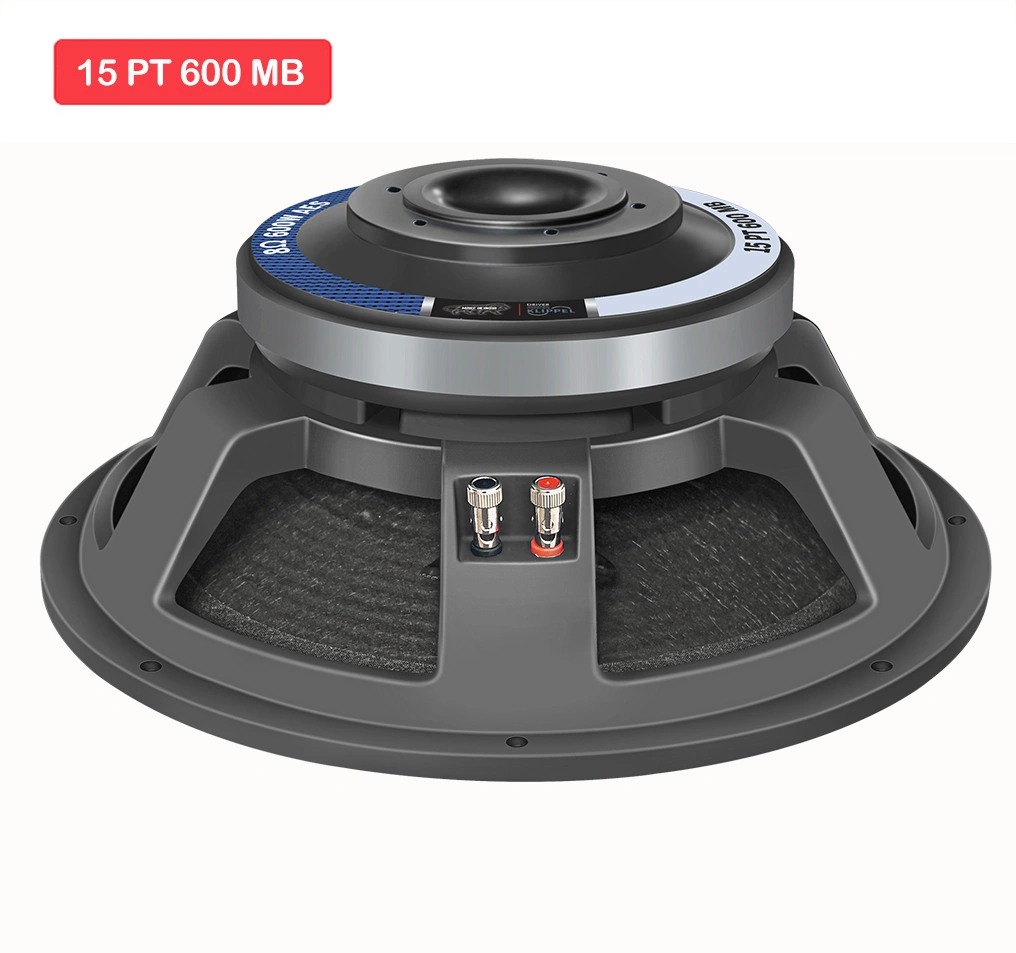

15 PT 600 MB
15PT600 MB is a Mid Bass transducer which has extended low with prominent Mid. This transducer is suitable for Live Programs / Orchestra.
Suitable for both Sealed and Bass Reflex Enclosure.
Key Features
- Program Power : 1200 W
- Voice Coil Diameter : 99.3 mm (4 in)

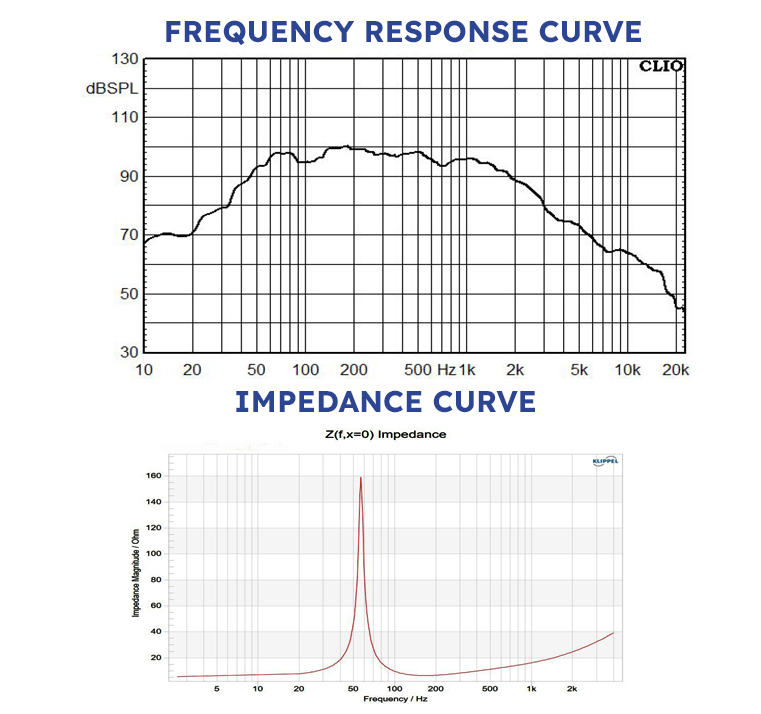

- Response : 55-3500 Hz
- Sensitivity 1W/1M : 96 dB
- Nominal Diameter 388 mm
- Nominal Impedence 8 Ω
- Nominal Power Handling(AES) 600w
- Program Power 1200w
- Sensitivity (1W/1m) 96 dB
- Frequency Range 55-3500 Hz
- Magnet Material Ferrite
- Voice Coil Diameter 99.3 mm ( 4 in)
- Winding Material CCAR
- Former Material GLASS FIBRE
- Winding Type OUTSIDE
- Resonant Frequency (FS) 57 Hz
- DC Resistance (Re) 5.4 Ω
- Electrical Q (Qes) 0.46
- Mechanical Q (Qms) 13.27
- Total Q (Qts) 0.45
- Compliance Equivalent Volume (vas) 71.70 Ltrs
- Peak Diaphragm Displacement Volume (Vd) 0.41 Ltrs
- Effective Surface Area of Cone (Sd) 918.63 cm^2
- Reference Efficiency (ƞo) 2.69%
- Moving Mass including air load (Mms) 130.60 gms
- Motor Strength (Bl) 23.23 T-m
- Voice Coil Inductance @ 1 KHz (Le) 0.53 mH
- Efficiency Bandwith Product (EBP) 124 Hz
- Voice Coil Overhang (Xmax) ±4.0 mm
- Overall Diameter 388 mm
- Bolt Circle Diameter 373 mm
- Baffle Cutout Diameter 358 mm
- Depth 151 mm
- Flange and Gasket Thickness 13 mm
- Gross Weight 12.85 Kg.
- Recone Kit Number REC15PT600MB
