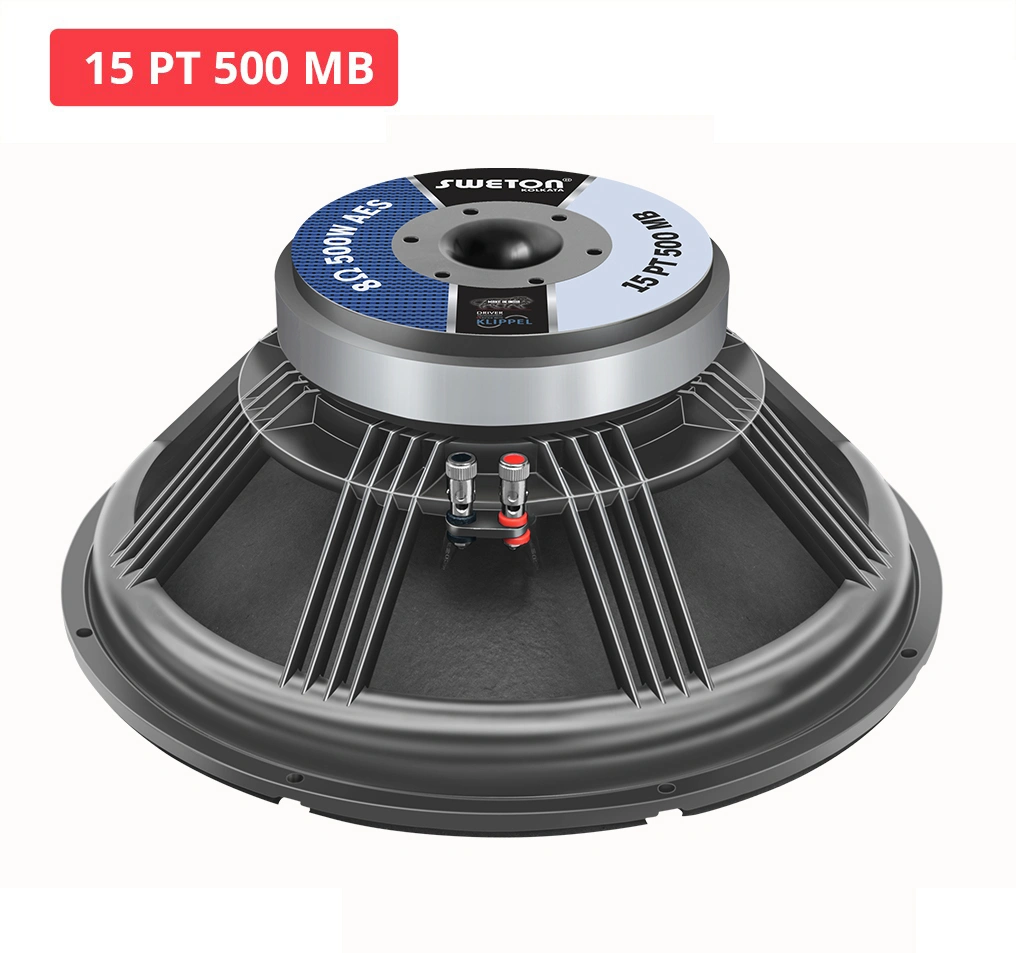

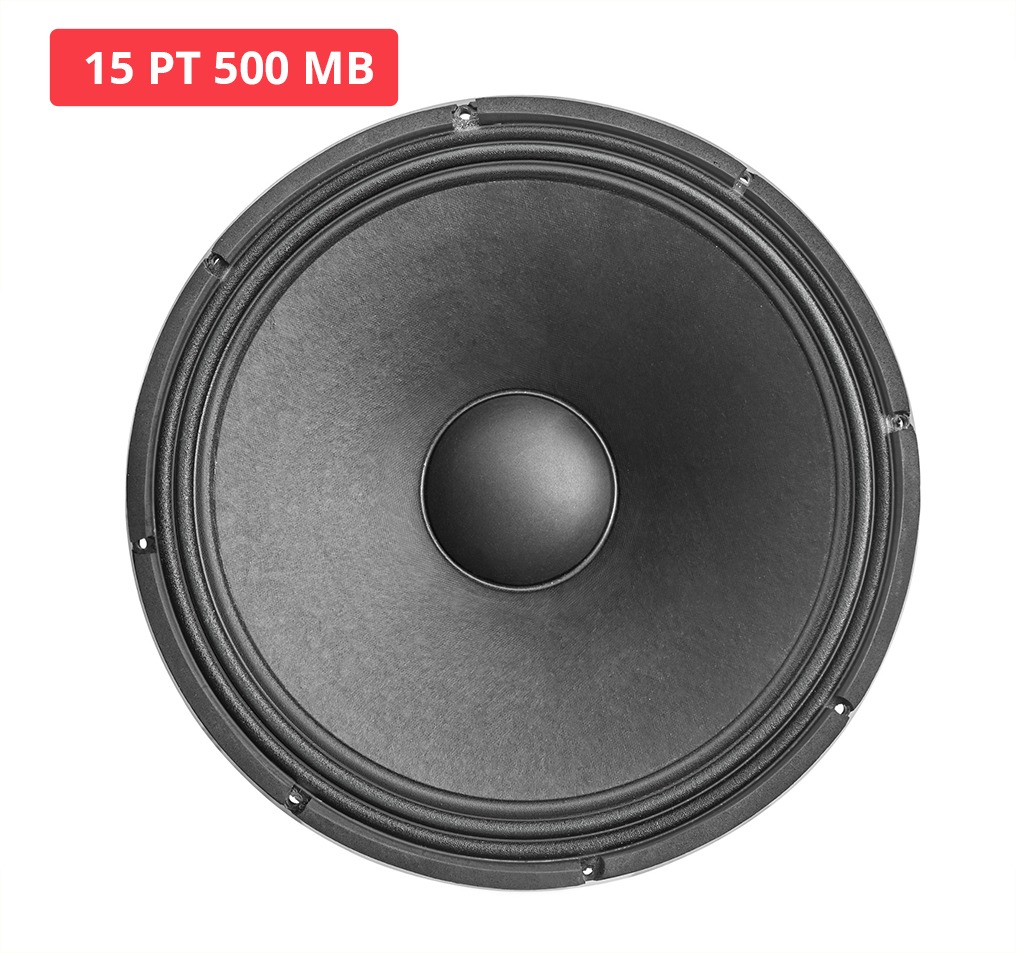

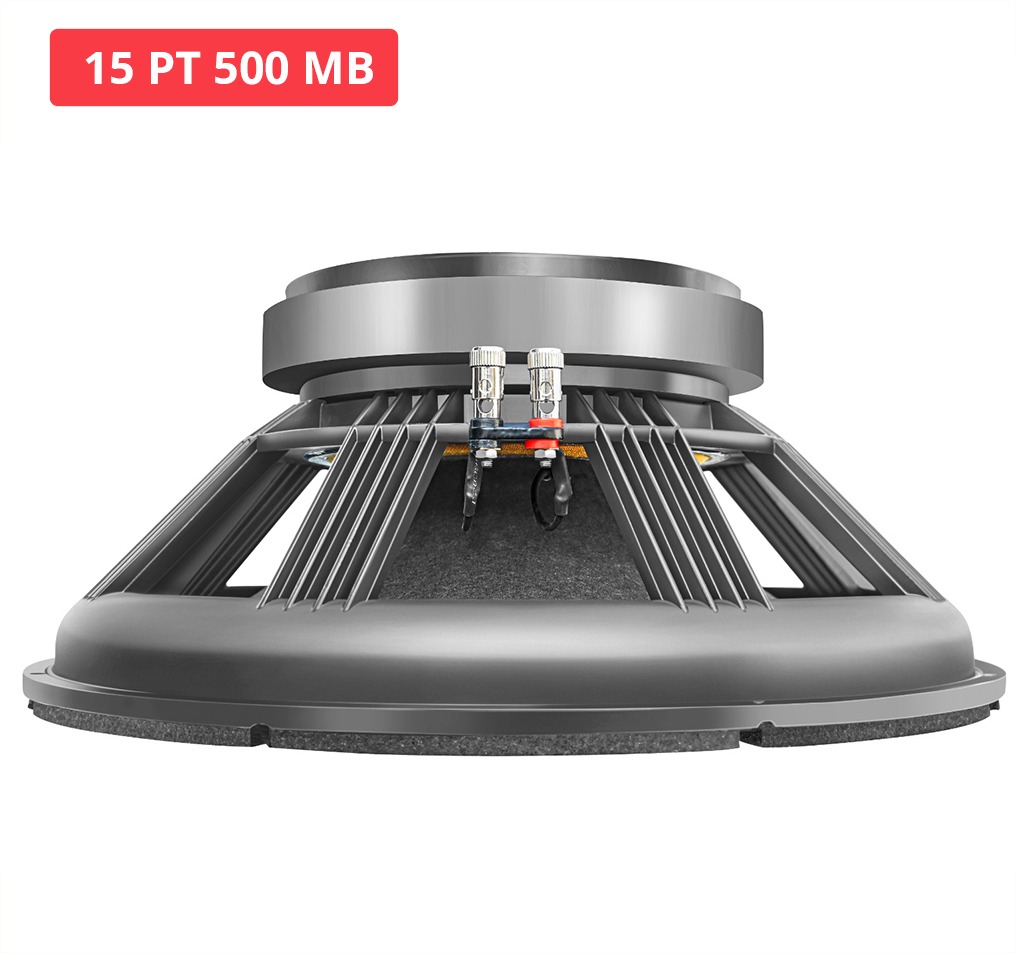

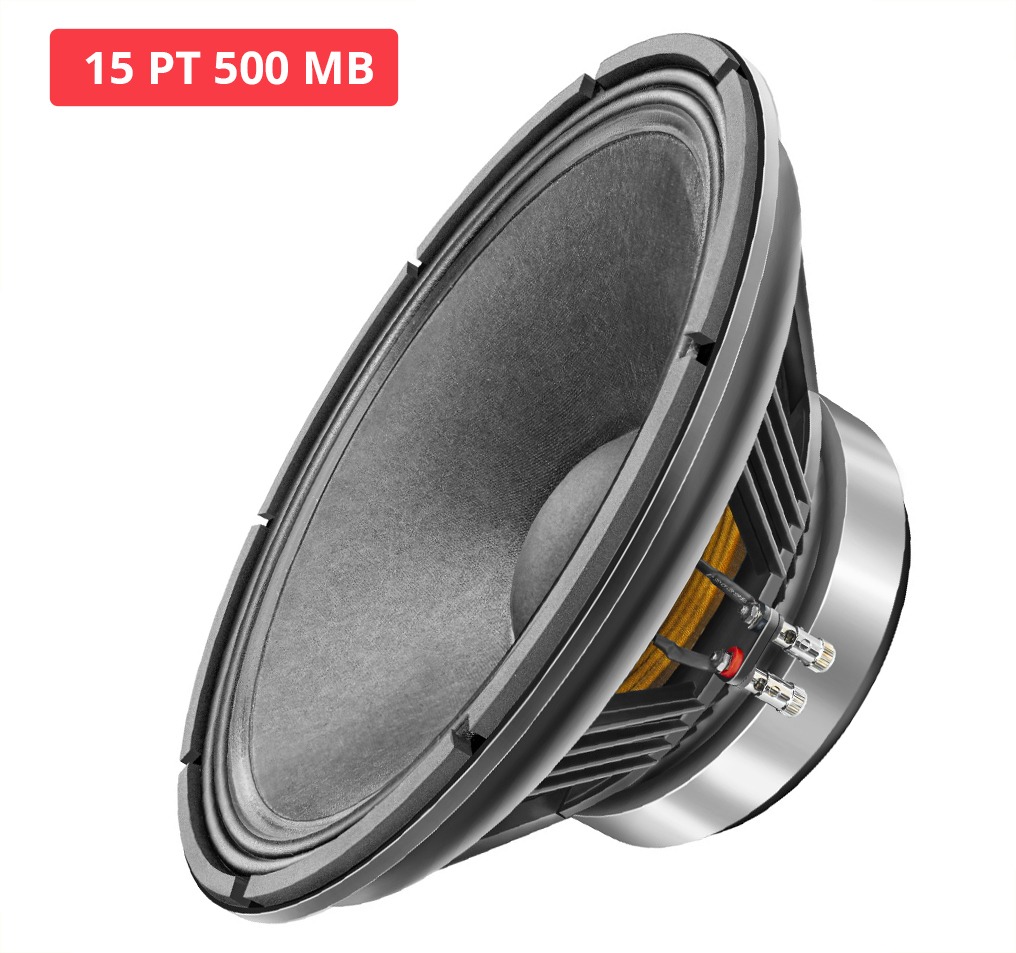

15 PT 500 MB
15 PT 500 MB is a very efficient speaker which can handle nominal power of 500 W AES with voice coil of 77 mm (3.03 in).
It reproduces Mid and Bass in a balanced way and has high sensivity. Its unique ventilation system helps in cooling of voice coil effectively. It is suitable for Vented / Bass reflex Enclosure.
Key Features
- Program Power : 1000 W
- Voice Coil Diameter : 77 mm (3.03 in)

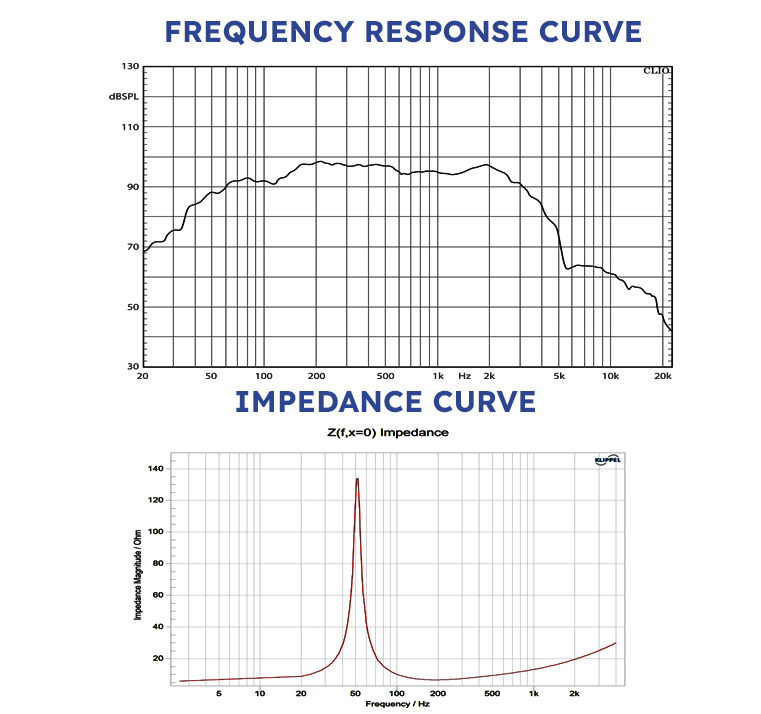

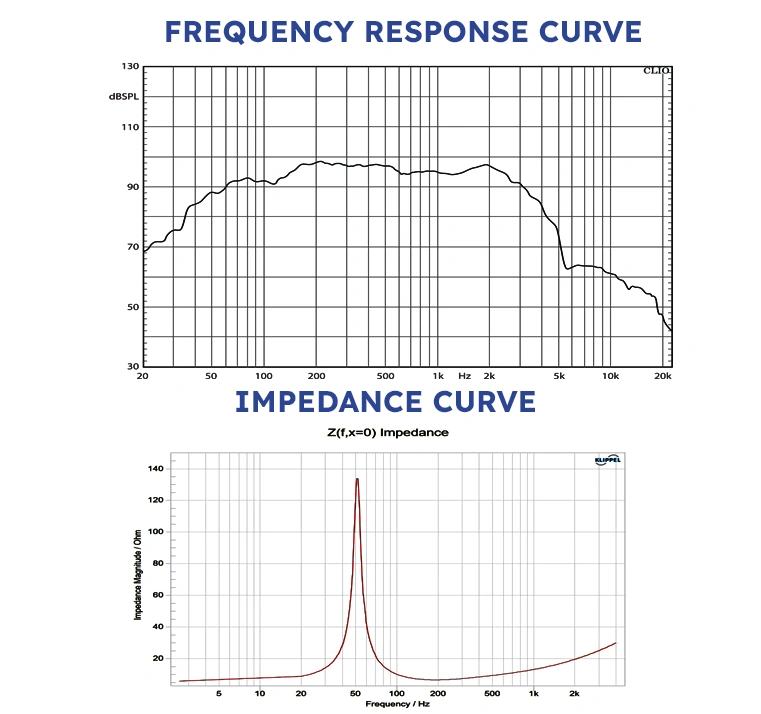

- Response : 50-3000 Hz
- Sensitivity 1W/1M : 97 db
- Nominal Diameter 388 mm
- Nominal Impedence 8Ω
- Nominal Power Handling(AES) 500 W
- Program Power 1000w
- Sensitivity (1W/1m) 97 dB
- Frequency Range 50-3000 Hz
- Magnet Material Ferrite
- Voice Coil Diameter 77 mm (3.03 in)
- Winding Material COPPER
- Former Material GLASS FIBRE
- Winding Type OUTSIDE
- Resonant Frequency (FS) 51 Hz
- DC Resistance (Re) 5.7 Ω
- Electrical Q (Qes) 0.42
- Mechanical Q (Qms) 9.81
- Total Q (Qts) 0.40
- Compliance Equivalent Volume (vas) 113.29 Ltrs
- Peak Diaphragm Displacement Volume (Vd) 0.41 Ltrs
- Effective Surface Area of Cone (Sd) 907.92 cm^2
- Reference Efficiency (ƞo) 3.50%
- Moving Mass including air load (Mms) 98.40 gms
- Motor Strength (Bl) 20.75 T-m
- Voice Coil Inductance @ 1 KHz (Le) 0.57 mH
- Efficiency Bandwith Product (EBP) 121 Hz
- Voice Coil Overhang (Xmax) ± 4.5 mm
- Overall Diameter 388 mm
- Bolt Circle Diameter 373 mm
- Baffle Cutout Diameter 358 mm
- Depth 150 mm
- Flange and Gasket Thickness 13 mm
- Gross Weight 11.32 Kgs
- Recone Kit Number REC15PT500MB
