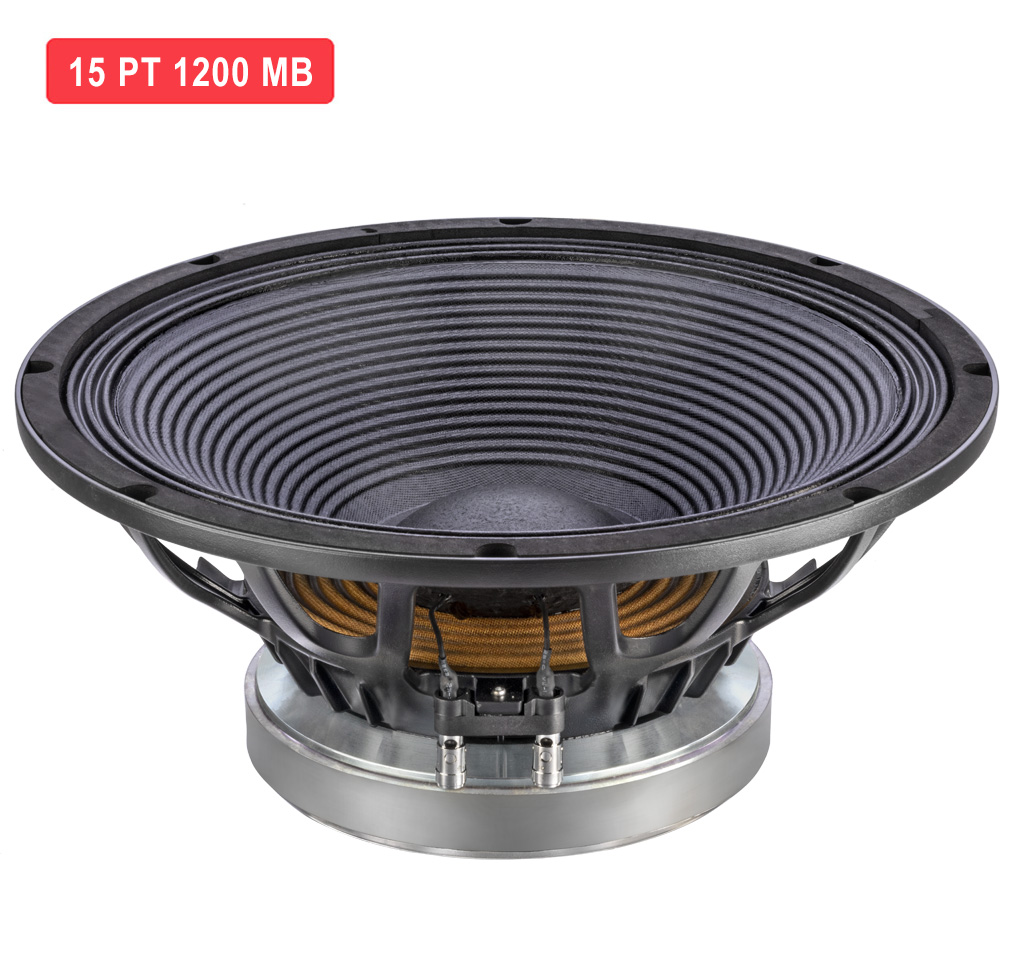

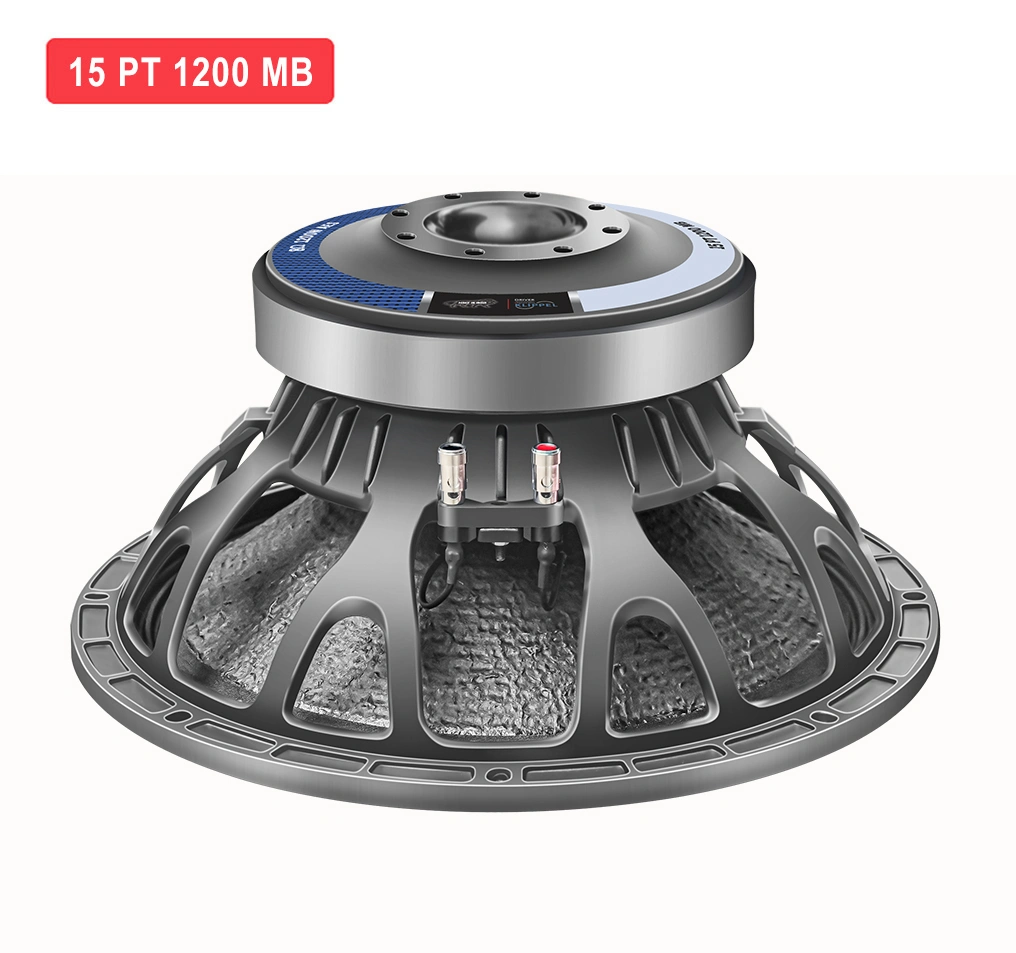

15 PT 1200 MB
15 PT 1200 MB is a mid bass transducer with extended low.This low mid transducer reproduces boomy bass with clear mid frequencies making it ideal for Single or Dual Top. This transducer is a perfect complement for any Sub Woofer used for competition or open fi eld application.Suitable for Bass Reflex / Ported Enclosure.
Key Features
- Program Power : 2400 W
- Voice Coil Diameter : 99.3 mm (4 in)

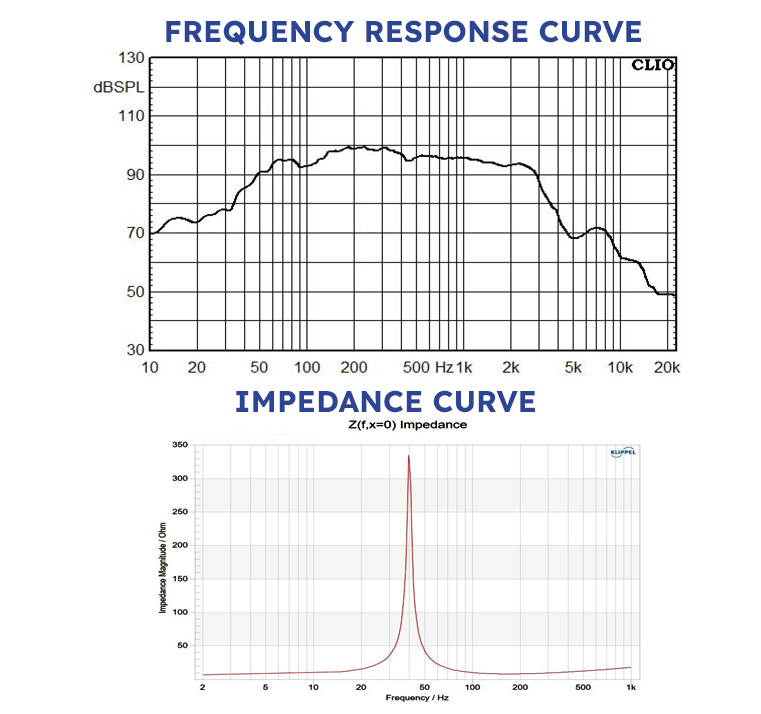

- Response : 40-2800 Hz
- Sensitivity 1W/1M : 95 dB
- Nominal Diameter 394 mm
- Nominal Impedence 8 Ω
- Gross Weight 13.900 Kg.
- Nominal Power Handling(AES) 1200W
- Program Power 2400W
- Sensitivity (1W/1m) 95 dB
- Frequency Range 40-2800 Hz
- Magnet Material Ferrite
- Voice Coil Diameter 99.3 mm ( 4 in)
- Winding Material COPPER
- Former Material GLASS FIBRE
- Winding Type In/Out
- Resonant Frequency (FS) 40 Hz
- DC Resistance (Re) 6.7 Ω
- Electrical Q (Qes) 0.34
- Mechanical Q (Qms) 17.13
- Total Q (Qts) 0.34
- Compliance Equivalent Volume (vas) 115.97 Ltrs
- Peak Diaphragm Displacement Volume (Vd) 0.41 Ltrs
- Effective Surface Area of Cone (Sd) 876.16 cm^2
- Reference Efficiency (ƞo) 2.07%
- Moving Mass including air load (Mms) 147.50 gms
- Motor Strength (Bl) 26.89 T-m
- Voice Coil Inductance @ 1 KHz (Le) 1.18 mH
- Efficiency Bandwith Product (EBP) 118 Hz
- Voice Coil Overhang (Xmax) ±7 mm
- Overall Diameter 394 mm
- Bolt Circle Diameter 375 mm
- Baffle Cutout Diameter 352 mm
- Depth 182 mm
- Flange and Gasket Thickness 13 mm
- Gross Weight 13.90 Kg.
- Recone Kit Number REC15PT1200MB
