8Ω
Datasheet

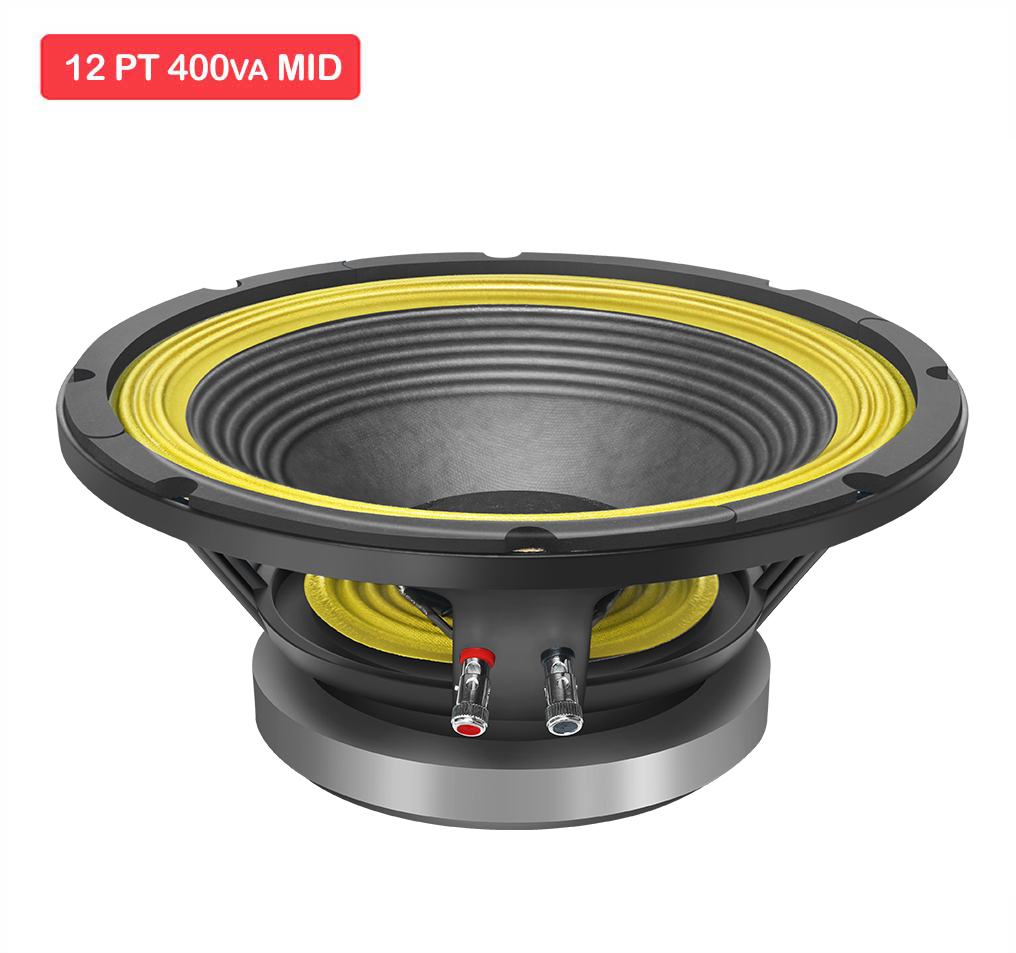

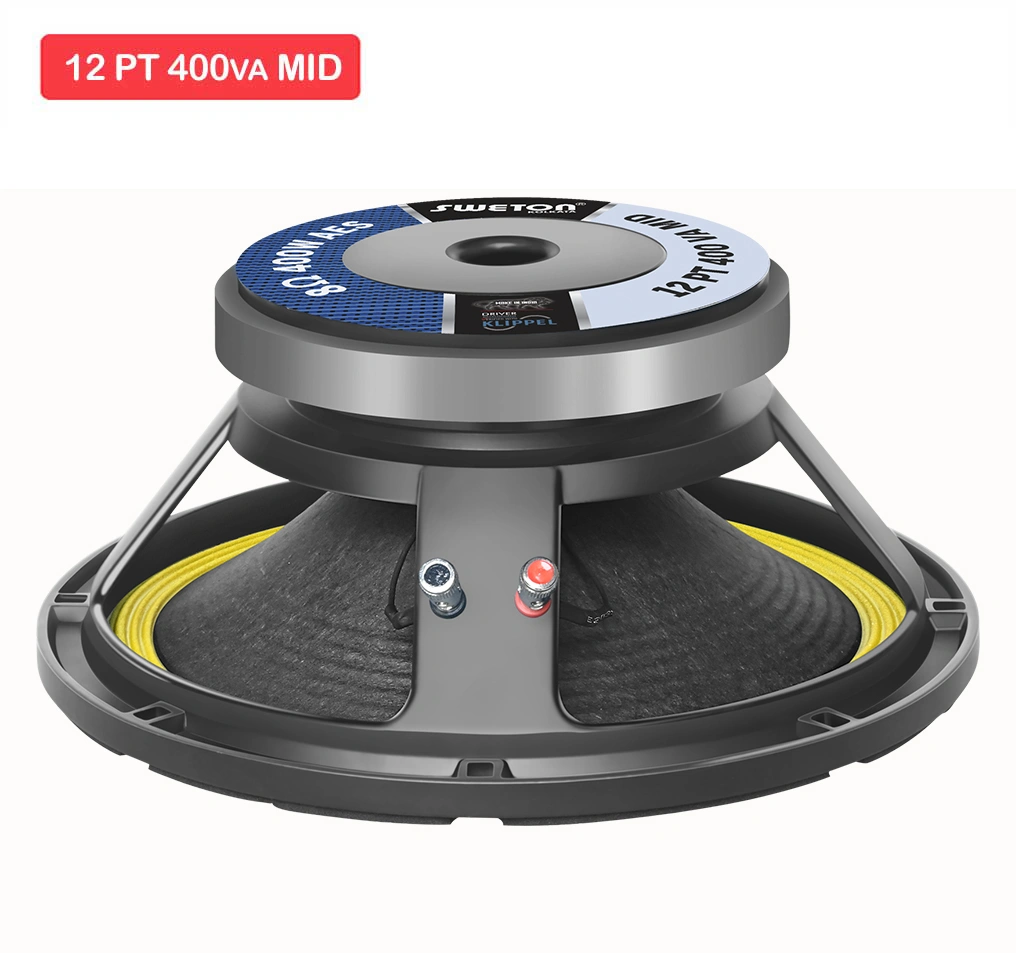

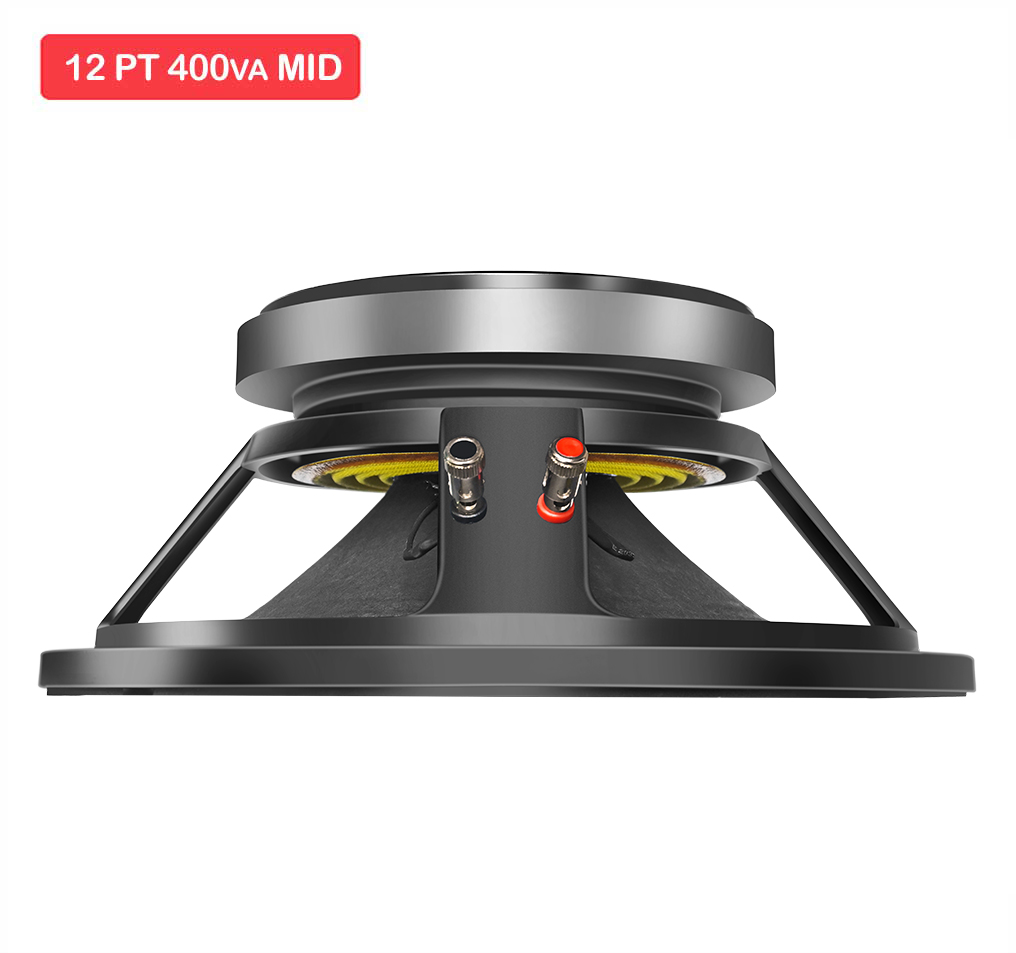

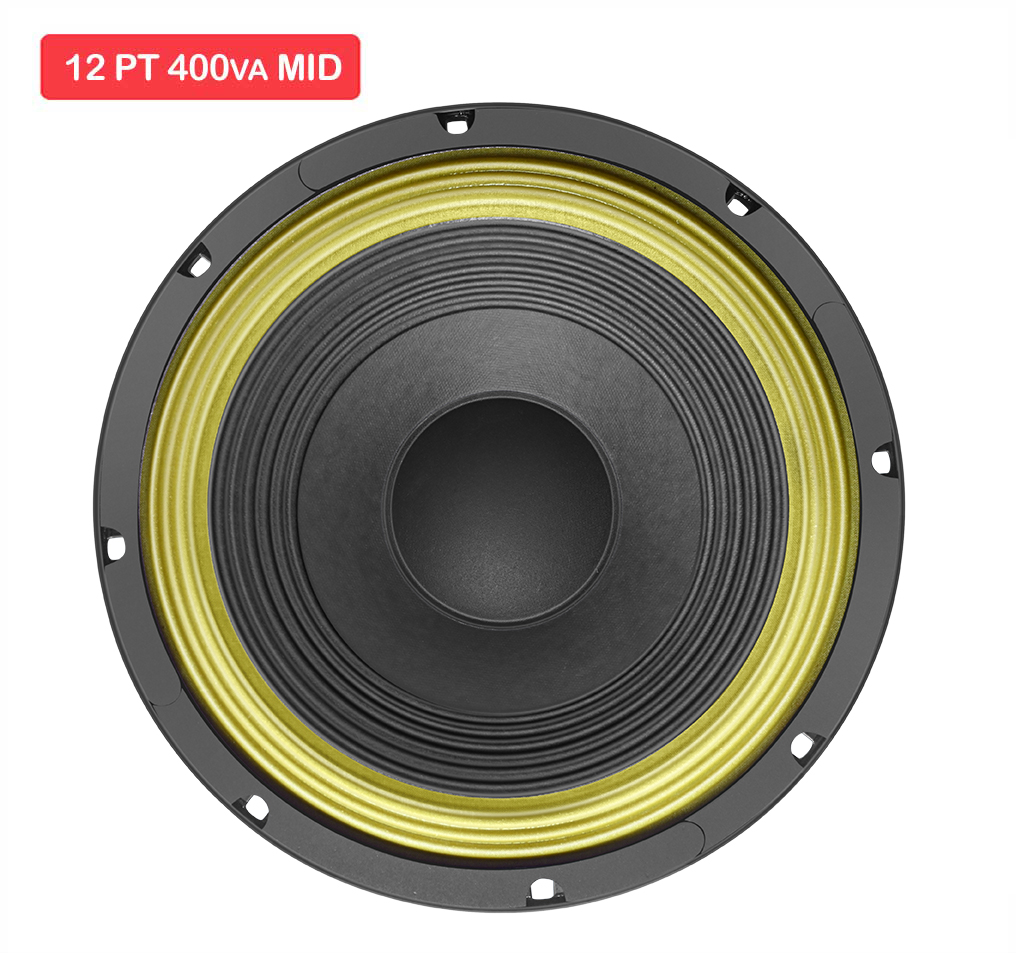

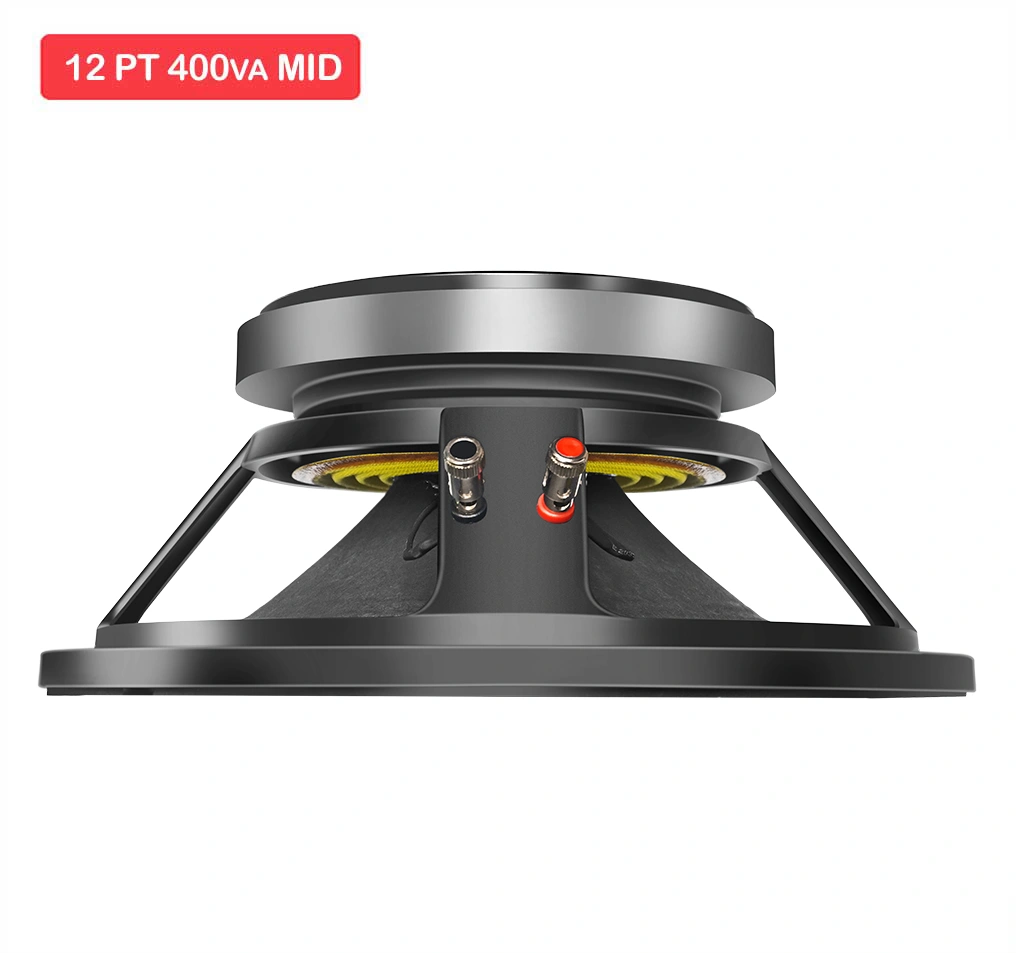

12 PT 400 VA MID
This transducer has exceptional response in vocal reproduction and therefore ideally suited for stage monitor or where very prominent mid frequency response is required. Suitable for Bass Reflex / Ported Enclosure.
Key Features
- Program Power : 800 W
- Voice Coil Diameter : 76.2 mm (3 in)

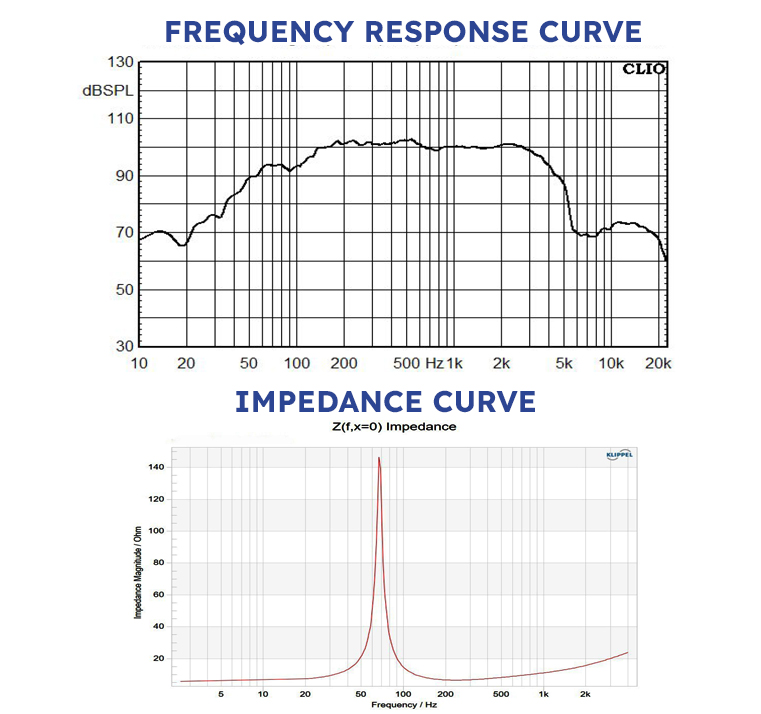

- Response : 60-5000 Hz
- Sensitivity 1W/1M : 96 dB
- Nominal Diameter 320 mm
- Nominal Impedence 8Ω
- Nominal Power Handling(AES) 400w
- Program Power 800w
- Sensitivity (1W/1m) 96 dB
- Frequency Range 60-5000 Hz
- Magnet Material Ferrite
- Voice Coil Diameter 76.2 mm ( 3 in)
- Winding Material CCAW
- Former Material GLASS FIBRE
- Winding Type In/Out
- Resonant Frequency (FS) 67 Hz
- Electrical Q (Qes) 0.49
- DC Resistance (Re) 5.6 Ω
- Mechanical Q (Qms) 12.36
- Total Q (Qts) 0.47
- Compliance Equivalent Volume (vas) 42.73 Ltrs
- Peak Diaphragm Displacement Volume (Vd) 0.13 Ltrs
- Effective Surface Area of Cone (Sd) 539.13 cm^2
- Reference Efficiency (ƞo) 2.58%
- Moving Mass including air load (Mms) 53.3 gms
- Motor Strength (Bl) 16.14 T-m
- Voice Coil Inductance @ 1 KHz (Le) 0.40 mH
- Efficiency Bandwith Product (EBP) 137 Hz
- Voice Coil Overhang (Xmax) ±3.00 mm
- Overall Diameter 320 mm
- Bolt Circle Diameter 300 mm
- Baffle Cutout Diameter 286 mm
- Depth 135 mm
- Flange and Gasket Thickness 15 mm
- Gross Weight 7.8 Kg.
- Recone Kit Number REC12PT400MIDVA
