Datasheet

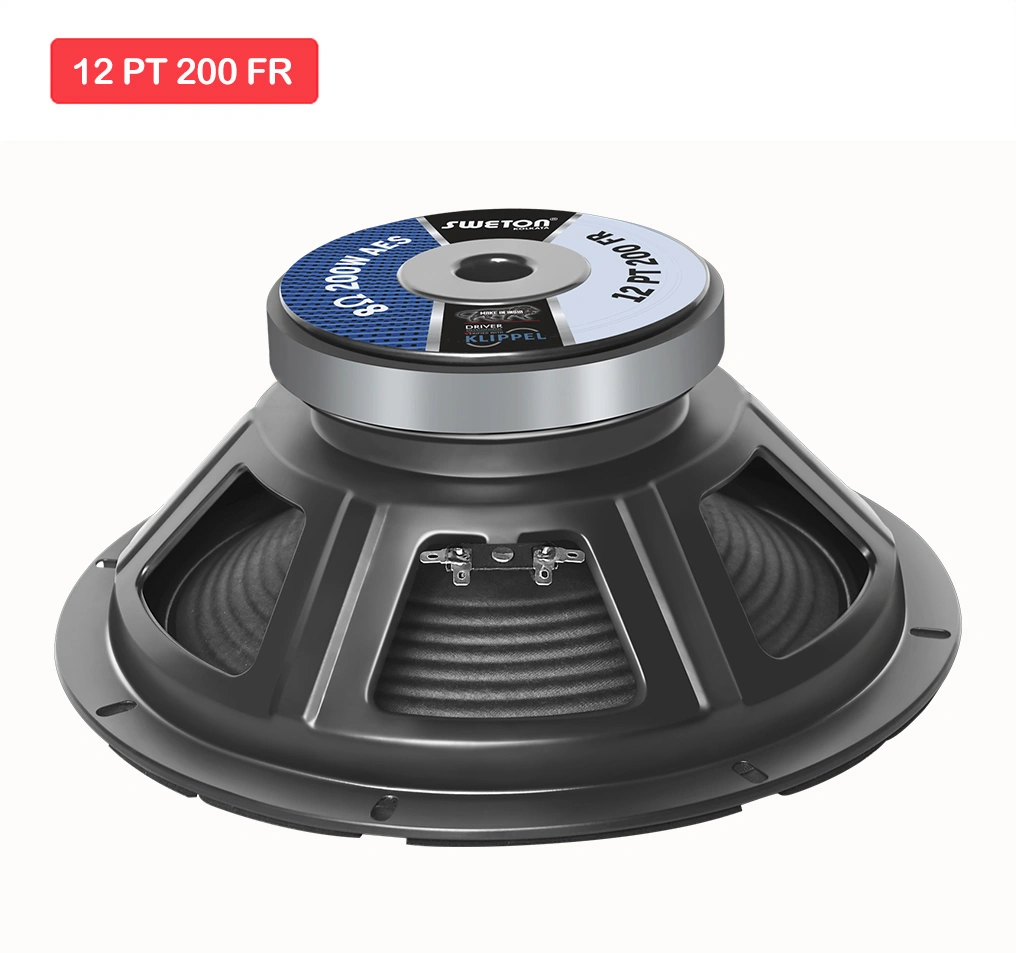

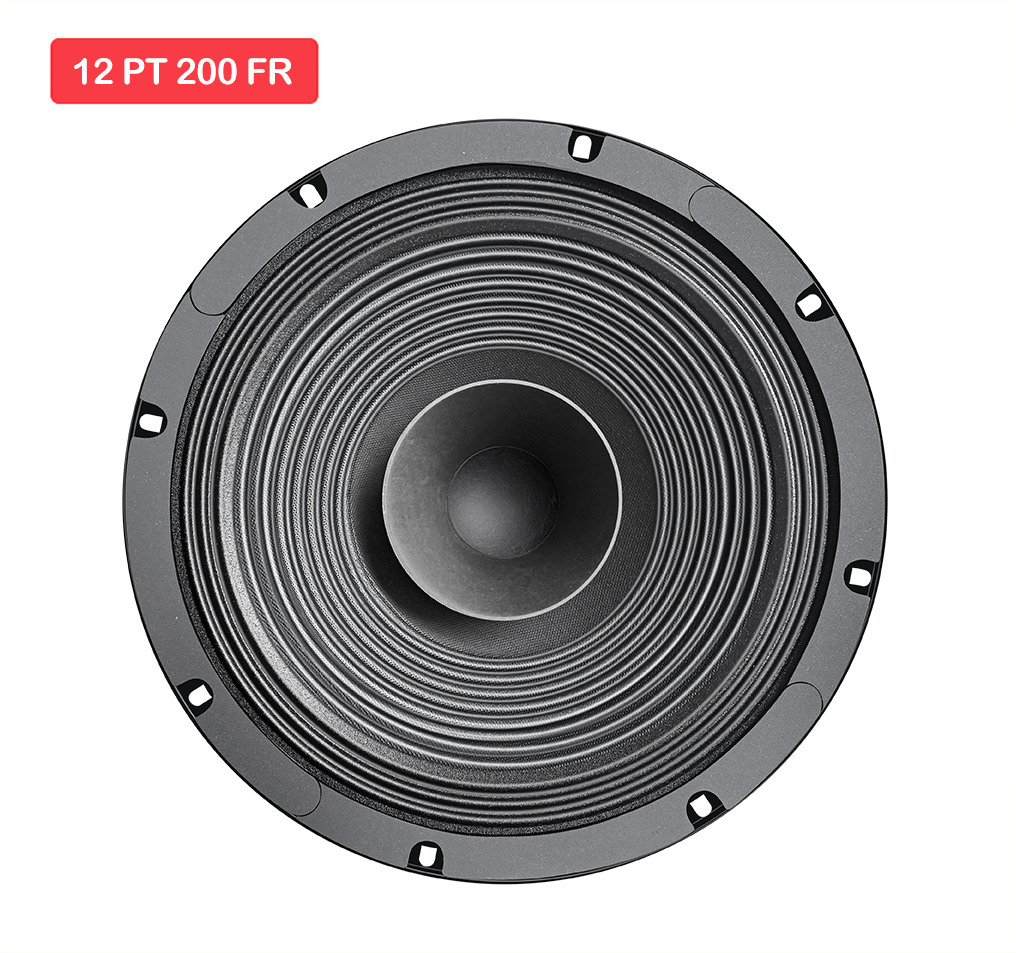

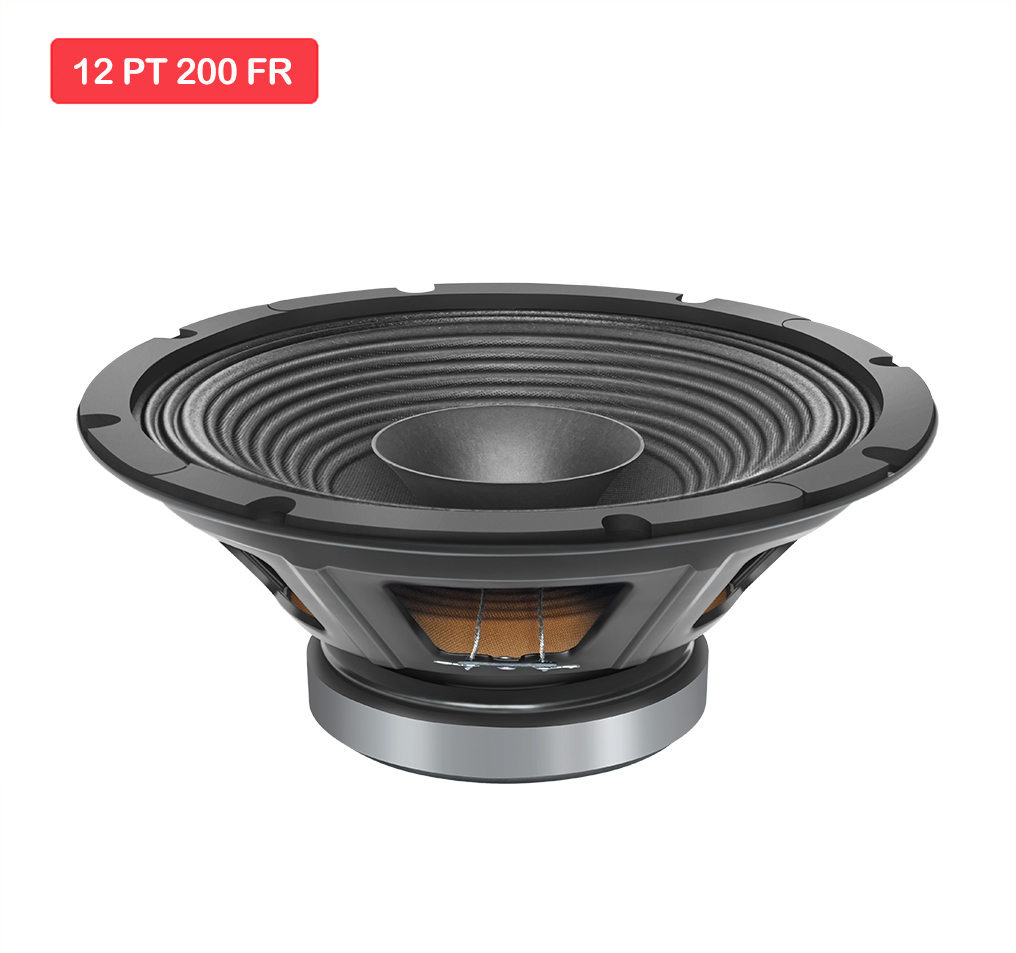

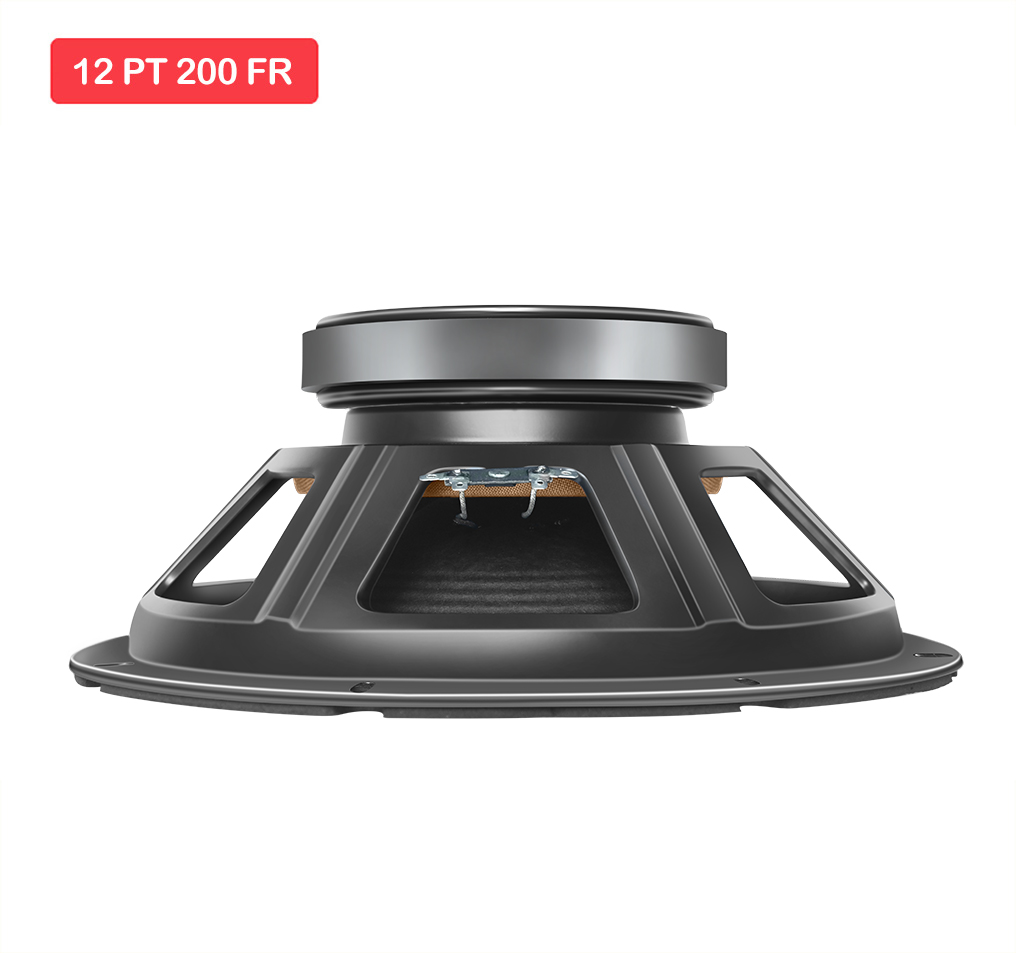

12 PT 200 FR
12 PT 200 FR is a transducer which is best used in religious ceremonies and indoor application because of reproduction of crystal clear mid frequencies and is best performed when complemented with 12 PT 200 MB which is a mid bass transducer. Suitable for both Sealed and Bass Reflex Enclosure.
Key Features
- Program Power : 400 W
- Voice Coil Diameter : 51.2 mm (2 in)
- Response : 45-10500 Hz
- Sensitivity 1W/1M : 94 dB
- Nominal Diameter 321 mm
- Nominal Impedence 8 Ω
- Nominal Power Handling(AES) 200 W
- Program Power 400 W
- Sensitivity (1W/1m) 94 dB

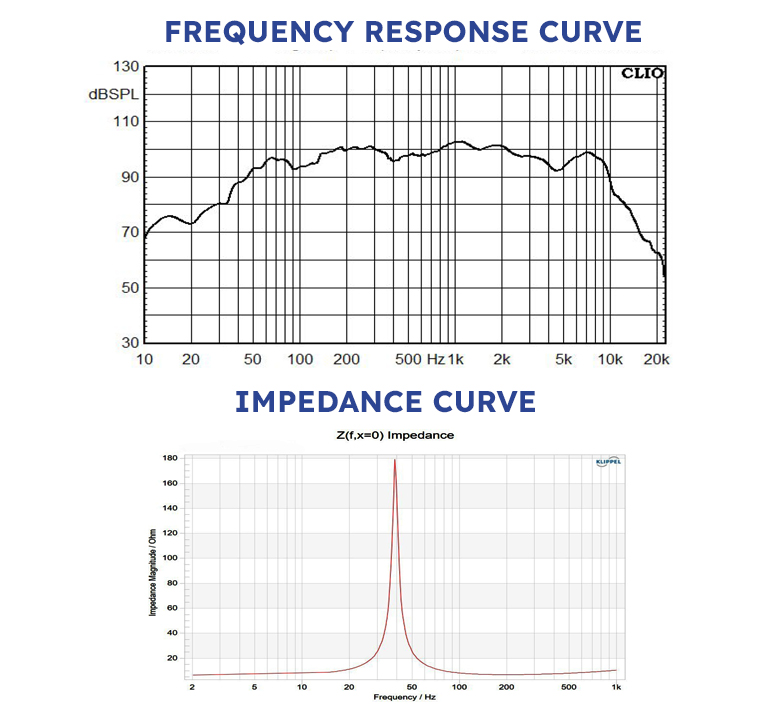

- Frequency Range 45-10500 Hz
- Magnet Material Ferrite
- Voice Coil Diameter 51.2 mm ( 2 in)
- Winding Material CCAW
- Former Material KAPTON
- Winding Type Outside
- Recommended Crossover 3 mm
- Resonant Frequency (FS) 39 Hz
- DC Resistance (Re) 6.4 Ω
- Electrical Q (Qes) 0.52
- Mechanical Q (Qms) 14.09
- Total Q (Qts) 0.5
- Compliance Equivalent Volume (vas) 135.35 Ltrs
- Peak Diaphragm Displacement Volume (Vd) 0.17 Ltrs
- Effective Surface Area of Cone (Sd) 522.8 cm^2
- Reference Efficiency (ƞo) 1.49%
- Moving Mass including air load (Mms) 47.20 gms
- Motor Strength (Bl) 11.98 T-m
- Voice Coil Inductance @ 1 KHz (Le) 0.23 mH
- Efficiency Bandwith Product (EBP) 75 Hz
- Voice Coil Overhang (Xmax) ±5.14 mm
- Overall Diameter 321 mm
- Bolt Circle Diameter 300 mm
- Baffle Cutout Diameter 287 mm
- Depth 128 mm
- Flange and Gasket Thickness 8 mm
- Gross Weight 5.24 Kgs
- Recone Kit Number REC12PT200FR
