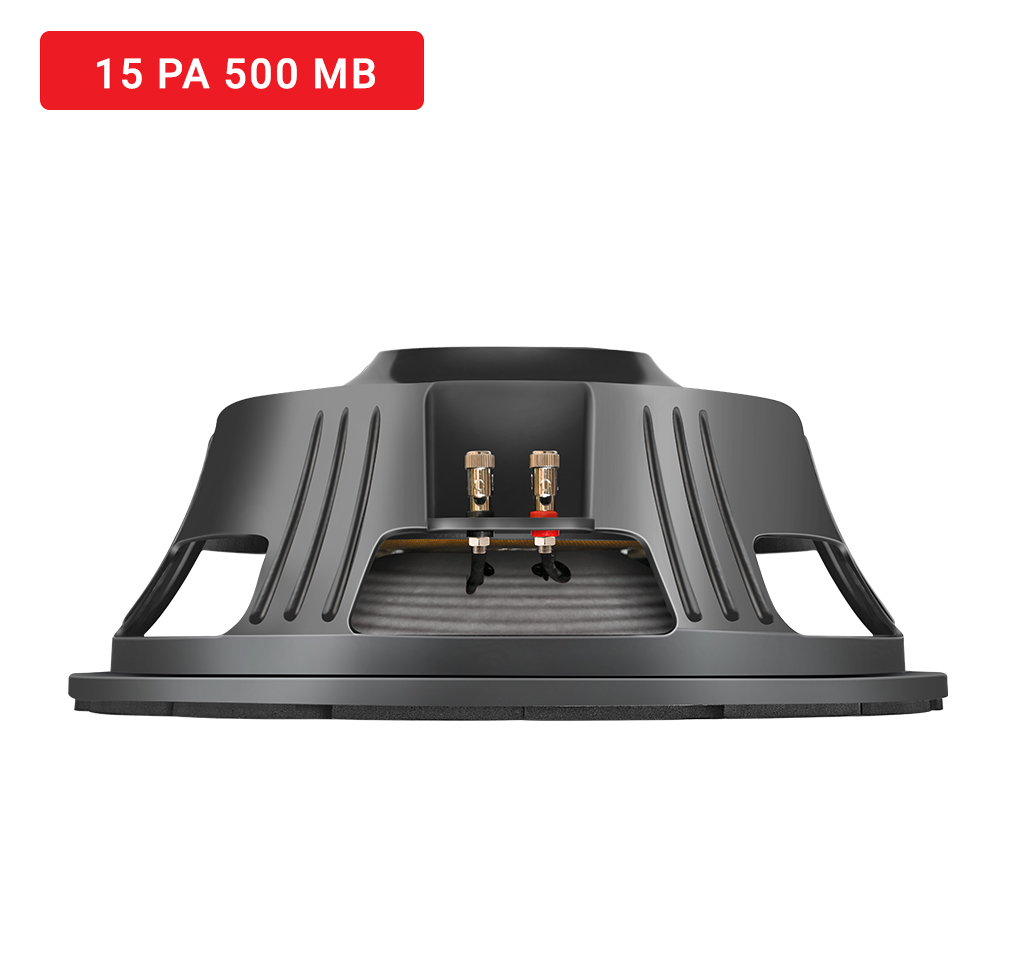

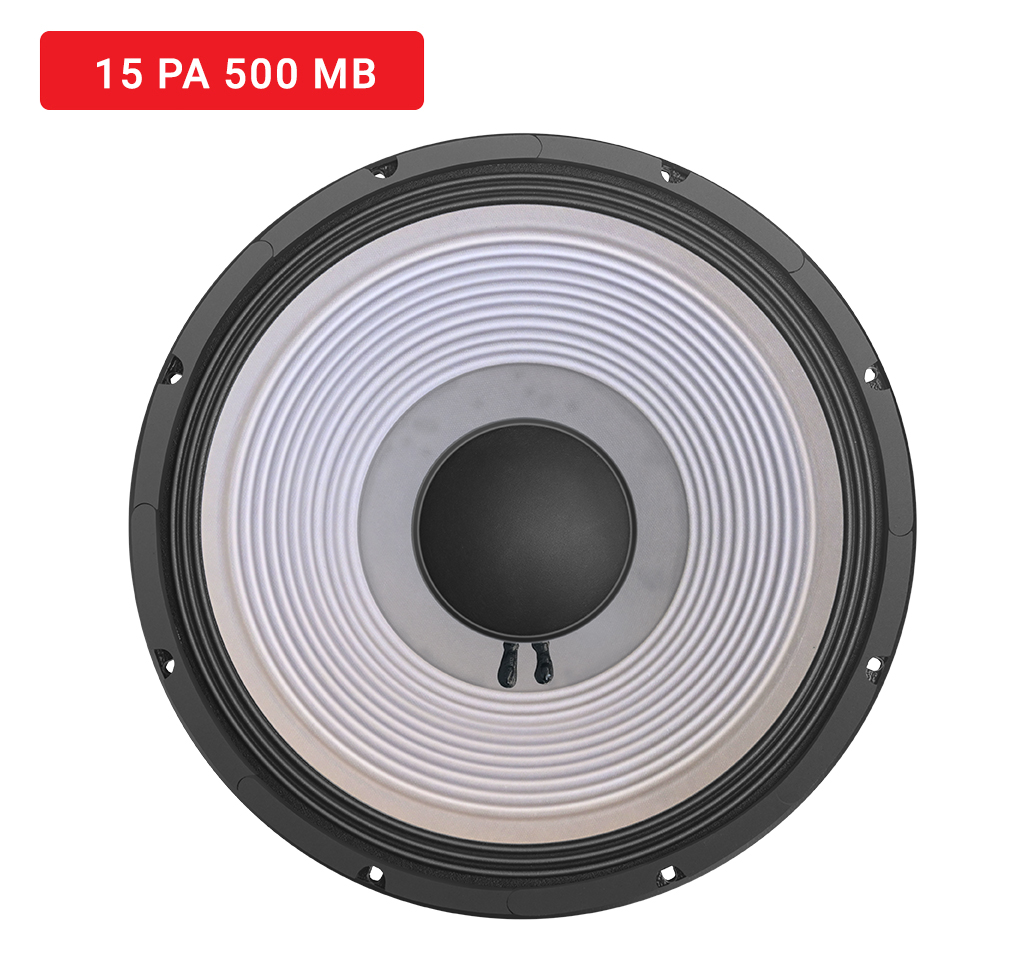

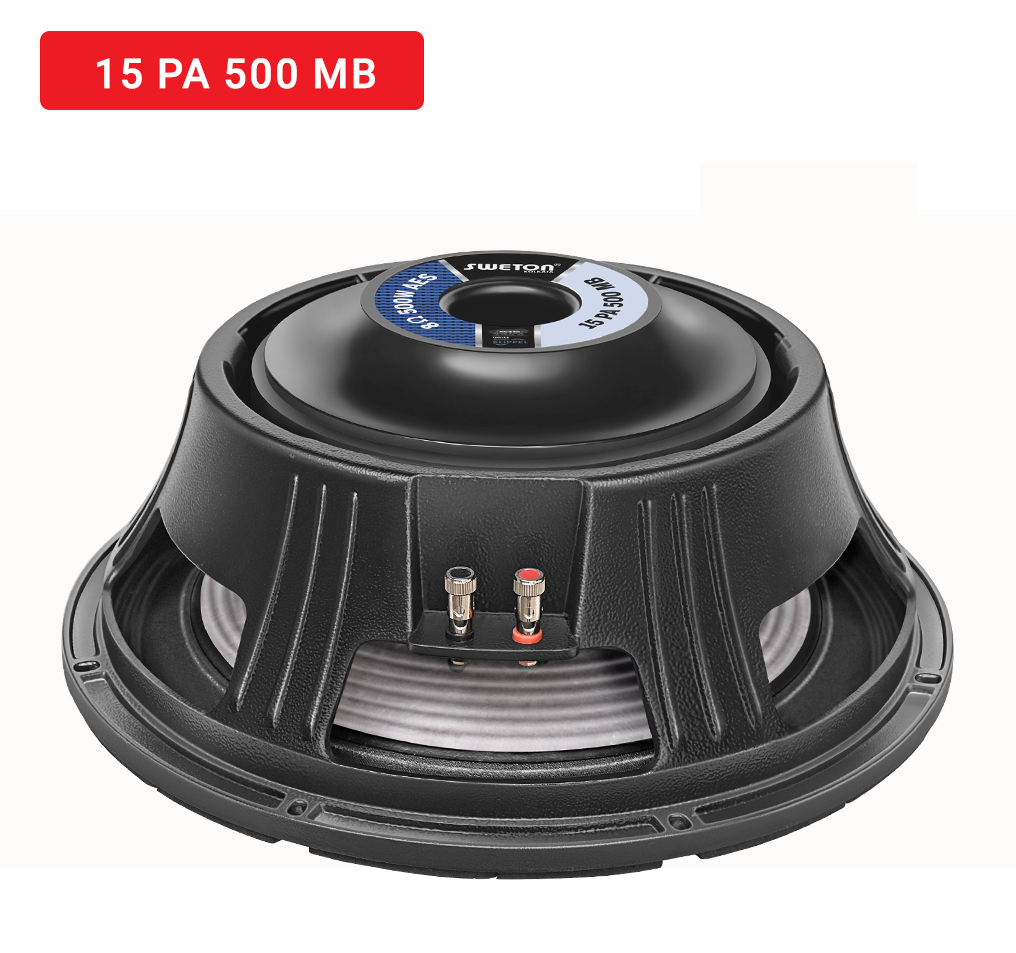

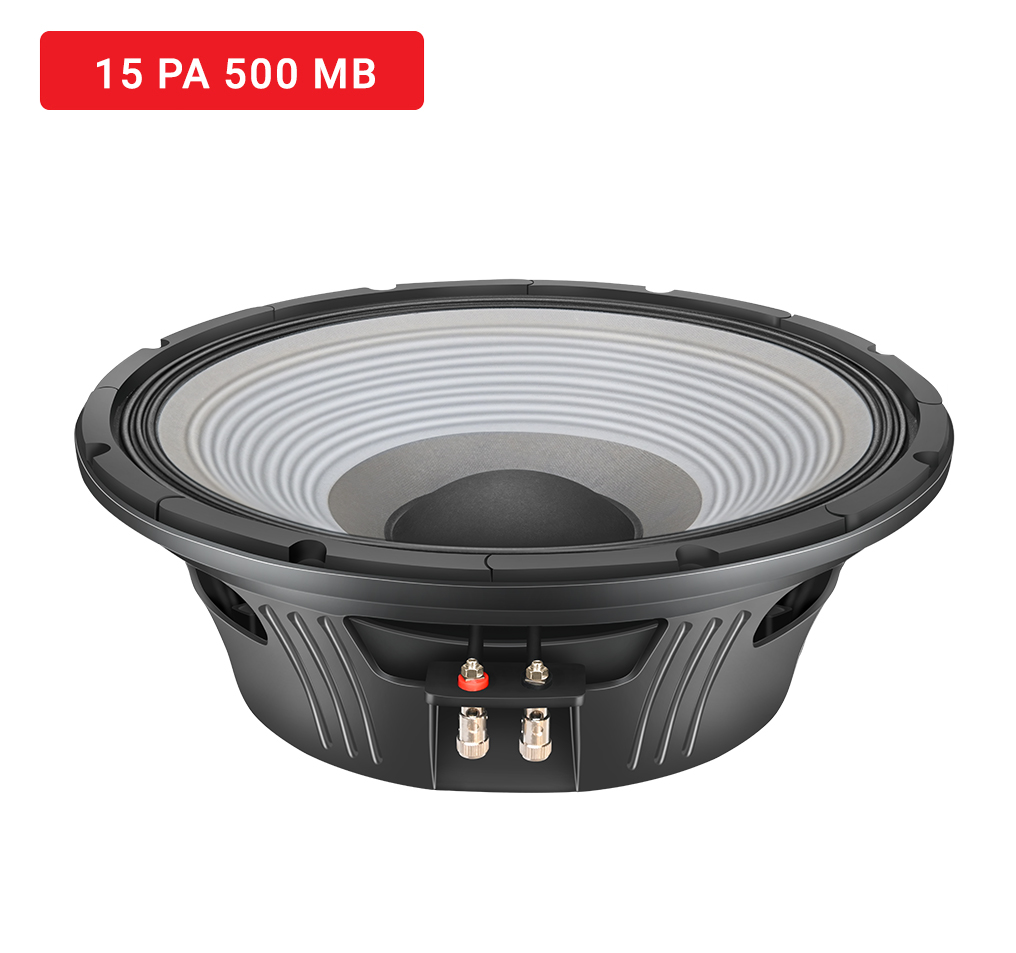

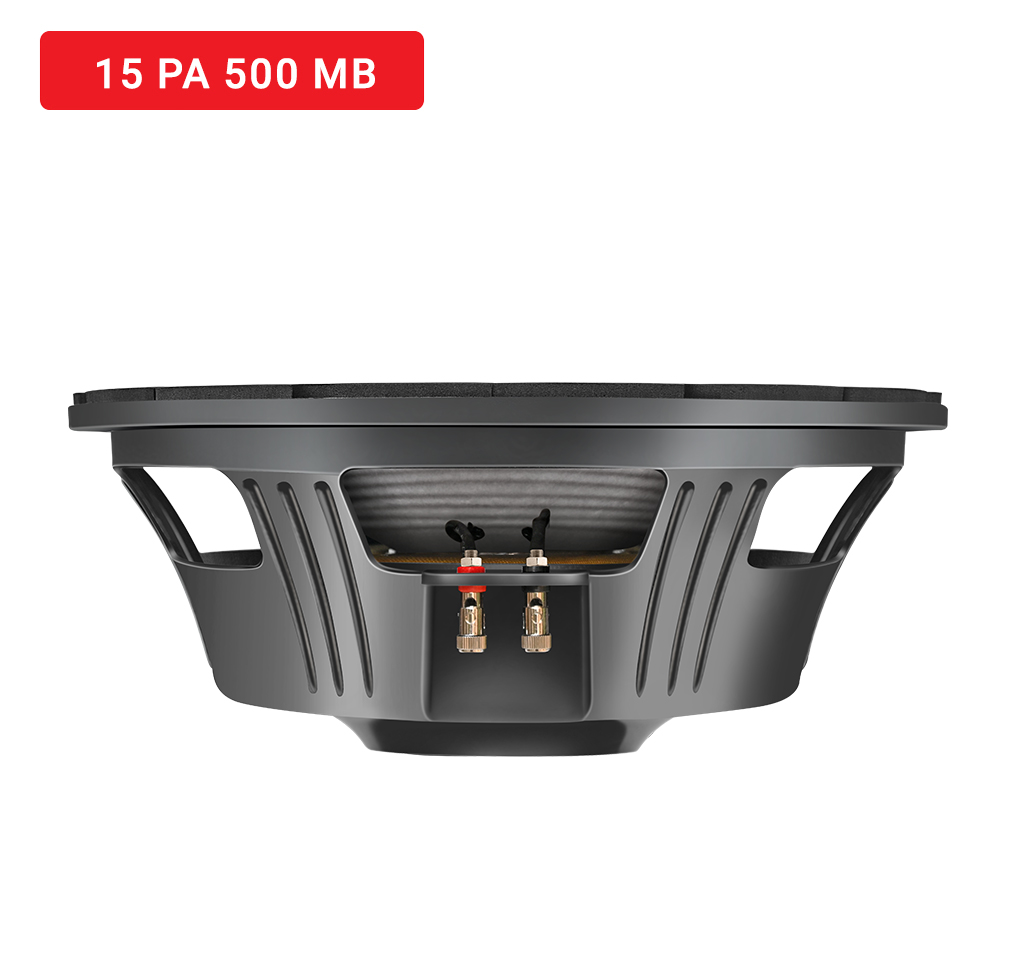

15 PA 500 MB
Very powerful 99.3 mm voice coil transducer. Powerful combination of Mid and Bass. Suitable for Sealed Enclosure.
Ideal for Live Programs as stage monitors as well out door usage especially in DJ. Can be used in direct radiating Single/Dual Top.
Key Features
- Program Power : 1000 W
- Voice Coil Diameter : 99.3 mm (4 in)

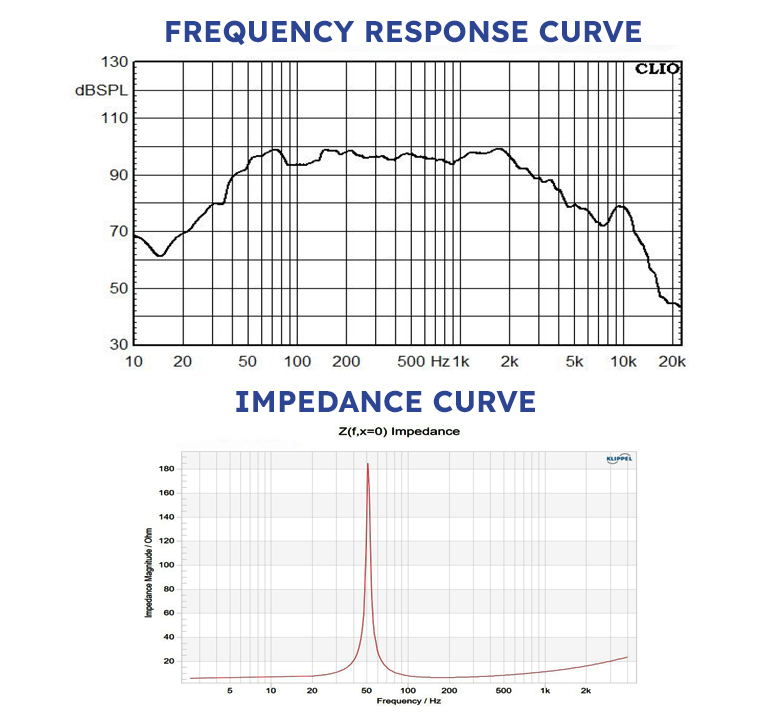

- Response : 45-4500 Hz
- Sensitivity 1W/1M : 95 dB
- Nominal Diameter 395 mm
- Nominal Impedence 8Ω
- Gross Weight 14.200 Kg.
- Nominal Power Handling(AES) 500w
- Program Power 1000w
- Sensitivity (1W/1m) 95 dB
- Frequency Range 45-4500 Hz
- Magnet Material Ferrite
- Voice Coil Diameter 99.3 mm ( 4 in)
- Winding Material CCAW
- Former Material GLASS FIBRE
- Winding Type Outside
- Resonant Frequency (FS) 51 Hz
- DC Resistance (Re) 5.8 Ω
- Electrical Q (Qes) 0.64
- Mechanical Q (Qms) 21.87
- Total Q (Qts) 0.62
- Compliance Equivalent Volume (vas) 89.25 ltrs
- Peak Diaphragm Displacement Volume (Vd) 1.31 Ltrs
- Effective Surface Area of Cone (Sd) 897.27 cm^2
- Reference Efficiency (ƞo) 1.79%
- Moving Mass including air load (Mms) 123.10 gms
- Motor Strength (Bl) 18.94 T-m
- Voice Coil Inductance @ 1 KHz (Le) 0.59 mH
- Efficiency Bandwith Product (EBP) 80 Hz
- Voice Coil Overhang (Xmax) ±3.75 mm
- Overall Diameter 395 mm
- Bolt Circle Diameter 380 mm
- Baffle Cutout Diameter 361 mm
- Depth 155 mm
- Flange and Gasket Thickness 16 mm
- Gross Weight 14.20 Kg.
- Recone Kit Number REC15PA500MB
