8 Ω
Datasheet

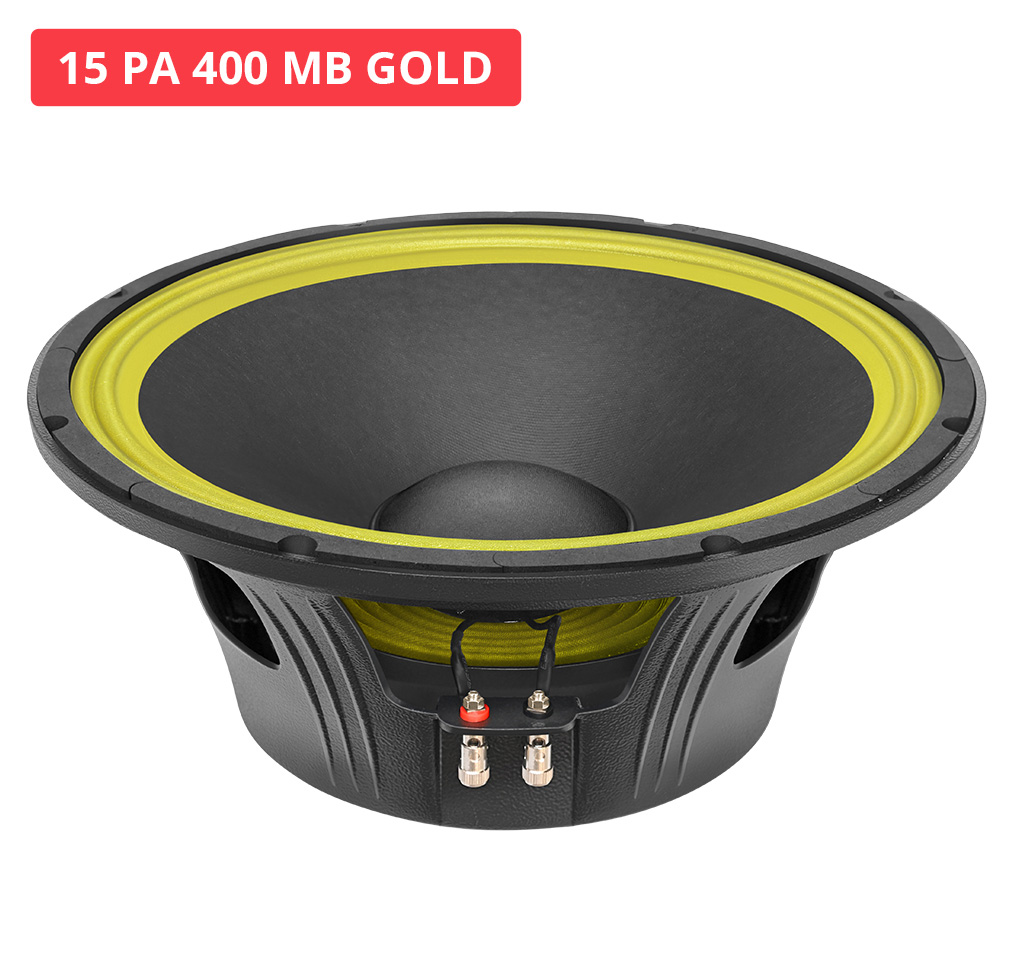

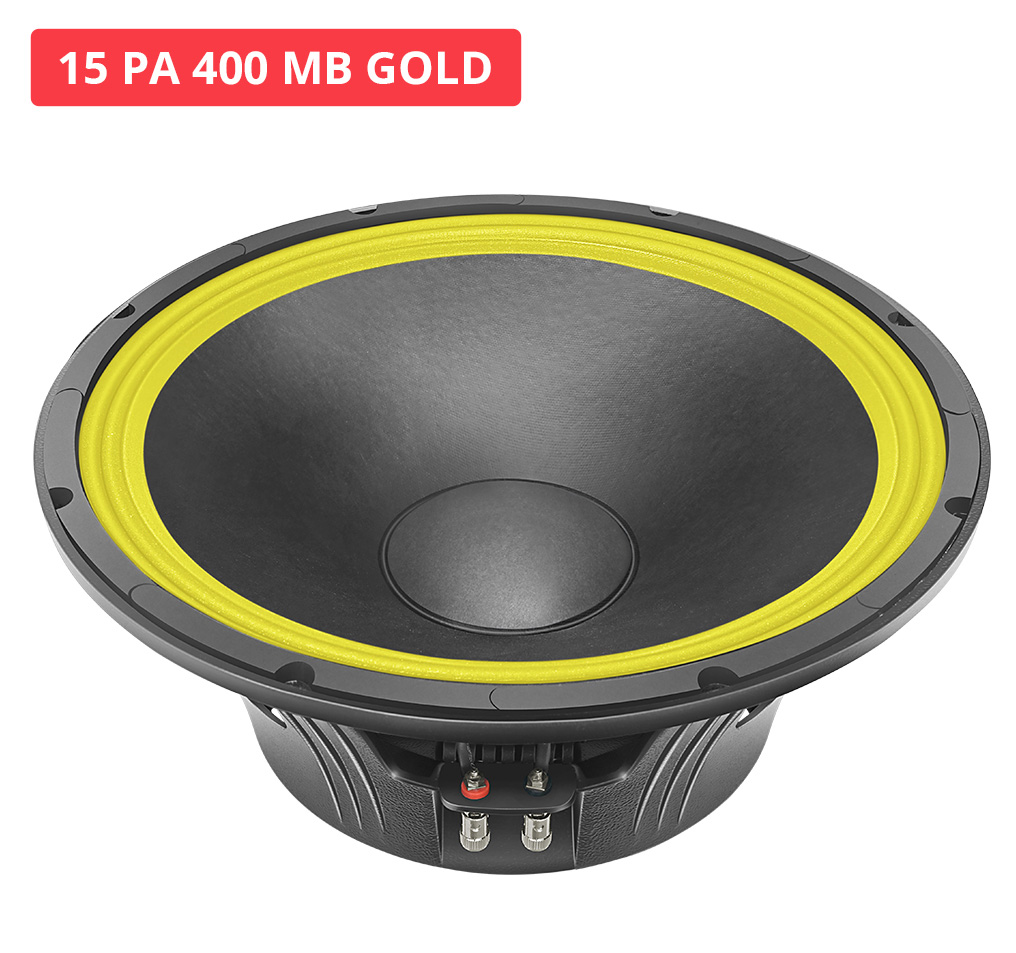

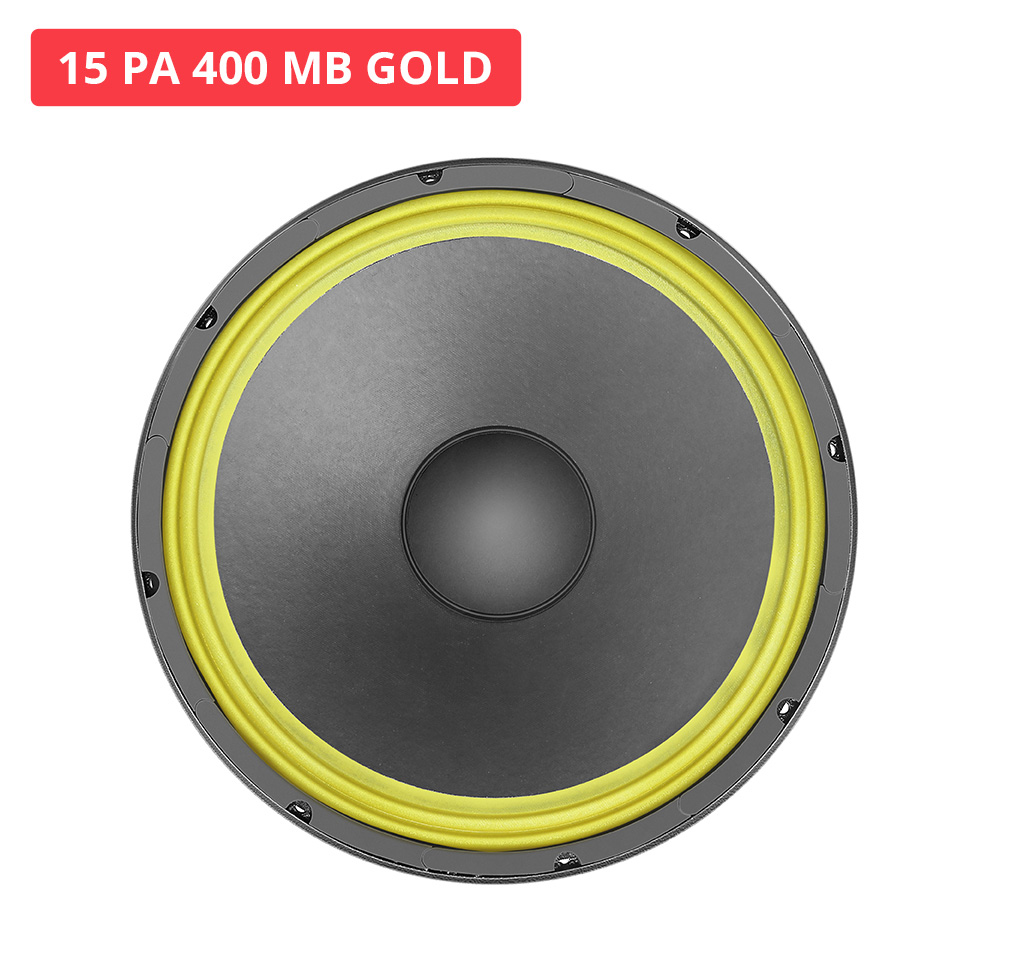

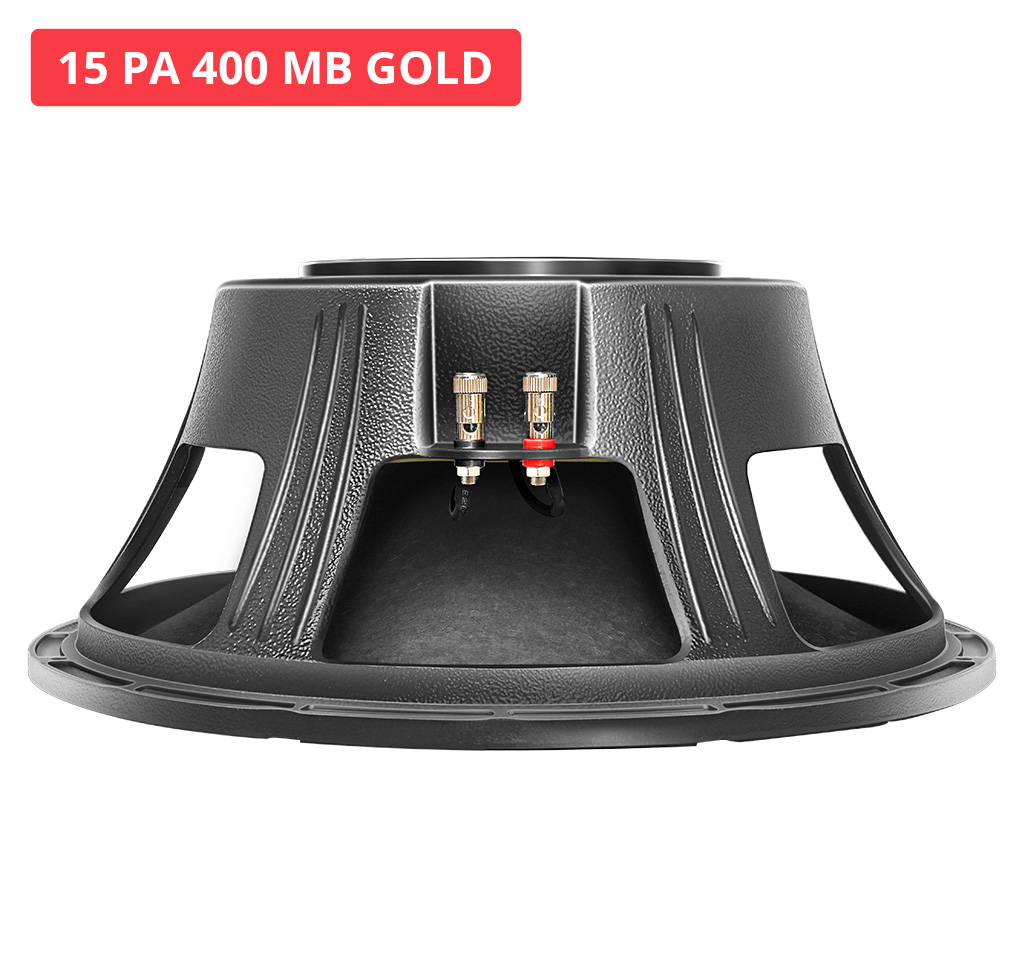

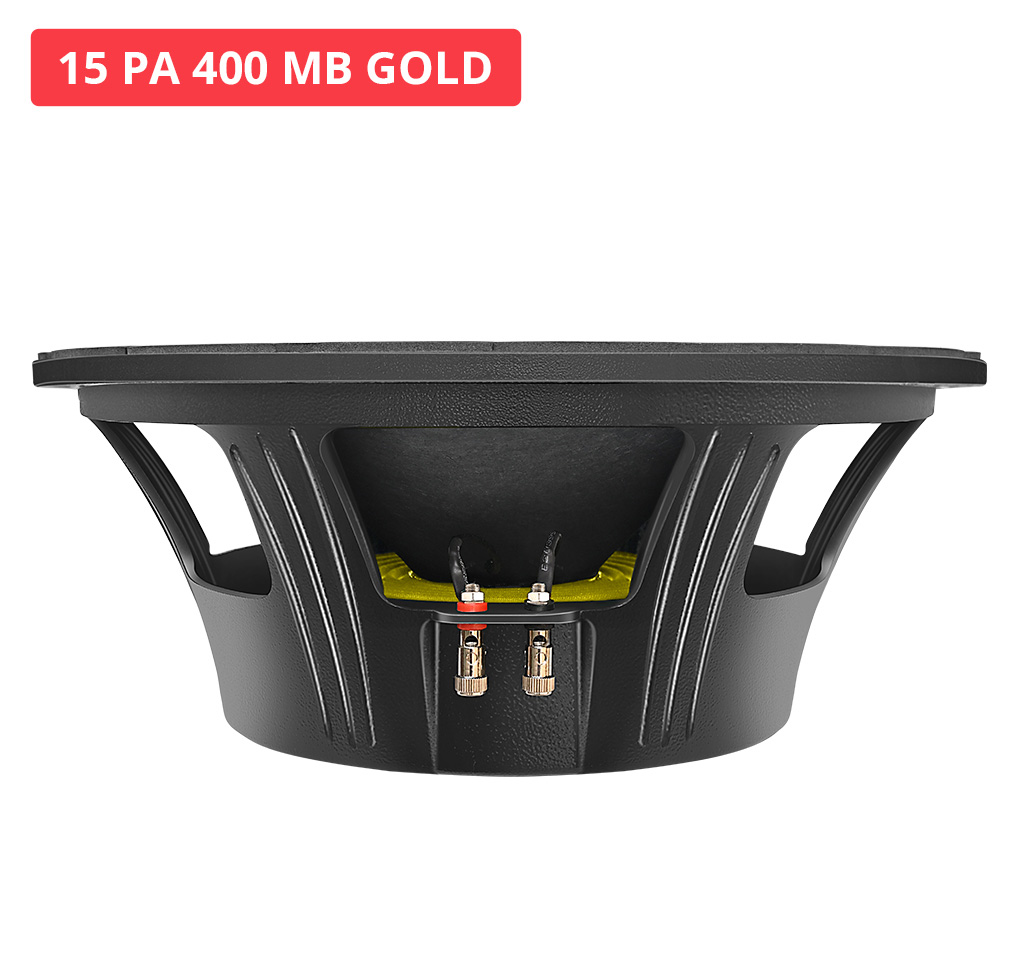

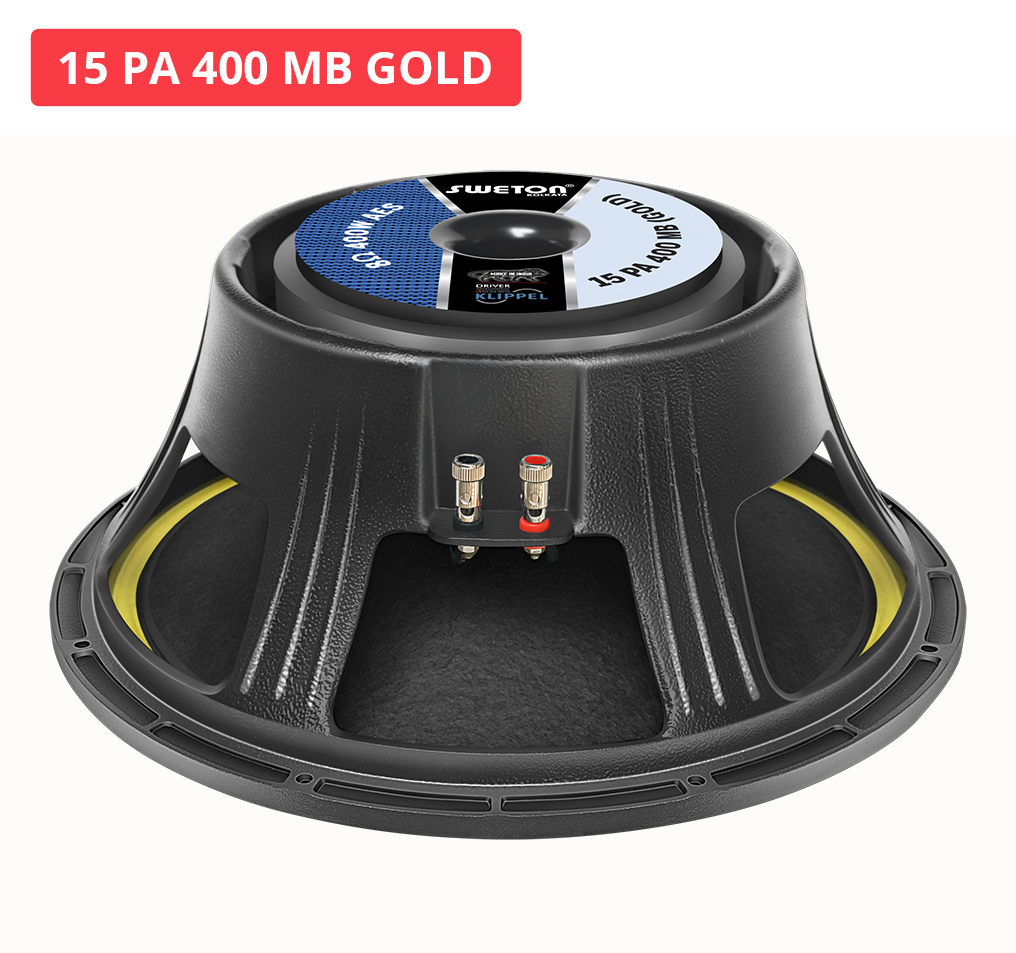

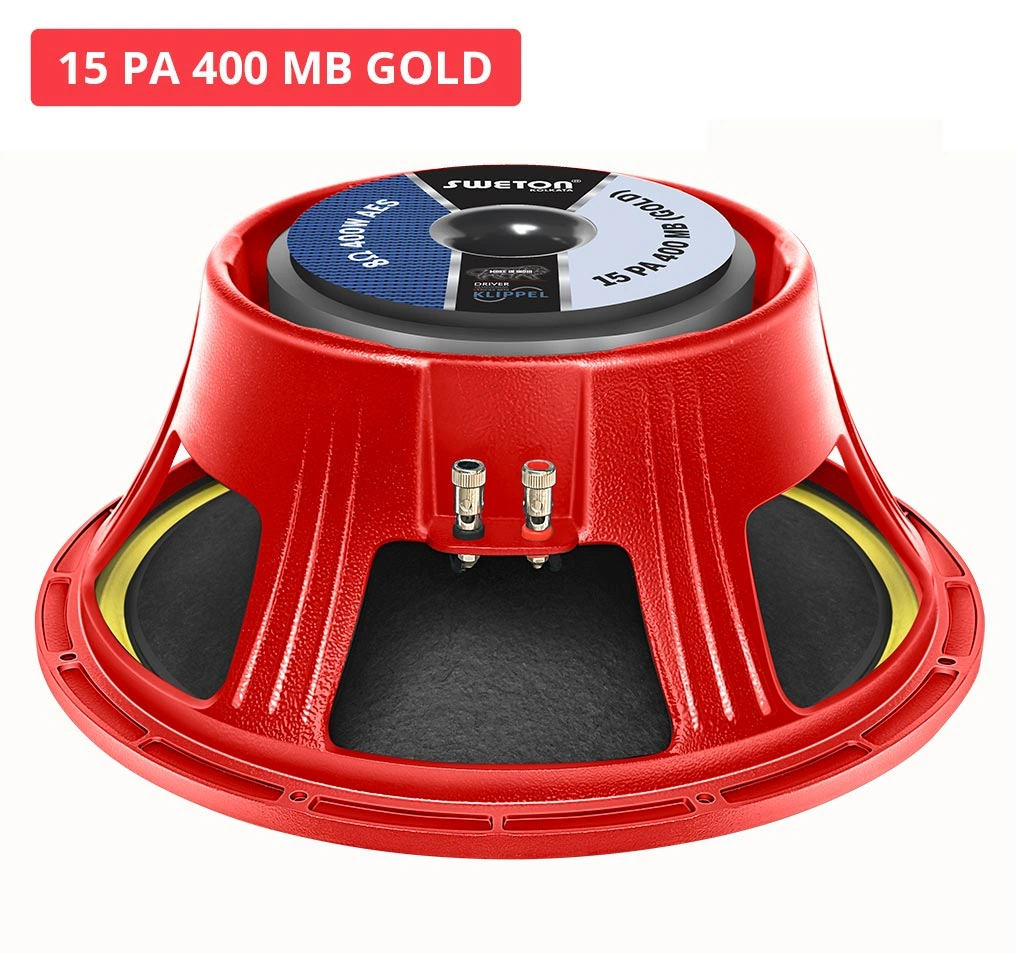

15 PA 400 C MB GOLD
The ideal Mid bass transducer with high Sensitivity & efficiency. Can be used in Stage Monitors, Single or Dual Top. Suitable for both Sealed and Bass Reflex Enclosures.
Key Features
- Program Power : 800 W
- Voice Coil Diameter : 76.2 mm ( 3 in)
- Response : 45-4200 Hz
- Sensitivity 1W/1M : 97 dB
- Nominal Diameter 390 mm
- Nominal Impedence 8 Ω
- Nominal Power Handling(AES) 400 W
- Program Power 800 W
- Sensitivity (1W/1m) 97 dB
- Frequency Range 45-4200 Hz
- Magnet Material Ferrite
- Voice Coil Diameter 76.2 mm ( 3 in)
- Winding Material CCAW
- Former Material GLASS FIBRE
- Winding Type OUTSIDE
- Resonant Frequency (FS) 54 Hz
- DC Resistance (Re) 5.3 Ω
- Electrical Q (Qes) 0.58
- Mechanical Q (Qms) 15.05
- Total Q (Qts) 0.55
- Compliance Equivalent Volume (vas) 115.60 Ltrs
- Peak Diaphragm Displacement Volume (Vd) 0.80 Ltrs
- Effective Surface Area of Cone (Sd) 913.27 cm^2
- Reference Efficiency (ƞo) 3.06%
- Moving Mass including air load (Mms) 87.60 gms
- Motor Strength (Bl) 16.54 T-m
- Voice Coil Inductance @ 1 KHz (Le) 0.37 mH
- Voice Coil Overhang (Xmax) 6.00 mm
- Efficiency Bandwith Product (EBP) 93 Hz
- Overall Diameter 390 mm
- Bolt Circle Diameter 375 mm
- Baffle Cutout Diameter 356 mm
- Depth 164 mm
- Flange and Gasket Thickness 12 mm
- Gross Weight 10.25 Kgs
- Recone Kit Number REC 15 PA 400 GOLD
