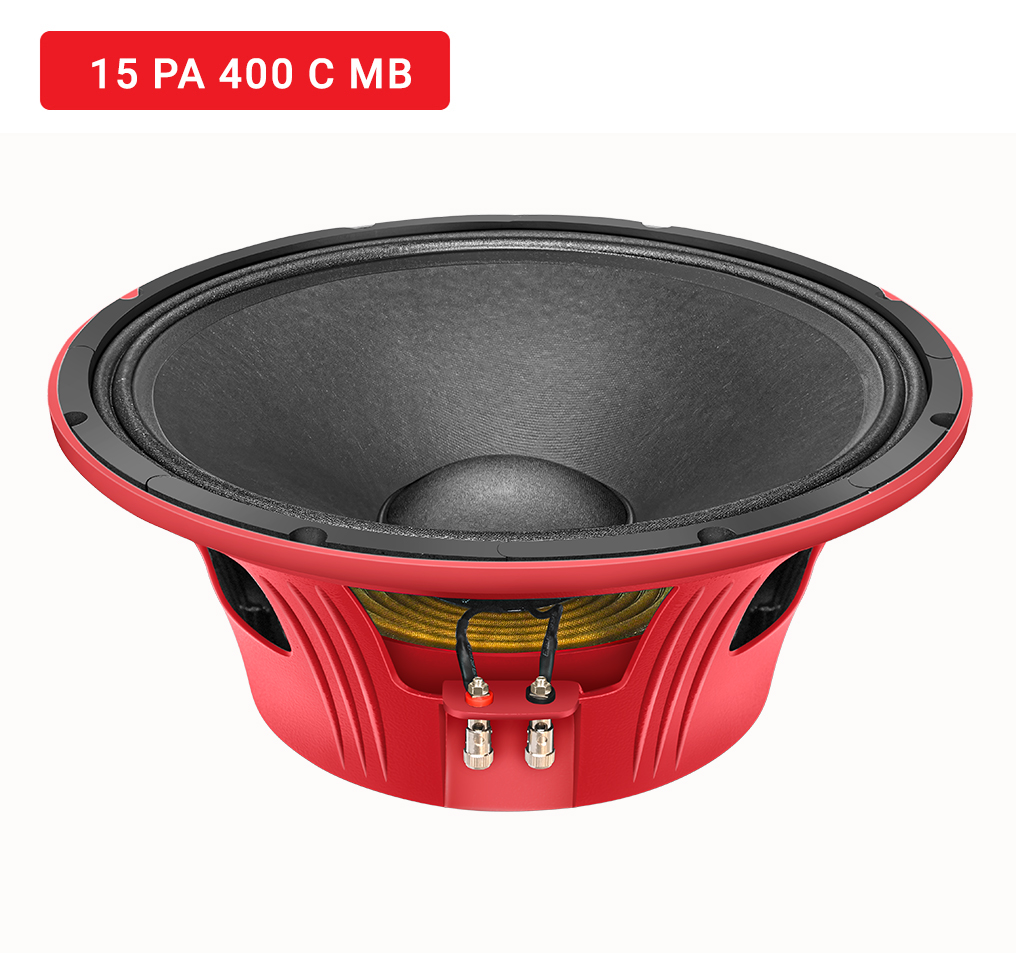

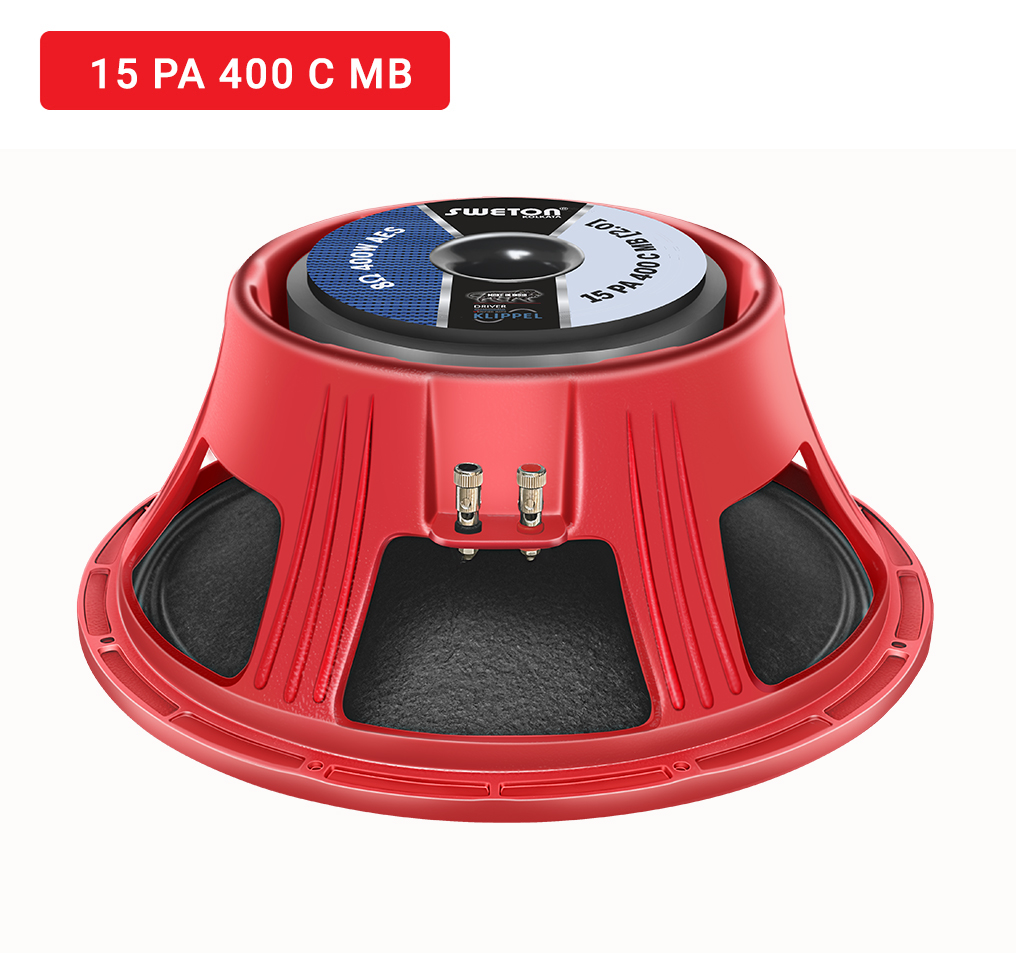

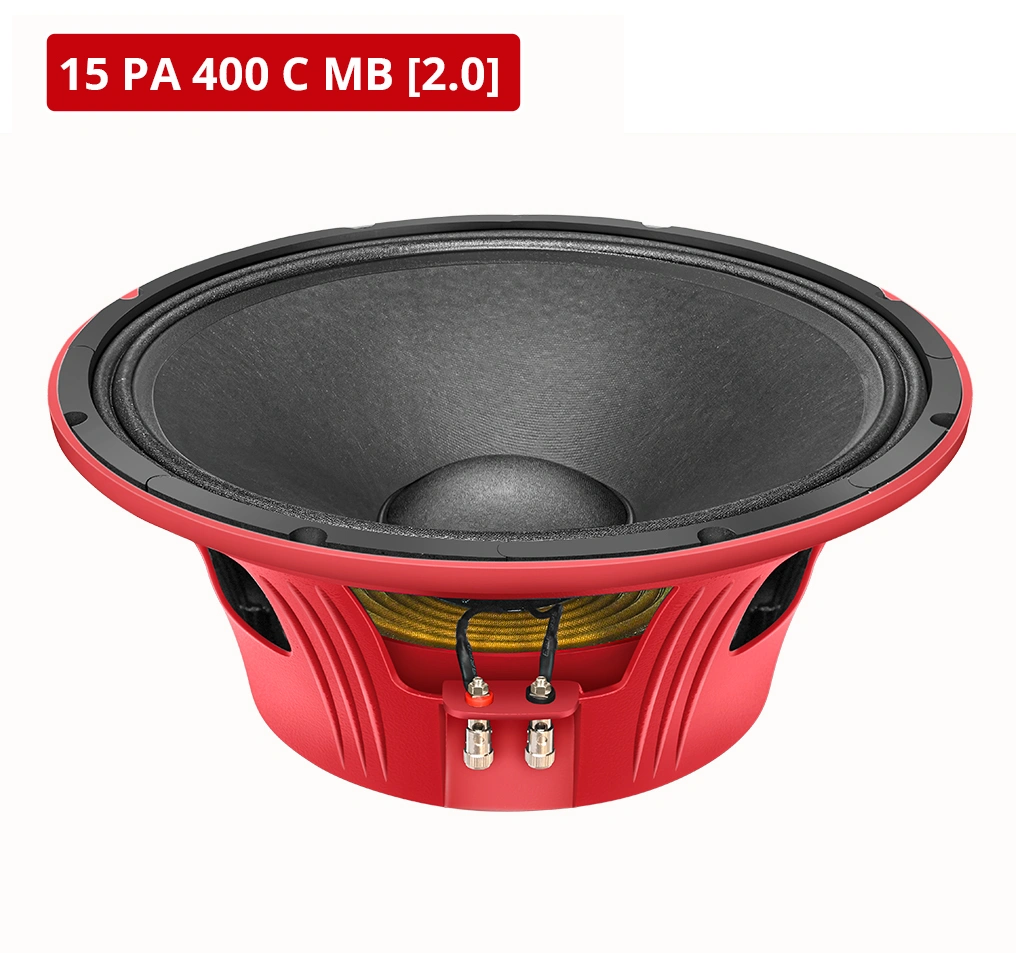

15 PA 400 C MB [2.0]
Unique combination of aggressive Mid and Bass makes this transducer an ideal Mid Bass transducer which can be used in Stage Monitors, Single or Dual Top. Suitable for both Sealed and Bass Reflex Enclosure.
Key Features
- Program Power : 800 W
- Voice Coil Diameter : 76.2 mm (3 in)

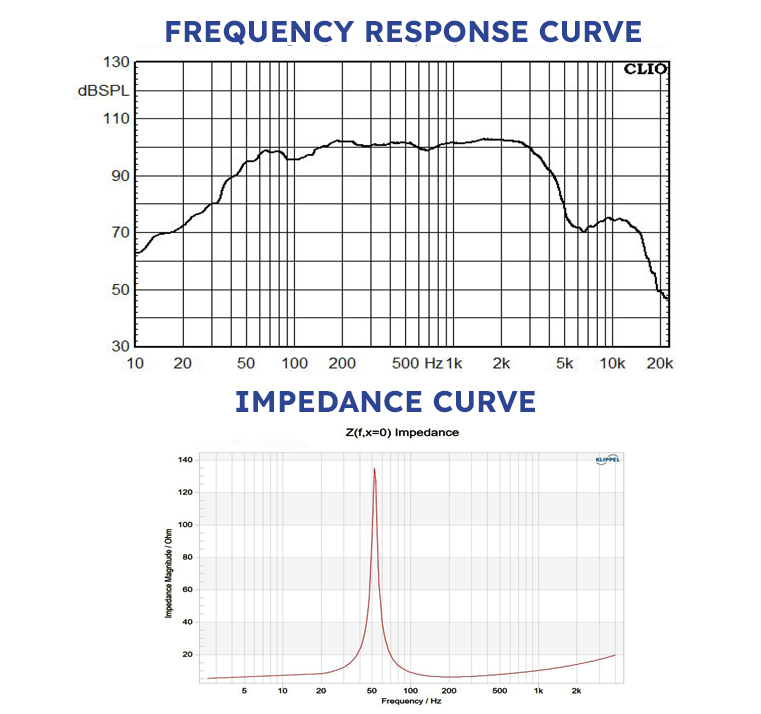

- Response : 55-4500 Hz
- Sensitivity 1W/1M : 98 dB
- Nominal Diameter 390 mm
- Nominal Impedence 8Ω
- Nominal Power Handling(AES) 400w
- Program Power 800w
- Sensitivity (1W/1m) 98 dB
- Frequency Range 55-4500 Hz
- Magnet Material Ferrite
- Voice Coil Diameter 76.2 mm ( 3 in)
- Winding Material CCAW
- Former Material GLASS FIBRE
- Winding Type OUTSIDE
- Resonant Frequency (FS) 52 Hz
- DC Resistance (Re) 5.2 Ω
- Electrical Q (Qes) 0.46
- Mechanical Q (Qms) 11.52
- Total Q (Qts) 0.44
- Compliance Equivalent Volume (vas) 112.79 Ltrs
- Peak Diaphragm Displacement Volume (Vd) 0.80 Ltrs
- Effective Surface Area of Cone (Sd) 907.92 cm^2
- Reference Efficiency (ƞo) 3.34%
- Moving Mass including air load (Mms) 95.60 gms
- Motor Strength (Bl) 18.82 T-m
- Voice Coil Inductance @ 1 KHz (Le) 0.52 mH
- Efficiency Bandwith Product (EBP) 113 Hz
- Voice Coil Overhang (Xmax) ±4.40 mm
- Overall Diameter 390 mm
- Bolt Circle Diameter 375 mm
- Baffle Cutout Diameter 356 mm
- Depth 164 mm
- Flange and Gasket Thickness 12 mm
- Gross Weight 10.25 Kg
- Recone Kit Number REC15PA400C [2.0]
