8 Ω

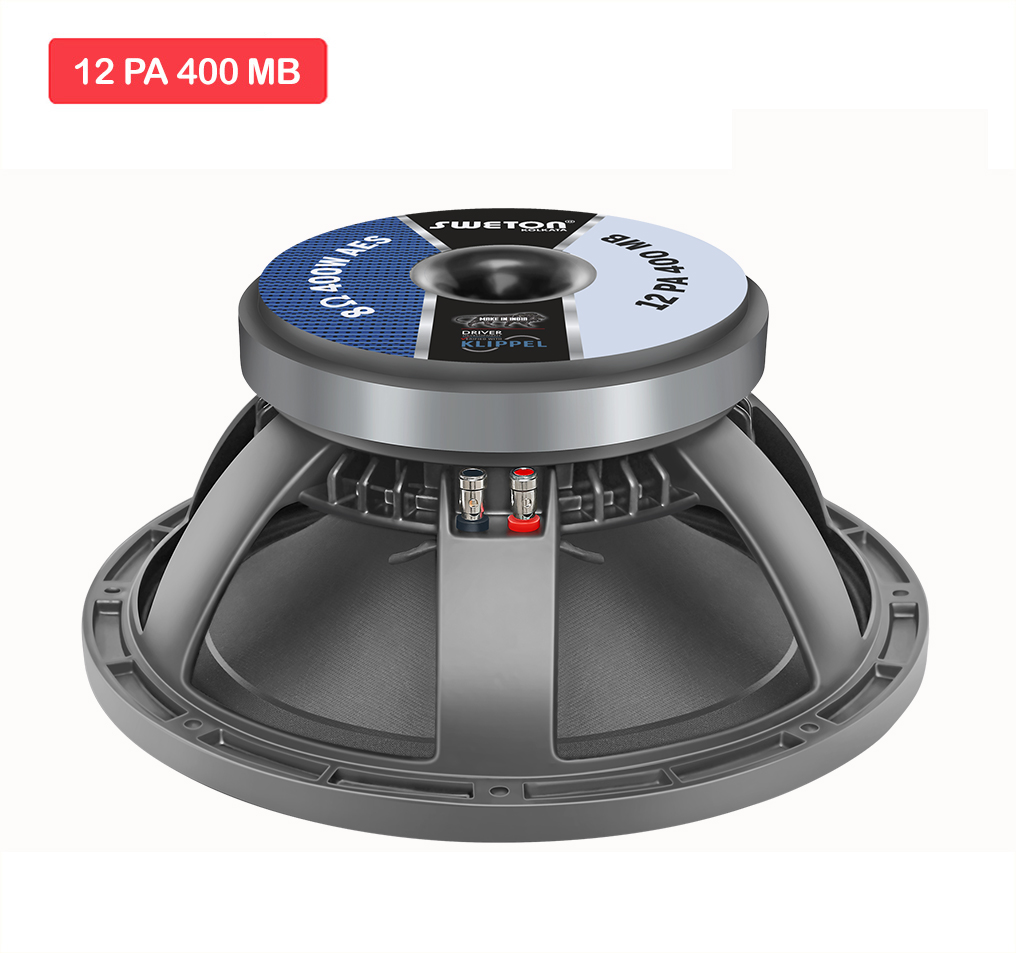

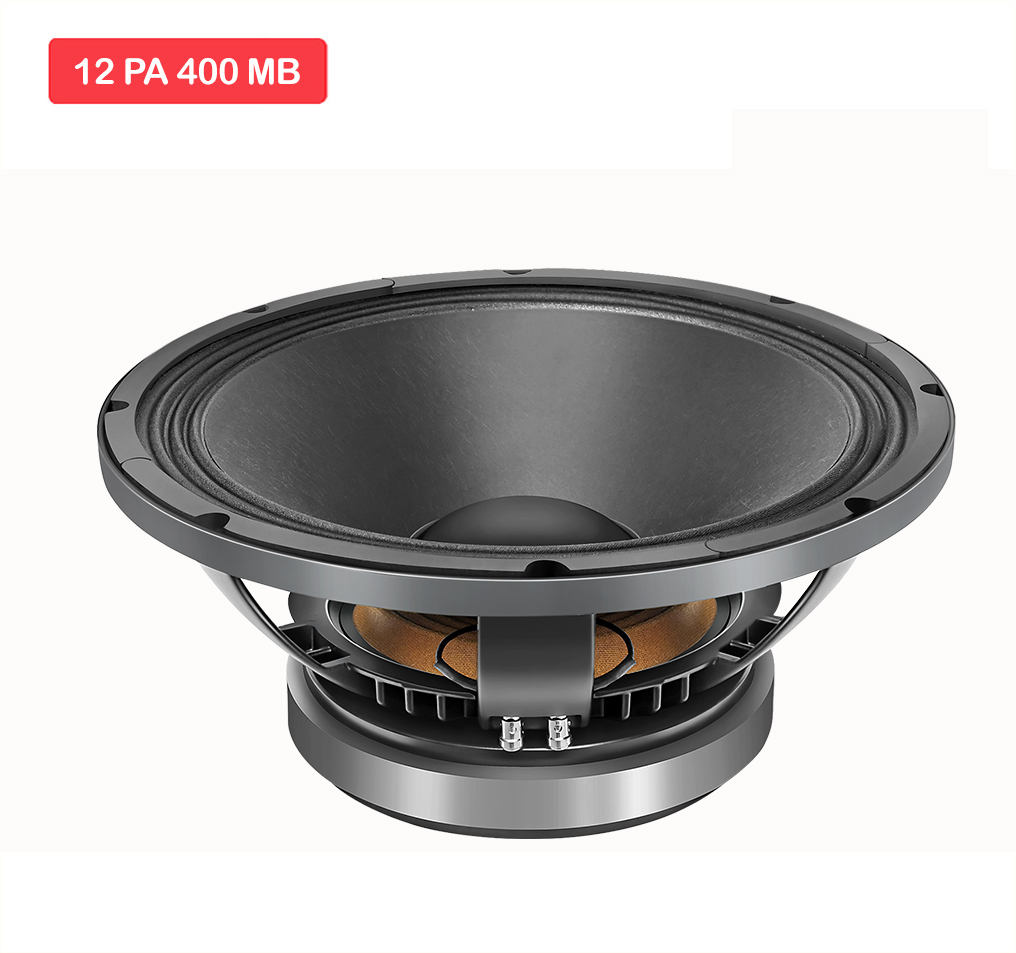

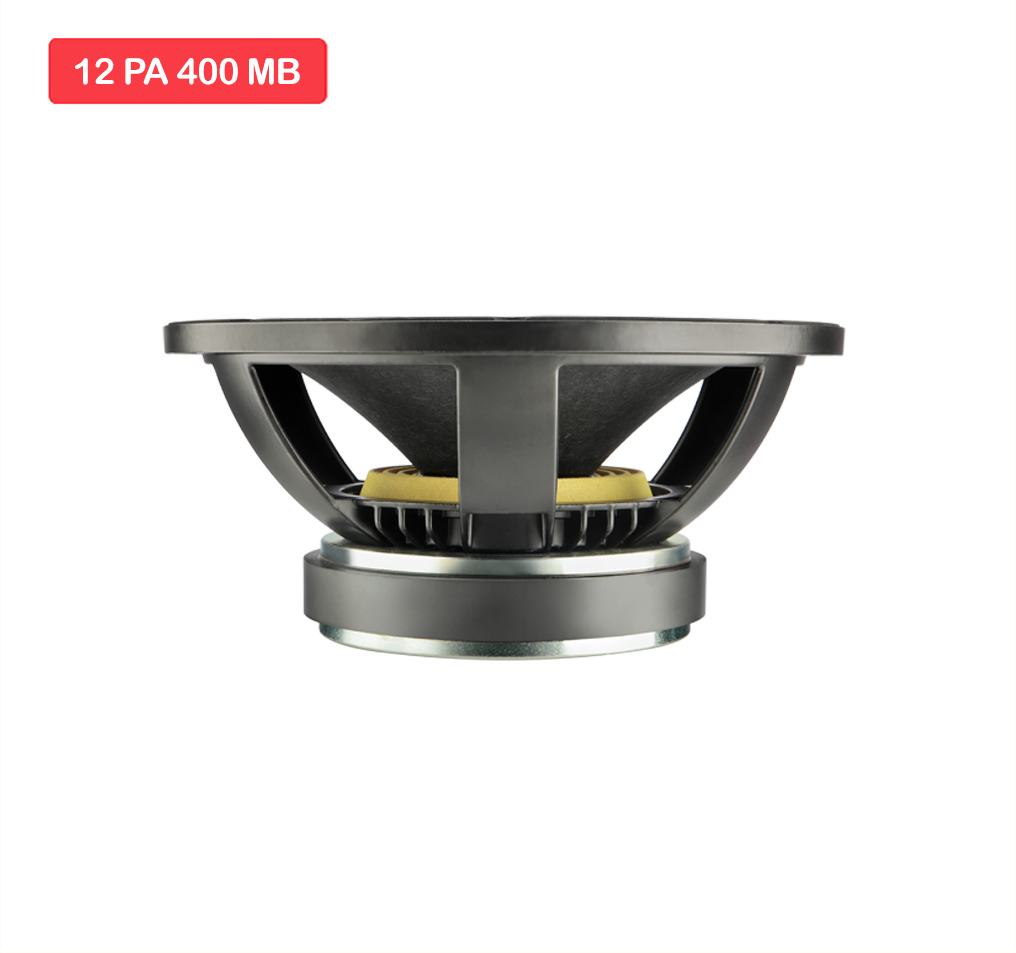

12 PA 400 MB
Excellent Mid bass transducer in 12” category which can be used in front firing application. Extended bass and prominent
Mid can be felt in the performance of the transducer. Suitable for Bass Reflex / Ported Enclosure.
Key Features
- Program Power : 800 w
- Voice Coil Diameter : 76.2 mm (3 in)

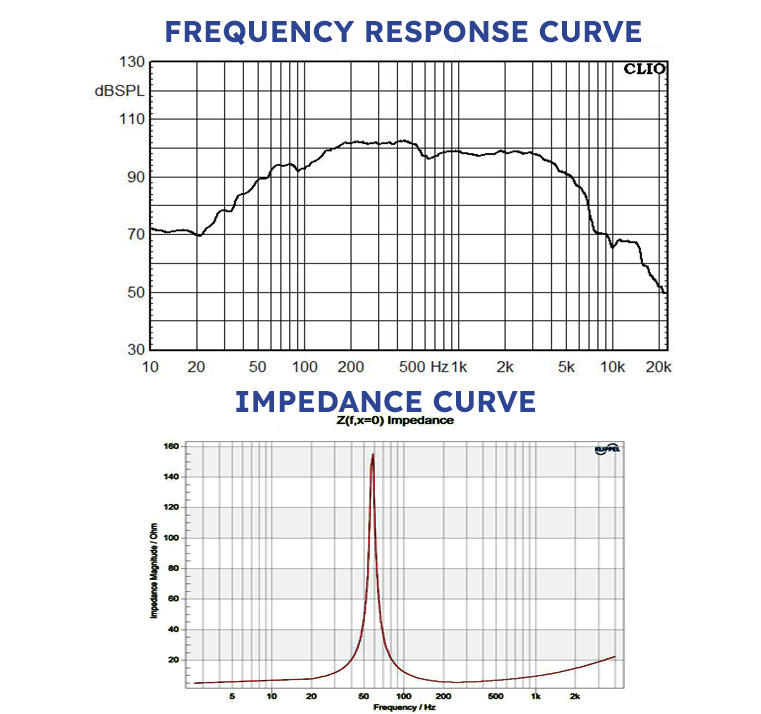

- Response : 55-5500 Hz
- Sensitivity 1W/1M : 96 dB
- Nominal Diameter 314 mm
- Nominal Impedence 8 Ω
- Gross Weight 8.5 Kg.
- Nominal Power Handling(AES) 400 w
- Program Power 800 w
- Sensitivity (1W/1m) 96 db
- Frequency Range 55-5500 Hz
- Magnet Material Ferrite
- Voice Coil Diameter 76.2 mm ( 3 in)
- Winding Material COPPER
- Former Material GLASS FIBER
- Winding Type Outside
- Resonant Frequency (FS) 58 Hz
- DC Resistance (Re) 4.86 Ω
- Electrical Q (Qes) 0.35
- Mechanical Q (Qms) 10.96
- Total Q (Qts) 0.34
- Compliance Equivalent Volume (vas) 42.73 Ltrs
- Peak Diaphragm Displacement Volume (Vd) 0.42 Ltrs
- Effective Surface Area of Cone (Sd) 510.71 cm^2
- Reference Efficiency (ƞo) 2.27%
- Moving Mass including air load (Mms) 65.20 gms
- Motor Strength (Bl) 18.15 T-m
- Voice Coil Inductance @ 1 KHz (Le) 0.42 mH
- Efficiency Bandwith Product (EBP) 166 Hz
- Voice Coil Overhang (Xmax) ±4.15 mm
- Overall Diameter 314 mm
- Bolt Circle Diameter 296 mm
- Baffle Cutout Diameter 282 mm
- Depth 137 mm
- Flange and Gasket Thickness 15 mm
- Gross Weight 8.5 Kg.
- Recone Kit Number REC12PA400MB
