8 Ω

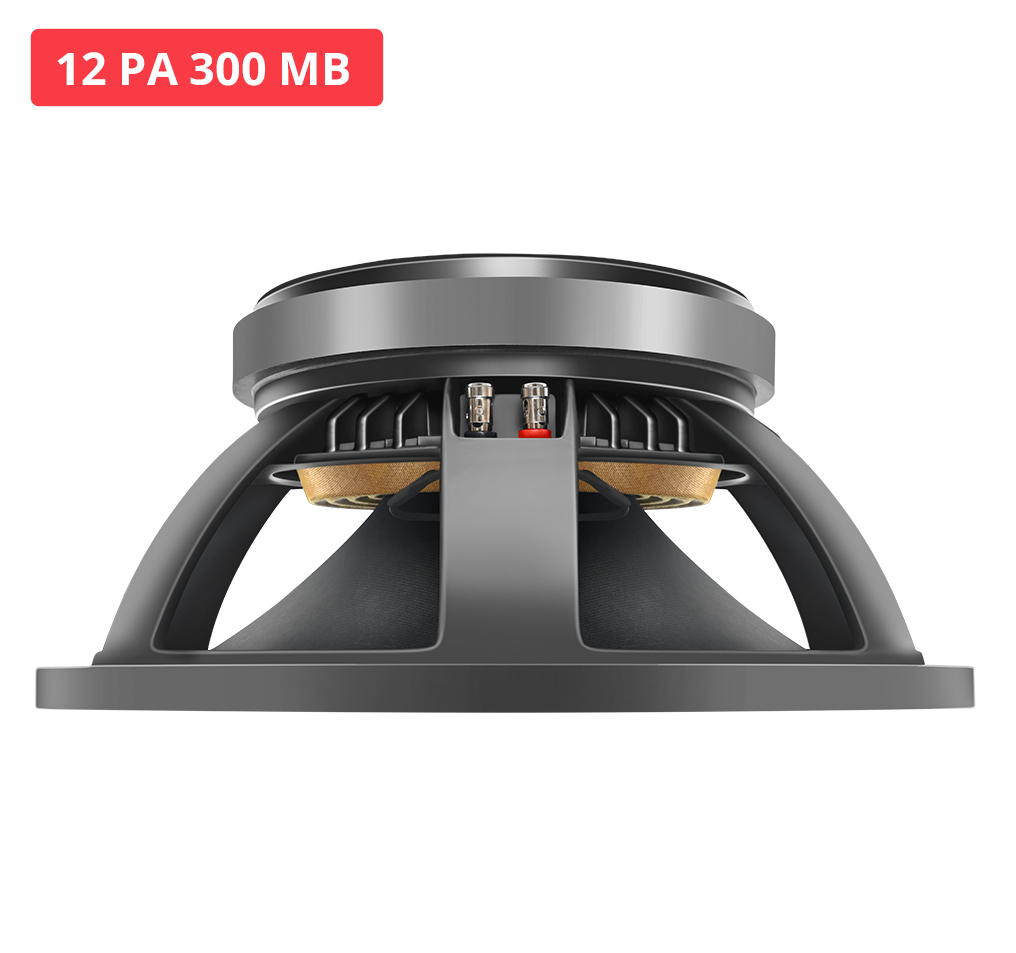

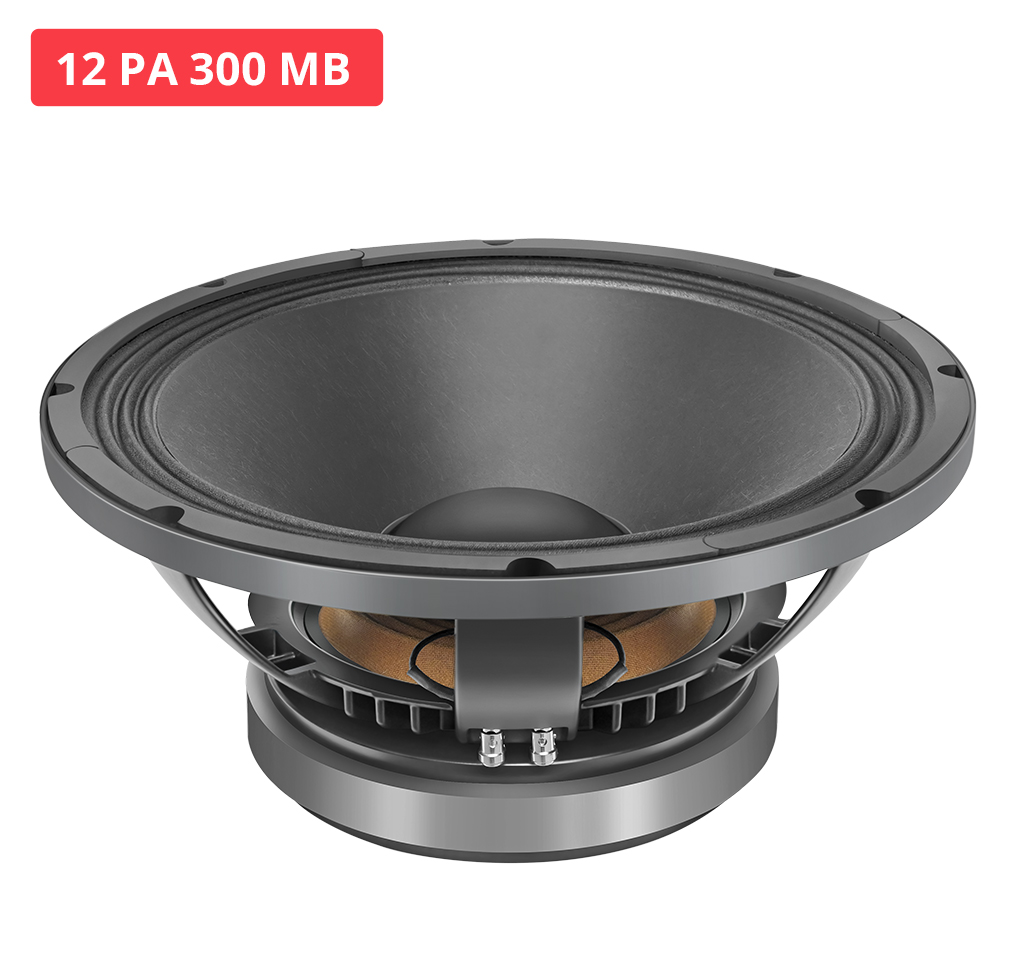

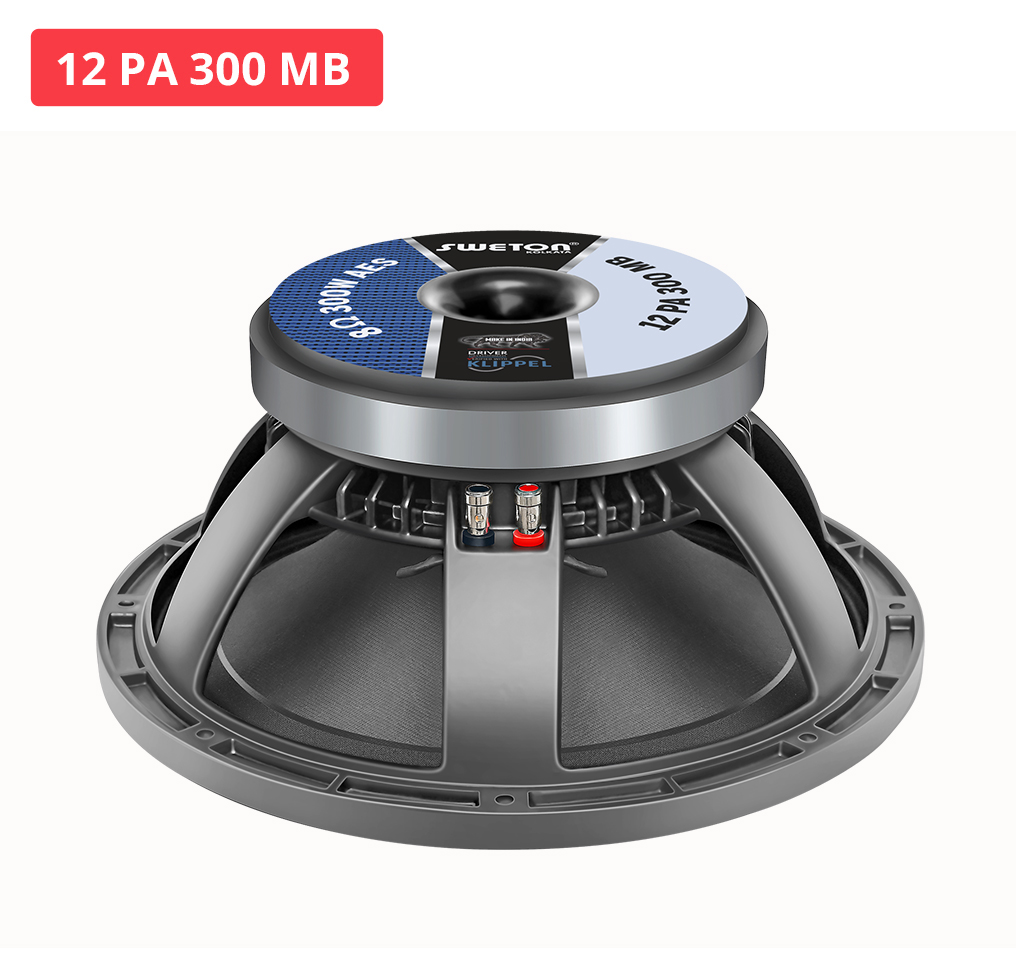

12 PA 300 MB
Excellent Mid bass transducer in 12” category which can be used in front firing application. Suitable for Bass Reflex / Ported Enclosure.
Key Features
- Program Power : 600 W
- Voice Coil Diameter : 76.2 mm (3 in)
- Response : 60-3500 Hz
- Sensitivity 1W/1M : 95 dB
- Nominal Diameter 314 mm
- Nominal Impedence 8 Ω
- Gross Weight 7.850 Kg.
- Nominal Power Handling(AES) 300 w
- Program Power 600 w
- Sensitivity (1W/1m) 95 db
- Frequency Range 60-3500 Hz
- Magnet Material Ferrite
- Voice Coil Diameter 76.2 mm ( 3 in)
- Winding Material COPPER
- Former Material GLASS FIBER
- Winding Type Outside
- Resonant Frequency (FS) 55 Hz
- DC Resistance (Re) 4.8 Ω
- Electrical Q (Qes) 0.34
- Mechanical Q (Qms) 12.08
- Total Q (Qts) 0.33
- Compliance Equivalent Volume (vas) 47 Ltrs
- Peak Diaphragm Displacement Volume (Vd) 0.16 Ltrs
- Effective Surface Area of Cone (Sd) 510.7 cm^2
- Reference Efficiency (ƞo) 2.23%
- Moving Mass including air load (Mms) 64.40 gms
- Motor Strength (Bl) 17.72 T-m
- Voice Coil Inductance @ 1 KHz (Le) 0.44 mH
- Efficiency Bandwith Product (EBP) 162 Hz
- Voice Coil Overhang (Xmax) ±3.30 mm
- Overall Diameter 314 mm
- Bolt Circle Diameter 296 mm
- Baffle Cutout Diameter 282 mm
- Depth 137 mm
- Flange and Gasket Thickness 15 mm
- Gross Weight 7.85 Kg.
- Recone Kit Number REC12PA300MB
