8 Ω
Datasheet

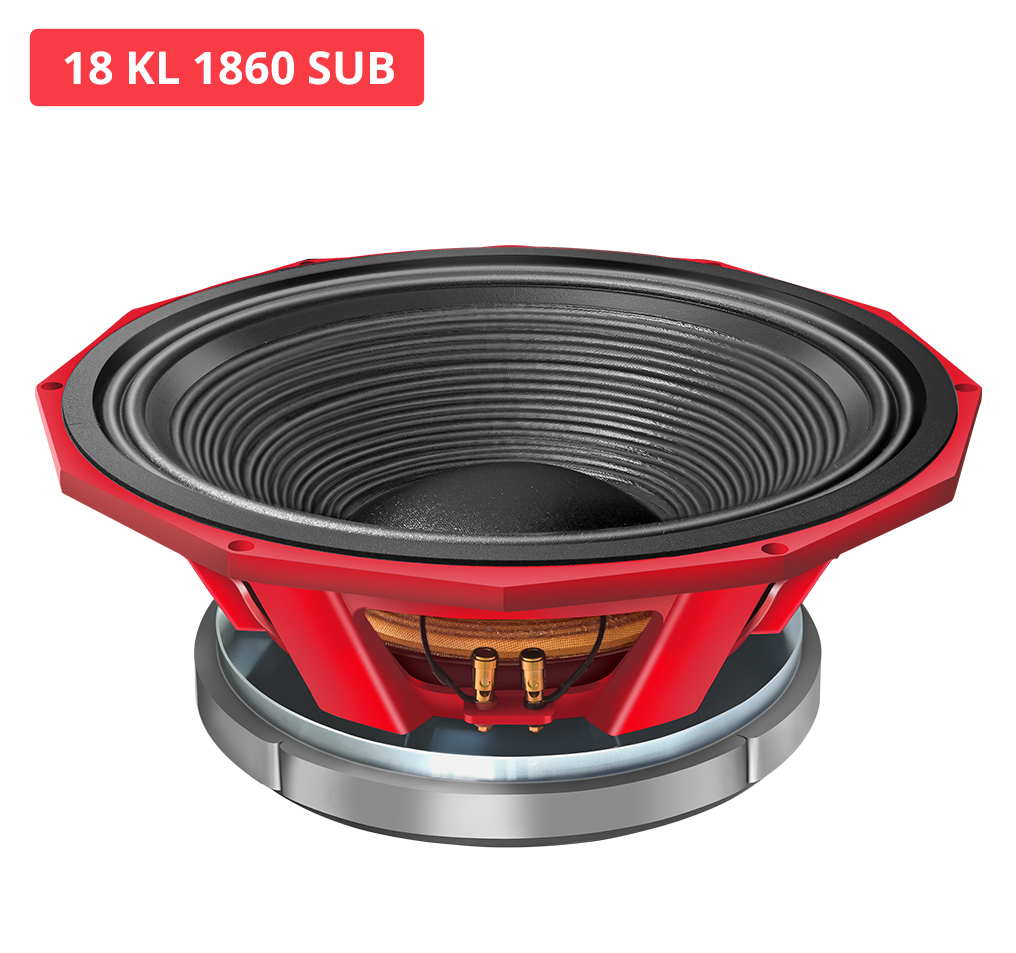

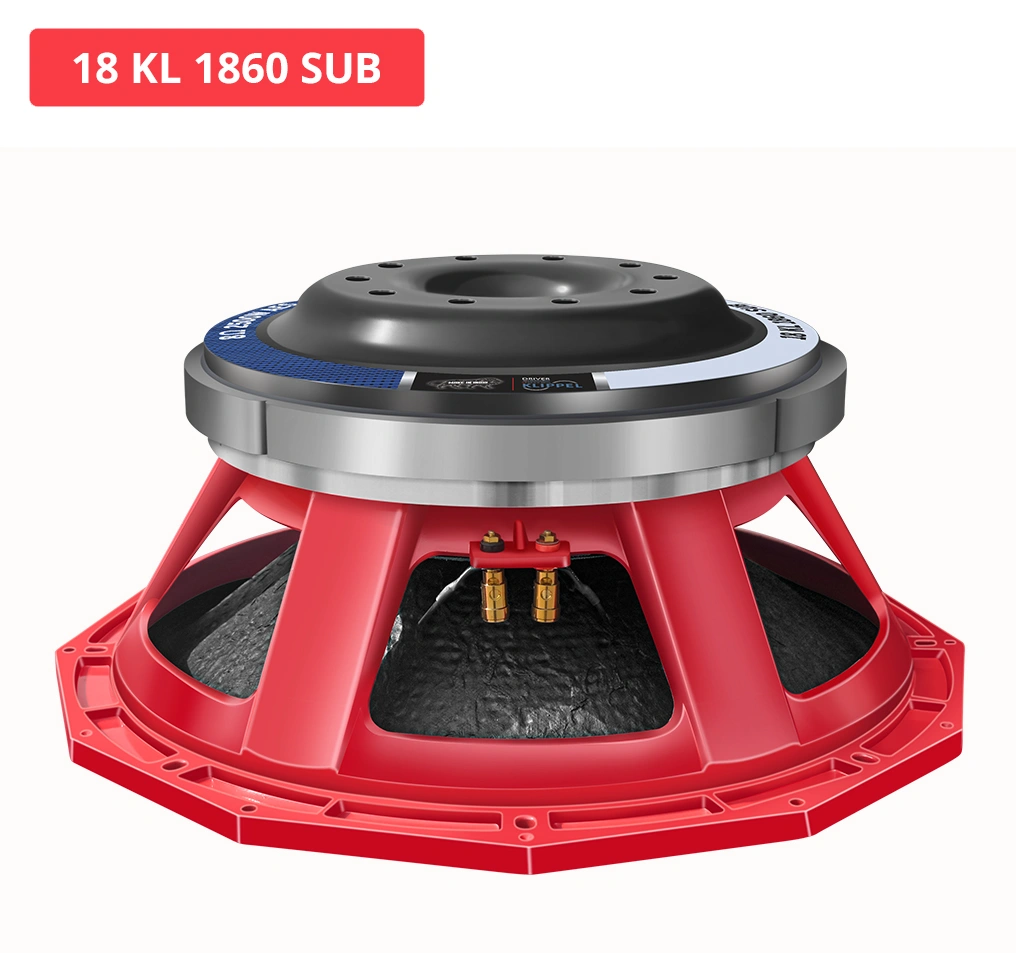

18 KL 1860 SUB
The ultimate 18” Subwoofer with 152 mm voice coil & 330 mm magnet produces unbelievable 2500 wt AES power.
Better than any other similar product available in Indian market. It can reproduce low frequency from 45 Hz.
Excellent transducer for outdoor performance , DJ & Competition. Ideal for Horn loaded , Bass reflex cabinets.
Key Features
- Program Power : 5000 W
- Voice Coil Diameter : 152 mm (6 in)

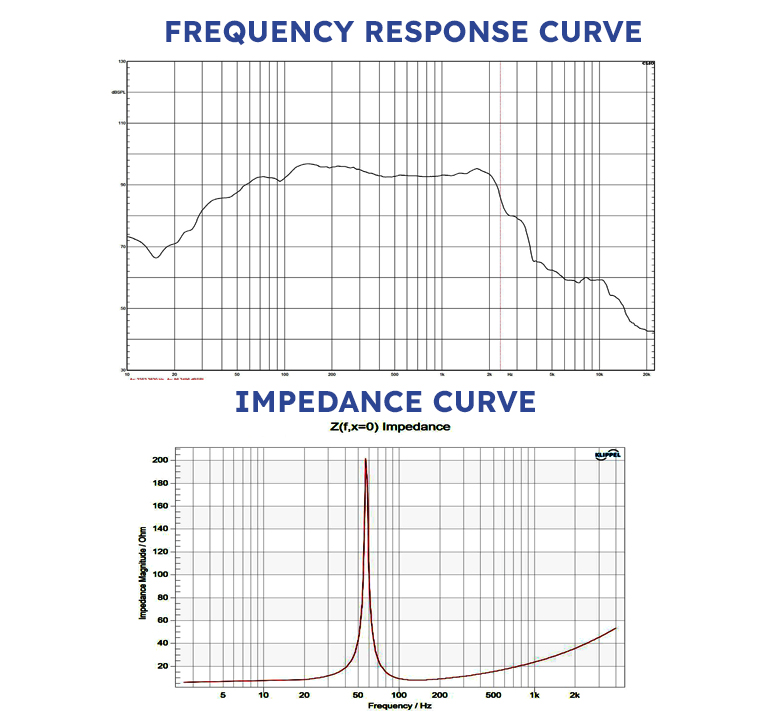

- Response : 50-2000 Hz
- Sensitivity 1W/1M : 94 dB
- Nominal Diameter 490 mm
- Nominal Impedence 8 Ω
- Nominal Power Handling(AES) 2500 W
- Program Power 5000 W
- Sensitivity (1W/1m) 94 dB
- Frequency Range 50-2000 Hz
- Magnet Material Ferrite
- Voice Coil Diameter 152 mm ( 6.0 in)
- Winding Material COPPER
- Former Material GLASS FIBRE
- Winding Type In/Out
- Resonant Frequency (FS) 57 Hz
- DC Resistance (Re) 5.86 Ω
- Electrical Q (Qes) 0.53
- Mechanical Q (Qms) 18.49
- Total Q (Qts) 0.52
- Compliance Equivalent Volume (vas) 45.67 Ltrs
- Peak Diaphragm Displacement Volume (Vd) 0.95 Ltrs
- Effective Surface Area of Cone (Sd) 1237.86 cm^2
- Reference Efficiency (ƞo) 1.54%
- Moving Mass including air load (Mms) 365.00 gms
- Motor Strength (Bl) 38.0 T-m
- Voice Coil Inductance @ 1 KHz (Le) 1.20 mH
- Efficiency Bandwith Product (EBP) 108 Hz
- Voice Coil Overhang (Xmax) ± 7.70 mm
- Overall Diameter 490 mm
- Bolt Circle Diameter 472 mm
- Baffle Cutout Diameter 422 mm
- Depth 195 mm
- Flange and Gasket Thickness 17 mm
- Gross Weight 47 Kgs
- Recone Kit Number REC18KL1860SUB
