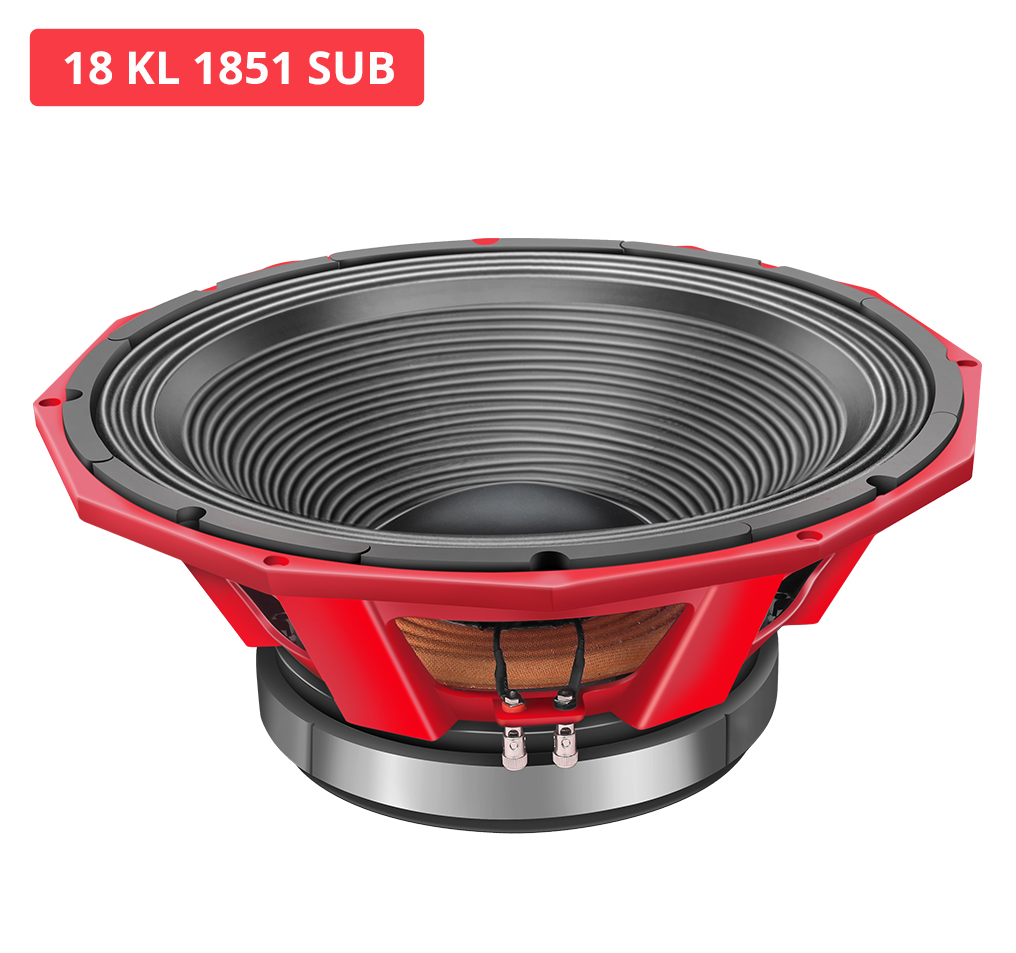

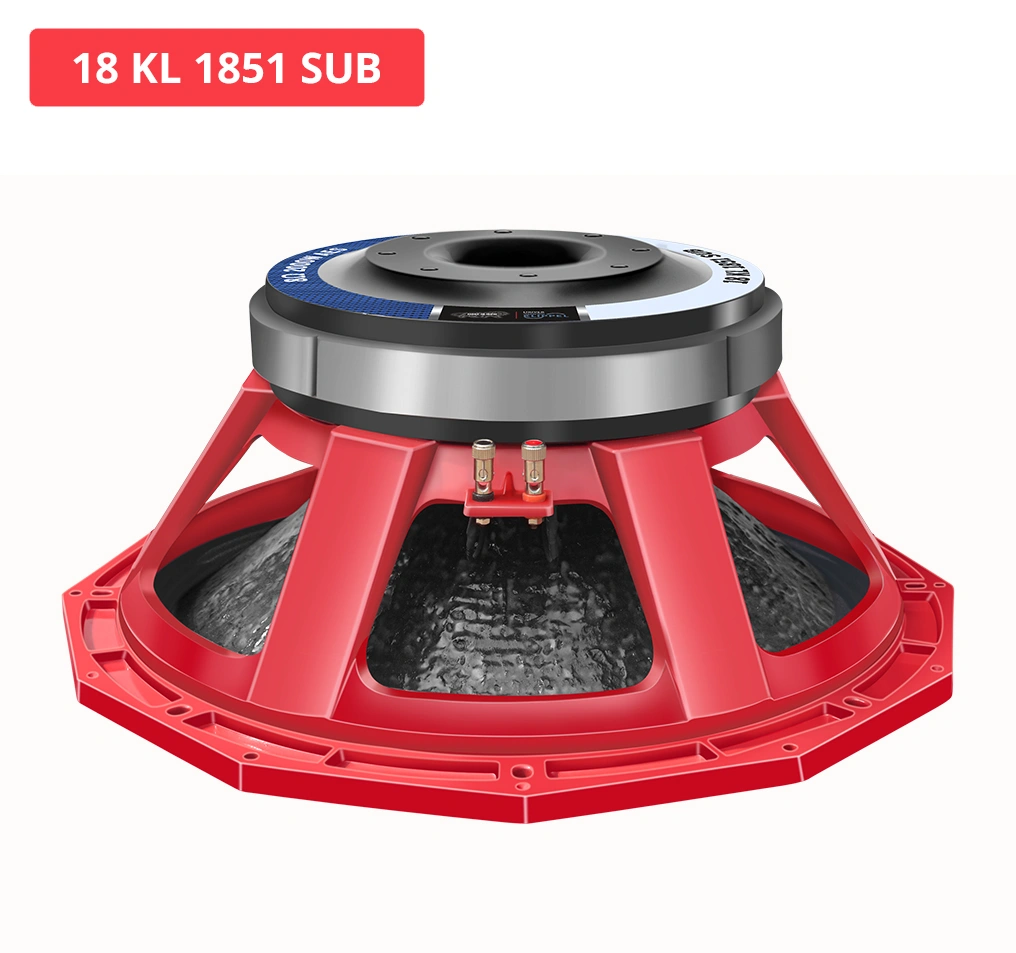

18 KL 1851 SUB
18 KL 1851 SUB is a very powerful subwoofer in 5.12 inch voice coil reproducing deep bass with ease.
Strong motor system optimized by Klippel-one of the best available software for acoustics available in industry, this sub woofer is capable handling 2000 watt continously. 18 KL 1851 SUB is a perfect choice for DJ Competition and out door parties.
Key Features
- Program Power : 4000 W
- Voice Coil Diameter : 130 mm (5.12 in)
- Response : 45-1500 Hz
- Sensitivity 1W/1M : 94 dB
- Nominal Diameter 464 mm
- Nominal Impedence 8 Ω
- Nominal Power Handling(AES) 2000 W
- Program Power 4000 W
- Sensitivity (1W/1m) 94 dB
- Frequency Range 45-1500 Hz
- Magnet Material Ferrite
- Voice Coil Diameter 130 mm ( 5.12 in)
- Winding Material COPPER
- Former Material GLASS FIBRE
- Winding Type In/Out
- Resonant Frequency (FS) 45 Hz
- DC Resistance (Re) 5.57 Ω
- Electrical Q (Qes) 0.45
- Mechanical Q (Qms) 18.82
- Total Q (Qts) 0.44
- Compliance Equivalent Volume (vas) 87.56 Ltrs
- Peak Diaphragm Displacement Volume (Vd) 1.26 Ltrs
- Effective Surface Area of Cone (Sd) 1237.86 cm^2
- Reference Efficiency (ƞo) 1.66%
- Moving Mass including air load (Mms) 312.80 gms
- Motor Strength (Bl) 32.88 T-m
- Voice Coil Inductance @ 1 KHz (Le) 1.31 mH
- Voice Coil Overhang (Xmax) ± 10.15 mm
- Efficiency Bandwith Product (EBP) 100 Hz
- Overall Diameter 490 mm
- Bolt Circle Diameter 470 mm
- Baffle Cutout Diameter 410 mm
- Depth 190 mm
- Flange and Gasket Thickness 17 mm
- Gross Weight 26 Kgs
- Recone Kit Number REC18KL1851SUB
