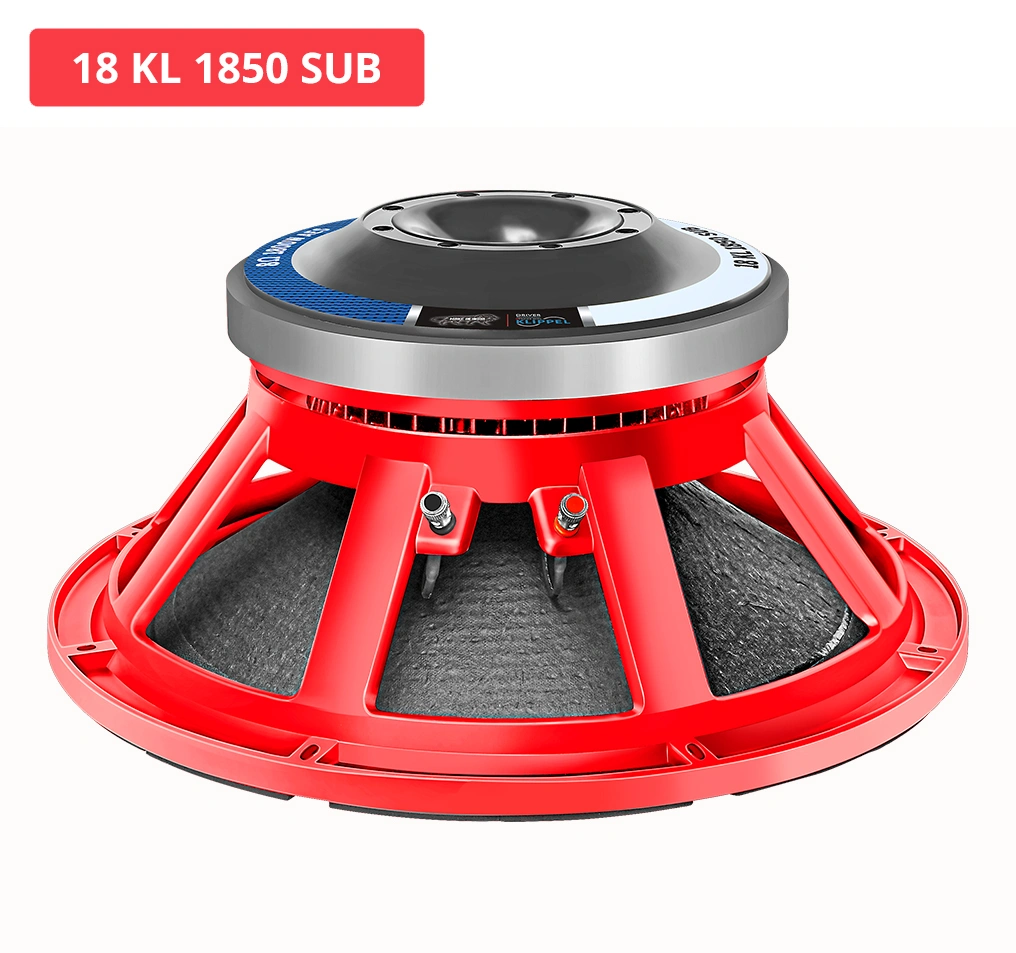

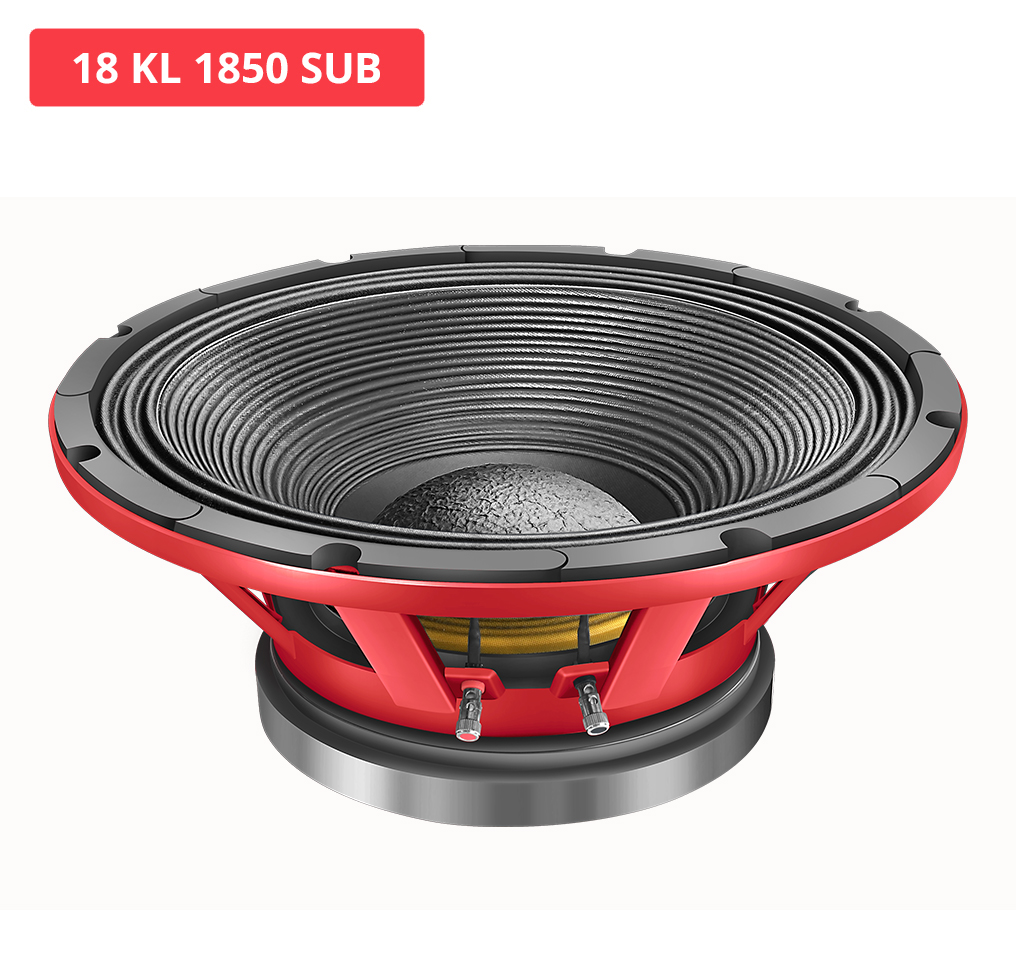

18 KL 1850 SUB
18 KL 1850 SUB is a very powerful subwoofer in which both punch and vibrations can be felt and the sound can cover large area. It is in 5 inch Voice Coil and a very efficient magnet motor system which can reproduce low frequency with BL (magnetic force) of 33.70 T-m.
It has a power handling capacity of 1800 Watts AES. This sub woofer has been verified by one of the most powerful and authentic softwares available in Industry-KLIPPEL.This Sub woofer has a very powerful magnet motor system which is optimized so that it can reproduce low frequencies without distortions. Suitable in both Sealed and Bass Reflex Enclosures.
Key Features
- Program Power : 3600 W
- Voice Coil Diameter : 126 mm (5.0 in)

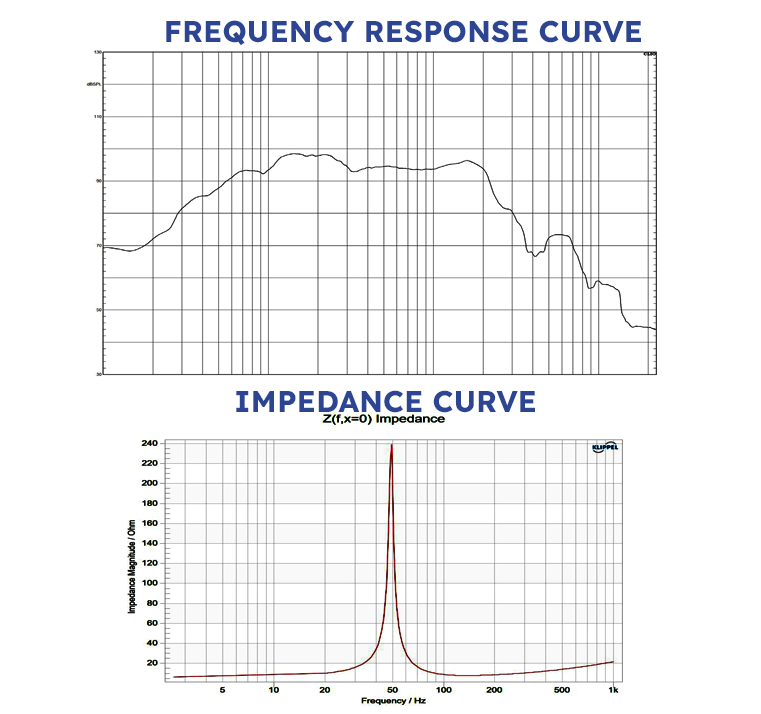

- Response : 45-1500 Hz
- Sensitivity 1W/1M : 95 dB
- Nominal Diameter 470 mm
- Nominal Impedence 8 Ω
- Nominal Power Handling(AES) 1800 W
- Program Power 3600 W
- Sensitivity (1W/1m) 95 dB
- Frequency Range 45-1500 Hz
- Magnet Material Ferrite
- Voice Coil Diameter 126 mm ( 5.0 in)
- Winding Material COPPER
- Former Material GLASS FIBRE
- Winding Type In/Out
- Resonant Frequency (FS) 49 Hz
- DC Resistance (Re) 6.19 Ω
- Electrical Q (Qes) 0.49
- Mechanical Q (Qms) 19.47
- Total Q (Qts) 0.48
- Compliance Equivalent Volume (vas) 82.73 Ltrs
- Peak Diaphragm Displacement Volume (Vd) 1.41 Ltrs
- Effective Surface Area of Cone (Sd) 1213.04 cm^2
- Reference Efficiency (ƞo) 1.89%
- Moving Mass including air load (Mms) 263.70 gms
- Motor Strength (Bl) 31.93 T-m
- Voice Coil Inductance @ 1 KHz (Le) 1.24 mH
- Efficiency Bandwith Product (EBP) 100 Hz
- Voice Coil Overhang (Xmax) ± 11.60 mm
- Overall Diameter 470 mm
- Bolt Circle Diameter 445 mm
- Baffle Cutout Diameter 420 mm
- Depth 211 mm
- Flange and Gasket Thickness 22 mm
- Gross Weight 25.30 Kgs
- Recone Kit Number REC18KL1850 SUB
