8Ω
Datasheet
8 IT 201 MB

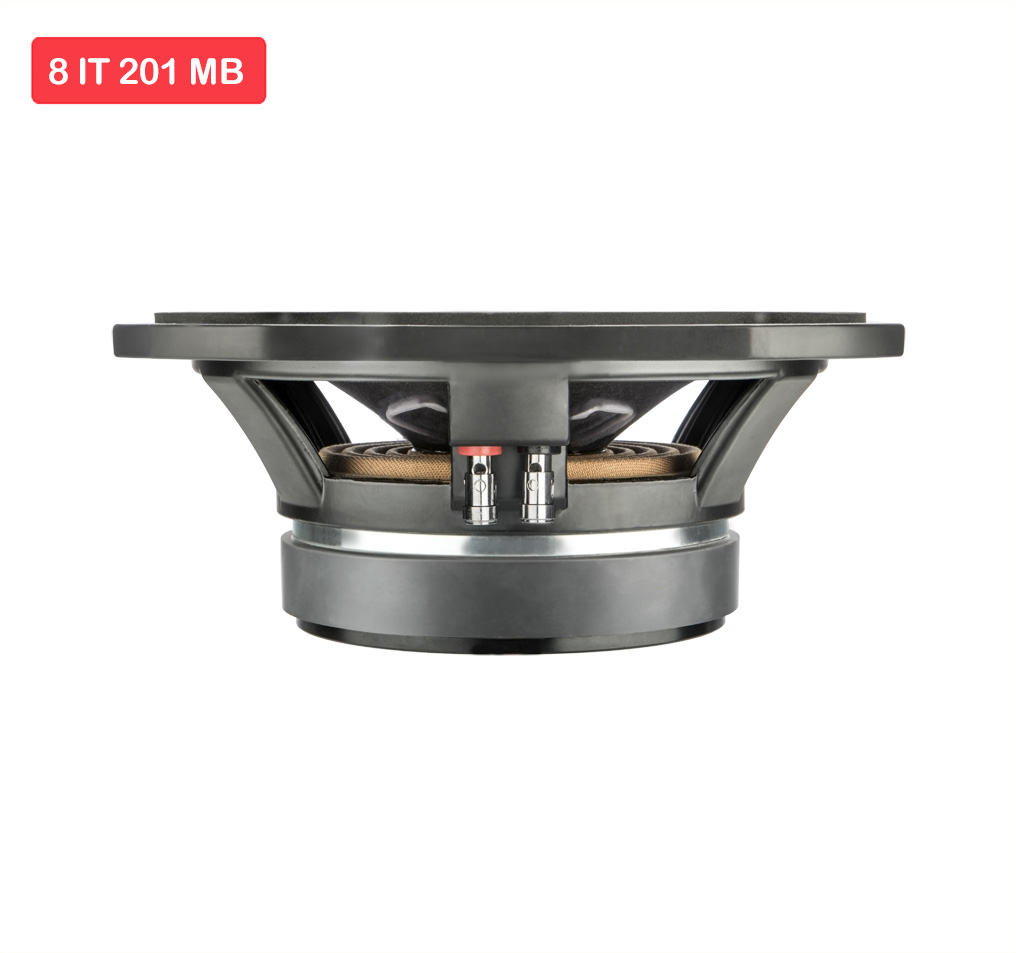

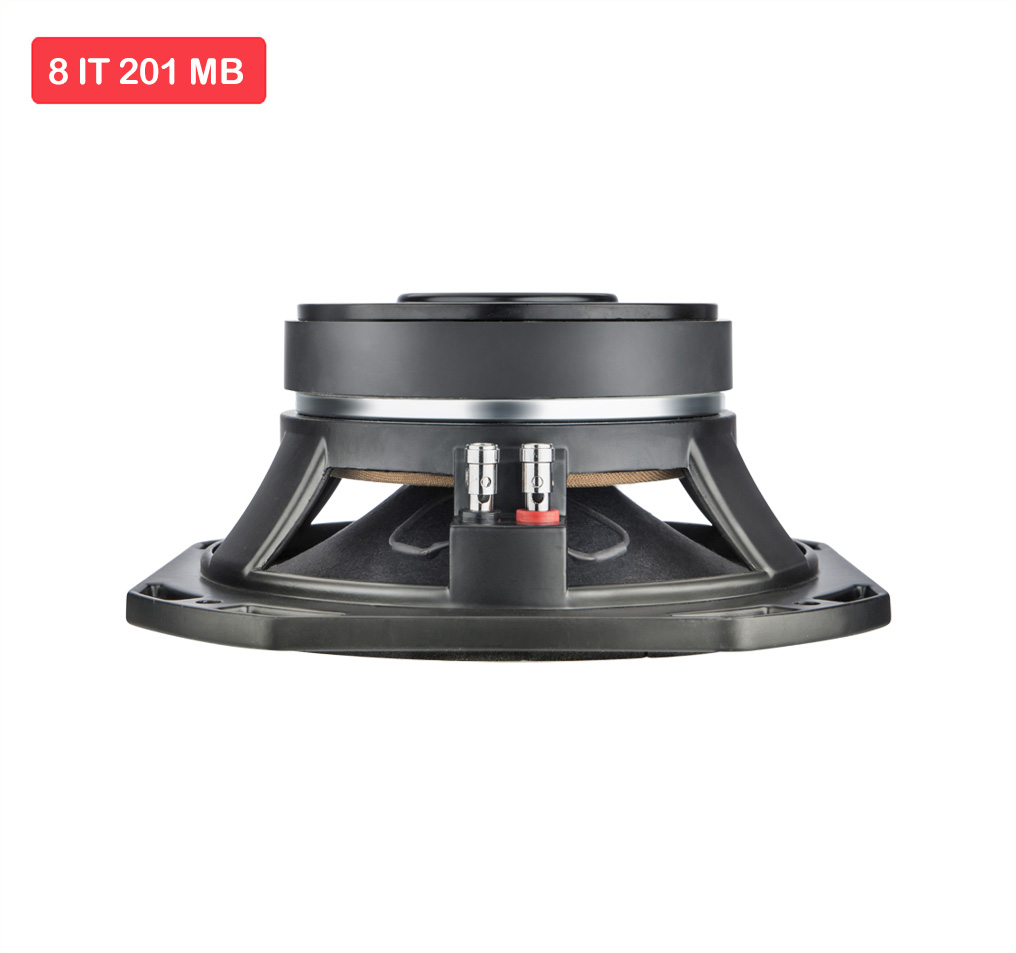

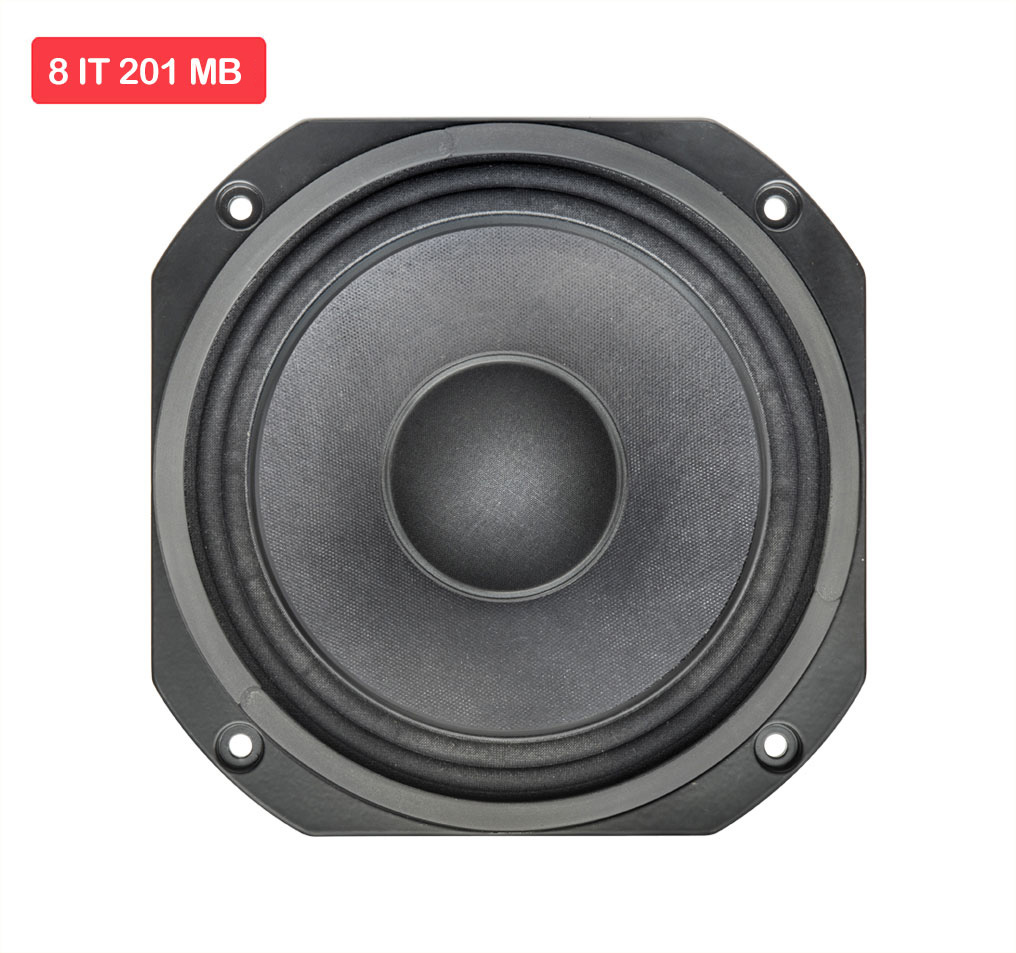

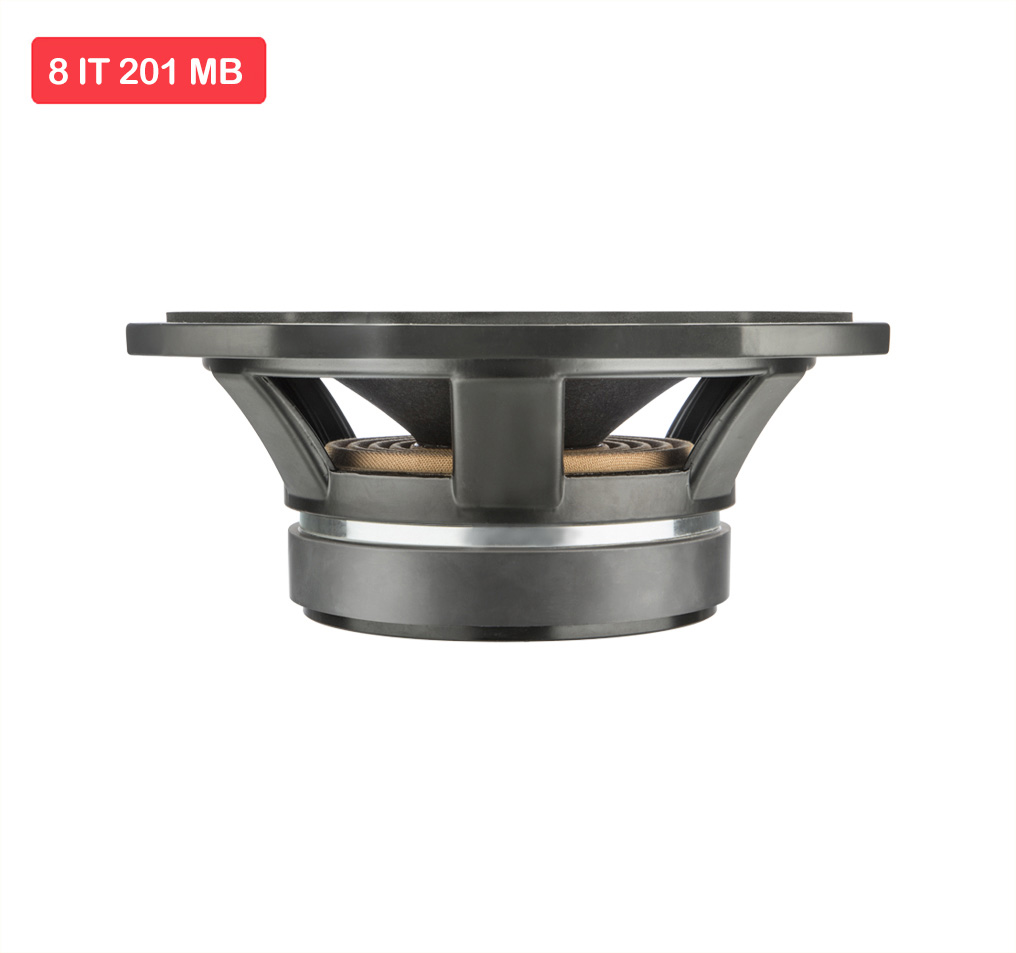

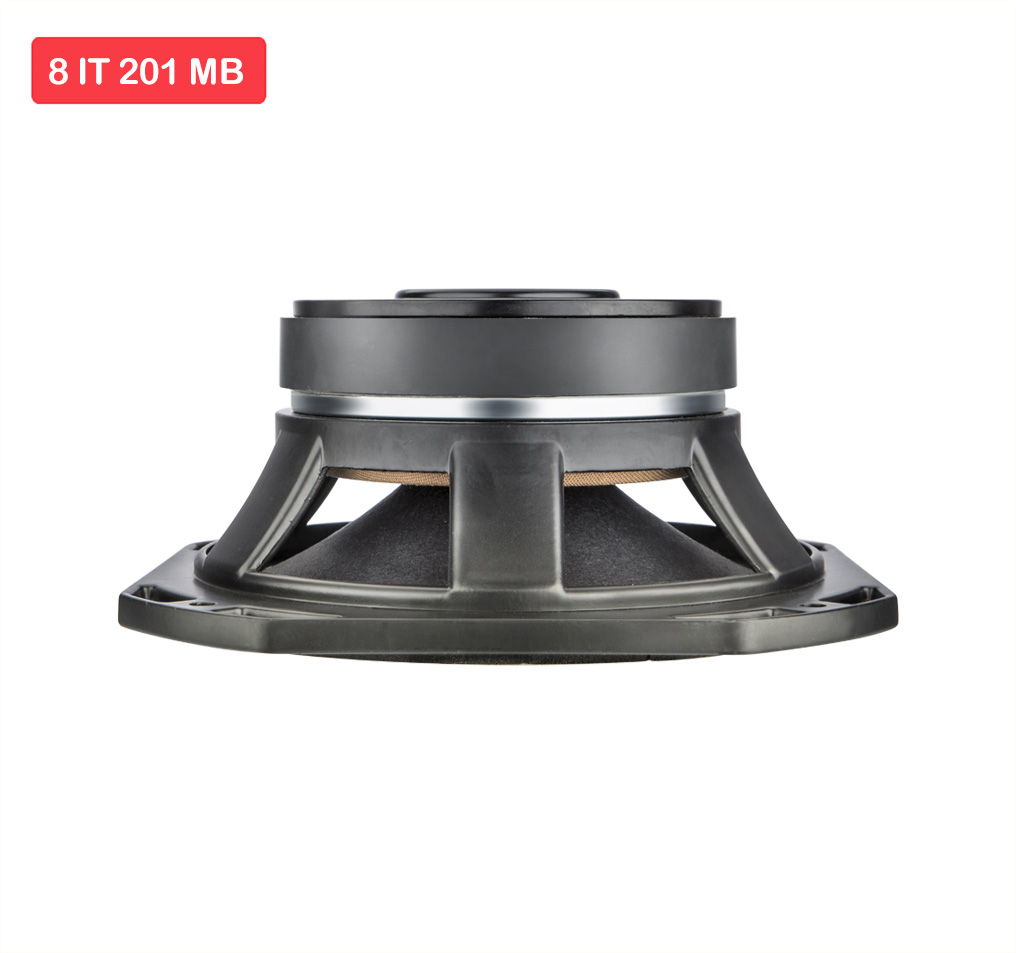

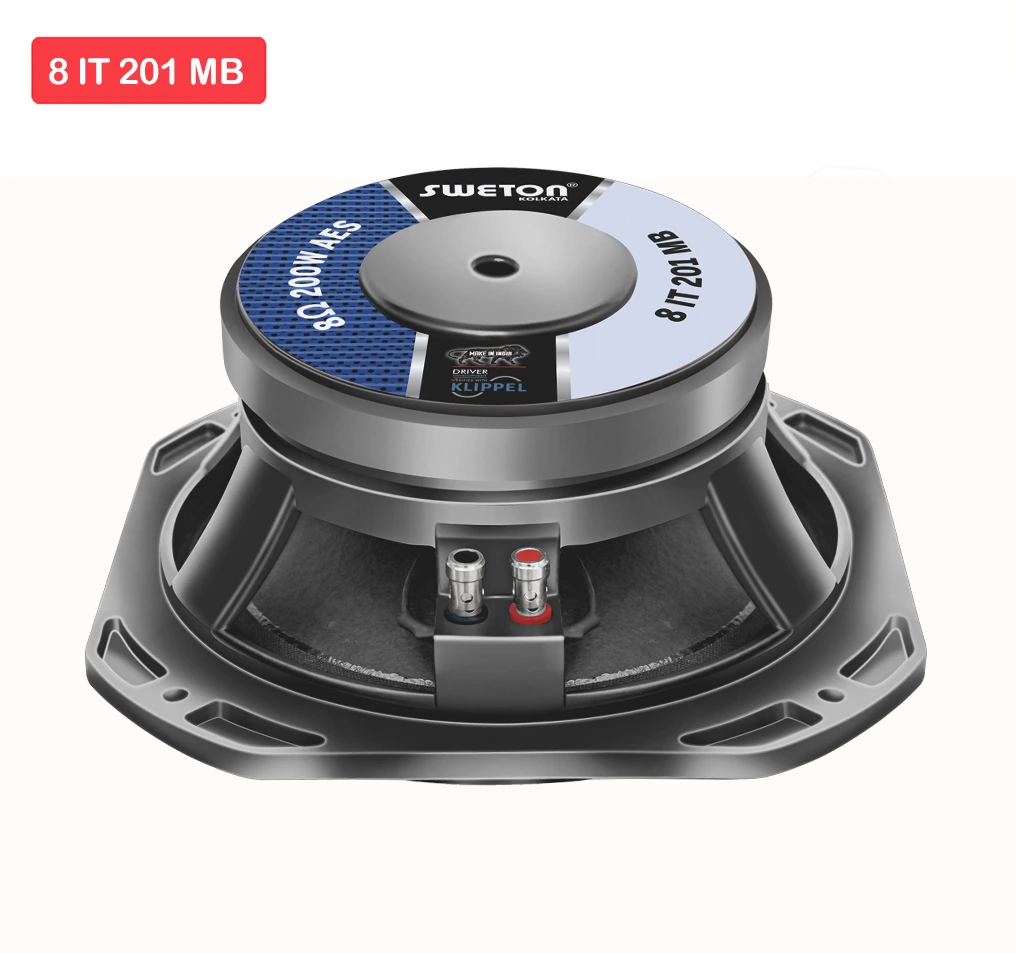

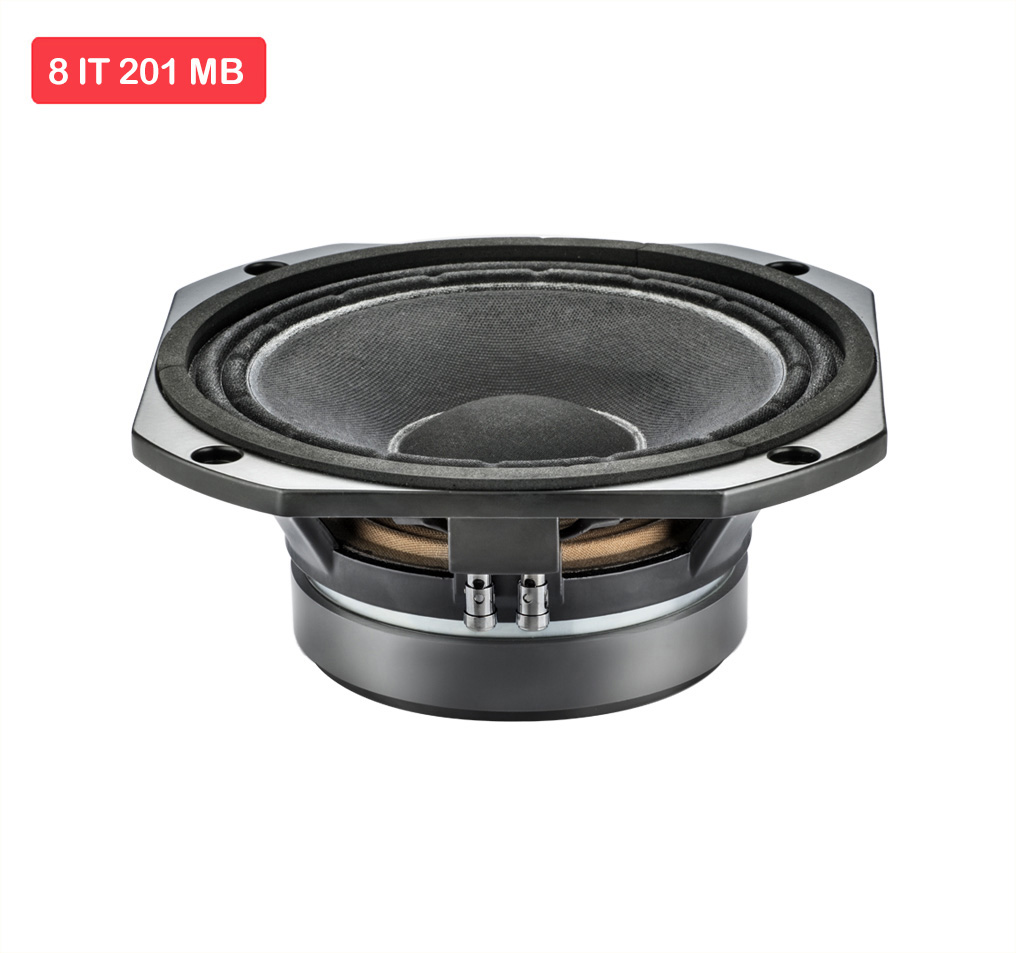

8 IT 201 MB is a Mid Bass transducer which is designed for line array system.This transducer reproduces mid frequencies linearly with prominent short distance bass making it ideal mid bass transducer. Suitable for Bass Reflex / Ported Enclosure.
Key Features
- Program Power : 400 W
- Voice Coil Diameter : 51.2 mm (2 in)

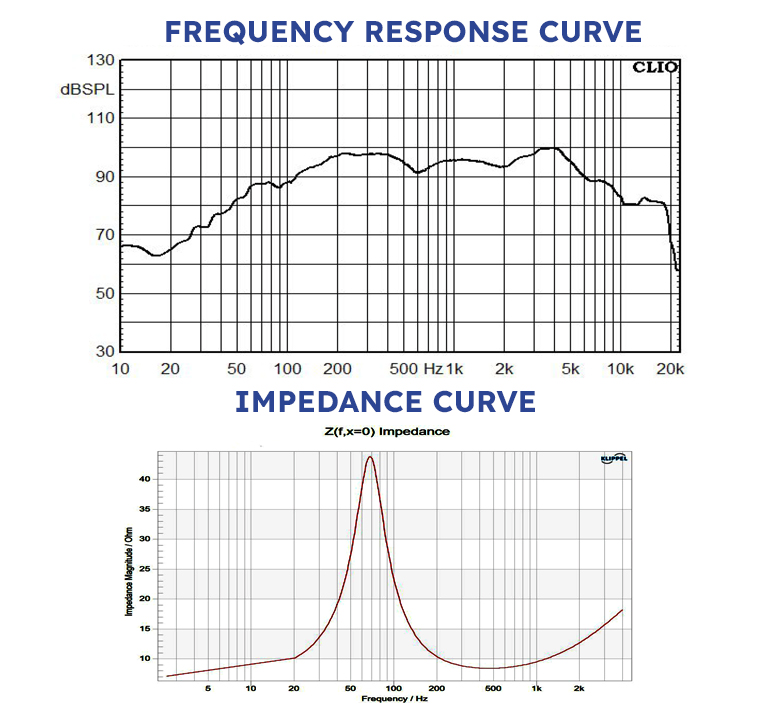

- Response : 68-6000 Hz
- Sensitivity 1W/1M : 95 dB
- Nominal Diameter 208 mm
- Nominal Impedence 8 Ω
- Nominal Power Handling(AES) 200 W
- Program Power 400 W
- Sensitivity (1W/1m) 95 dB
- Frequency Range 68-6000 Hz
- Magnet Material Ferrite
- Voice Coil Diameter 51.2 mm ( 2 in)
- Winding Material CCAW
- Former Material Kapton
- Winding Type In/Out
- Resonant Frequency (FS) 68 Hz
- DC Resistance (Re) 7 Ω
- Electrical Q (Qes) 0.4
- Mechanical Q (Qms) 2.06
- Total Q (Qts) 0.33
- Compliance Equivalent Volume (vas) 16 Ltrs
- Peak Diaphragm Displacement Volume (Vd) 0.03 Ltrs
- Effective Surface Area of Cone (Sd) 227 cm^2
- Reference Efficiency (ƞo) 1.92%
- Moving Mass including air load (Mms) 16.10 gms
- Motor Strength (Bl) 11.05 T-m
- Voice Coil Inductance @ 1 KHz (Le) 0.31 mH
- Efficiency Bandwith Product (EBP) 170 Hz
- Voice Coil Overhang (Xmax) ±1.5 mm
- Overall Diameter 208 mm
- Baffle Cutout Diameter 186 mm
- Depth 89 mm
- Flange and Gasket Thickness 11 mm
- Gross Weight 3.72 Kgs
- Recone Kit Number REC8IT201MB
