8 Ω
Datasheet

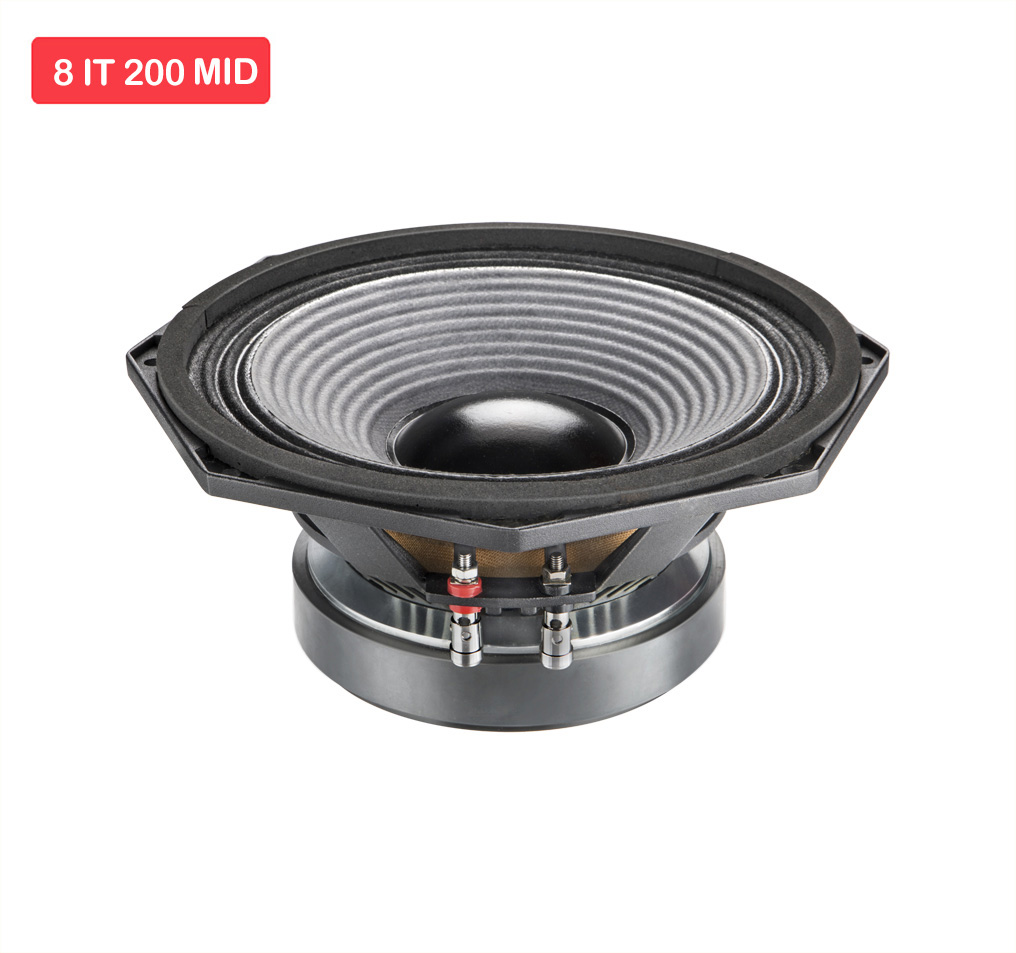

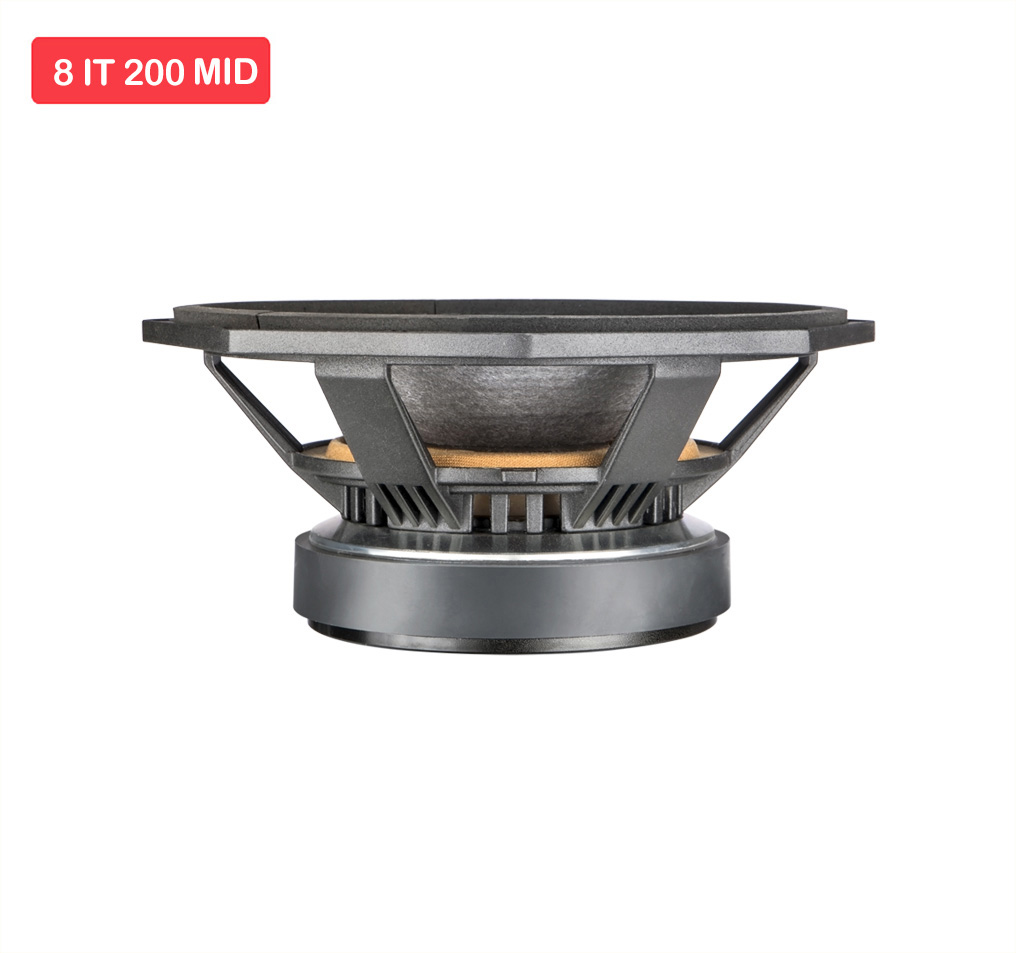

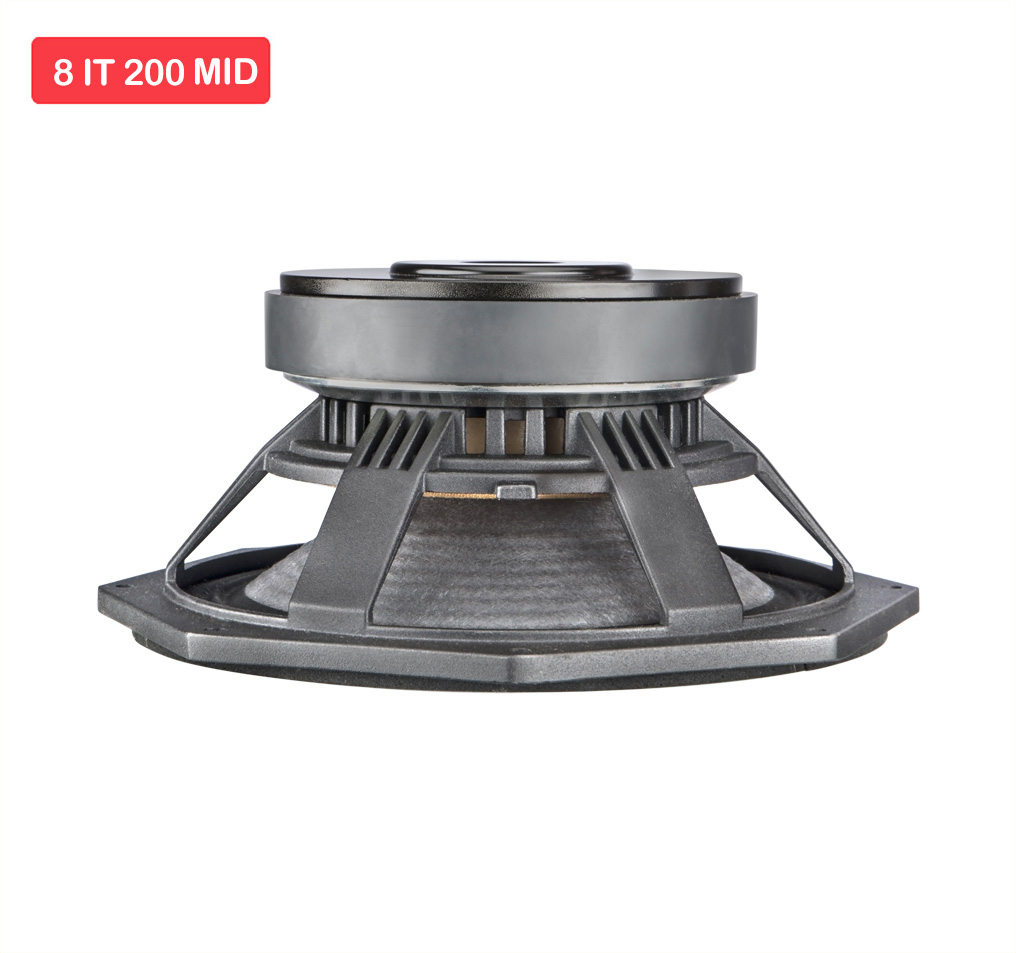

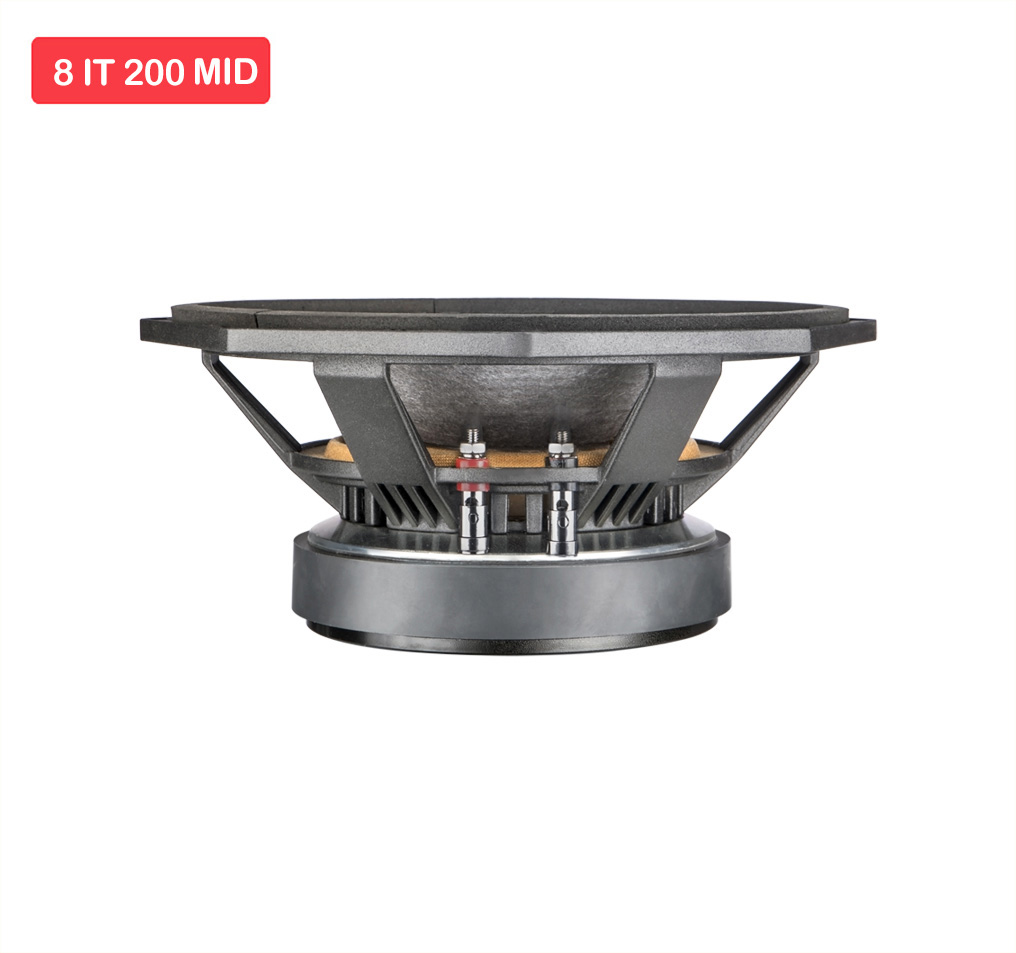

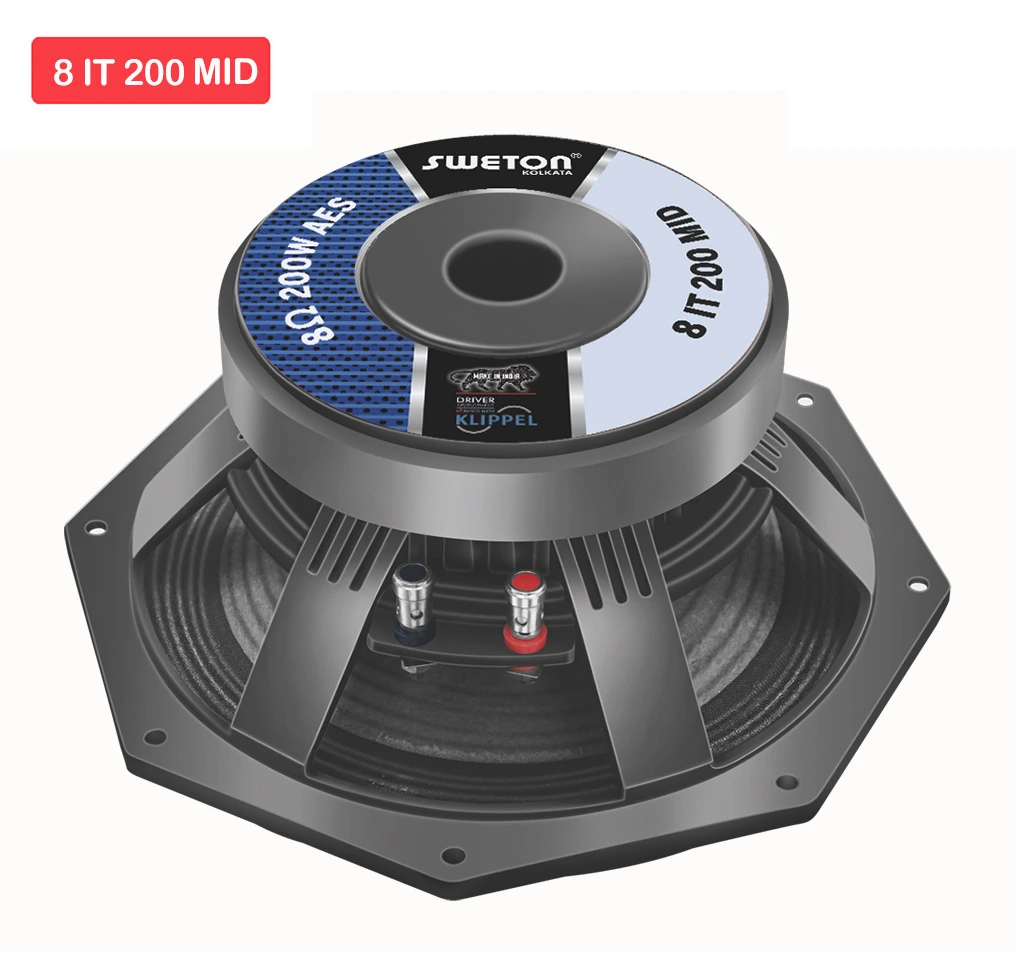

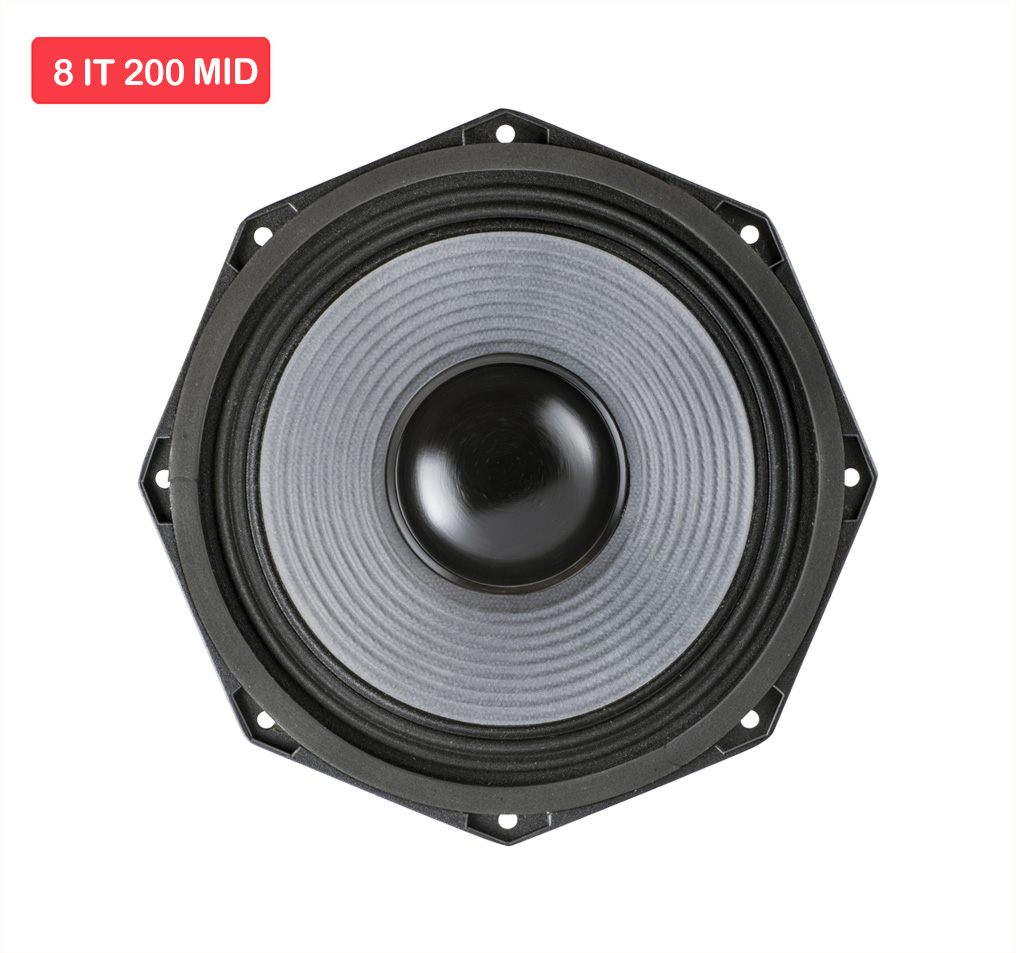

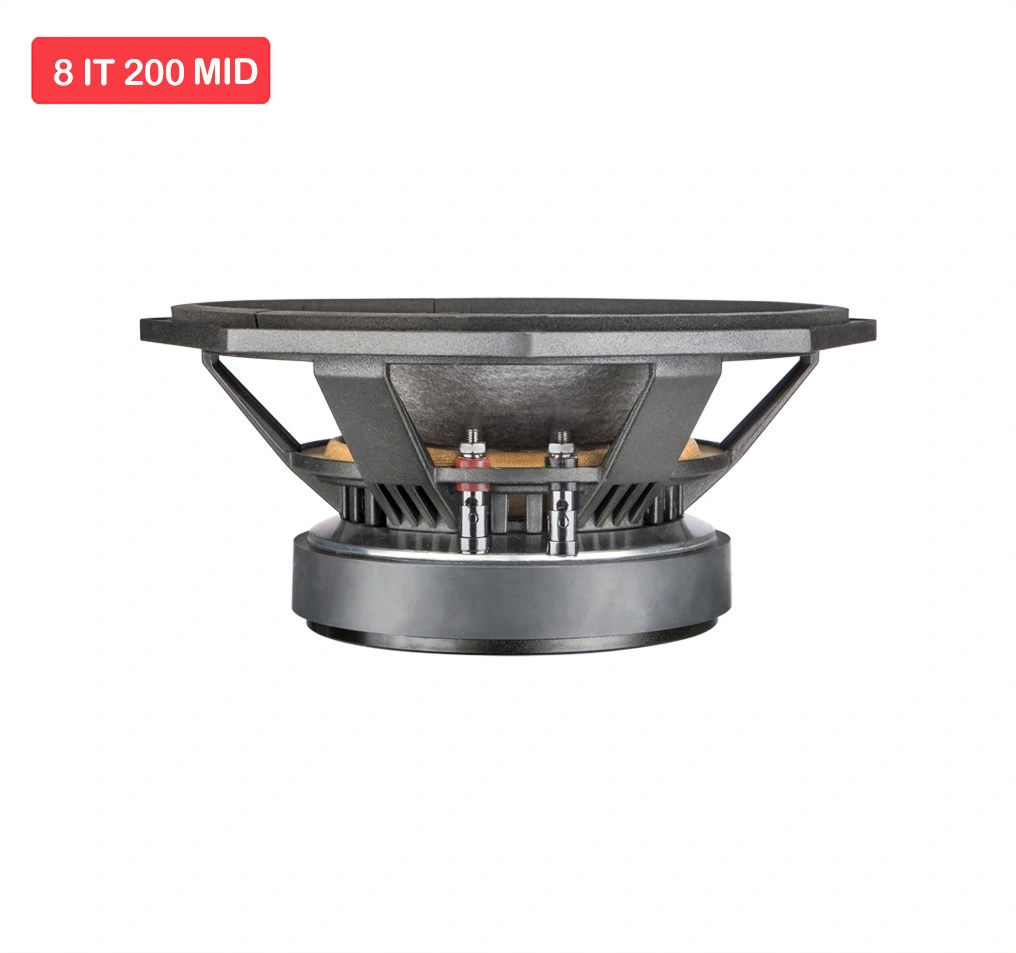

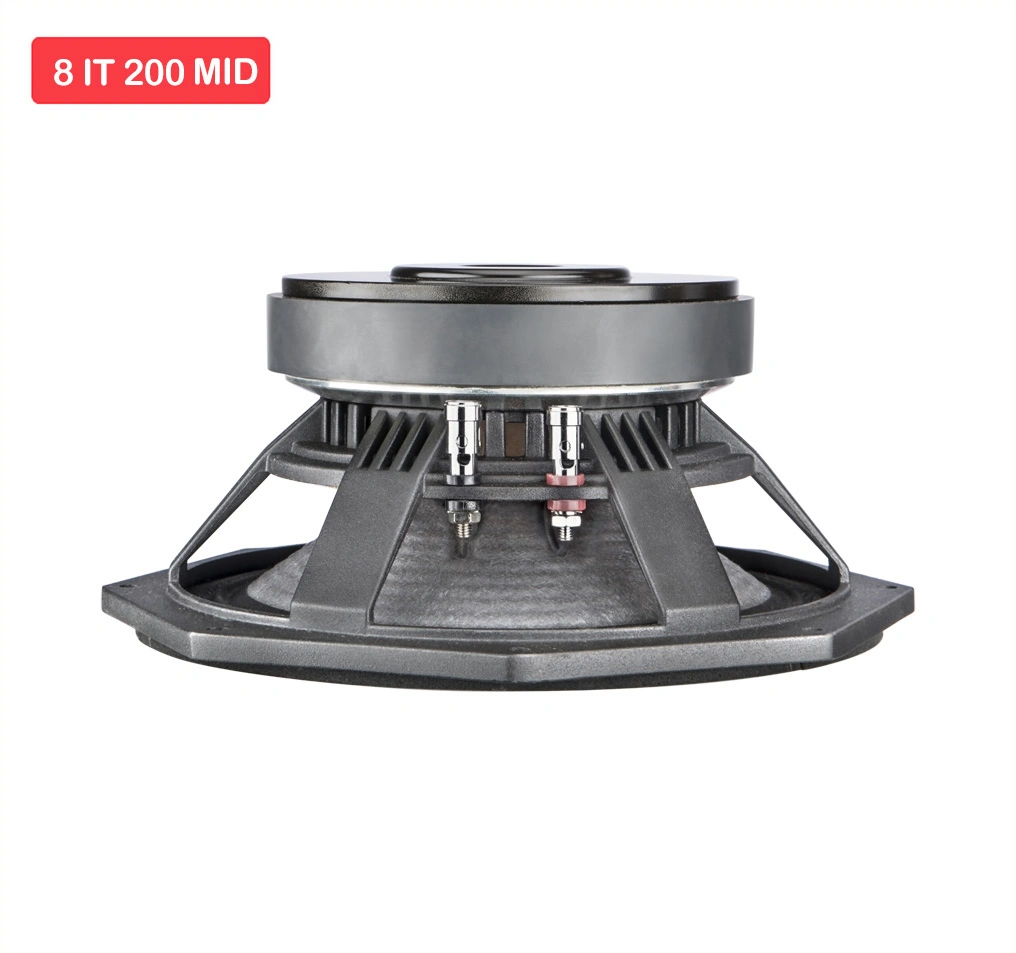

8 IT 200 MID
8IT 200 MID is a transducer which reproduces mid frequencies linearly and has excellent tonal quality. It has been designed specially for Line Array speaker system. Suitable for Bass Reflex / Ported Enclosure.
Key Features
- Program Power : 400 W
- Voice Coil Diameter : 51.2 mm (2 in)

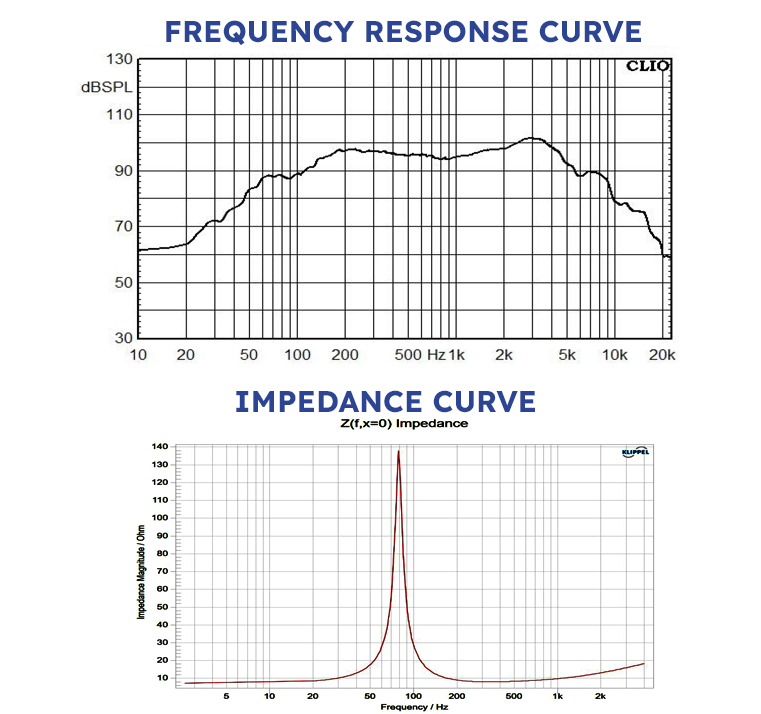

- Response : 84- 5500 Hz
- Sensitivity 1W/1M : 95 dB
- Nominal Diameter 209 mm
- Nominal Impedence 8 Ω
- Nominal Power Handling(AES) 200 W
- Program Power 400 W
- Sensitivity (1W/1m) 95 dB
- Frequency Range 84 - 5500 Hz
- Magnet Material Ferrite
- Voice Coil Diameter 51.2 mm (2 in)
- Winding Material CCAW
- Former Material Kapton
- Winding Type In/Out
- Resonant Frequency (FS) 79 Hz
- DC Resistance (Re) 7.2 Ω
- Electrical Q (Qes) 0.54
- Mechanical Q (Qms) 9.82
- Total Q (Qts) 0.51
- Compliance Equivalent Volume (vas) 13.71 Ltrs
- Peak Diaphragm Displacement Volume (Vd) 0.03 Ltrs
- Effective Surface Area of Cone (Sd) 213.8 cm^2
- Reference Efficiency (ƞo) 1.18%
- Moving Mass including air load (Mms) 19.20 gms
- Motor Strength (Bl) 11.23 T-m
- Voice Coil Inductance @ 1 KHz (Le) 0.31 mH
- Efficiency Bandwith Product (EBP) 146 Hz
- Voice Coil Overhang (Xmax) 1.5 mm
- Overall Diameter 209 mm
- Bolt Circle Diameter 208 mm
- Baffle Cutout Diameter 175 mm
- Depth 95 mm
- Flange and Gasket Thickness 11 mm
- Gross Weight 3.72 Kgs
- Recone Kit Number REC8IT200MID
