8 Ω
Datasheet

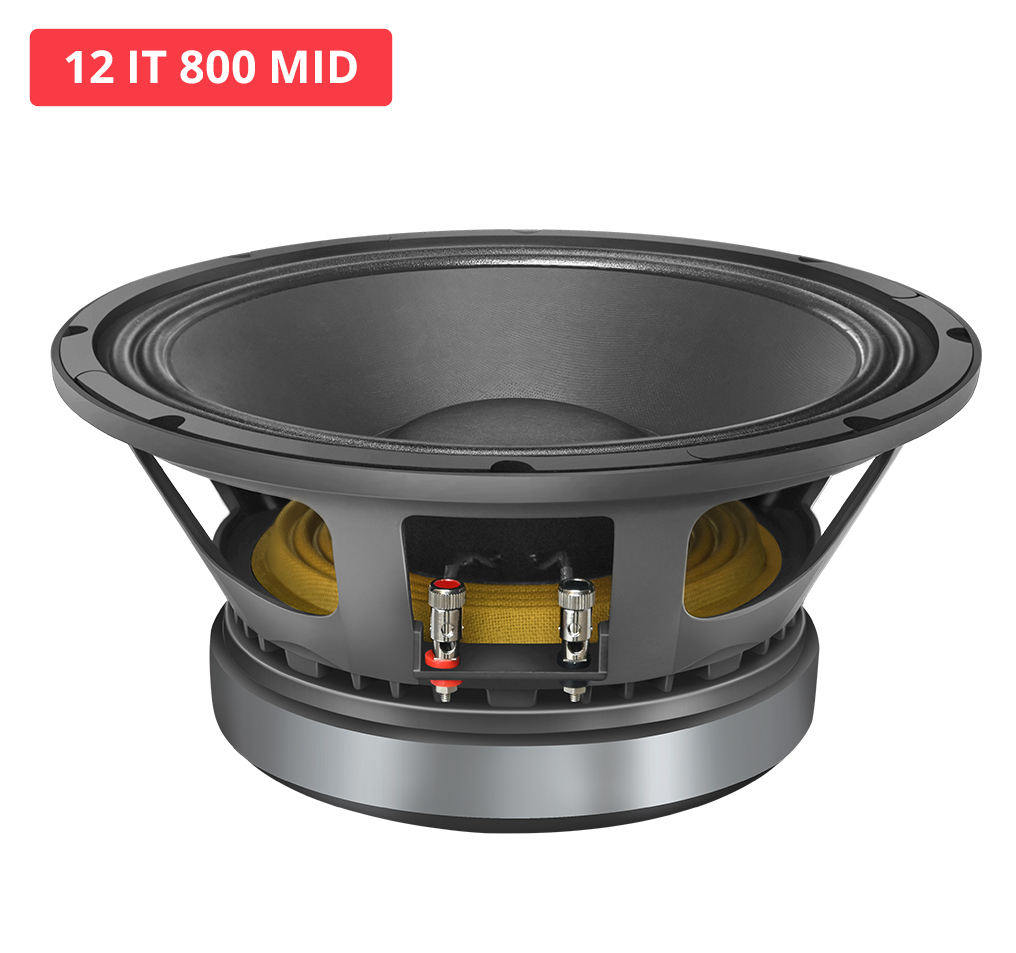

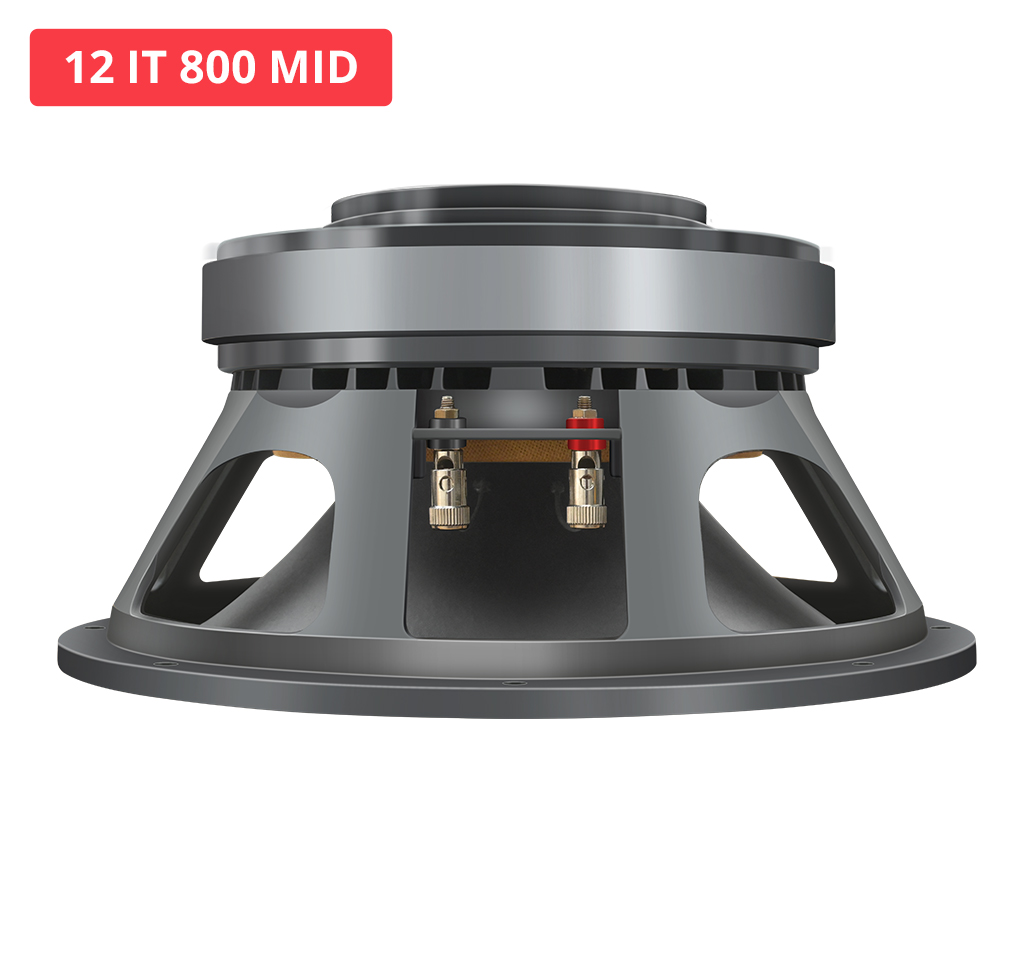

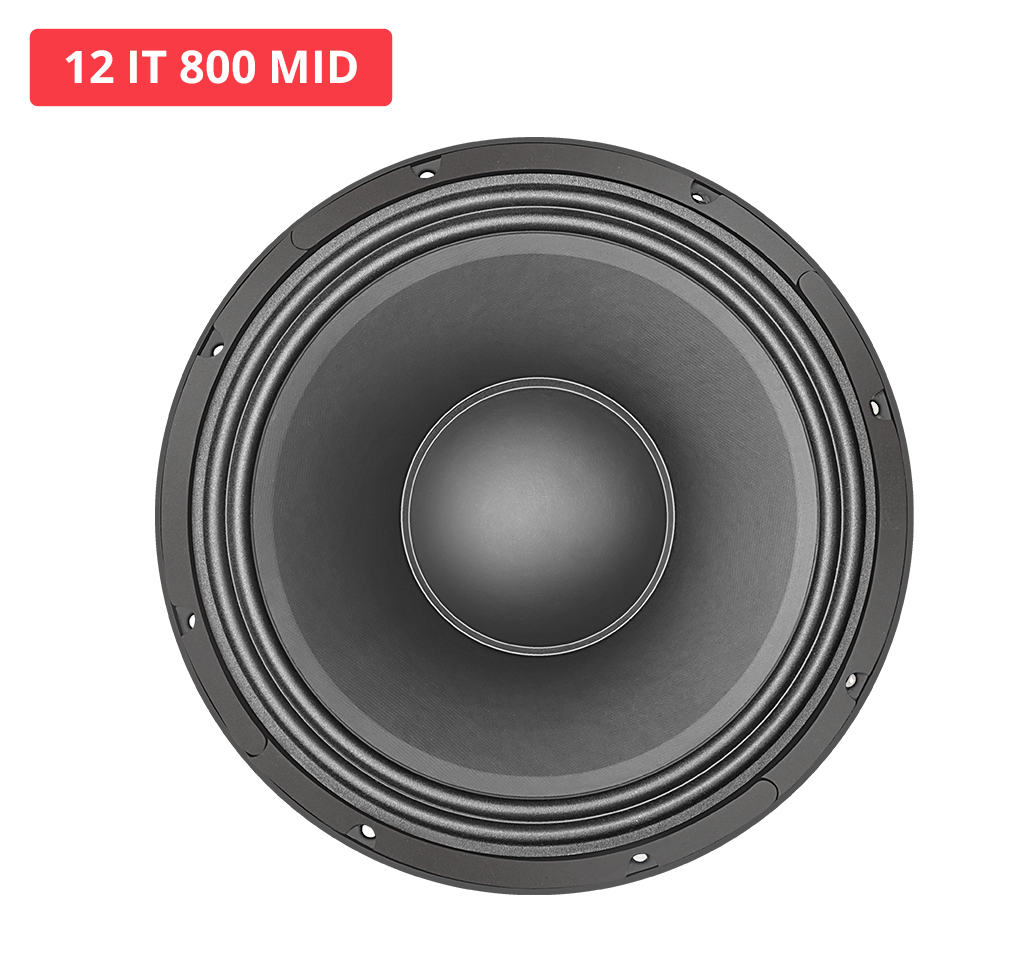

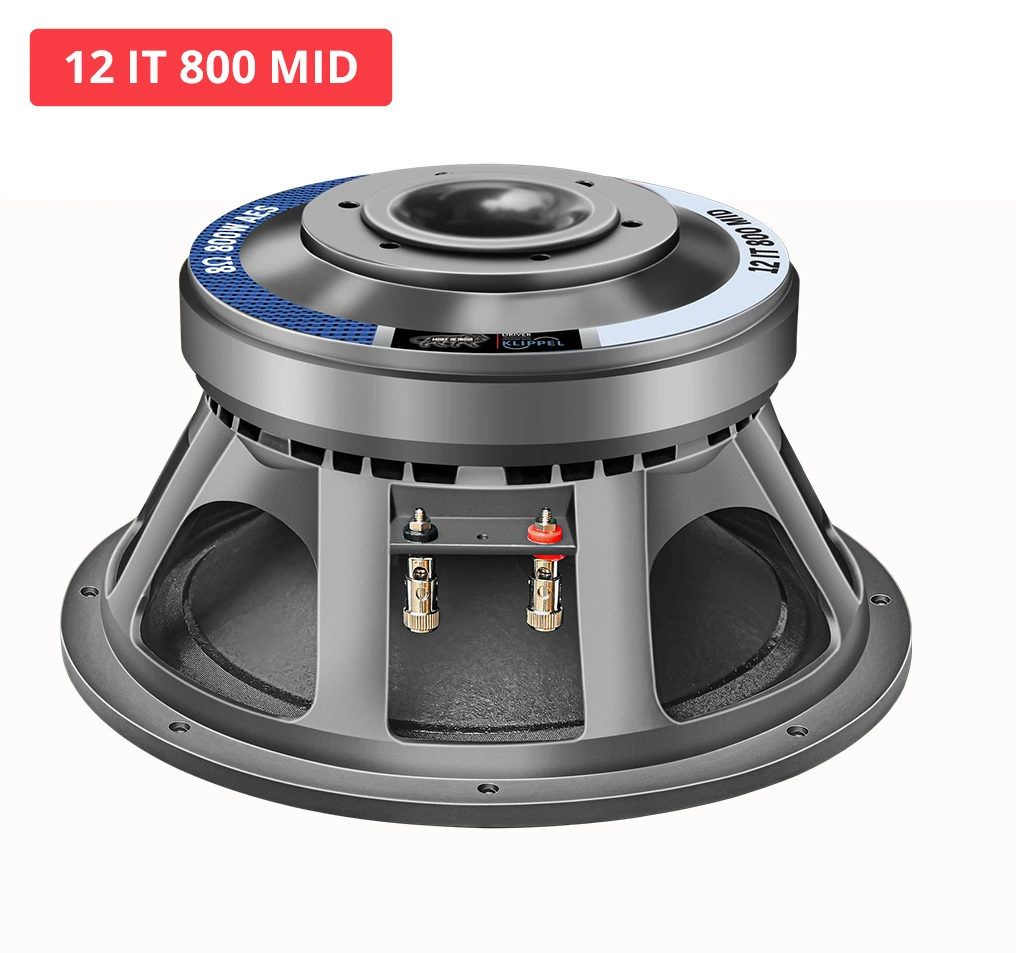

12 IT 800 MID
12 IT 800 MID is a very powerful MID transducer which has a very balanced and soothing output can be used in a large 3 way line array format system. Suitable for Bass Reflex /Ported Enclosures.
Key Features
- Program Power : 1600 W
- Voice Coil Diameter : 99.3 mm (4 in)

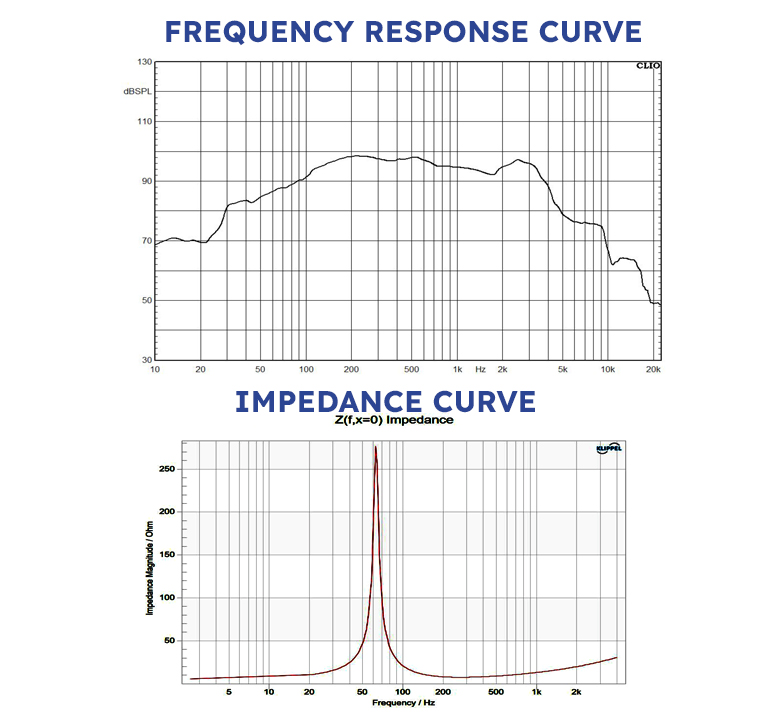

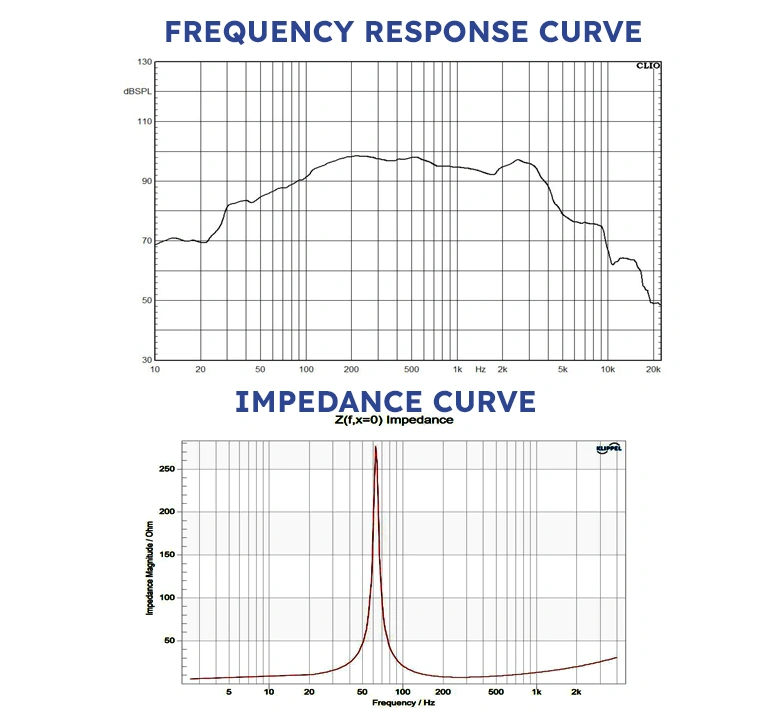

- Response : 50-4500 Hz
- Sensitivity 1W/1M : 96 dB
- Nominal Diameter 315 mm
- Nominal Impedence 8 Ω
- Nominal Power Handling(AES) 800 W
- Program Power 1600 W
- Sensitivity (1W/1m) 96 dB
- Frequency Range 50-4500 Hz
- Magnet Material Ferrite
- Voice Coil Diameter 99.3 mm ( 4 in)
- Winding Material CCAR
- Former Material GLASS FIBRE
- Winding Type IN/OUT
- Resonant Frequency (FS) 63 Hz
- DC Resistance (Re) 5.4 Ω
- Electrical Q (Qes) 0.26
- Mechanical Q (Qms) 13.17
- Total Q (Qts) 0.26
- Compliance Equivalent Volume (vas) 28.22 Ltrs
- Peak Diaphragm Displacement Volume (Vd) 0.15 Ltrs
- Effective Surface Area of Cone (Sd) 522.79 cm^2
- Reference Efficiency (ƞo) 2.59%
- Moving Mass including air load (Mms) 87.0 gms
- Motor Strength (Bl) 26.76 T-m
- Voice Coil Inductance @ 1 KHz (Le) 0.63 mH
- Efficiency Bandwith Product (EBP) 242 Hz
- Voice Coil Overhang (Xmax) ±5.77 mm
- Overall Diameter 315 mm
- Bolt Circle Diameter 298 mm
- Baffle Cutout Diameter 277 mm
- Depth 156 mm
- Flange and Gasket Thickness 10 mm
- Gross Weight 13.80 Kgs
- Recone Kit Number REC 12IT 800MB
