8 Ω
Datasheet

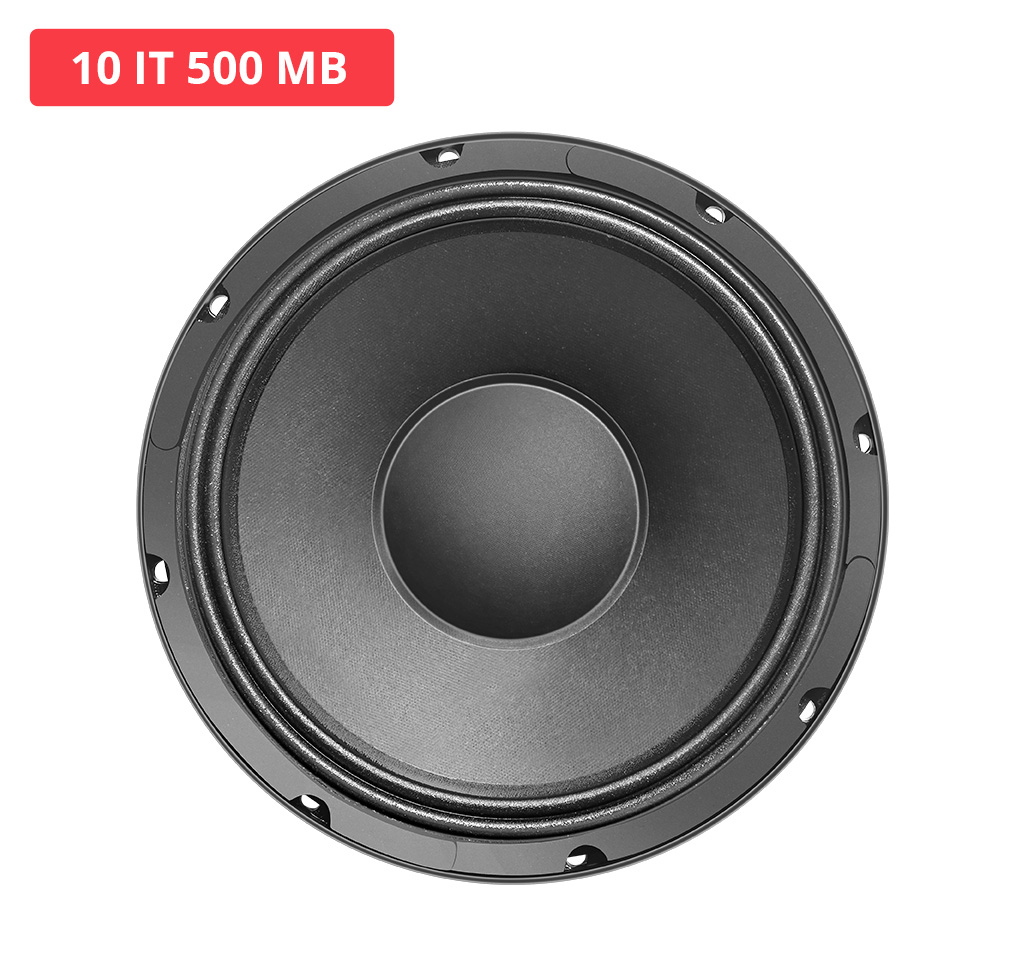

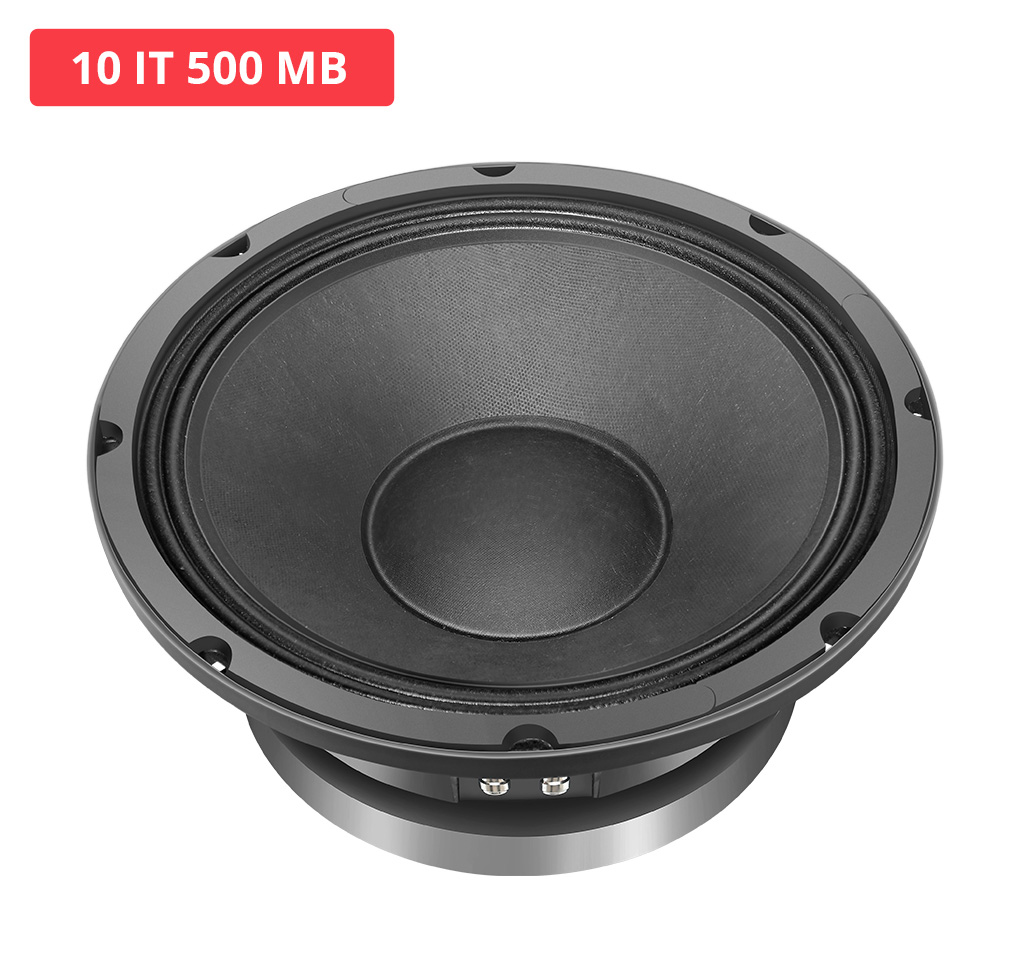

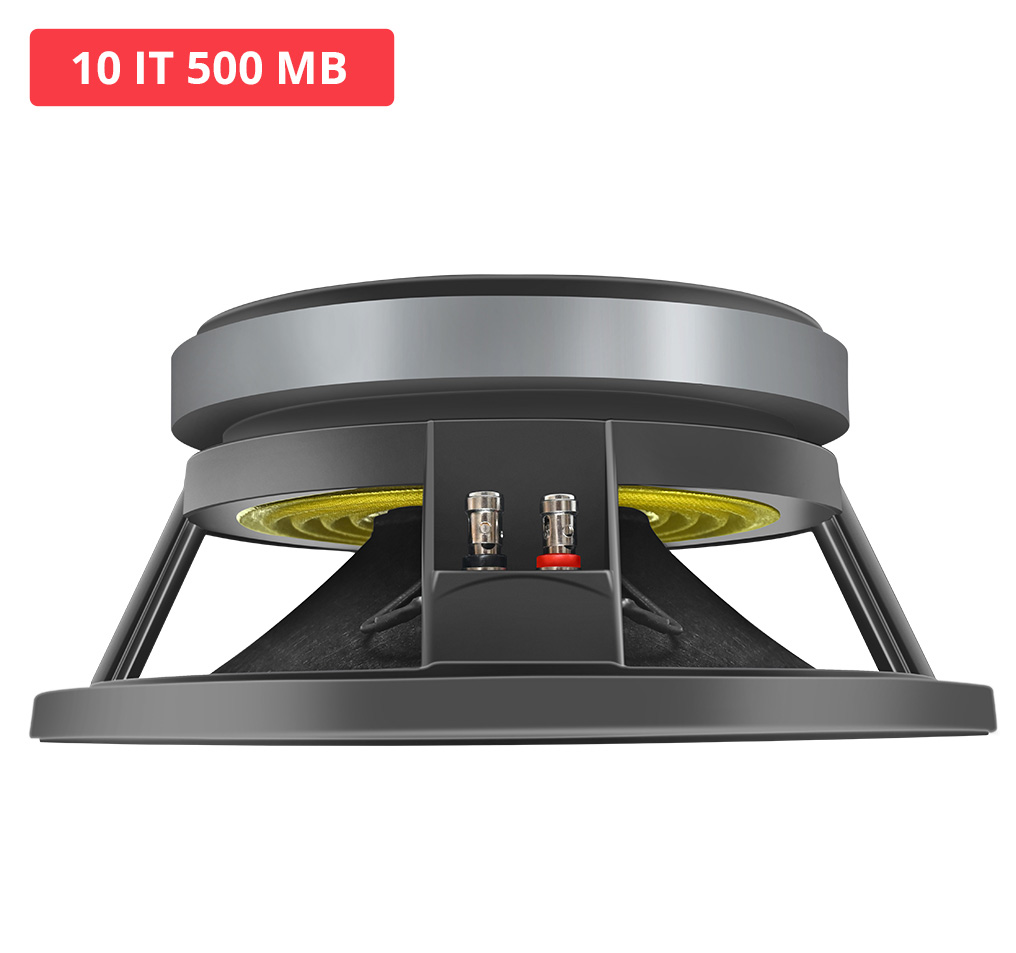

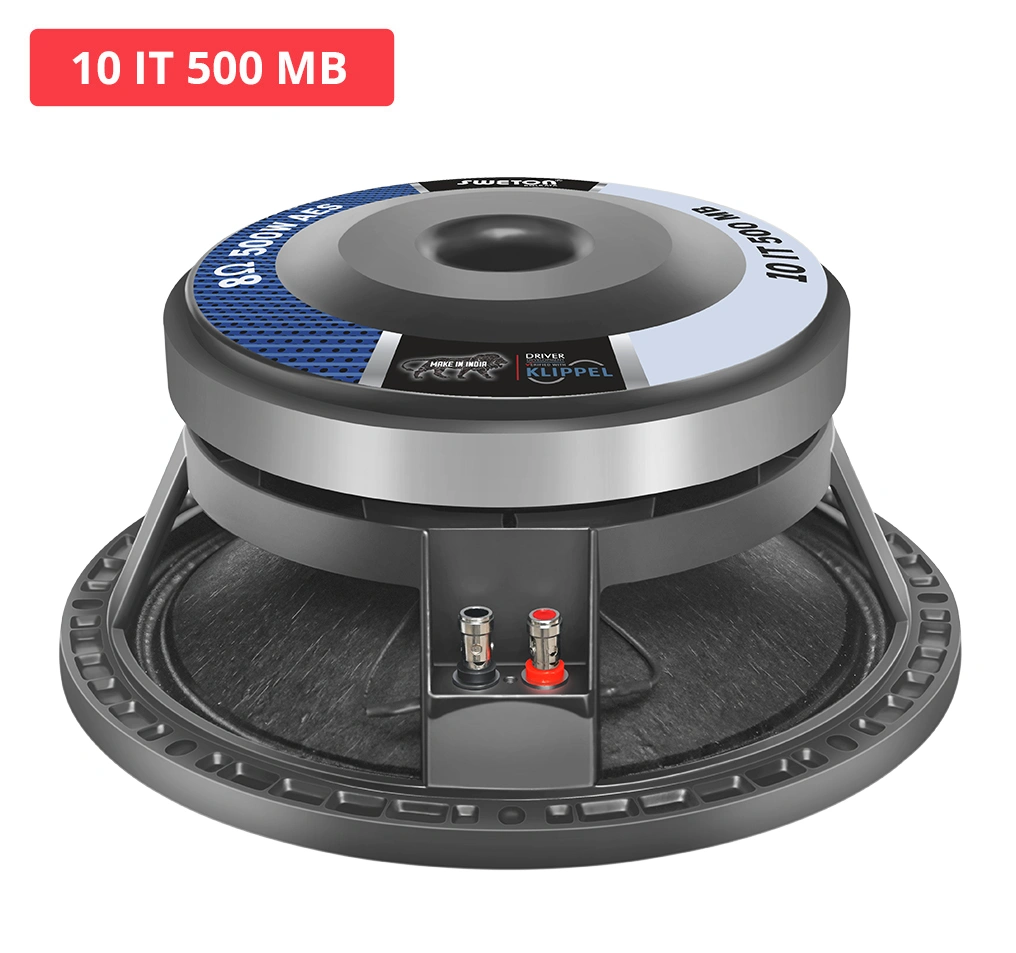

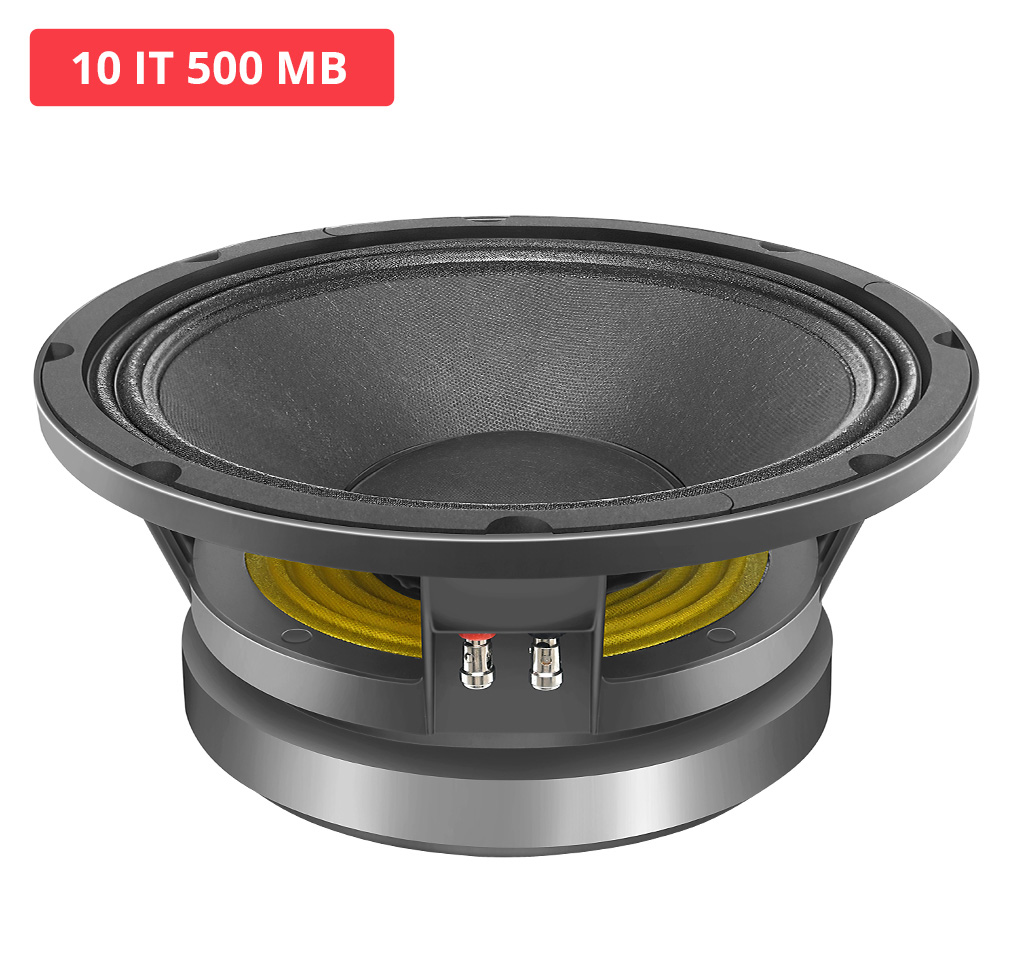

10 IT 500 MB
This transducer in 3 Inch voice coil makes it one of the sharpest Mid Bass transducers with lower bass element which makes the sound balanced in its category. Tonal quality is very sharp and is advisable to use this in large format Line Array or Point source. Suitable for Bass Reflex/Ported Enclosures.
Key Features
- Program Power : 1000 W
- Voice Coil Diameter : 76.2 mm (3 in)

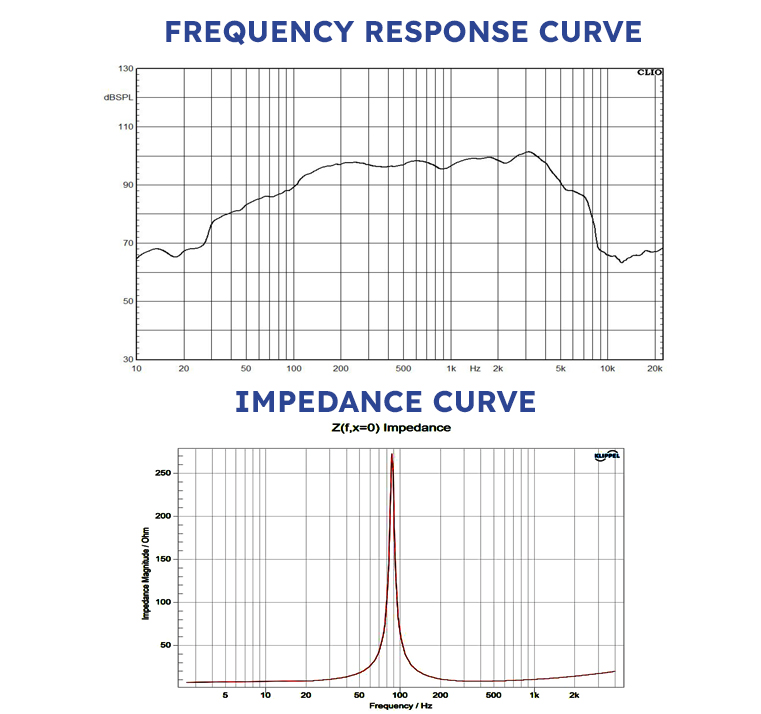

- Response : 87-5000 Hz
- Sensitivity 1W/1M : 97 dB
- Nominal Diameter 261 mm
- Nominal Impedence 8 Ω
- Nominal Power Handling(AES) 500 W
- Program Power 1000 W
- Sensitivity (1W/1m) 97 dB
- Frequency Range 87-5000 Hz
- Magnet Material Ferrite
- Voice Coil Diameter 76.2 mm ( 3 in)
- Winding Material CCAW
- Former Material Glass Fibre
- Winding Type In/Out
- Resonant Frequency (FS) 87 Hz
- DC Resistance (Re) 6.8 Ω
- Electrical Q (Qes) 0.38
- Mechanical Q (Qms) 14.96
- Total Q (Qts) 0.37
- Compliance Equivalent Volume (vas) 18.74 Ltrs
- Peak Diaphragm Displacement Volume (Vd) 0.05 Ltrs
- Effective Surface Area of Cone (Sd) 363.1 cm^2
- Reference Efficiency (ƞo) 3.17%
- Moving Mass including air load (Mms) 34.2 gms
- Motor Strength (Bl) 18.52 T-m
- Voice Coil Inductance @ 1 KHz (Le) 0.35 mH
- Voice Coil Overhang (Xmax) ±1.50 mm
- Efficiency Bandwith Product (EBP) 228 Hz
- Overall Diameter 261 mm
- Bolt Circle Diameter 248 mm
- Baffle Cutout Diameter 234 mm
- Depth 110 mm
- Flange and Gasket Thickness 14 mm
- Gross Weight 8.80 KG
- Recone Kit Number REC10IT500MID
