8Ω Datasheet

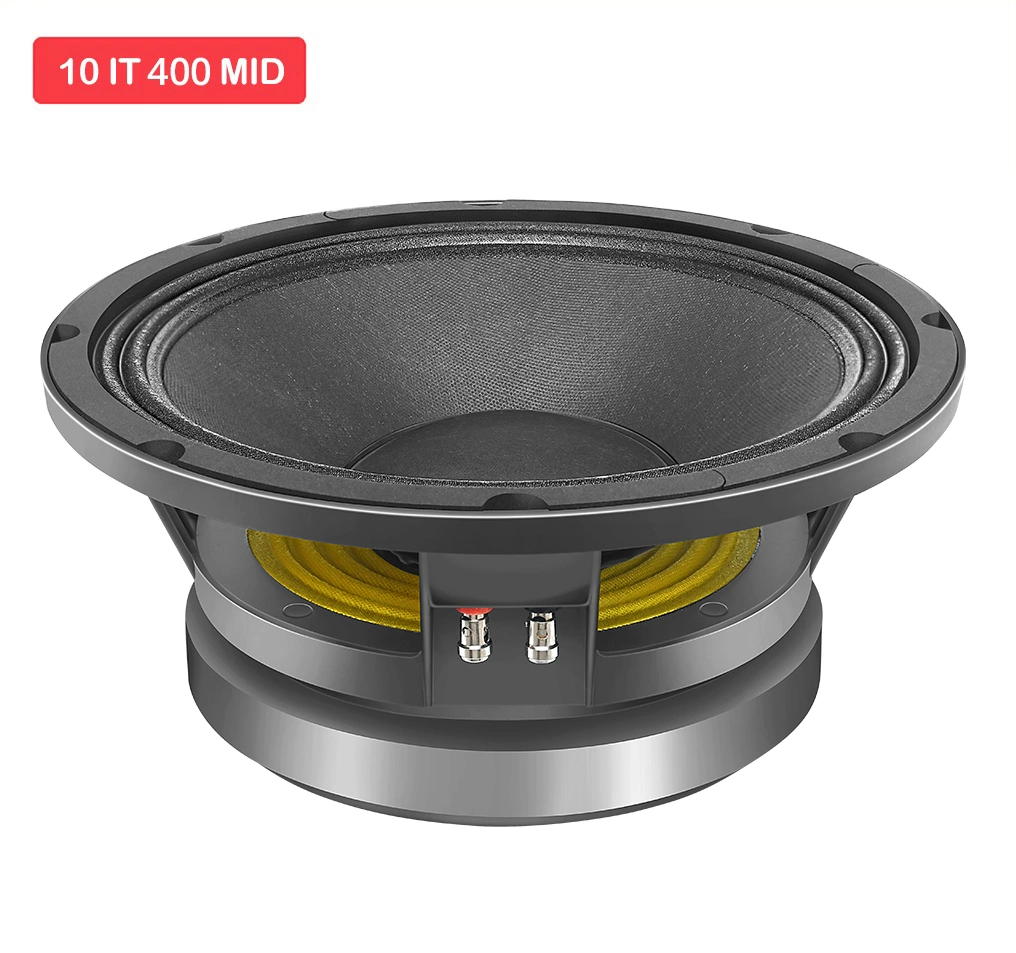

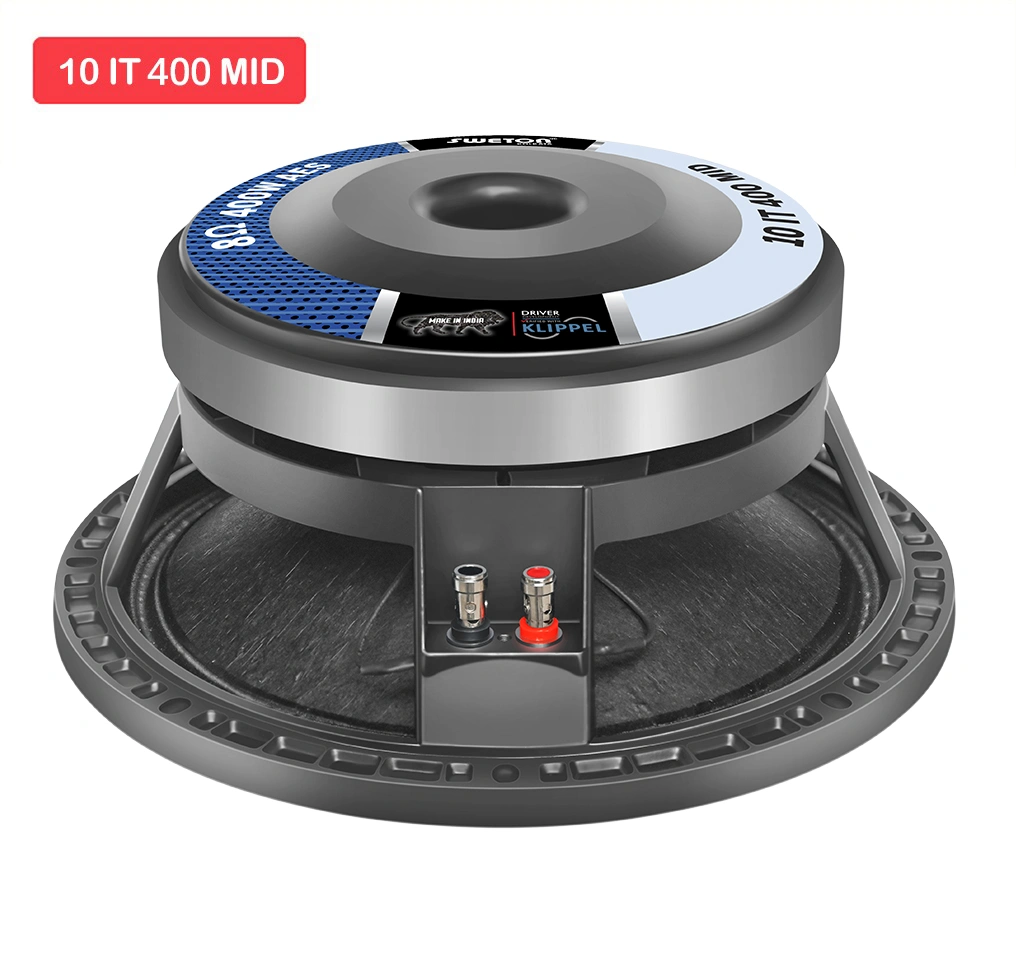

10 IT 400 MID

This transducer in 3 Inch voice coil (underhung design) makes it one of the sharpest Mid-range transducers in its category.

Tonal quality is crystal clear & very sharp and is advisable to use this in Line Array or Point source. Suitable for Bass Reflex/Ported Enclosure.

Key Features

  • Program Power : 800 W
  • Voice Coil Diameter : 76.2 mm (3 in)
  • Response : 89-7000 Hz
  • Sensitivity 1W/1M : 97 dB
Product Enquiry
  • Nominal Diameter 261 mm
  • Nominal Impedence 8 Ω
  • Nominal Power Handling(AES) 400 W
  • Program Power 800 W
  • Sensitivity (1W/1m) 97 dB

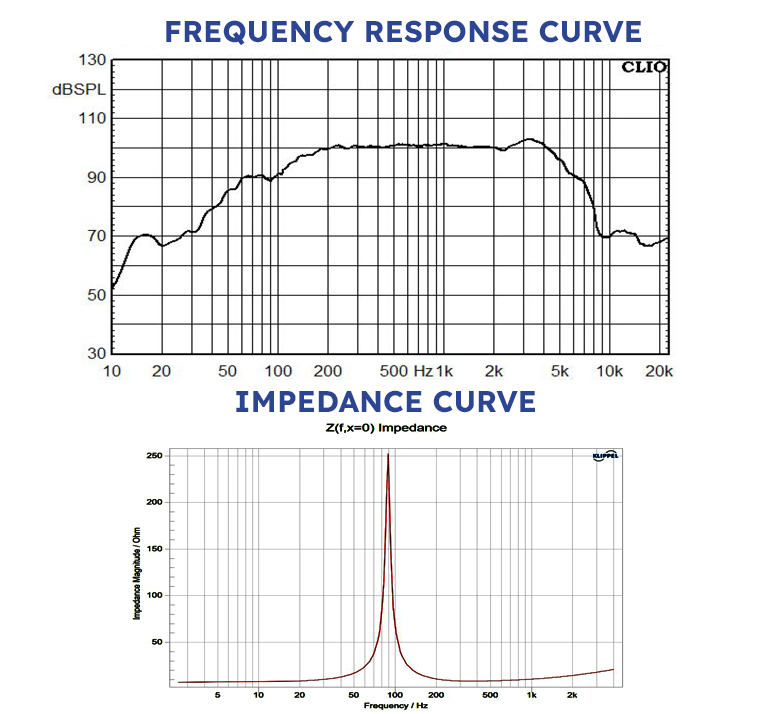

  • Frequency Range 89-7000 Hz
  • Magnet Material Ferrite
  • Voice Coil Diameter 76.2 mm ( 3 in)
  • Winding Material CCAW
  • Former Material Glass Fibre
  • Winding Type In/Out
  • Resonant Frequency (FS) 89 Hz
  • DC Resistance (Re) 7 Ω
  • Electrical Q (Qes) 0.41
  • Mechanical Q (Qms) 14.4
  • Total Q (Qts) 0.4
  • Compliance Equivalent Volume (vas) 19 Ltrs
  • Peak Diaphragm Displacement Volume (Vd) 0.05 Ltrs
  • Effective Surface Area of Cone (Sd) 363.1 cm^2
  • Reference Efficiency (ƞo) 2.97%
  • Moving Mass including air load (Mms) 34 gms
  • Motor Strength (Bl) 17.95 T-m
  • Voice Coil Inductance @ 1 KHz (Le) 0.33 mH
  • Efficiency Bandwith Product (EBP) 217 Hz
  • Voice Coil Overhang (Xmax) ±1.50 mm
  • Overall Diameter 261 mm
  • Bolt Circle Diameter 248 mm
  • Baffle Cutout Diameter 234 mm
  • Depth 110 mm
  • Flange and Gasket Thickness 14 mm
  • Gross Weight 7.76 Kgs
  • Recone Kit Number REC10IT400MID
