8 Ω
CD 160
Key Features
- Program Power : 160 Watts
- Voice Coil Diameter : 44 mm (1.74 in)
- Sensitivity 1W/1M : 106 dB
- Response : 1000- 18000 Hz
- Throat Diameter 25 mm (1 in)
- Nominal Impedence 8 Ω
- Nominal Power Handling(AES) 80 Watts
- Program Power 160 Watts
- Sensitivity (1W/1m) 106 dB

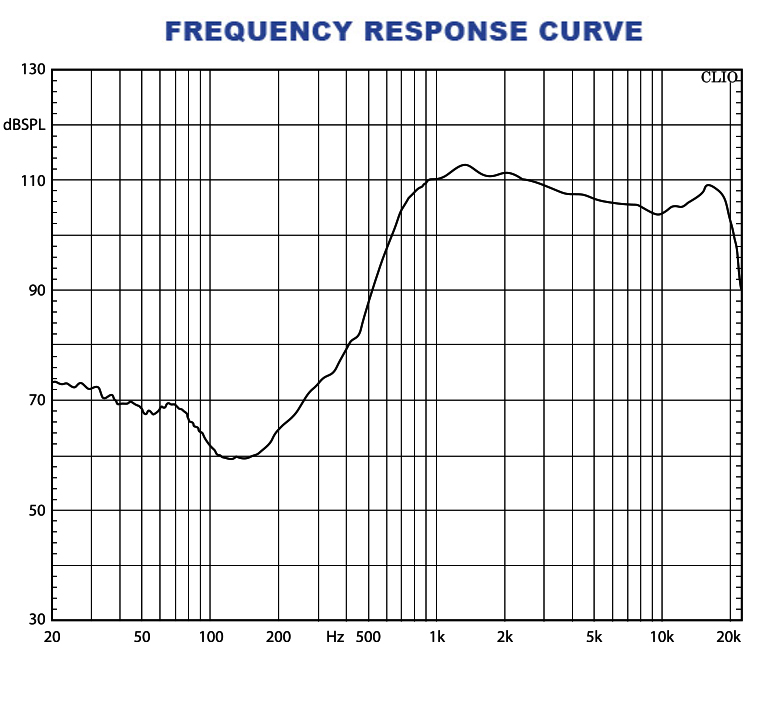

- Frequency Range 1000-18000 Hz
- Diaphragm Material Titanium
- Magnet Material Ferrite Ring
- Voice Coil Diameter 44 mm (1.74 in)
- Winding Material Copper Clad Aluminium
- Recommended Crossover 1600 Hz
- Overall Diameter 120 mm (4.72 in)
- Bolt Circle Diameter 77 mm (3 in)
- Depth 53 mm ( 2.09 in)
- Gross Weight 1.83 Kgs
- Bolt Hole Diameter 2 x 6 mm (2 x 0.24 in)
- Replacement Diaphragm HF160FE
