Products
4 Ω

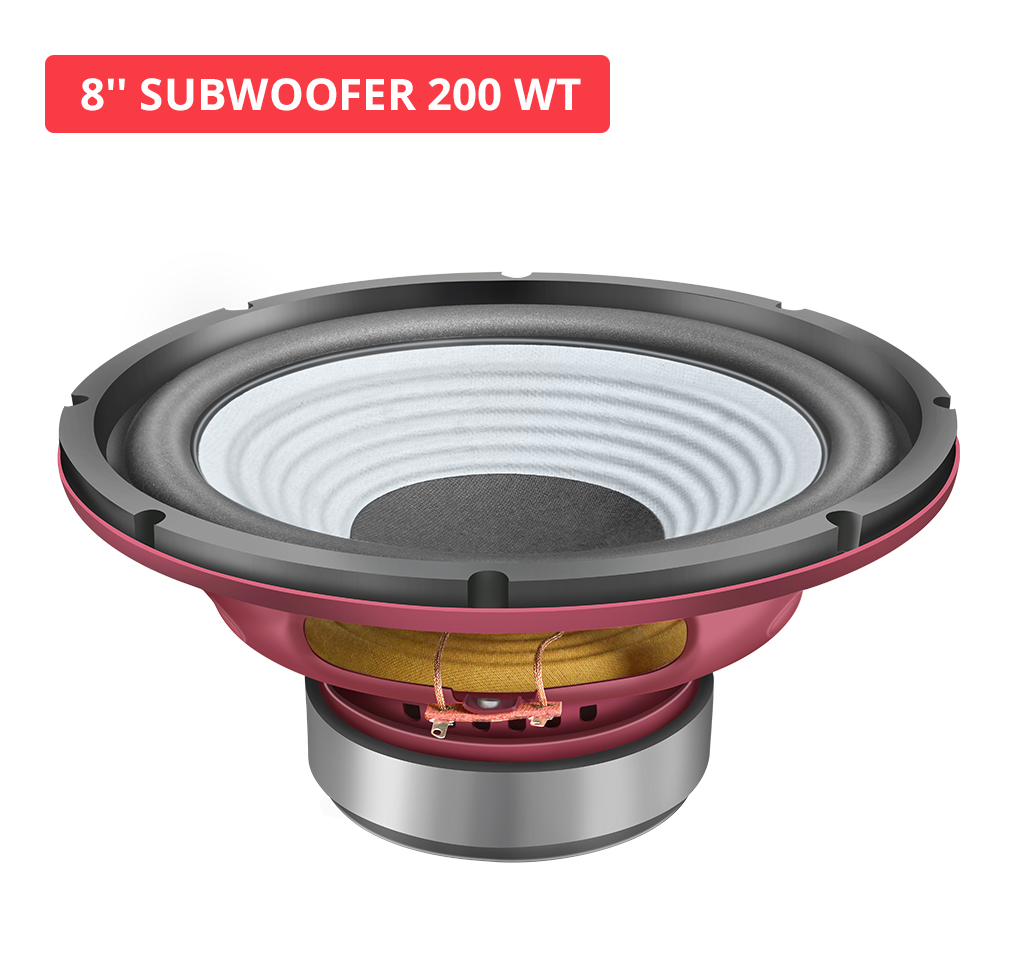

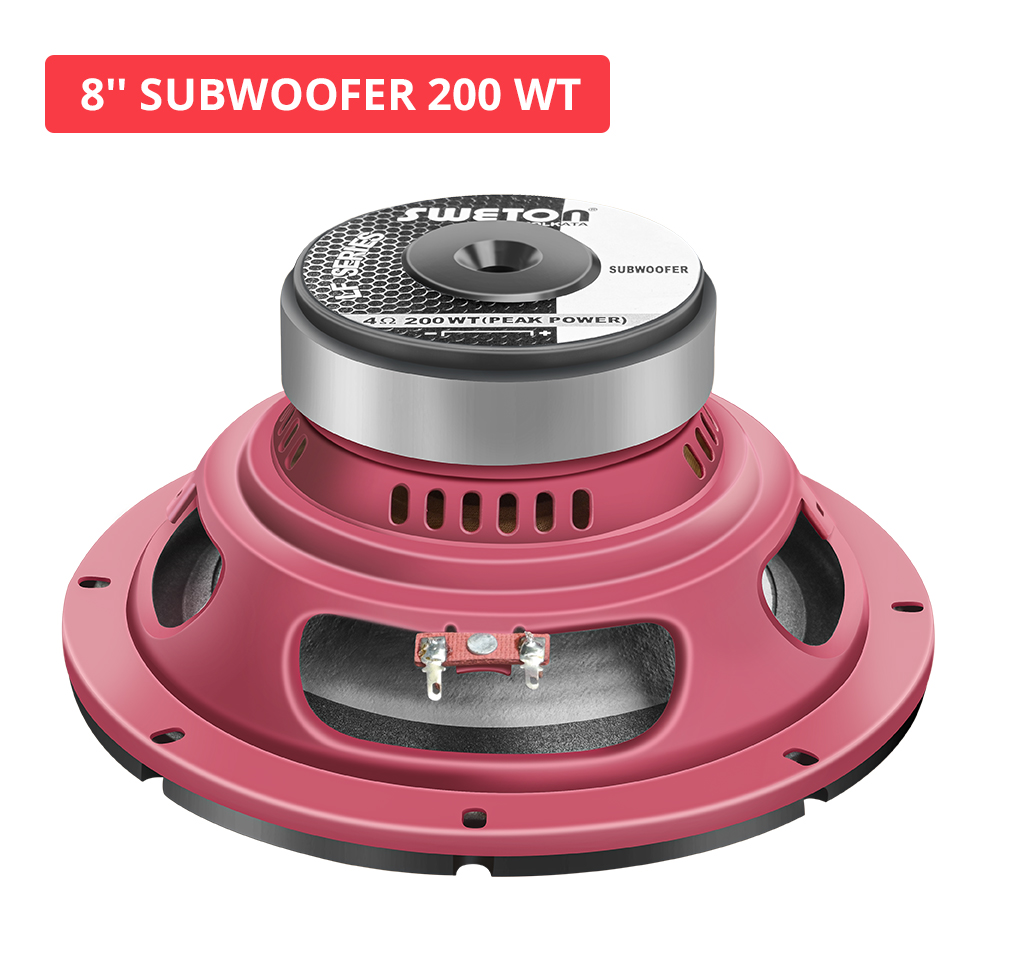

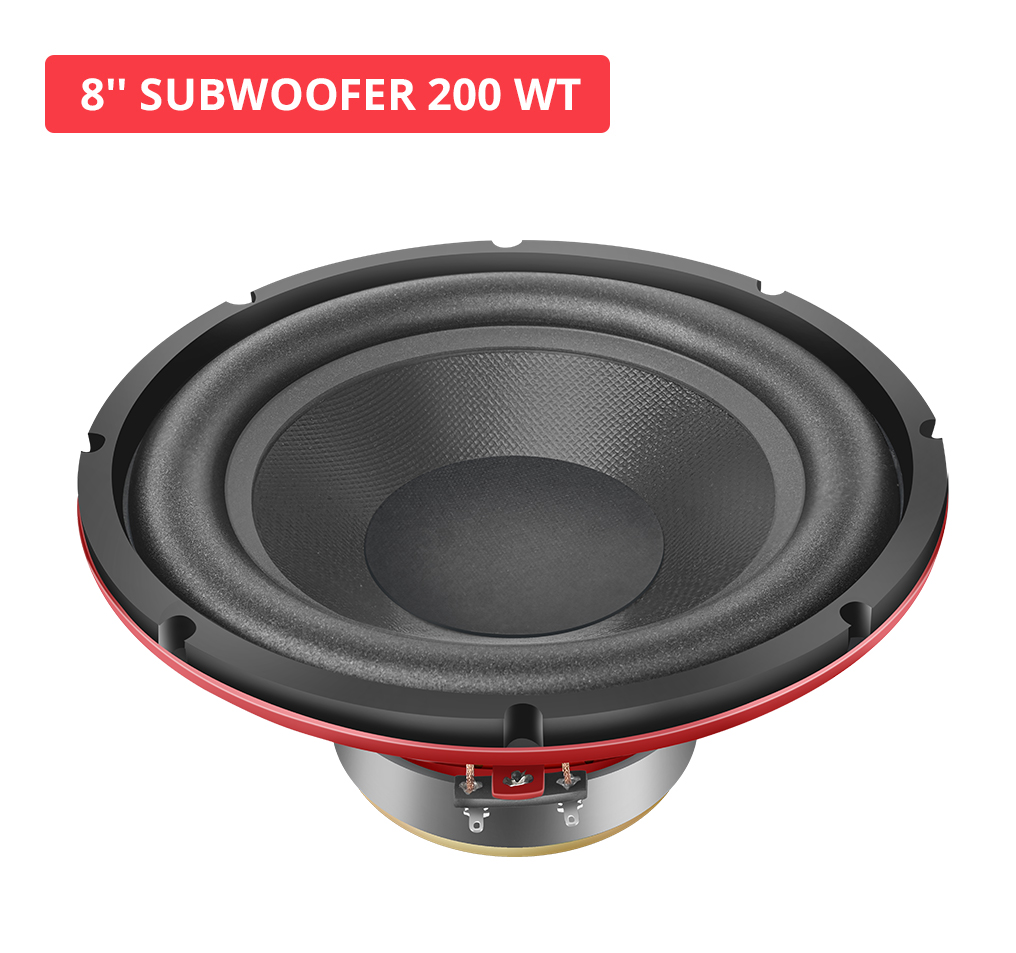

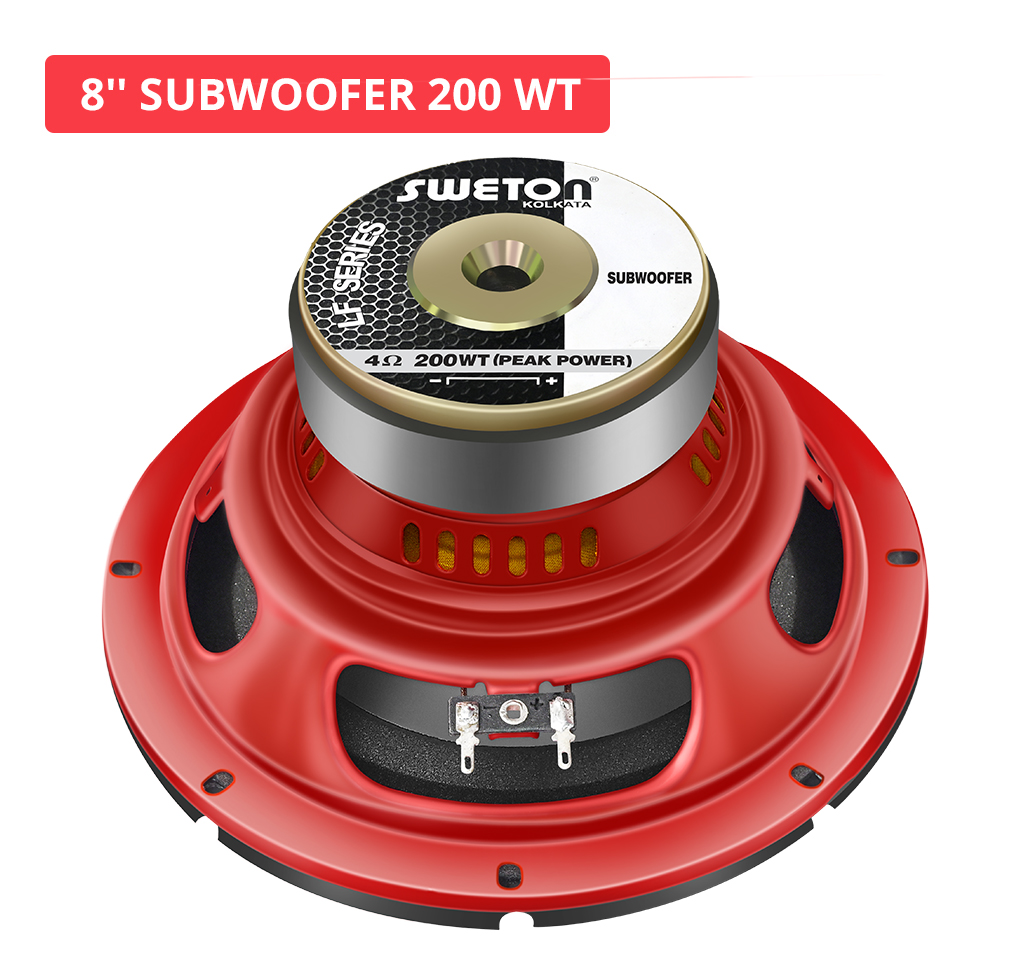

8'' SUBWOOFER 200 WT
Key Features
- Program Power : 100 W
- Voice Coil Diameter : 35 mm
- Response : 62-4.6K Hz
- Sensitivity 1W/1M : 88 dB
- Nominal Diameter 210 mm
- Nominal Impedence 4.0 Ω
- Nominal Power Handling(AES) 50 W
- Program Power 200 W
- Sensitivity (1W/1m) 88 dB
- Frequency Range 62-4.6K Hz
- Magnet Material Ferrite
- Voice Coil Diameter 35 mm
- Winding Material COPPER
- Former Material KAPTON
- Winding Type Outside
- Resonant Frequency (FS) 62 Hz
- DC Resistance (Re) 3.5 Ω
- Electrical Q (Qes) 0.99
- Mechanical Q (Qms) 12.58
- Total Q (Qts) 0.91
- Compliance Equivalent Volume (vas) 17.67 Ltrs
- Peak Diaphragm Displacement Volume (Vd) 0.12 Ltrs
- Effective Surface Area of Cone (Sd) 227 cm^2
- Reference Efficiency (ƞo) 0.42%
- Moving Mass including air load (Mms) 26.54 gms
- Motor Strength (Bl) 6.07 T-m
- Voice Coil Inductance @ 1 KHz (Le) 0.57 mH
- Efficiency Bandwith Product (EBP) 63 Hz
- Voice Coil Overhang (Xmax) ±5.31 mm
- Overall Diameter 210 mm
- Baffle Cutout Diameter 180 mm
- Depth 100 mm
- Flange and Gasket Thickness 12 mm
- Recone Kit Number REC8INCHSUB
