Products
4 Ω

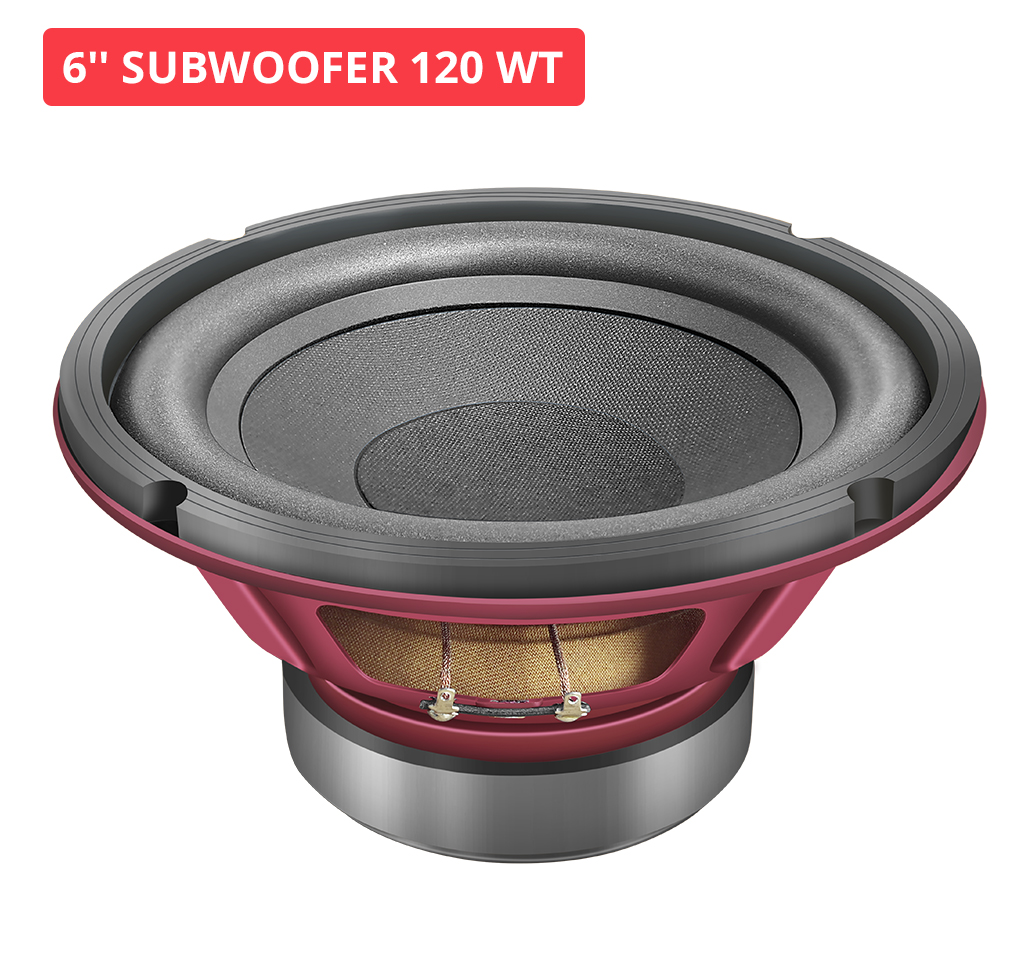

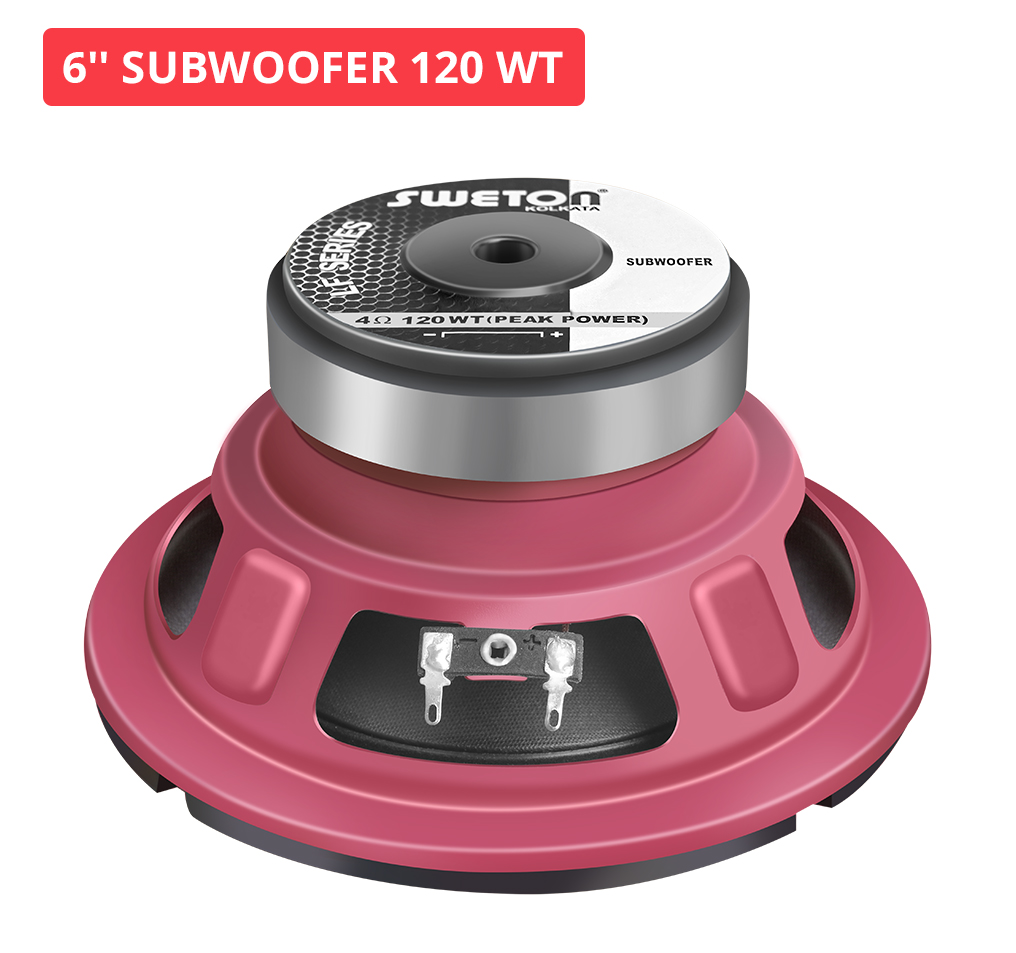

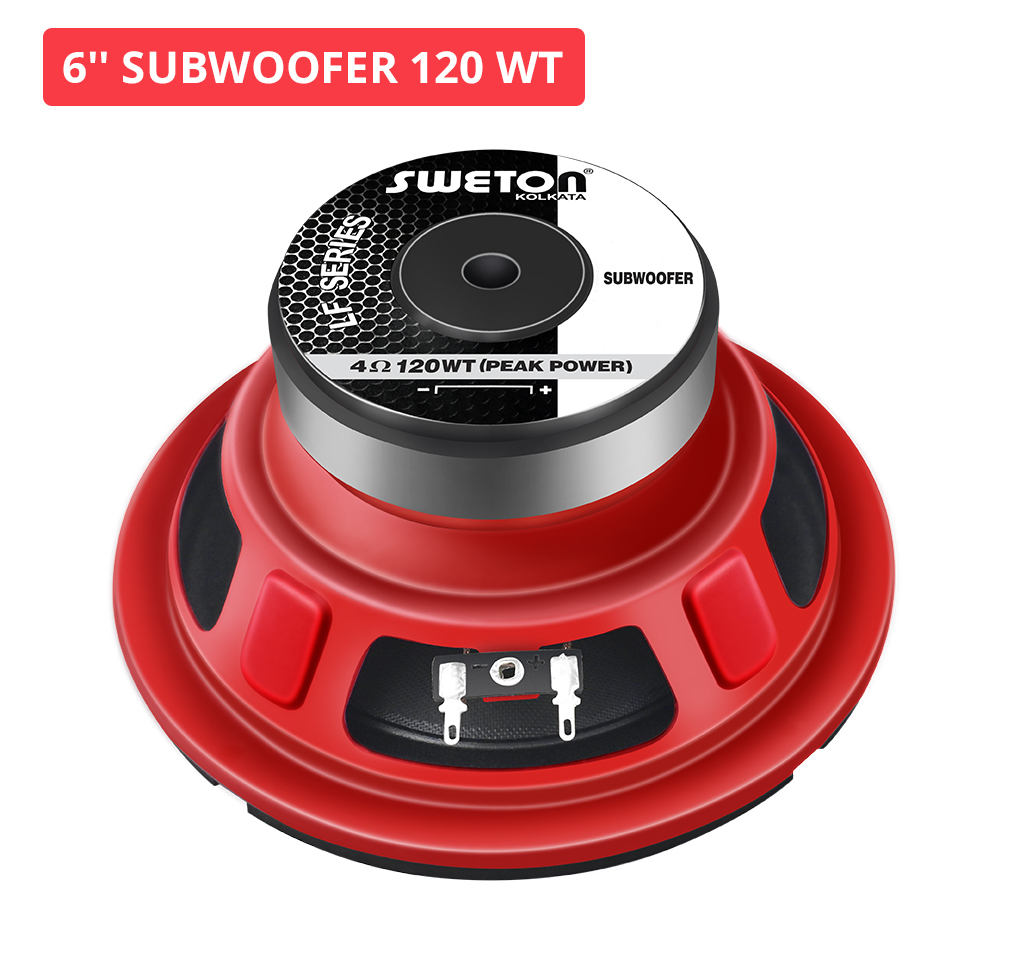

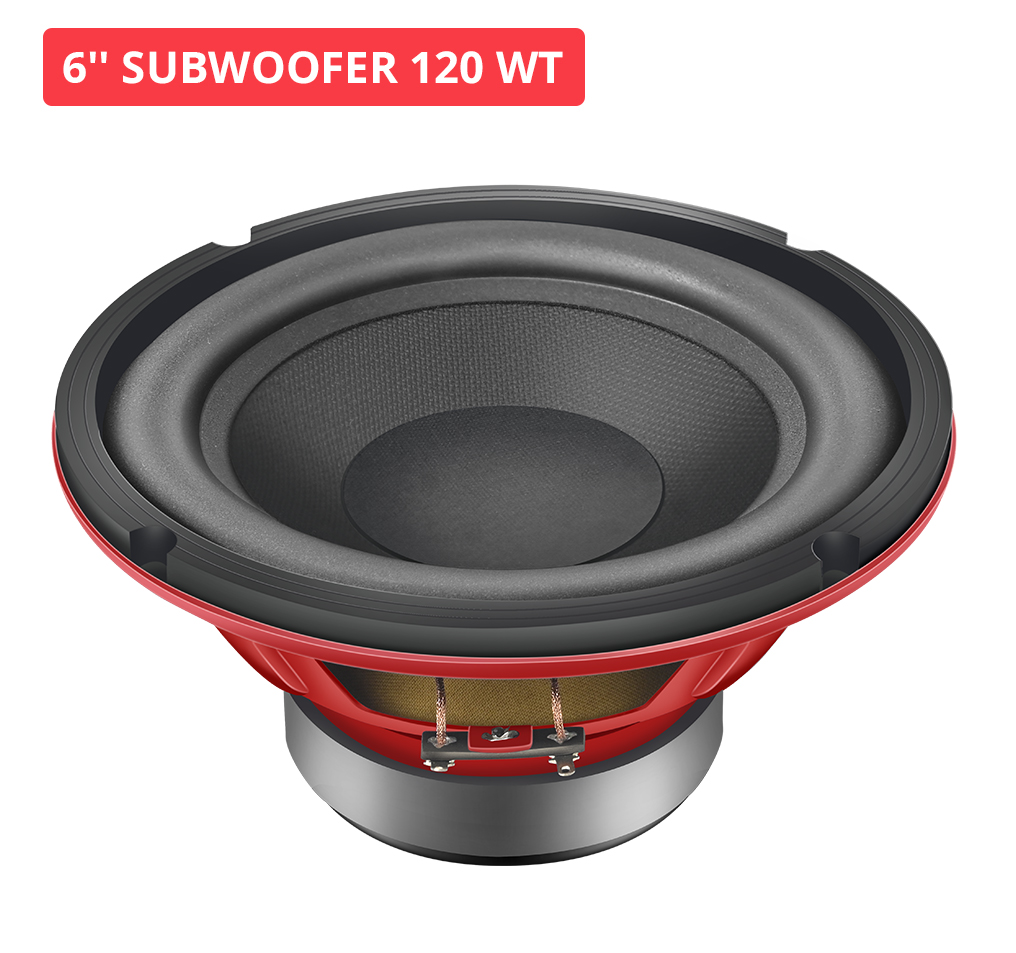

6'' SUBWOOFER 120 WT
Key Features
- Program Power : 60 W
- Voice Coil Diameter : 25.50 mm
- Response : 76-7.7K Hz
- Sensitivity 1W/1M : 84 dB
- Nominal Diameter 170 mm
- Nominal Impedence 4.0 Ω
- Nominal Power Handling(AES) 30 W
- Program Power 120 W
- Sensitivity (1W/1m) 84 dB
- Frequency Range 76-7.7K Hz
- Magnet Material Ferrite
- Voice Coil Diameter 25.50 mm
- Winding Material COPPER
- Former Material KAPTON
- Winding Type Outside
- Resonant Frequency (FS) 76 Hz
- DC Resistance (Re) 3.2 Ω
- Electrical Q (Qes) 1.69
- Mechanical Q (Qms) 11.02
- Total Q (Qts) 1.46
- Compliance Equivalent Volume (vas) 5.53 Ltrs
- Peak Diaphragm Displacement Volume (Vd) 0.08 Ltrs
- Effective Surface Area of Cone (Sd) 143 cm^2
- Reference Efficiency (ƞo) 0.14%
- Moving Mass including air load (Mms) 22.77 gms
- Motor Strength (Bl) 4.54 T-m
- Voice Coil Inductance @ 1 KHz (Le) 0.44 mH
- Efficiency Bandwith Product (EBP) 45 Hz
- Voice Coil Overhang (Xmax) ±5.88 mm
- Overall Diameter 170 mm
- Baffle Cutout Diameter 146 mm
- Depth 87 mm
- Flange and Gasket Thickness 11 mm
- Recone Kit Number REC6INCHSUB
