4 Ω

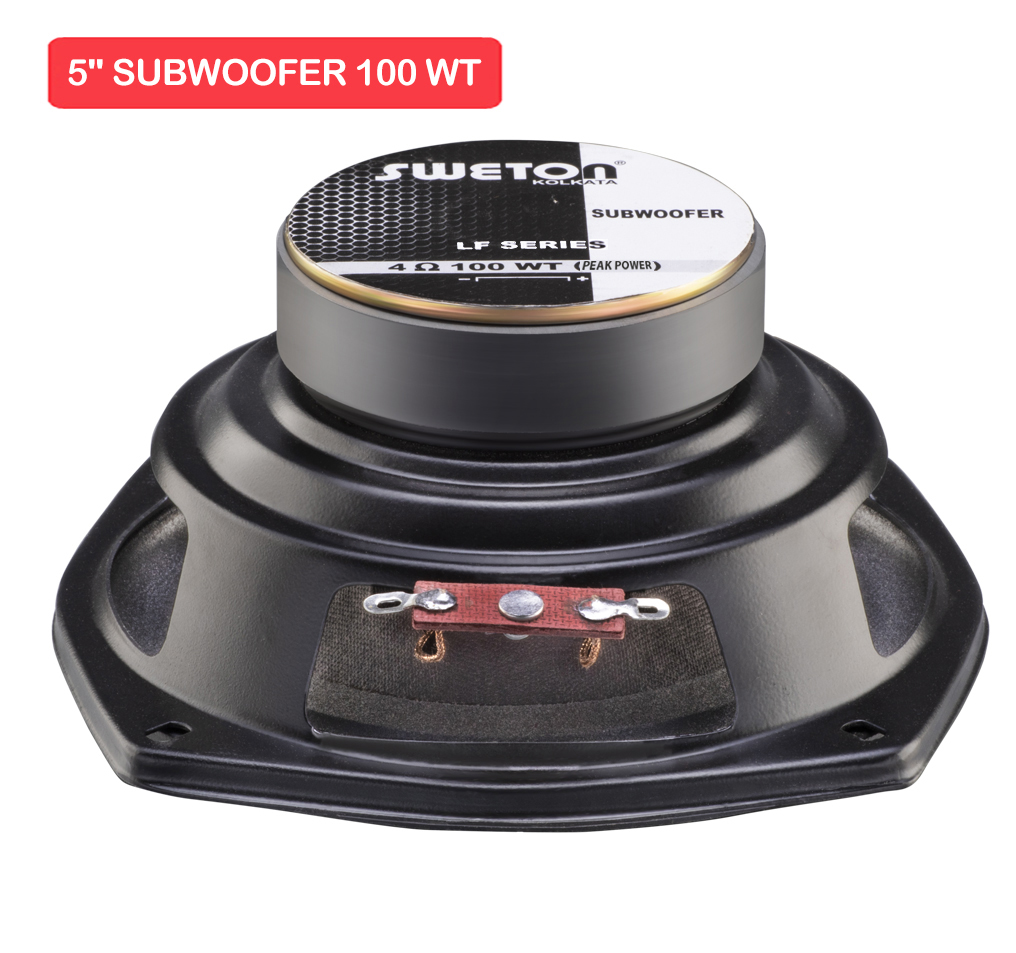

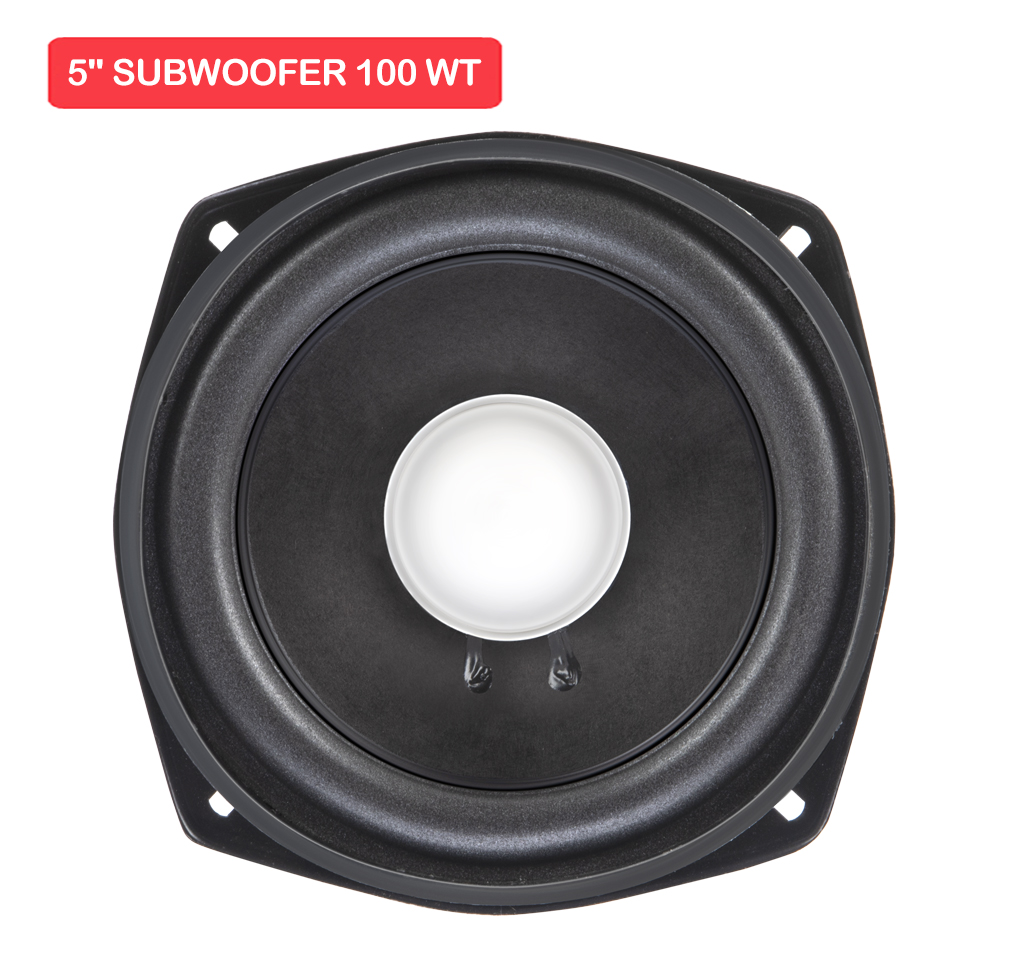

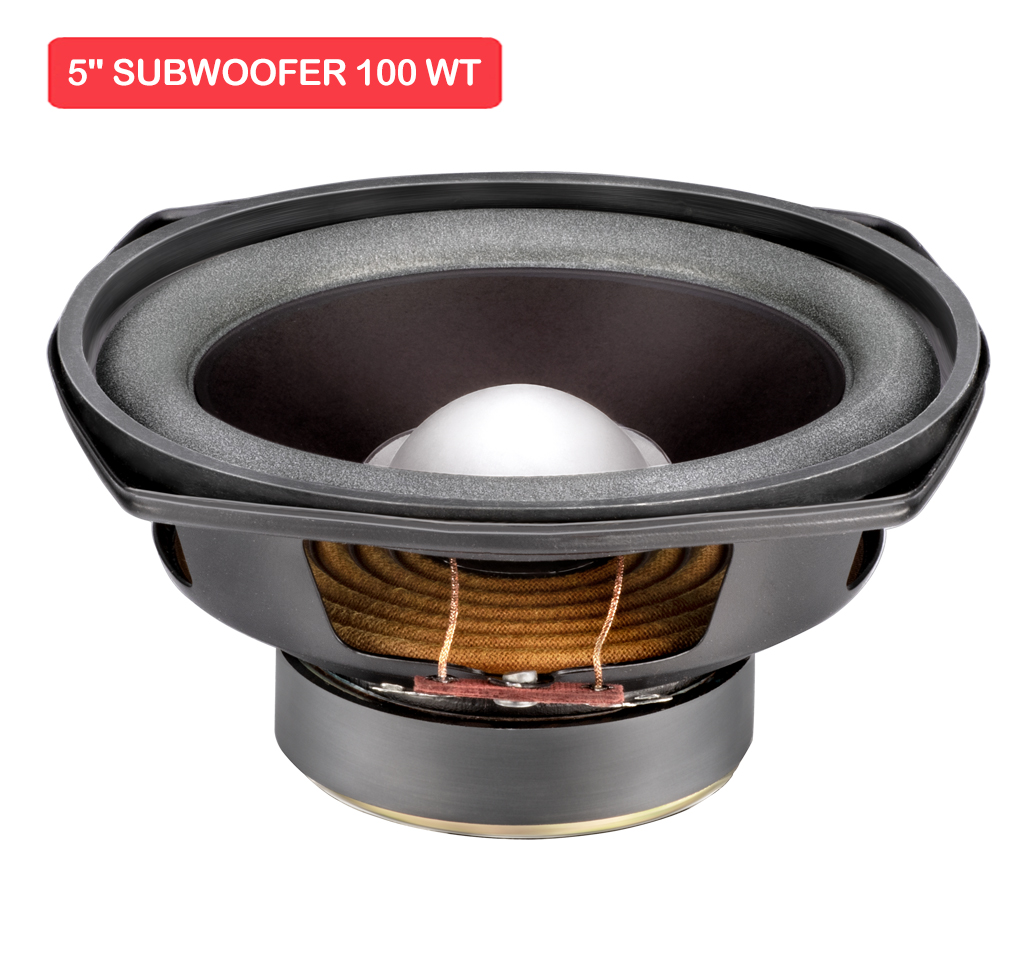

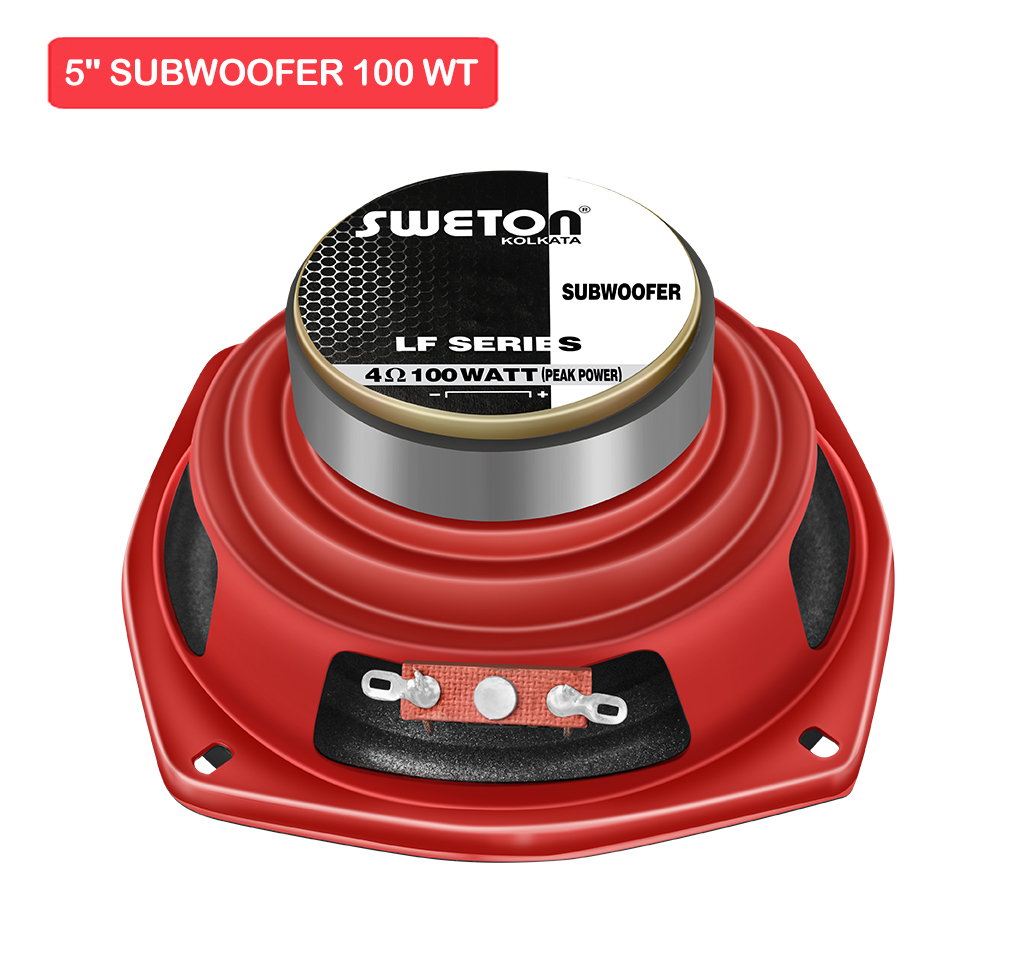

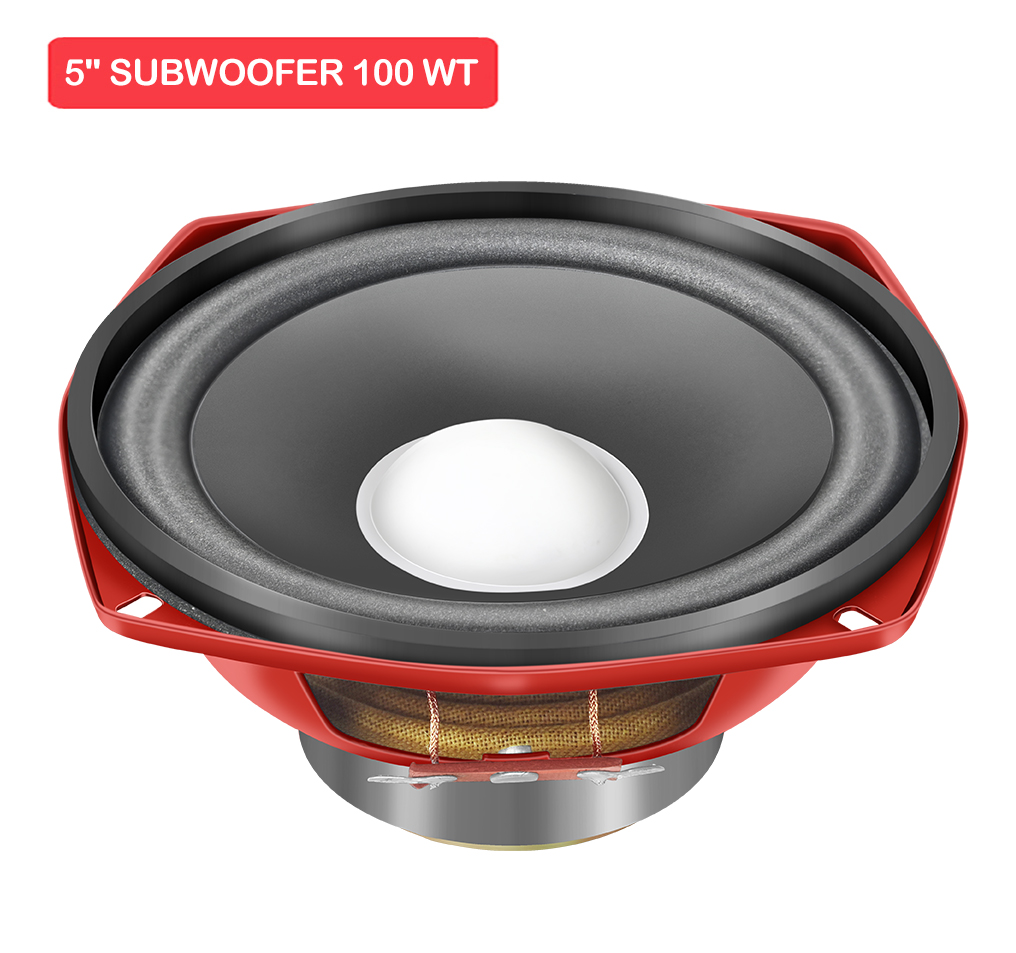

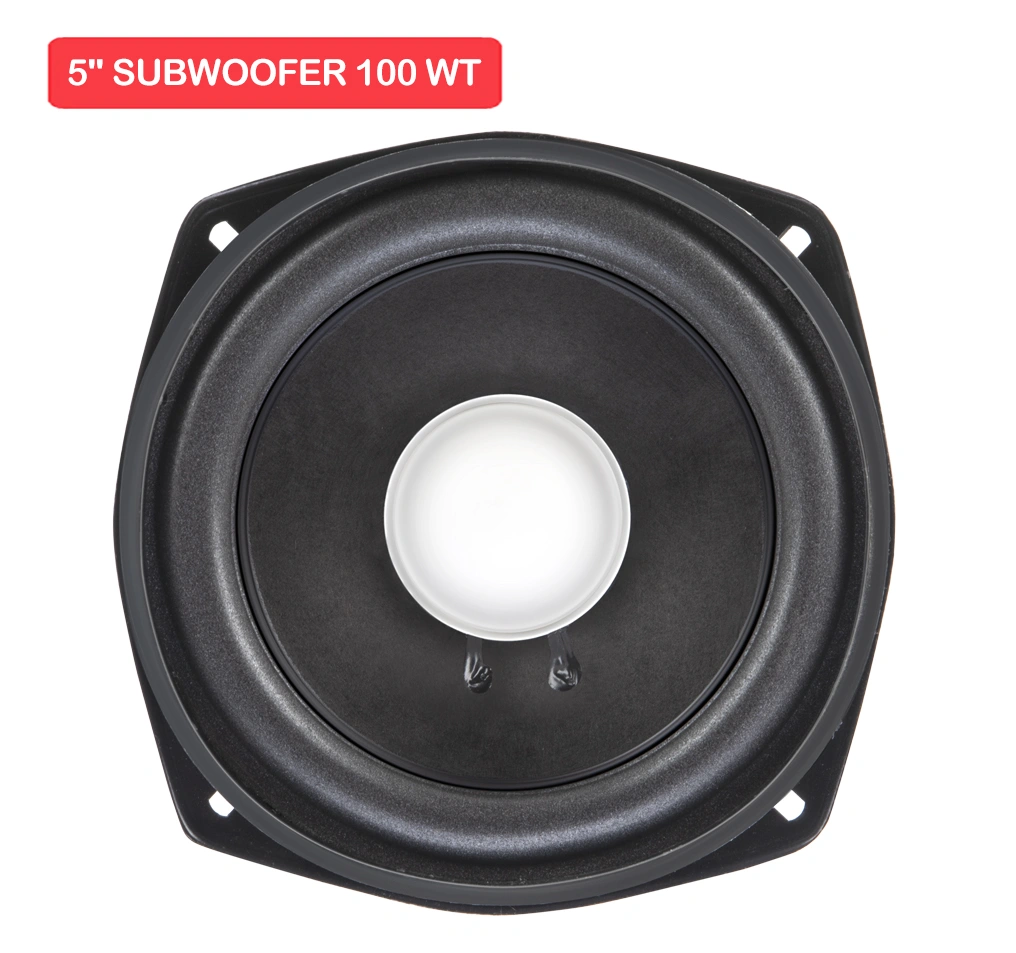

5" SUBWOOFER 100 WT
Key Features
- Program Power : 50 W
- Voice Coil Diameter : 25.40 mm
- Response : 79-7K Hz
- Sensitivity 1W/1M : 81 dB
- Nominal Diameter 135 mm
- Nominal Impedence 4.0 Ω
- Nominal Power Handling(AES) 25 W
- Program Power (AES) 100 W
- Sensitivity (1W/1m) 81 dB
- Frequency Range 79-7K Hz
- Magnet Material Ferrite
- Voice Coil Diameter 25.40 mm
- Winding Material COPPER
- Former Material SV COATED KRAFT
- Winding Type Outside
- Resonant Frequency (FS) 79 Hz
- DC Resistance (Re) 3.1 Ω
- Electrical Q (Qes) 2.41
- Mechanical Q (Qms) 14.75
- Total Q (Qts) 2.07
- Compliance Equivalent Volume (vas) 4.08 Ltrs
- Peak Diaphragm Displacement Volume (Vd) 0.06 Ltrs
- Effective Surface Area of Cone (Sd) 95 cm^2
- Reference Efficiency (ƞo) 0.08%
- Moving Mass including air load (Mms) 12.52 gms
- Motor Strength (Bl) 2.83 T-m
- Voice Coil Inductance @ 1 KHz (Le) 0.66 mH
- Efficiency Bandwith Product (EBP) 33 Hz
- Voice Coil Overhang (Xmax) ±6.18 mm
- Overall Diameter 135 mm
- Baffle Cutout Diameter 125 mm
- Depth 63.5 mm
- Flange and Gasket Thickness 8 mm
- Recone Kit Number REC5INCHSUB
