Products
4 Ω

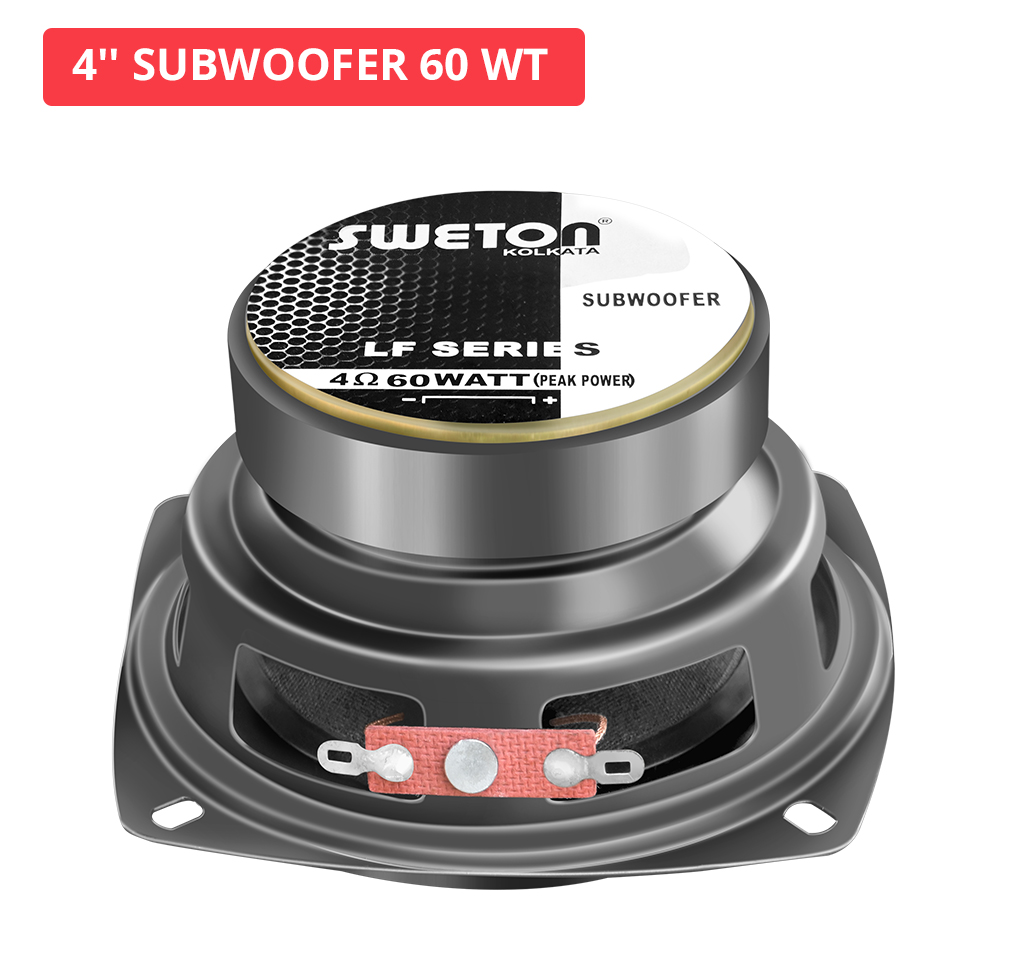

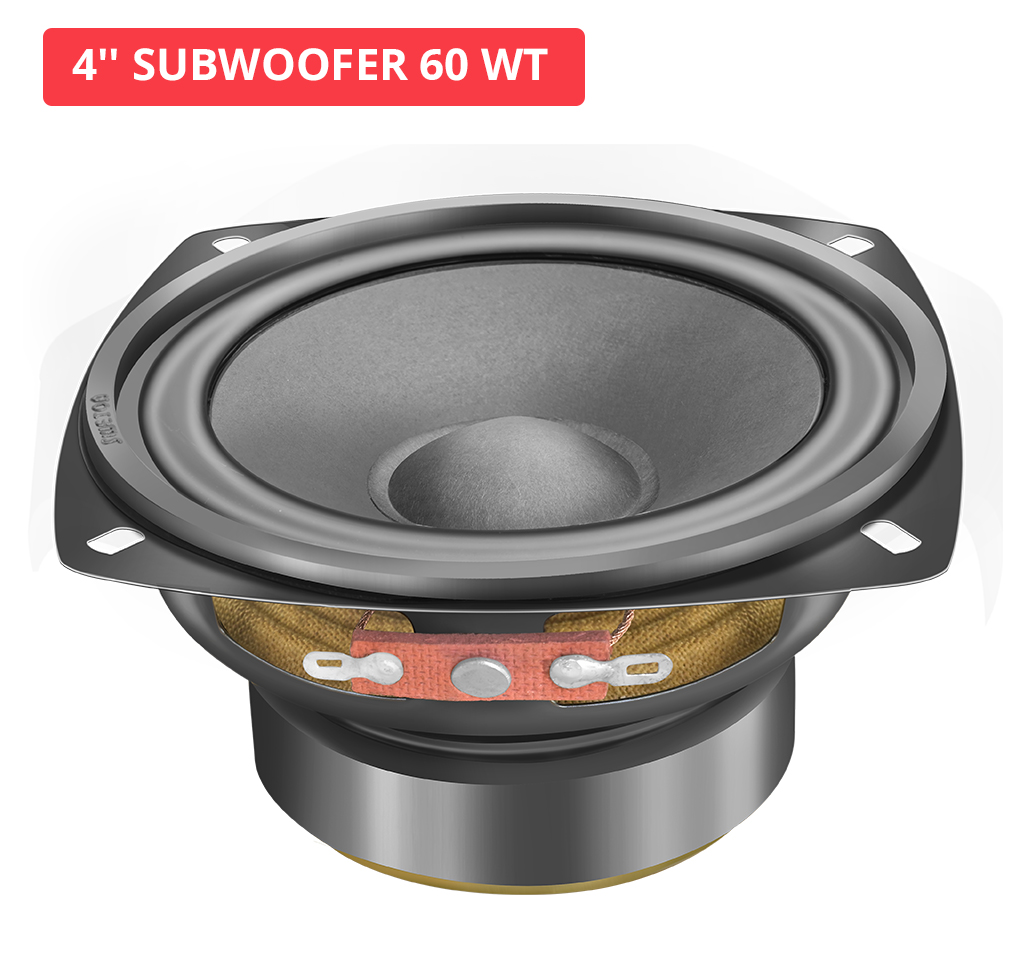

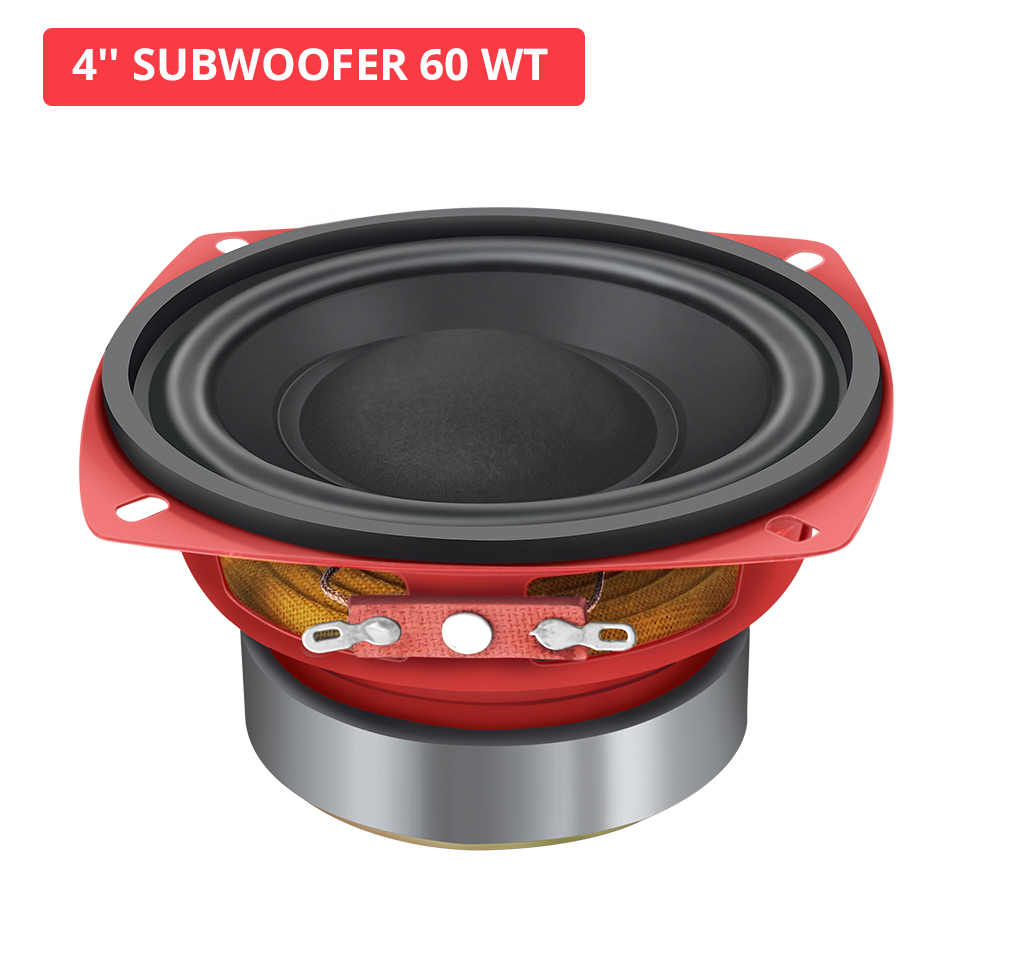

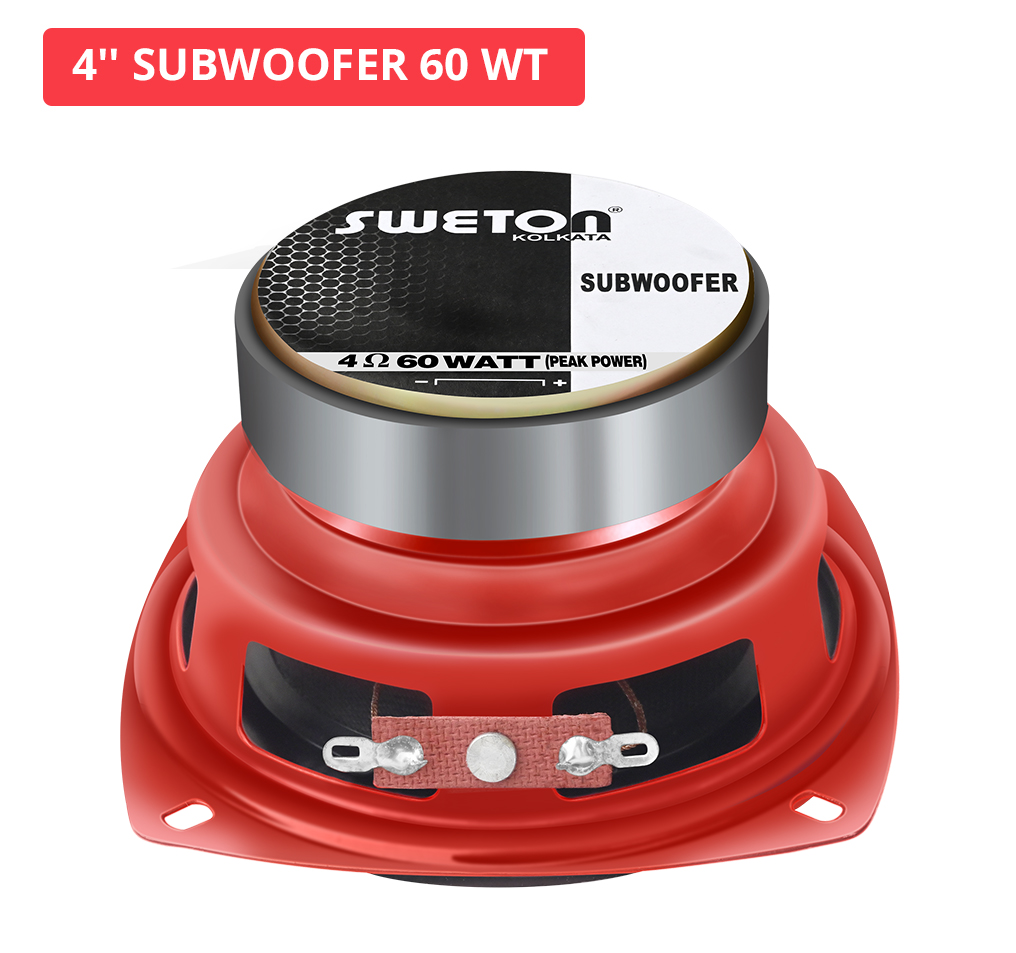

4'' SUBWOOFER 60 WT
Key Features
- Program Power : 30 W
- Voice Coil Diameter : 25.40 mm
- Sensitivity 1W/1M : 78 db
- Response : 106- 3K Hz
- Nominal Diameter 106 mm
- Nominal Impedence 4.0 Ω
- Nominal Power Handling(AES) 15 W
- Program Power (AES) 60 W
- Sensitivity (1W/1m) 78 dB
- Frequency Range 106-3K Hz
- Magnet Material Ferrite
- Voice Coil Diameter 25.40 mm
- Winding Material COPPER
- Former Material SV COATED KRAFT
- Winding Type Outside
- Resonant Frequency (FS) 106 Hz
- DC Resistance (Re) 3.4 Ω
- Electrical Q (Qes) 2.89
- Mechanical Q (Qms) 4.94
- Total Q (Qts) 1.83
- Compliance Equivalent Volume (vas) 1.12 Ltrs
- Peak Diaphragm Displacement Volume (Vd) 0.02 Ltrs
- Effective Surface Area of Cone (Sd) 56.75 cm^2
- Reference Efficiency (ƞo) 0.04%v
- Moving Mass including air load (Mms) 9.04 gms
- Motor Strength (Bl) 2.66 T-m
- Voice Coil Inductance @ 1 KHz (Le) 0.57 mH
- Efficiency Bandwith Product (EBP) 36 Hz
- Voice Coil Overhang (Xmax) ±4.19 mm
- Overall Diameter 106 mm
- Baffle Cutout Diameter 95 mm
- Depth 56.5 mm
- Flange and Gasket Thickness 6 mm
- Recone Kit Number REC4INCHSUB
