4 Ω

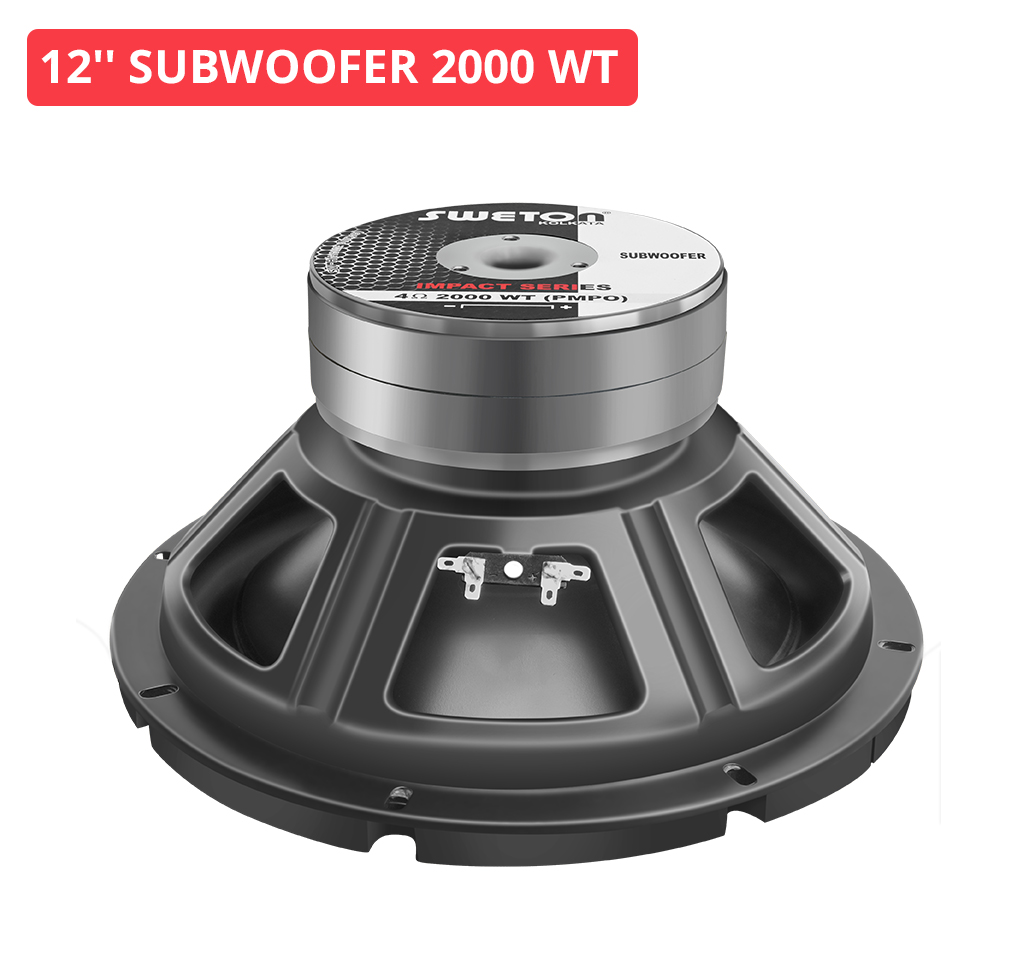

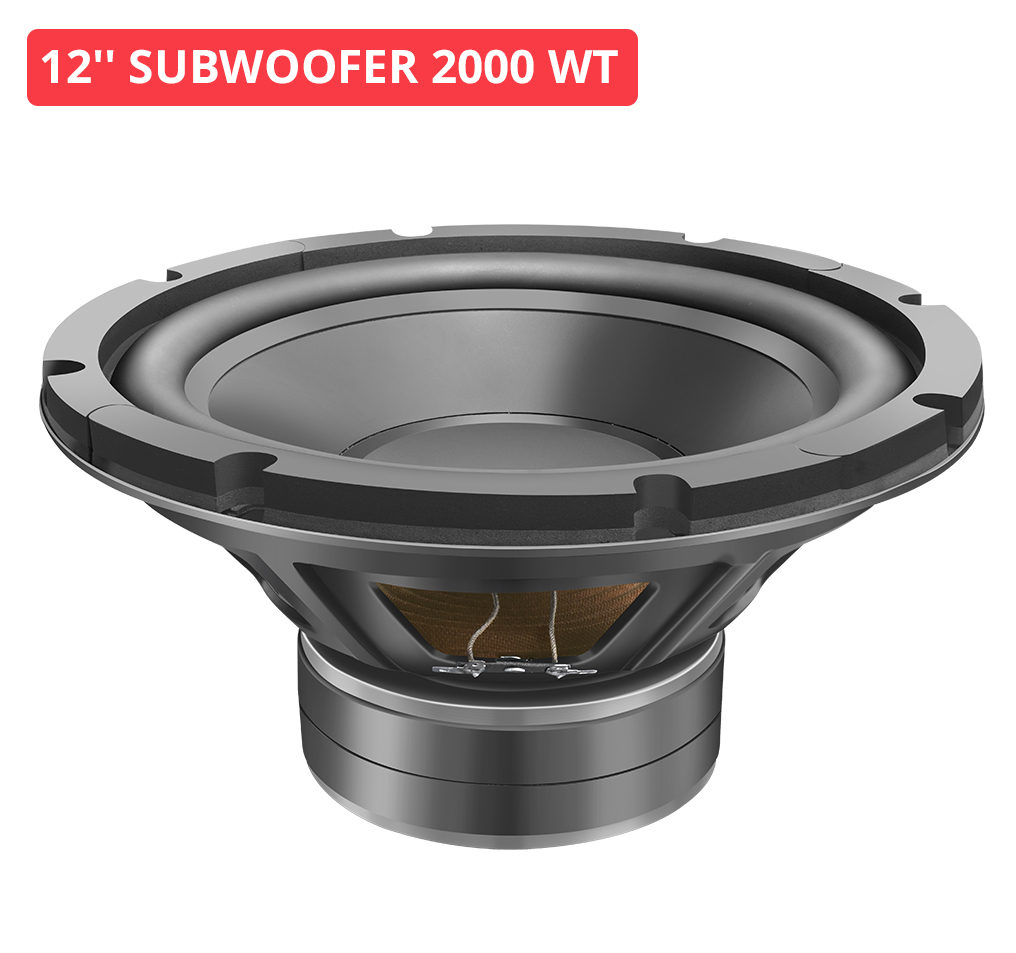

12'' SUBWOOFER 2000 WT
Key Features
- Program Power : 2000 W PMPO
- Voice Coil Diameter : 49 mm
- Response : 38-2.5K Hz
- Sensitivity 1W/1M : 86 dB
- Nominal Diameter 320 mm
- Nominal Impedence 4.0 Ω
- Nominal Power Handling(AES) 500 W
- PMPO 2000 W
- Program Power 2000 W PMPO
- Sensitivity (1W/1m) 86 dB
- Frequency Range 38-2.5K Hz
- Magnet Material Ferrite
- Voice Coil Diameter 49 mm
- Winding Material COPPER
- Former Material KAPTON
- Winding Type Outside
- Resonant Frequency (FS) 38 Hz
- DC Resistance (Re) 3.5 Ω
- Electrical Q (Qes) 1.17
- Mechanical Q (Qms) 10.42
- Total Q (Qts) 1.05
- Compliance Equivalent Volume (vas) 53.35 Ltrs
- Peak Diaphragm Displacement Volume (Vd) 0.53 Ltrs
- Effective Surface Area of Cone (Sd) 506.7 cm^2
- Reference Efficiency (ƞo) 0.24%
- Moving Mass including air load (Mms) 117.49 gms
- Motor Strength (Bl) 9.18 T-m
- Voice Coil Inductance @ 1 KHz (Le) 1.02 mH
- Efficiency Bandwith Product (EBP) 32 Hz
- Voice Coil Overhang (Xmax) 10.5 ± mm
- Overall Diameter 320 mm
- Baffle Cutout Diameter 282 mm
- Depth 144 mm
- Flange and Gasket Thickness 18 mm
- Gross Weight 8.34 Kgs
- Recone Kit Number RECSUB122000
