4 Ω

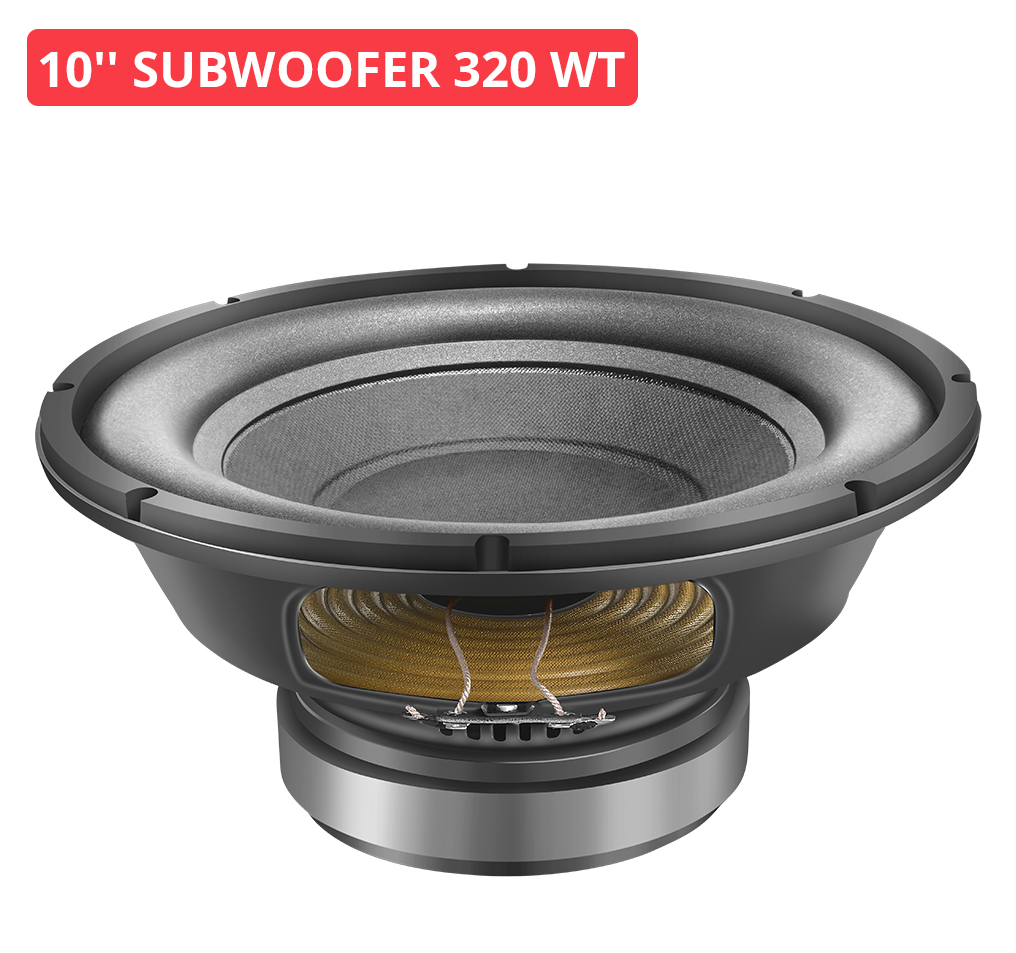

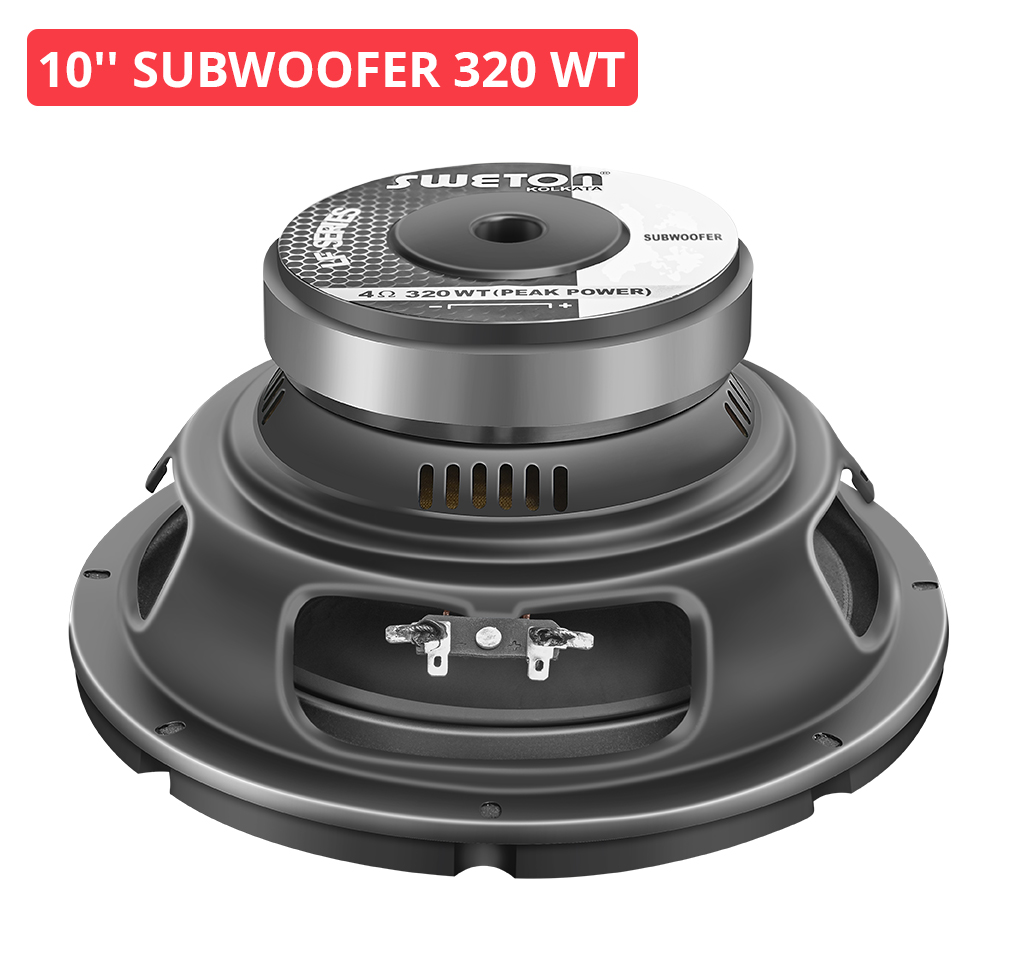

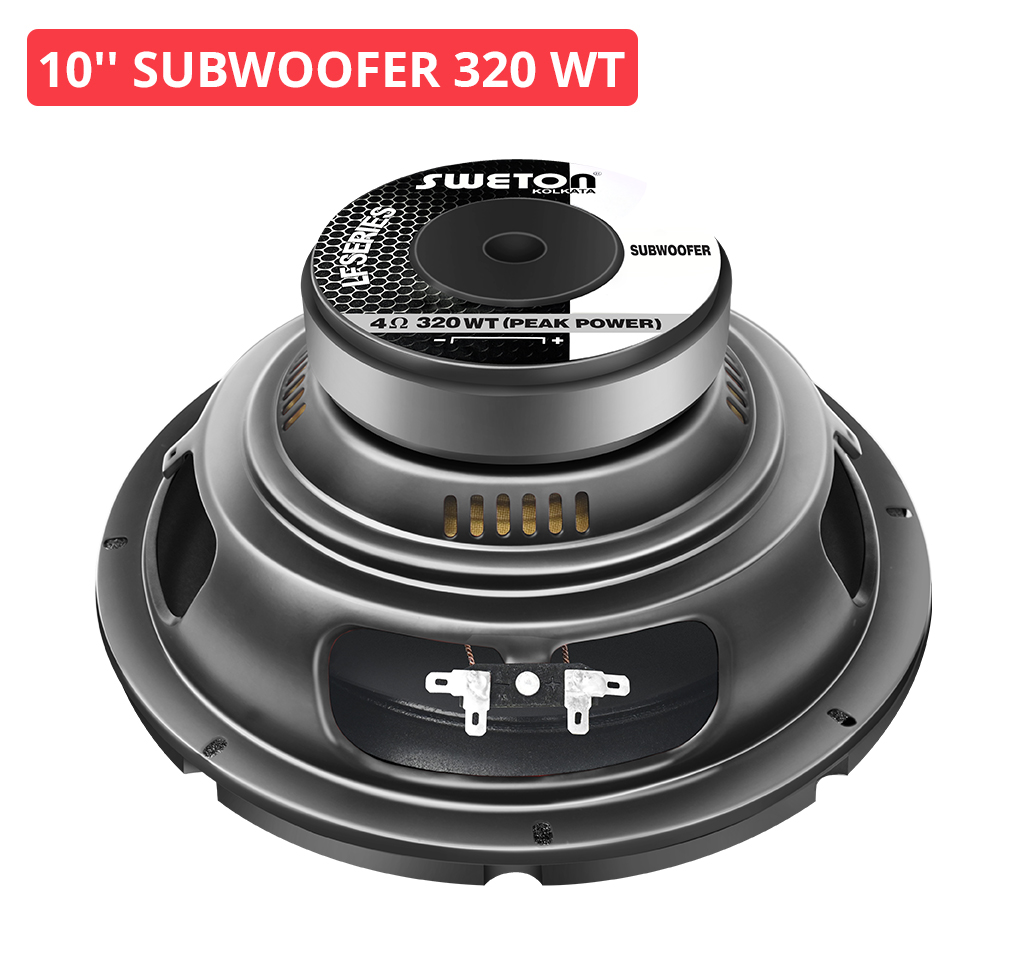

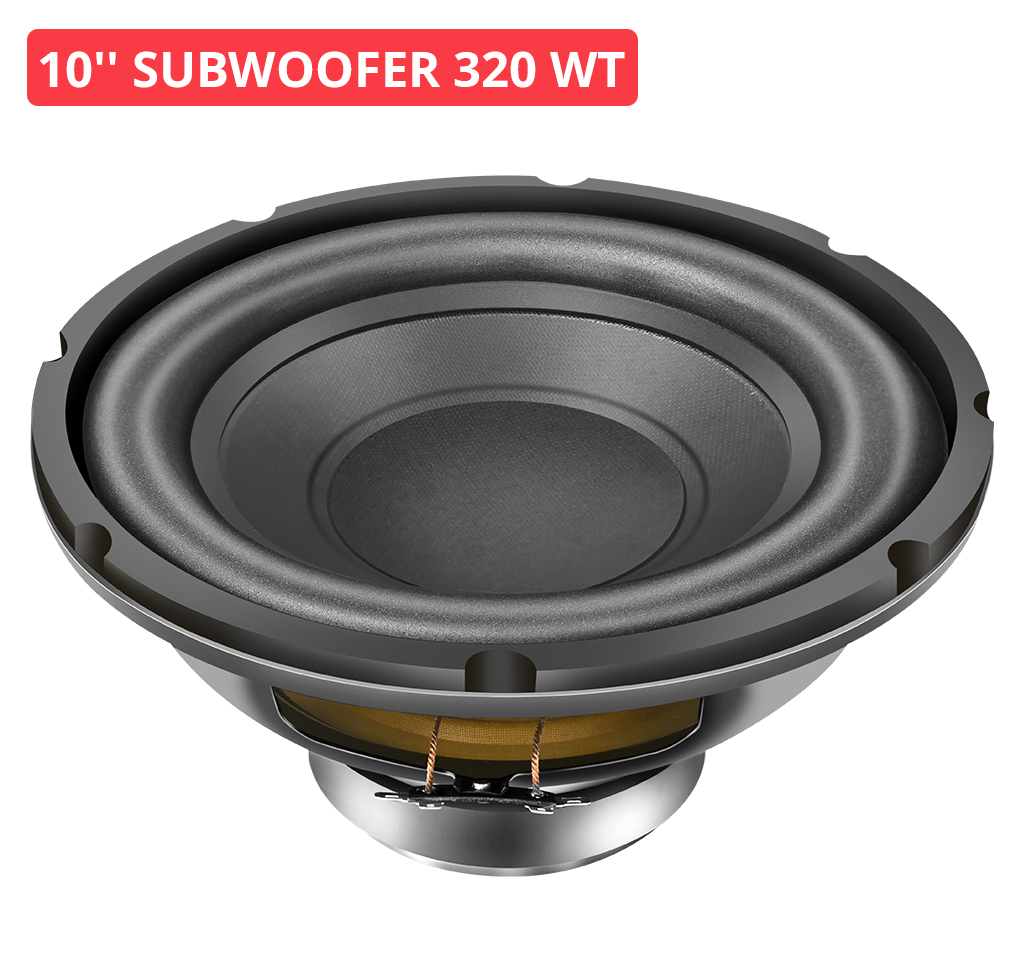

10'' SUBWOOFER 320 WT
Key Features
- Program Power : 160 W
- Voice Coil Diameter : 44 mm
- Response : 45-4K Hz
- Sensitivity 1W/1M : 85 dB
- Nominal Diameter 255 mm
- Nominal Impedence 4.0 Ω
- Nominal Power Handling(AES) 80 W
- PMPO 320 W
- Sensitivity (1W/1m) 85 dB
- Frequency Range 45-4K Hz
- Magnet Material Ferrite
- Voice Coil Diameter 44 mm
- Winding Material COPPER
- Former Material KAPTON
- Winding Type Outside
- Resonant Frequency (FS) 45 Hz
- DC Resistance (Re) 3.5 Ω
- Electrical Q (Qes) 1.43
- Mechanical Q (Qms) 9.27
- Total Q (Qts) 1.24
- Compliance Equivalent Volume (vas) 33.40 Ltrs
- Peak Diaphragm Displacement Volume (Vd) 1.73 Ltrs
- Effective Surface Area of Cone (Sd) 346 cm^2
- Reference Efficiency (ƞo) 0.20%
- Moving Mass including air load (Mms) 63.95 gms
- Motor Strength (Bl) 6.61 T-m
- Voice Coil Inductance @ 1 KHz (Le) 0.66 mH
- Efficiency Bandwith Product (EBP) 31 Hz
- Voice Coil Overhang (Xmax) 5.0 ± mm
- Overall Diameter 255 mm
- Baffle Cutout Diameter 228 mm
- Depth 106 mm
- Flange and Gasket Thickness 18 mm
- Gross Weight 3.08 Kgs
- Recone Kit Number RECSUB10320
