4.0 Ω

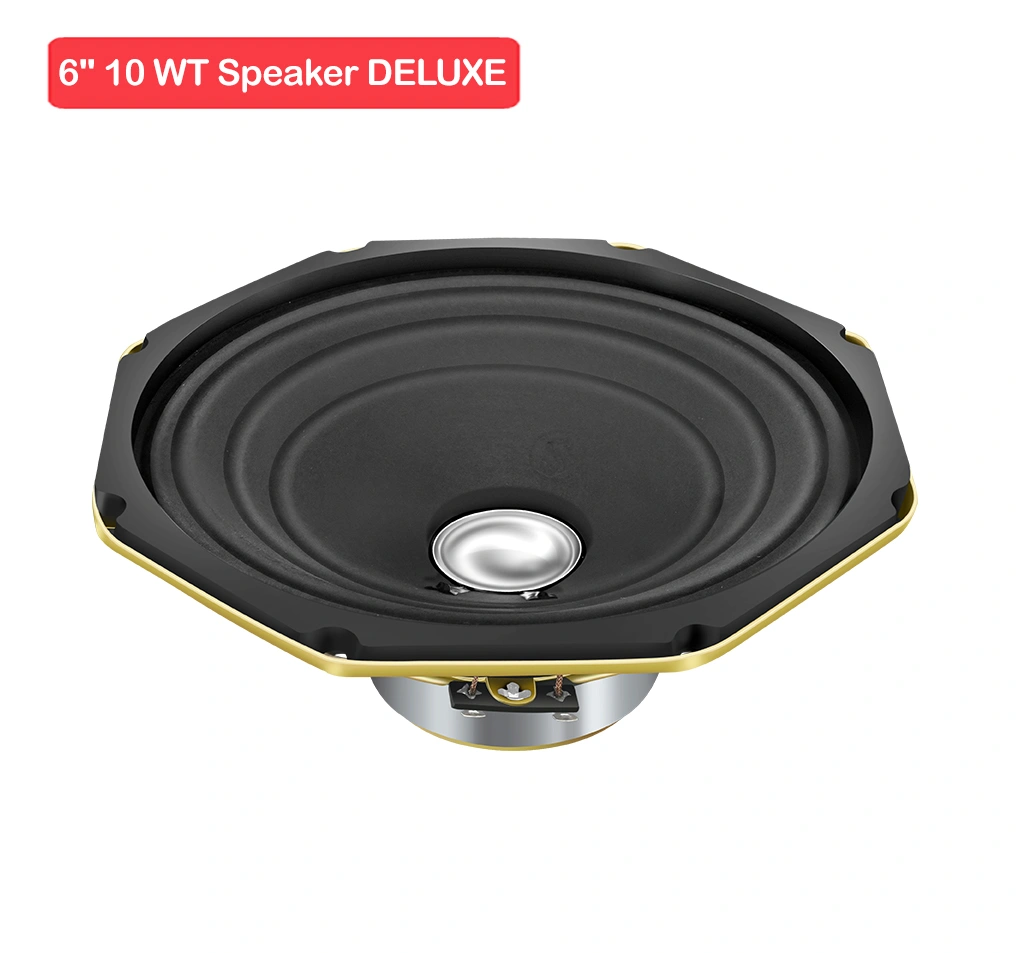

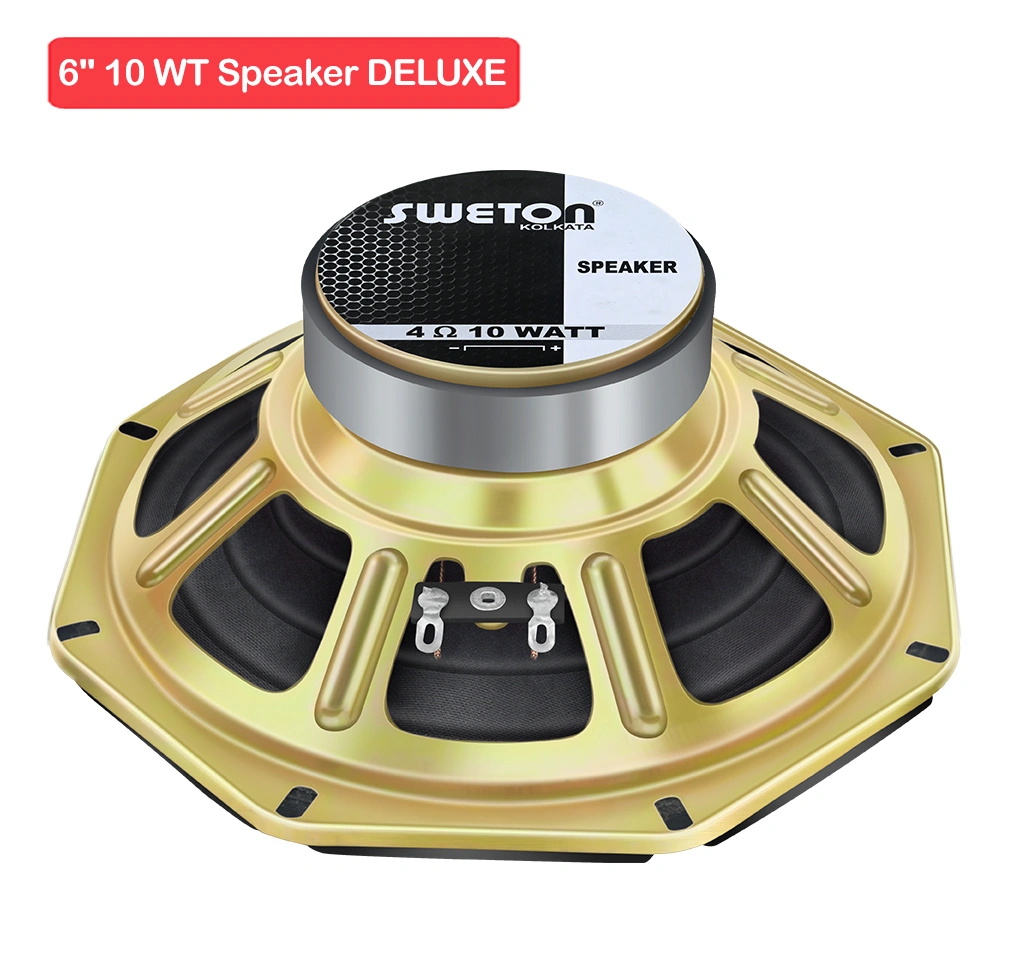

SPEAKER 6” 10 WT
Key Features
- Program Power : 20 W
- Voice Coil Diameter : 19.1 mm
- Response : 143-12K Hz
- Sensitivity 1W/1M : 92 dB
- Nominal Diameter 167 mm
- Nominal Impedence 4.0 Ω
- Nominal Power Handling(AES) 10 W
- Continous Power Handling (AES) 20 W
- Sensitivity (1W/1m) 92 dB

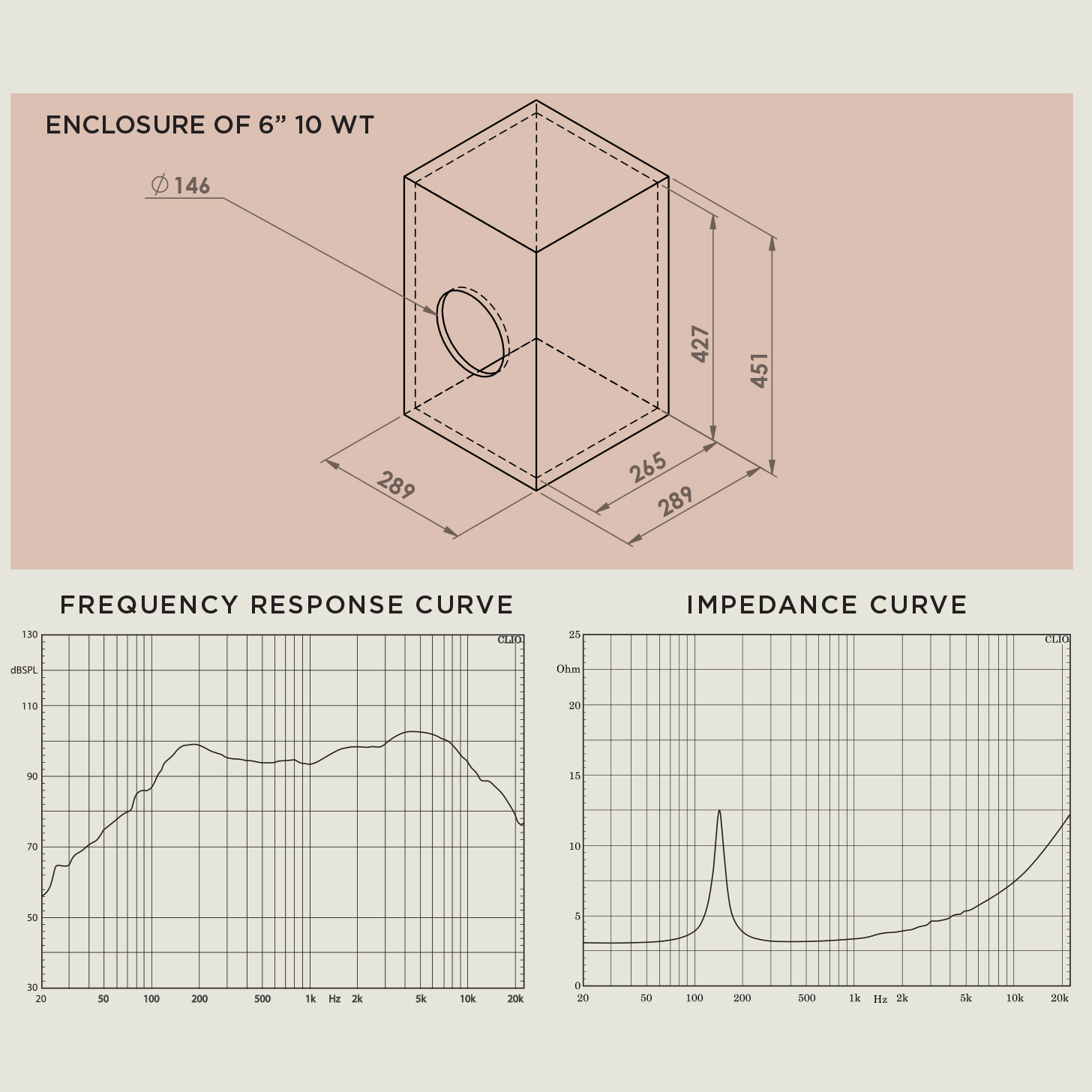

- Frequency Range 143-12K Hz
- Magnet Material Ferrite
- Voice Coil Diameter 19.1 mm
- Winding Material COPPER
- Former Material S V coated Kraft
- Winding Type Outside
- Resonant Frequency (FS) 143 Hz
- DC Resistance (Re) 3.2 Ω
- Electrical Q (Qes) 2.5
- Mechanical Q (Qms) 7.27
- Total Q (Qts) 1.86
- Compliance Equivalent Volume (vas) 7.92 Ltrs
- Peak Diaphragm Displacement Volume (Vd) 0.02 Ltrs
- Effective Surface Area of Cone (Sd) 136 cm^2
- Reference Efficiency (ƞo) 0.88%
- Moving Mass including air load (Mms) 4.11 gms
- Motor Strength (Bl) 2.17 T-m
- Voice Coil Inductance @ 1 KHz (Le) 0.12 mH
- Efficiency Bandwith Product (EBP) 57 Hz
- Voice Coil Overhang (Xmax) ±1.63 mm
- Overall Diameter 167 mm
- Baffle Cutout Diameter 146 mm
- Depth 64.5 mm
- Flange and Gasket Thickness 7.5 mm
- Recone Kit Number REC6INCH10W
