4 Ω

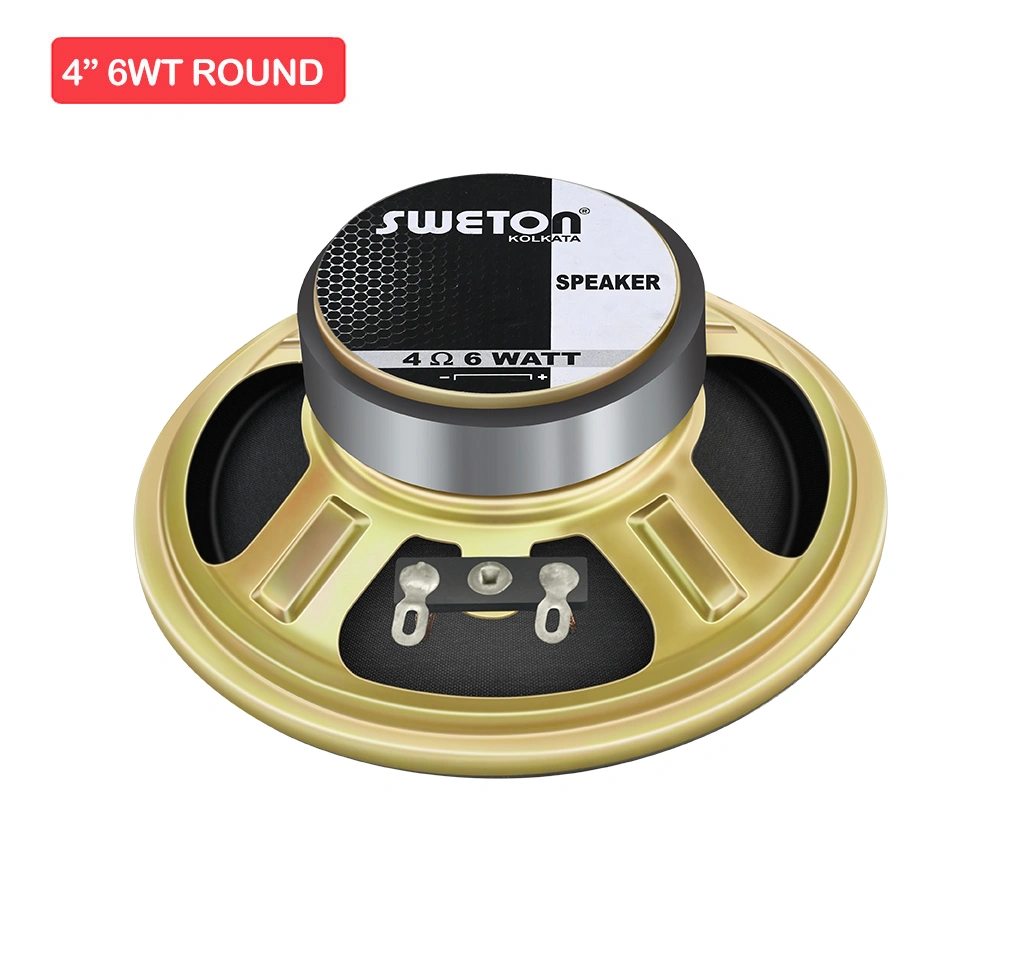

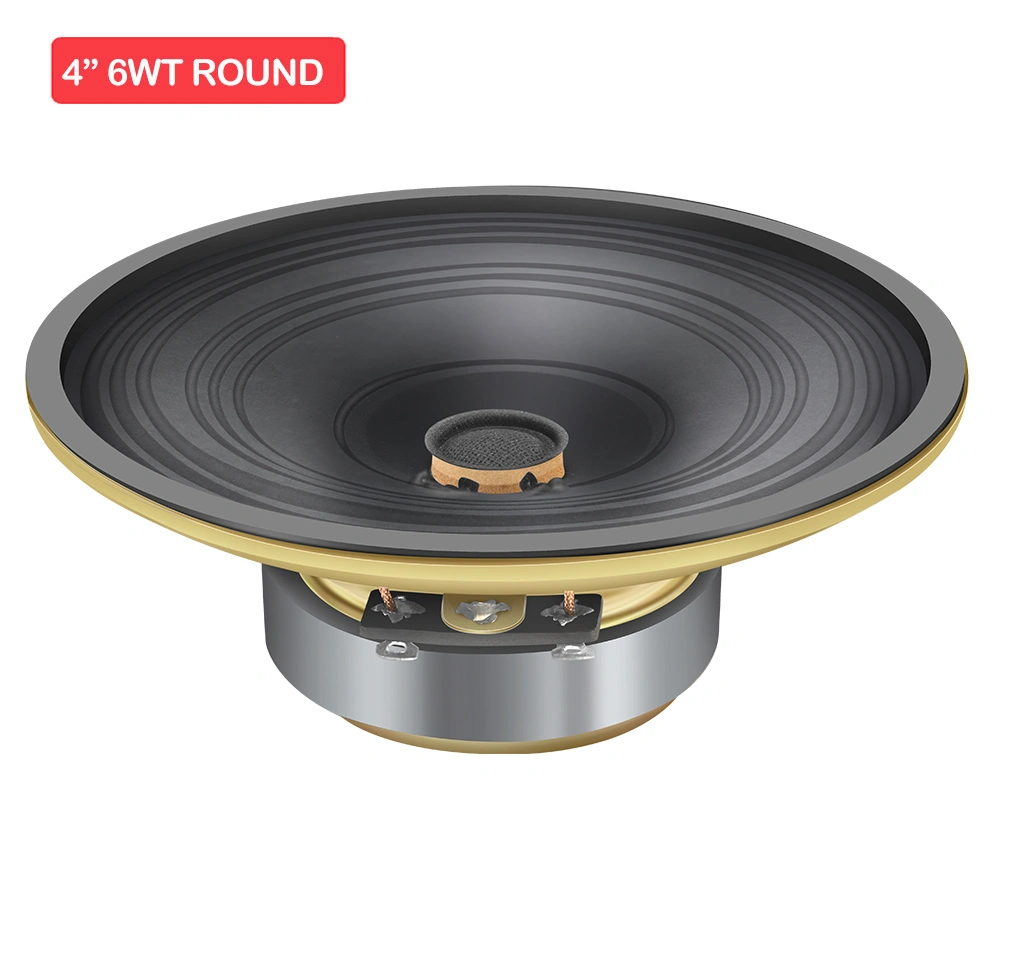

SPEAKER 4” 6 WT - TAPE
Key Features
- Program Power : 12 W
- Voice Coil Diameter : 14.46 mm
- Response : 219-18K Hz
- Sensitivity 1W/1M : 91 dB
- Nominal Diameter 103 mm
- Nominal Impedence 4 Ω
- Nominal Power Handling(AES) 6 W
- Program Power 12 W
- Sensitivity (1W/1m) 91 dB
- Frequency Range 219-18K Hz
- Magnet Material Ferrite
- Voice Coil Diameter 14.46 mm
- Winding Material COPPER
- Former Material SV COATED KRAFT
- Winding Type Outside
- Resonant Frequency (FS) 219 Hz
- DC Resistance (Re) 3.7 Ω
- Electrical Q (Qes) 2.24
- Mechanical Q (Qms) 18.22
- Total Q (Qts) 1.99
- Compliance Equivalent Volume (vas) 1.78 Ltrs
- Peak Diaphragm Displacement Volume (Vd) 0.09 Ltrs
- Effective Surface Area of Cone (Sd) 59.45 cm^2
- Reference Efficiency (ƞo) 0.81%
- Moving Mass including air load (Mms) 1.46 gms
- Motor Strength (Bl) 1.82 T-m
- Voice Coil Inductance @ 1 KHz (Le) 0.08 mH
- Efficiency Bandwith Product (EBP) 98 Hz
- Voice Coil Overhang (Xmax) ±1.43 mm
- Overall Diameter 103 mm
- Baffle Cutout Diameter 95 mm
- Depth 40 mm
- Flange and Gasket Thickness 4 mm
- Recone Kit Number REC4INCHR
