4 Ω

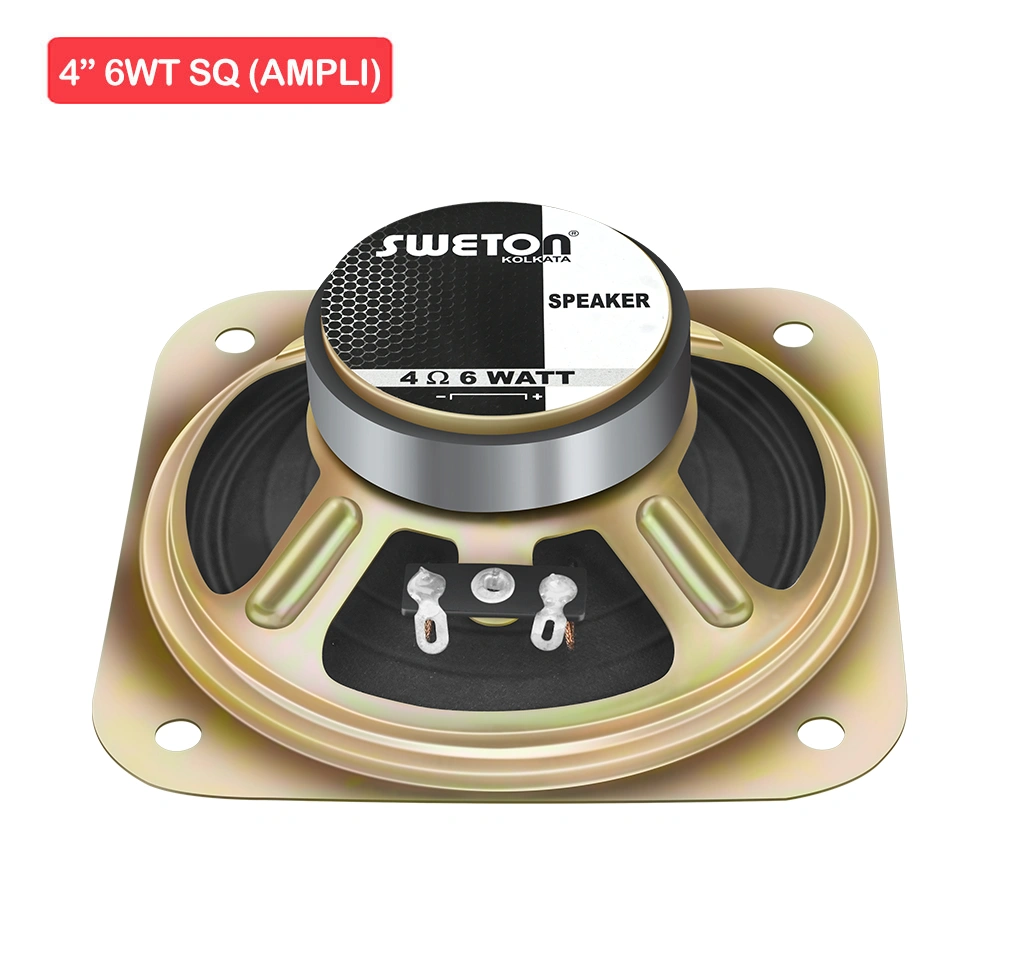

SPEAKER 4” 6 WT - AMPLI
Key Features
- Program Power : 12 W
- Voice Coil Diameter : 14.46 mm
- Response : 262-20K Hz
- Sensitivity 1W/1M : 91 dB
- Nominal Diameter 110.5 mm
- Nominal Impedence 4 Ω
- Nominal Power Handling(AES) 6 W
- Program Power 12 W
- Sensitivity (1W/1m) 91 dB
- Frequency Range 262-20K Hz
- Magnet Material Ferrite
- Voice Coil Diameter 14.46 mm
- Winding Material COPPER
- Former Material SV COATED KRAFT
- Winding Type Outside
- Resonant Frequency (FS) 262 Hz
- DC Resistance (Re) 3.5 Ω
- Electrical Q (Qes) 2.75
- Mechanical Q (Qms) 7.53
- Total Q (Qts) 2.01
- Compliance Equivalent Volume (vas) 1.24 Ltrs
- Peak Diaphragm Displacement Volume (Vd) 0.01 Ltrs
- Effective Surface Area of Cone (Sd) 63.63 cm^2
- Reference Efficiency (ƞo) 0.77%
- Moving Mass including air load (Mms) 1.69 gms
- Motor Strength (Bl) 1.88 T-m
- Voice Coil Inductance @ 1 KHz (Le) 0.09 mH
- Efficiency Bandwith Product (EBP) 95 Hz
- Voice Coil Overhang (Xmax) ±1.50 mm
- Overall Diameter 110.5 mm
- Baffle Cutout Diameter 97 mm
- Depth 42 mm
- Flange and Gasket Thickness 4 mm
- Recone Kit Number REC4INCHAMP
