8.0 Ω

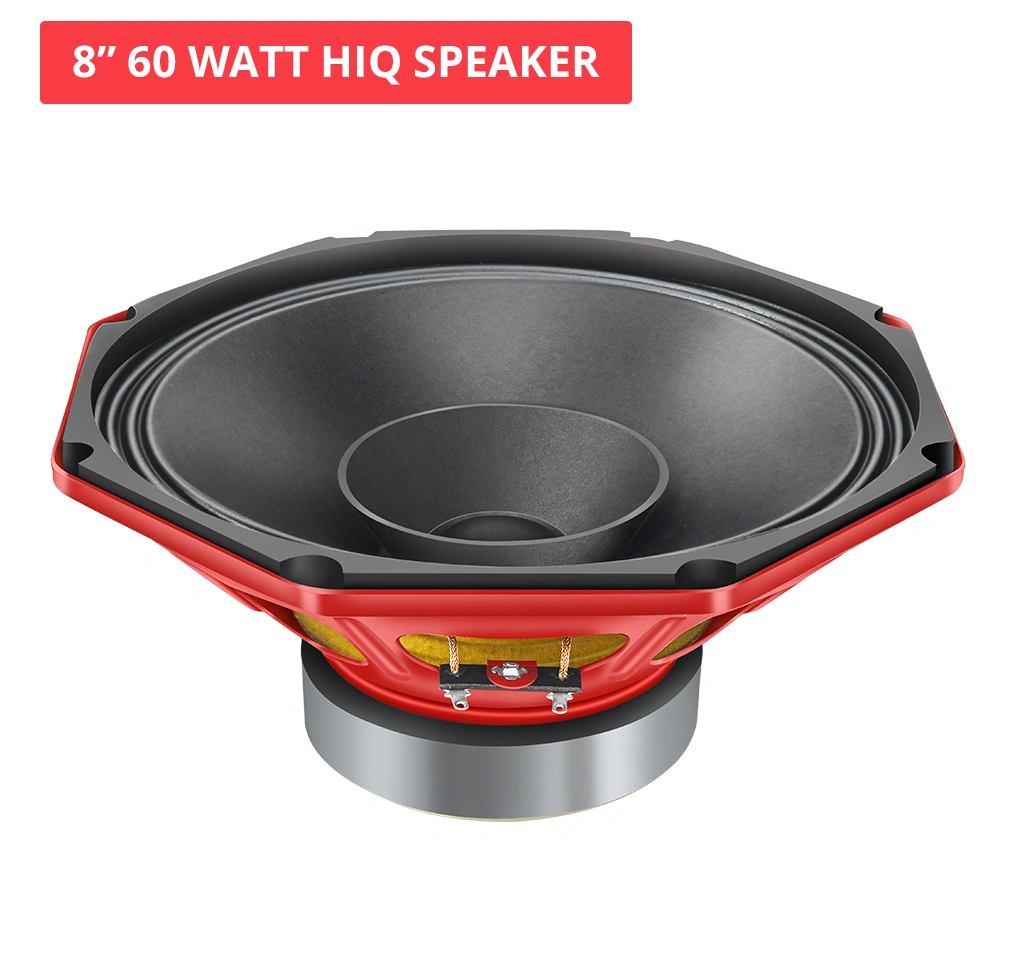

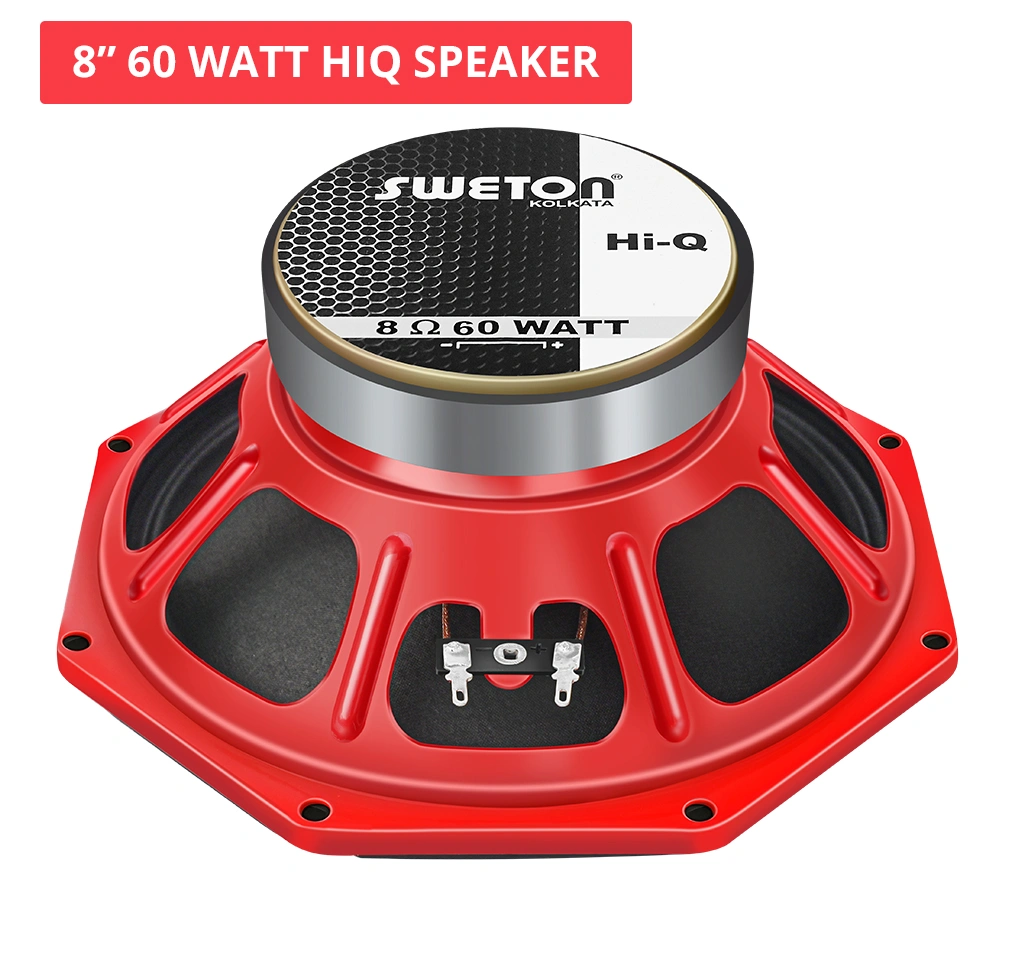

8”60 WT Hi Q SPEAKER
Key Features
- Program Power : 120 W
- Voice Coil Diameter : 25.40 mm

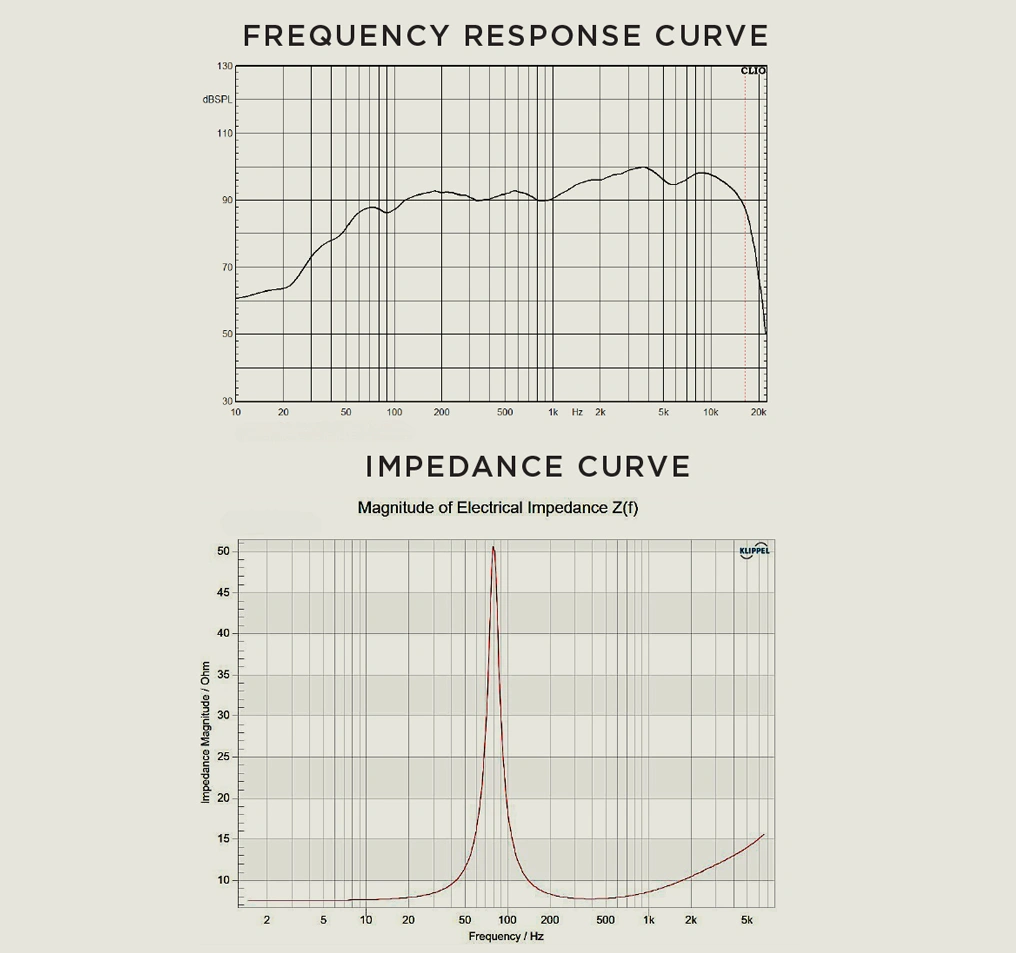

- Response : 80-16.5K Hz
- Sensitivity 1W/1M : 93 dB
- Nominal Diameter 217 mm
- Nominal Impedence 8.0 Ω
- Nominal Power Handling(AES) 60 W
- Program Power 120 W
- Sensitivity (1W/1m) 93 dB
- Frequency Range 80-16.5 KHz
- Magnet Material Ferrite
- Voice Coil Diameter 25.40 mm
- Winding Material COPPER
- Former Material NOMEX
- Winding Type Outside
- Resonant Frequency (FS) 80 Hz
- DC Resistance (Re) 7.57 Ω
- Electrical Q (Qes) 1.06
- Mechanical Q (Qms) 6.07
- Total Q (Qts) 0.90
- Compliance Equivalent Volume (vas) 27.69 Ltrs
- Peak Diaphragm Displacement Volume (Vd) 0.034 Ltrs
- Effective Surface Area of Cone (Sd) 227 cm^2
- Reference Efficiency (ƞo) 1.29%
- Moving Mass including air load (Mms) 10.43 gms
- Motor Strength (Bl) 6.13 T-m
- Voice Coil Inductance @ 1 KHz (Le) 0.24 mH
- Efficiency Bandwith Product (EBP) 75 Hz
- Voice Coil Overhang (Xmax) ±1.50 mm
- Overall Diameter 217 mm
- Baffle Cutout Diameter 192 mm
- Depth 80 mm
- Flange and Gasket Thickness 9 mm
- Gross Weight 1.24 Kgs
- Recone Kit Number REC8INCH60HiQ
