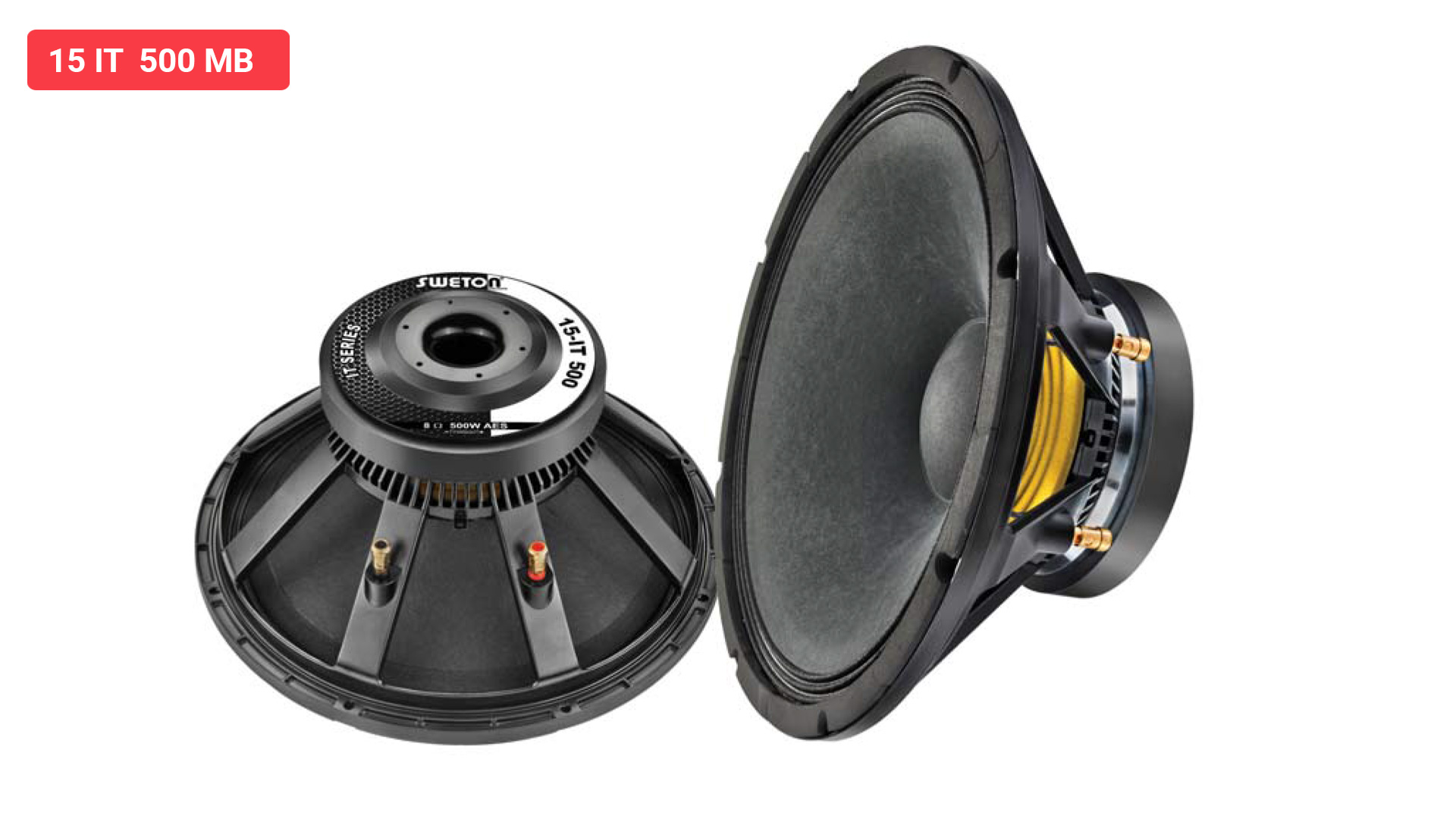

15 IT 500 MB

Key Features
Continuous Program Power 1000 w
Sensitivity 1W/1M 99 db
Voice Coil Diameter 76.2 mm

Specification

Nominal Diameter 387 mm
Nominal Impedance 8 Ω
Power Handling(AES) 500 w
Continuous Program Power 1000 w
Sensitivity I w/IM 99 db
Wire Material CCAR
Voice Coil Dia 76.2 mm
Winding Length 18 mm
Winding Type Outside
Voice Coil Former Glass Fibre
Mechanical Xmax 3 mm
Top Plate Thickness 12 mm
Baffle Cut 354 mm
Gross Weight 11 Kg

T/S Parameters

Fs 40Hz
Re 5 Ω
Qes 0.37
Qms 5.9
Qts 0.35
Vas 279 lt
Mms 91.4 g
Mmd 71 g
Bl 17.6 T-m
Le@1khz 0.7 mH
EPB 108 Hz
